TITANIA

Prilagodljiv do maksimalnih vrijednosti

  • Snjegobran „FINESSE“ crna glazirana

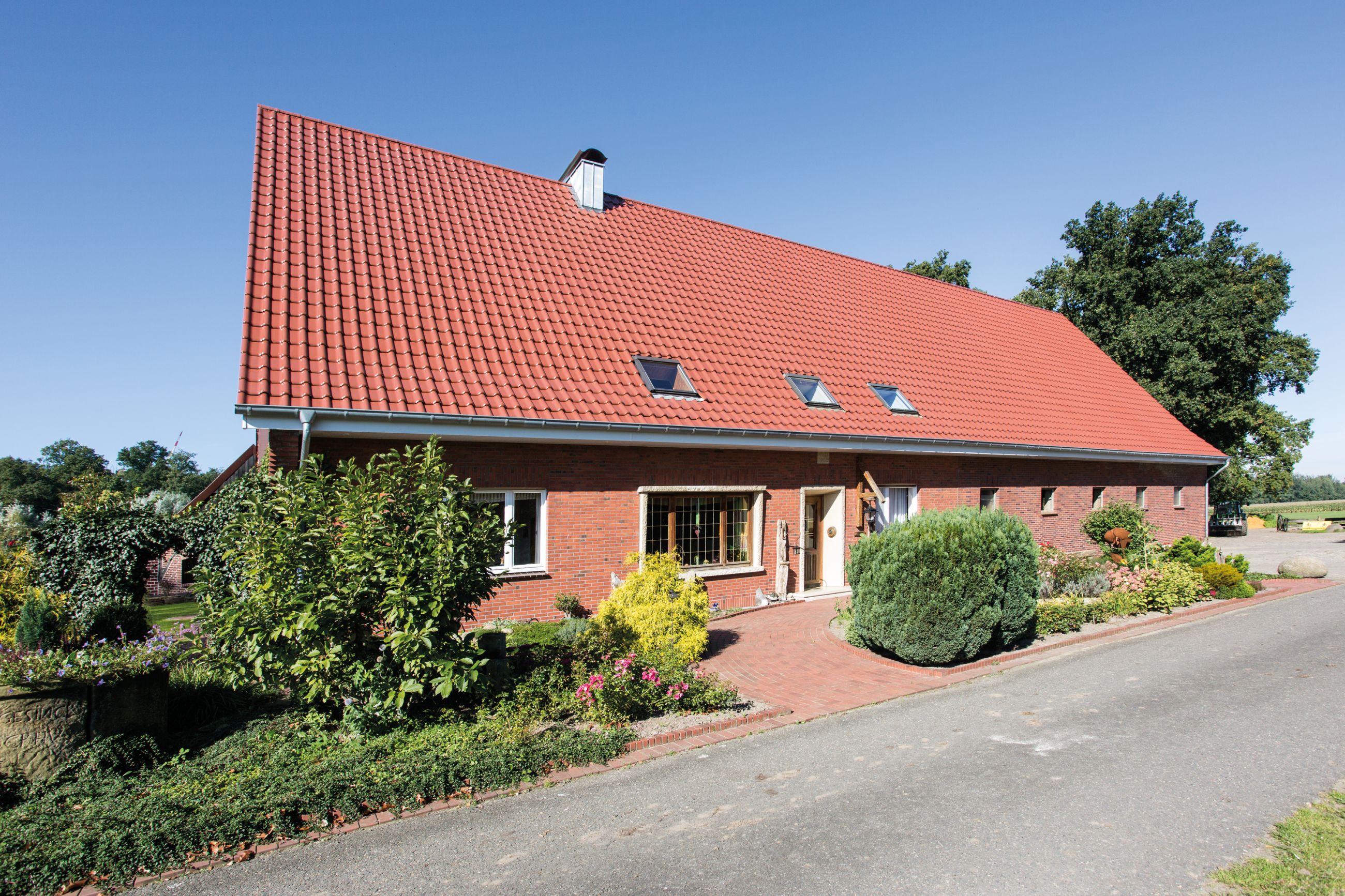

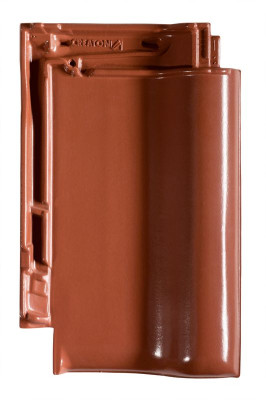

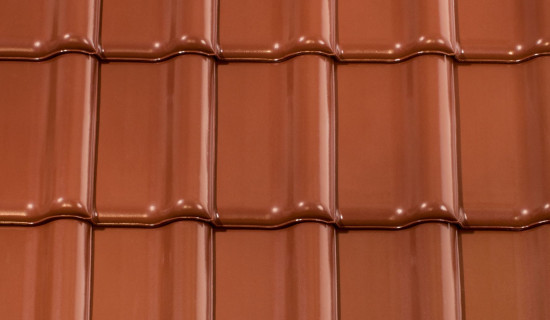

NUANCE bakreno crvena engobirana
NUANCE bakreno crvena engobirana
NUANCE boja škriljevca engobirana
NUANCE boja škriljevca engobirana

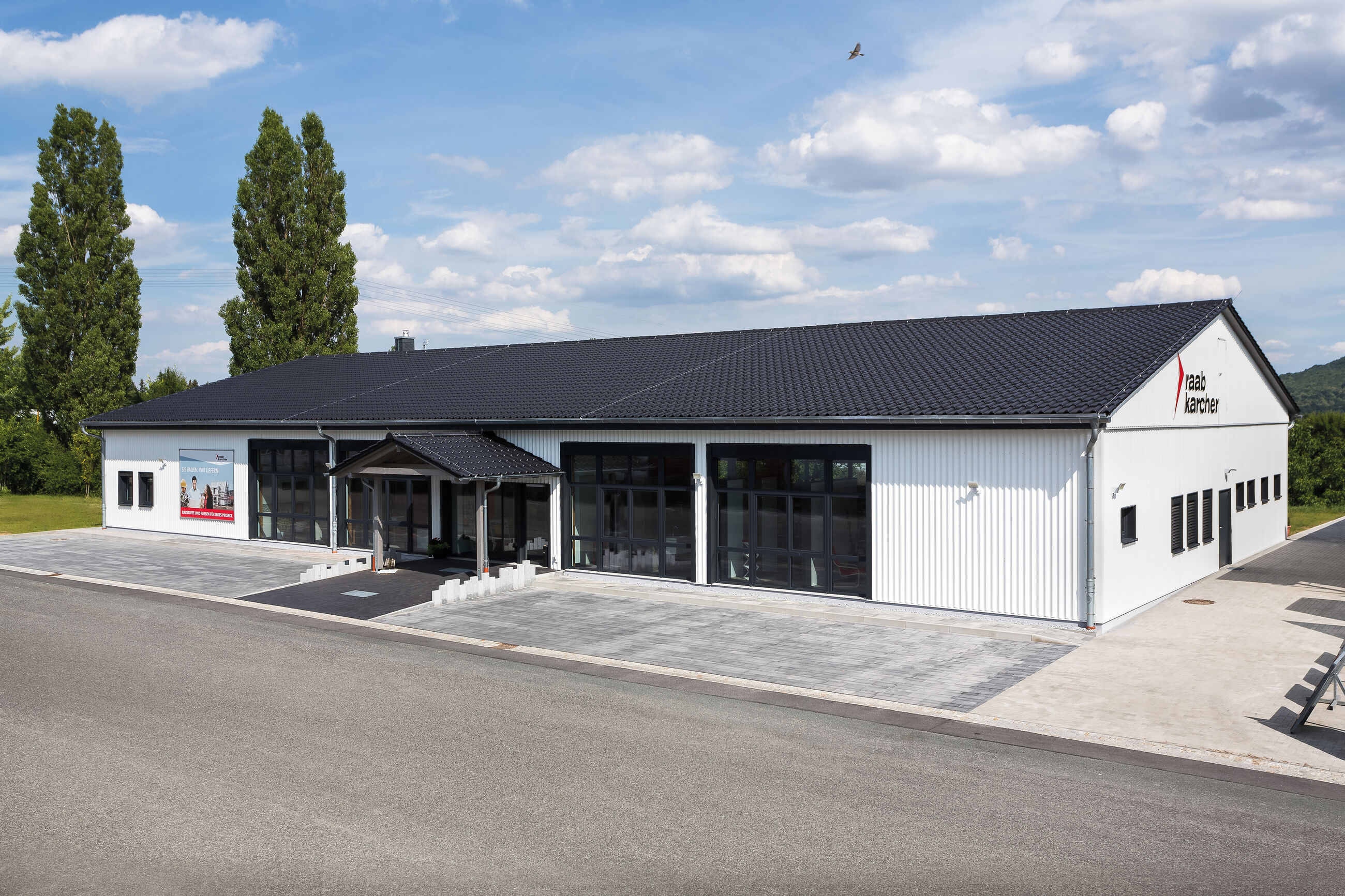

NUANCE crna mat engobirana
NUANCE crna mat engobirana
FINESSE boja škriljevca glazirana
FINESSE boja škriljevca glazirana
FINESSE crna glazirana
FINESSE crna glazirana
NOBLESSE smeđa glazirana
NOBLESSE smeđa glazirana

Technical data

Dimenzije(cca.)325 x 515 mm
Srednja pokrovna širina(cca.)262 mm
Maks.pokrovna širina(cca.)265 mm
Min.pokrovna širina(cca.)260 mm
Letvanje preporučeno(cca.)403 mm
Maks. letvanje(cca.)425 mm
Min.letvanje(cca.)382 mm
Utrošak crijepa prosječno(cca.)9.5 kom/m²
Maks.utrošak crijepa10.1 kom/m²
min. utrošak crijepa (cca.)9.0 kom/m²
Masa po m²(cca.)47.5 kg/m²
Masa palete(cca.)985 kg
Masa po komadu(cca.)5 kg/piece
Komada na paleti192 komad
BETON I VLAKNO CEMENT4 piece

Area of use

VALID FOR GERMANY
Nagib krova DUO extra (D)≥ 14 °
Nagib krova QUATTRO longlife extra (D)≥ 10 °
Nagib krova TRIO extra (D)≥ 12 °
Nagib krova DUO longlife ND extra (D)≥ 12 °
VALID FOR AUSTRIA
Nagib krova DUO longlife ND extra (A)≥ 17 °
Nagib krova DUO extra (A)≥ 17 °
Nagib krova QUATTRO longlife extra (A)≥ 15 °
Nagib krova TRIO extra (A)≥ 17 °

Technical informations

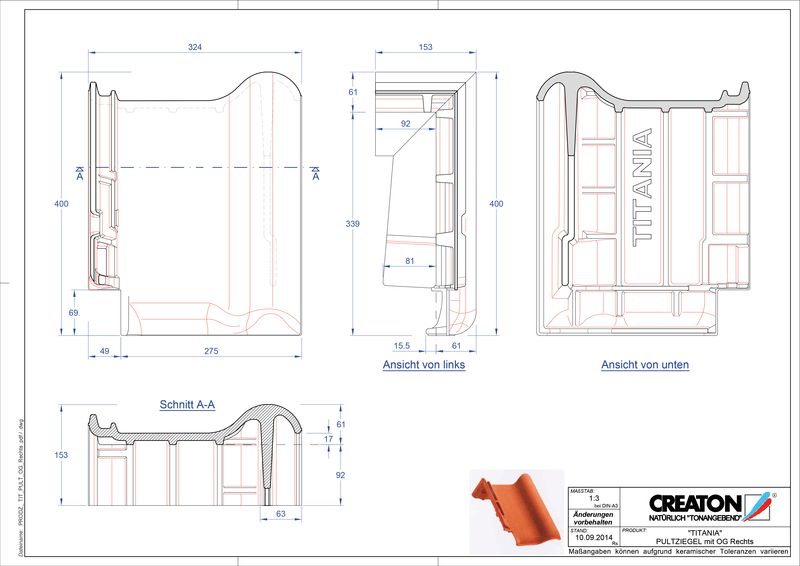

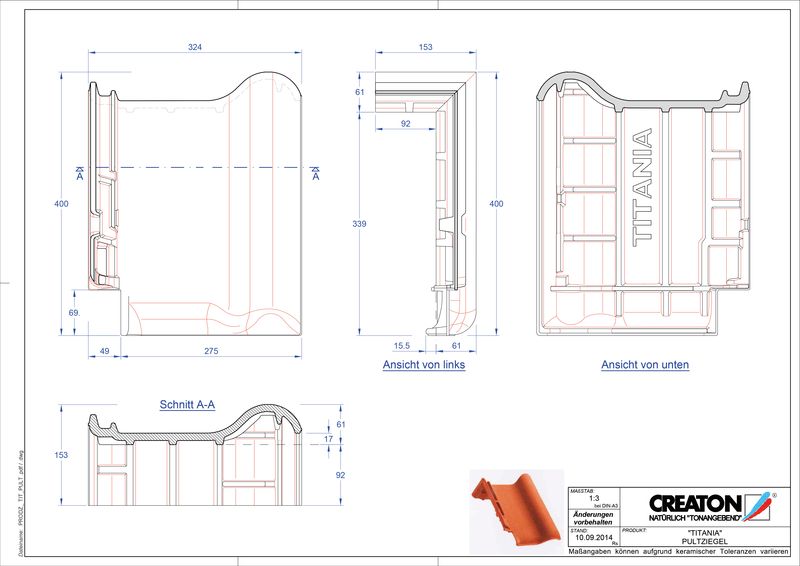

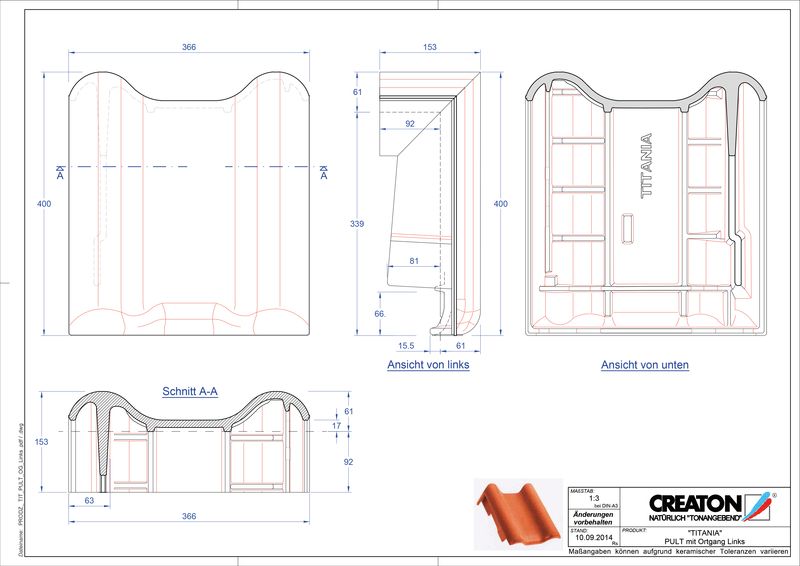

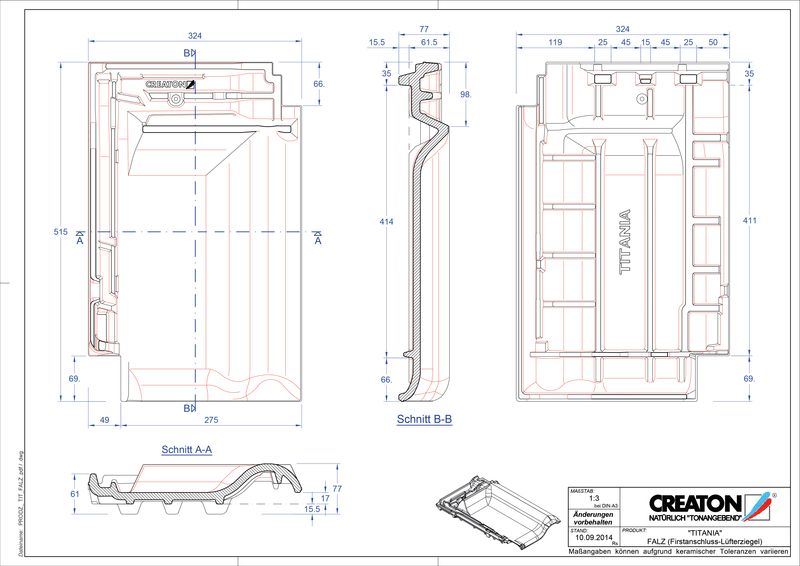

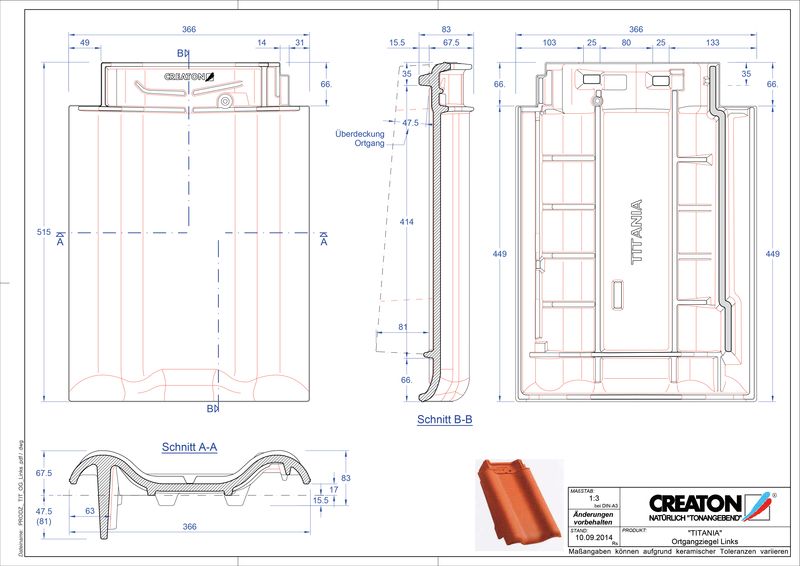

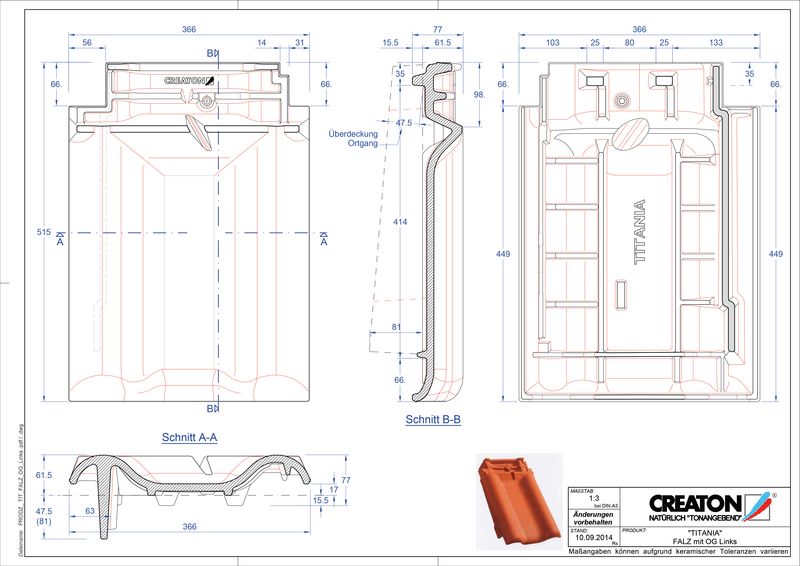

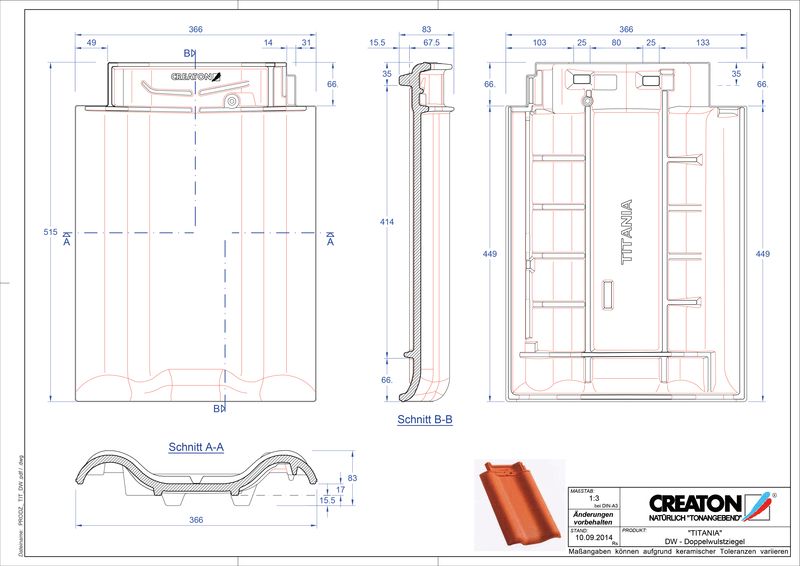

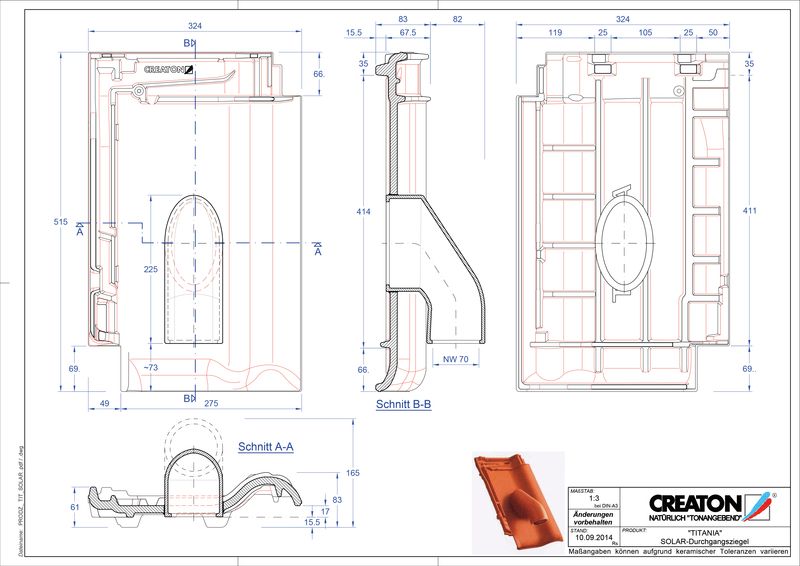

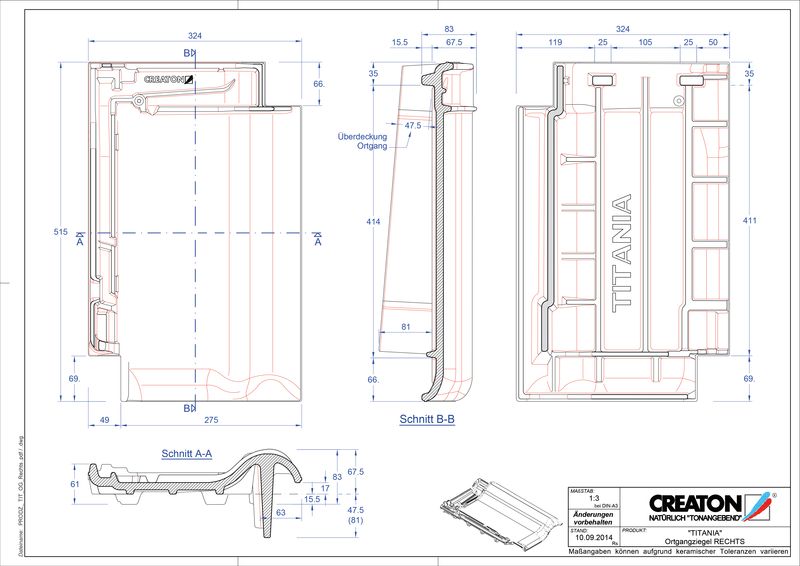

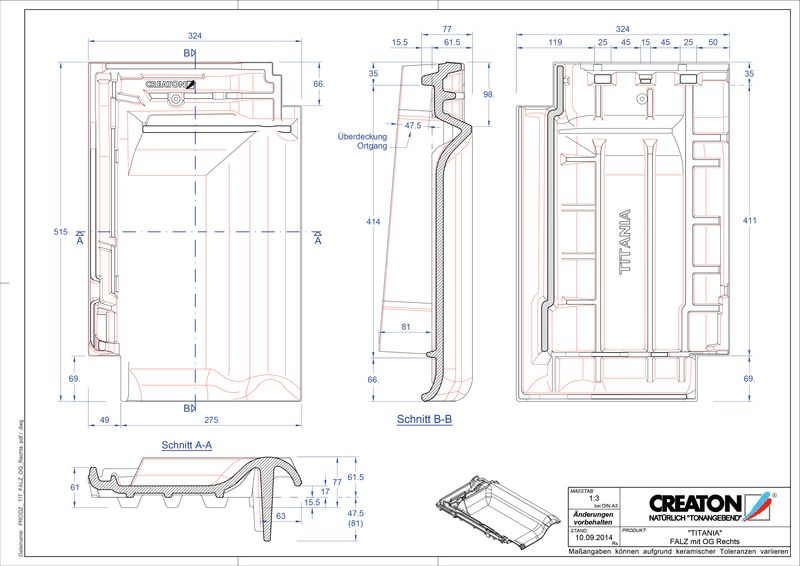

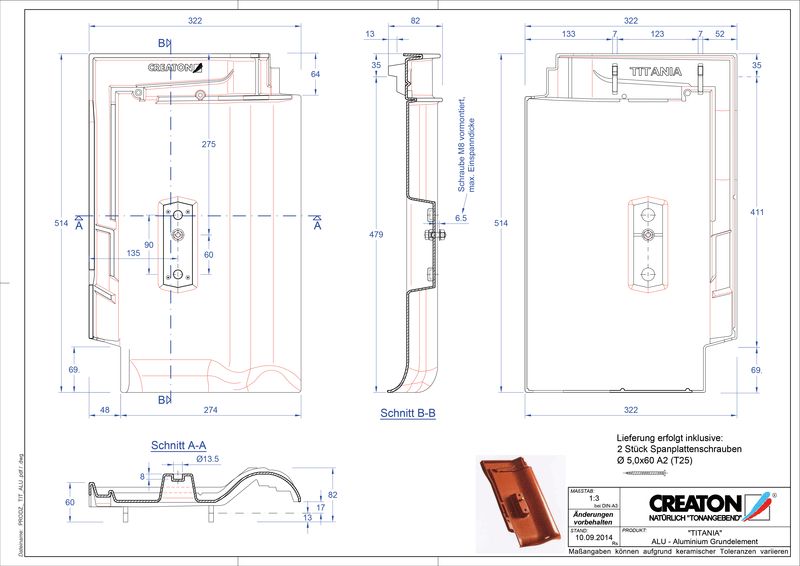

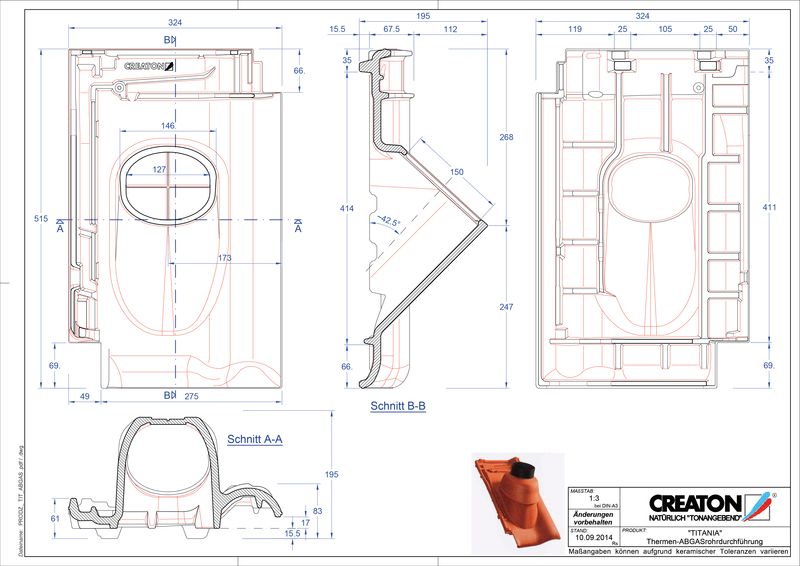

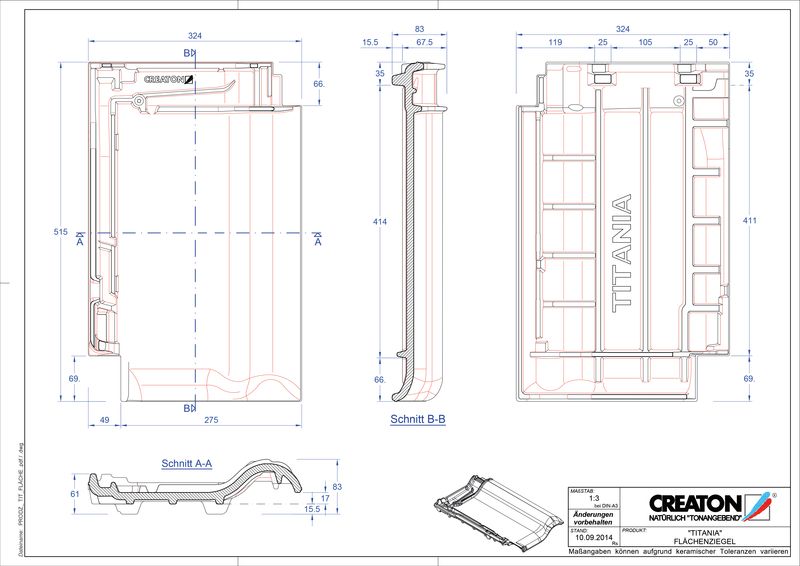

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.

LAF-/FLA-VALUES

LAF-/FLA VALUES IN MM FOR 30x50-BATTENS

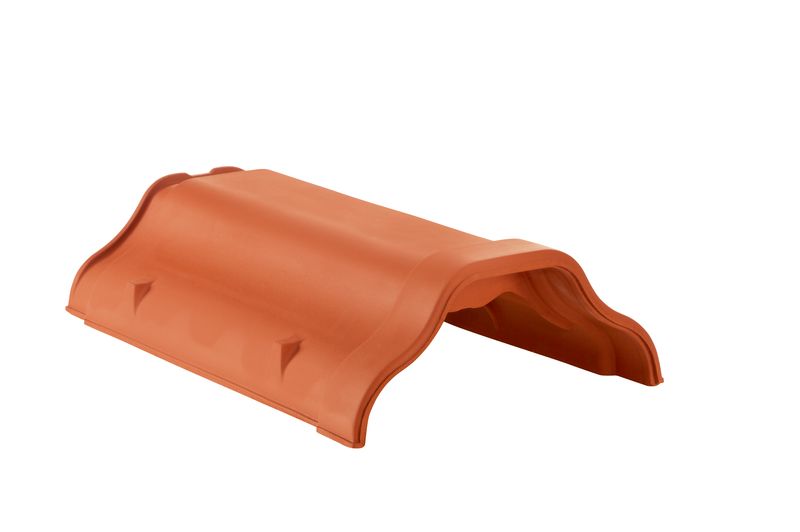

Ridge tileDN10°15°20°25°30°35°40°45°50°55°60°
PT 2.5 pcs./m.FLA1101101008070706555453530
PT 2.5 pcs./m.LAF9090909090858080807575
LAF-/FLA VALUES IN MM FOR 40x60-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°55°60°
PT 2.5 pcs./m.FLA1201201109080807565554540
PT 2.5 pcs./m.LAF9090908585807570656060
LAF-/FLA VALUES IN MM FOR 50x50-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°55°60°
PT 2.5 pcs./m.FLA13013012010090959080756570
PT 2.5 pcs./m.LAF8585858080706560555045
