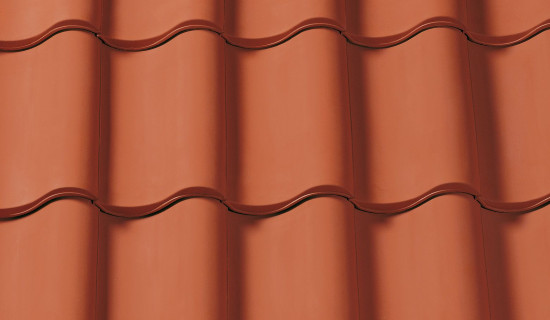

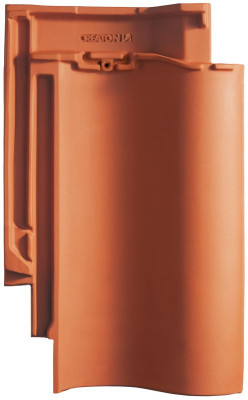

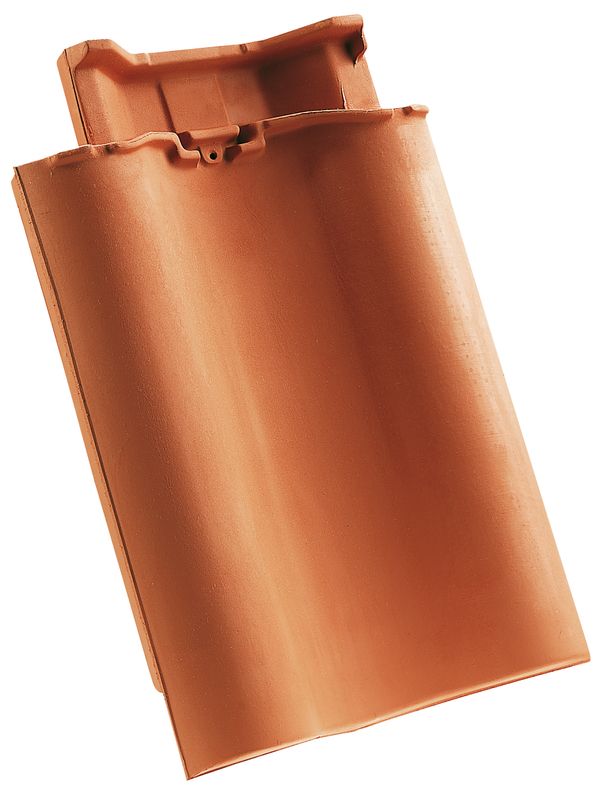

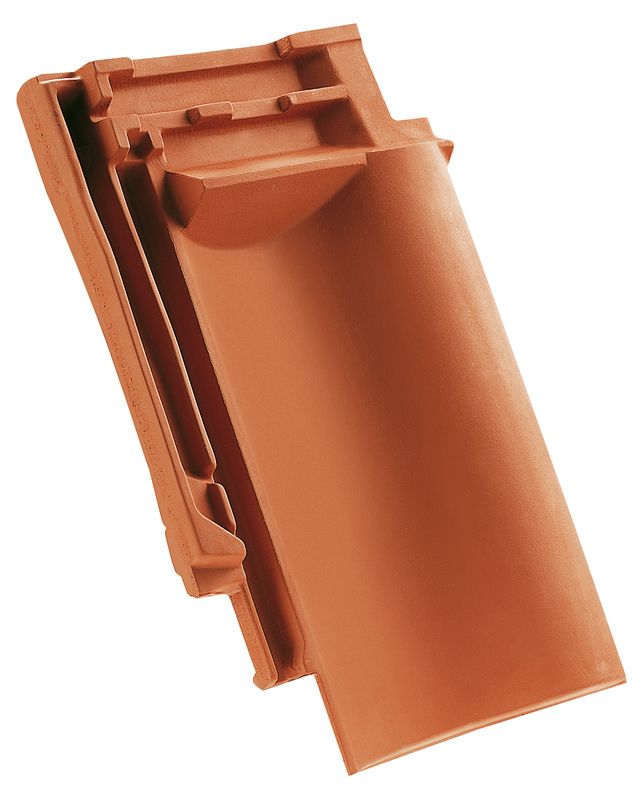

SINFONIE

Crijep visokih i niskih valova kao sinfonija

  • S nepropusnim potkrovljem pogodan i za ravne krovove s nagibom do 7°
  • Izuzetna fleksibilnost i pojednostavljeno polaganje zahvaljujući velikom području pomicanja od 29 mm
  • Usavršena tehnologija izrade žljebova osigurava visoku otpornost na olujno nevrijeme
  • Potporna rebra poboljšavaju statiku i odvod eventualne kondenzirane vode
  • Dva stabilna ovjesna nosa omogućuju sigurno držanje i pouzdano stražnje prozračivanje krovnih letvi
  • Optimalno odvođenje kišnice osiguravaju optimalni utori na gornjem i donjem dijelu. Optimalno ponašanje pri strujanju, sigurno provođenje vode i izvanredna nepropusnost omogućeni su dizajnom
prirodno crvena
prirodno crvena
NUANCE bakreno crvena engobirana
NUANCE bakreno crvena engobirana
NUANCE crna mat engobirana
NUANCE crna mat engobirana
FINESSE boja crnog vina glazirana
FINESSE boja crnog vina glazirana
FINESSE crna glazirana
FINESSE crna glazirana
NOBLESSE crna glazirana
NOBLESSE crna glazirana

Technical data

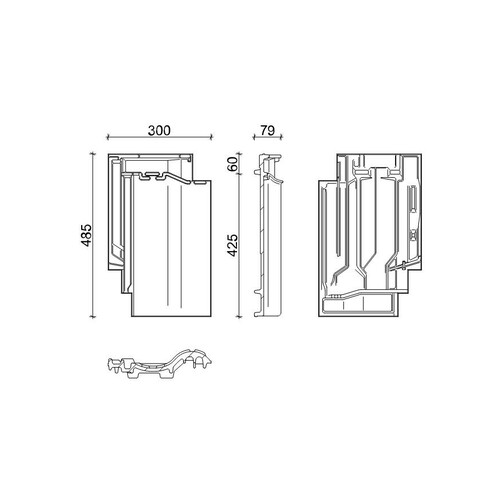

GROESSE1000155614 mm

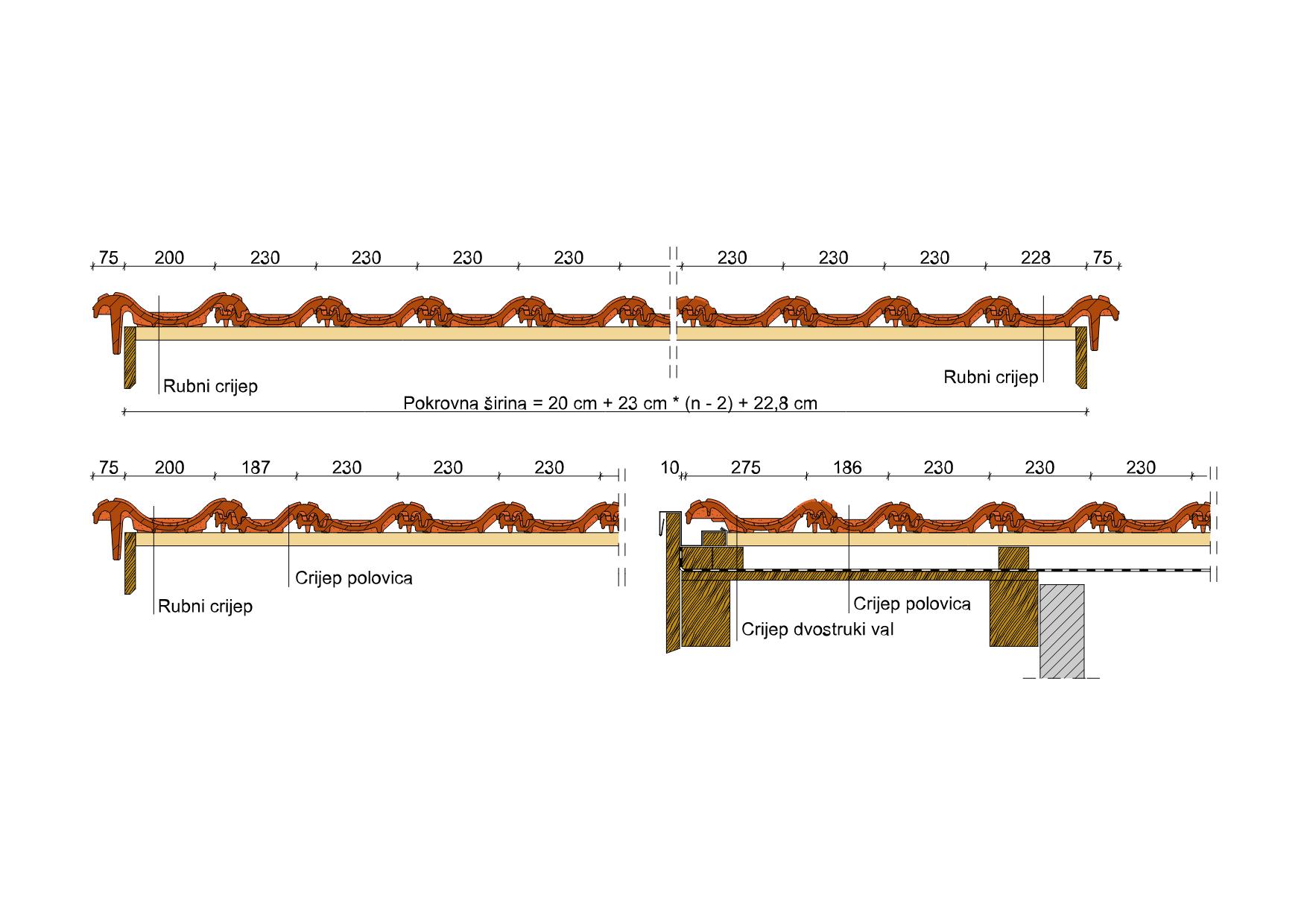

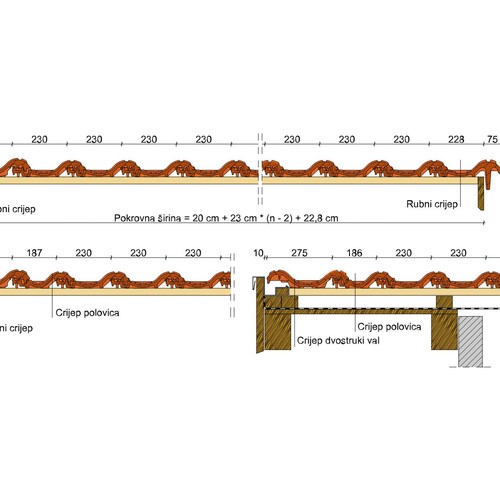

Srednja pokrovna širina(cca.)230 mm
Maks.pokrovna širina(cca.)232 mm
Min.pokrovna širina(cca.)228 mm

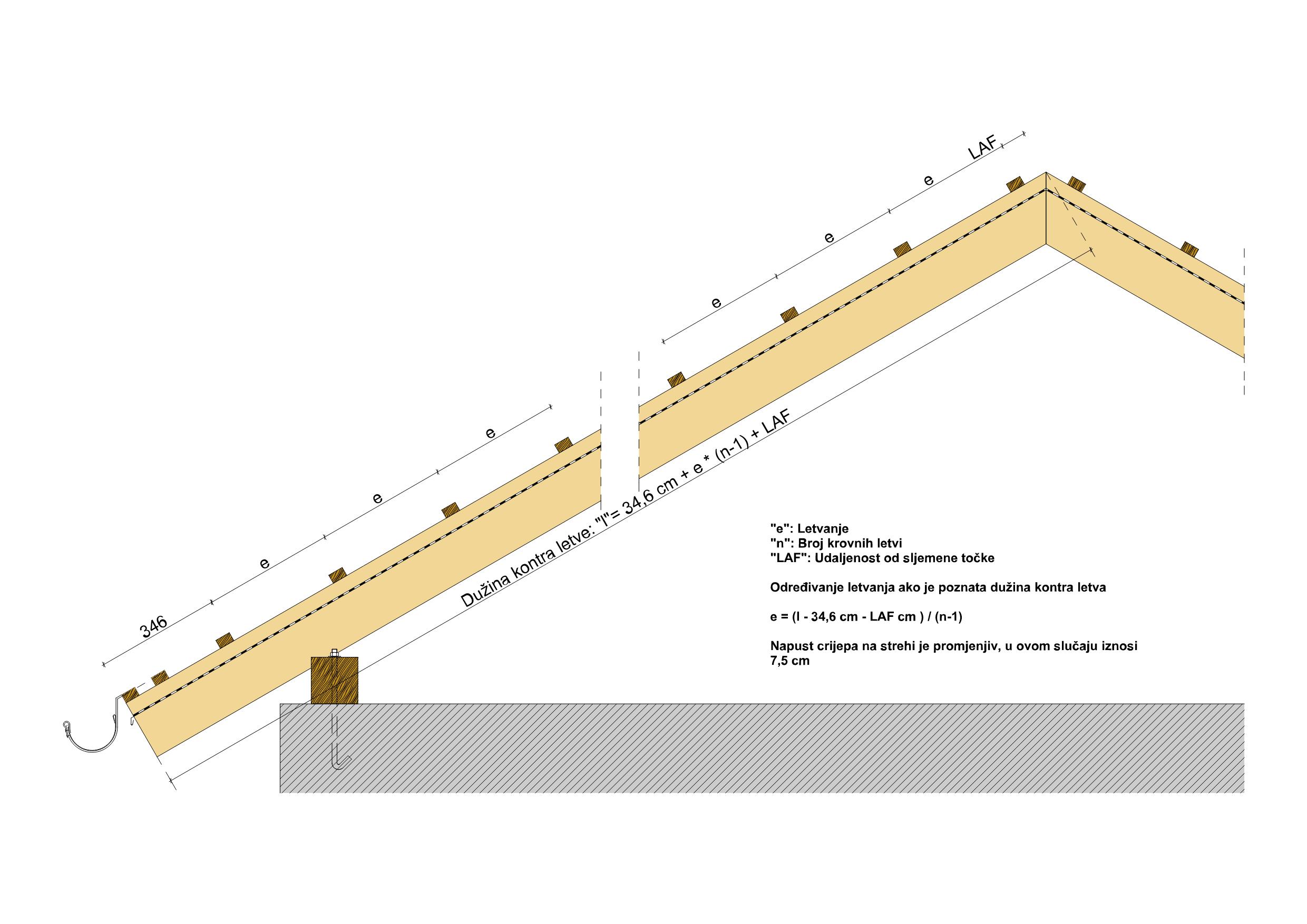

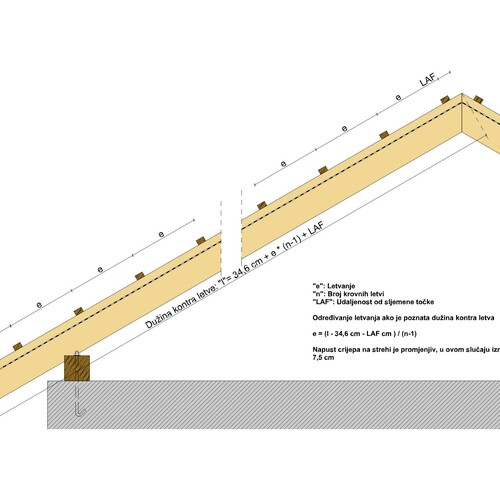

Letvanje preporučeno(cca.)375 mm
Maks. letvanje(cca.)389 mm
Min.letvanje(cca.)361 mm
Utrošak crijepa prosječno(cca.)11.5 kom/m²
Maks.utrošak crijepa12.2 kom/m²
min. utrošak crijepa (cca.)10.9 kom/m²
Masa po m²(cca.)52.9 kg/m²
Masa palete(cca.)945 kg
Masa po komadu(cca.)4.6 kg/piece
Komada na paleti200 komad
BETON I VLAKNO CEMENT5 piece

Applications

Valid for Germany
Nagib krova DUO extra (D)≥ 12 °
Nagib krova QUATTRO longlife extra (D)≥ 7 °
Nagib krova TRIO extra (D)≥ 10 °
Nagib krova DUO longlife ND extra (D)≥ 10 °
Valid for Austria
Nagib krova DUO longlife ND extra (A)≥ 17 °
Nagib krova DUO extra (A)≥ 17 °
Nagib krova QUATTRO longlife extra (A)≥ 15 °
Nagib krova TRIO extra (A)≥ 17 °

Technical informations

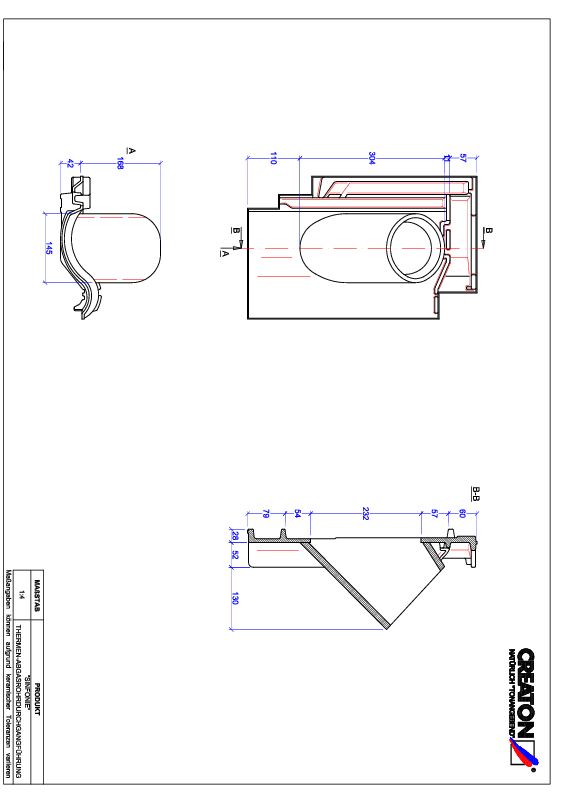

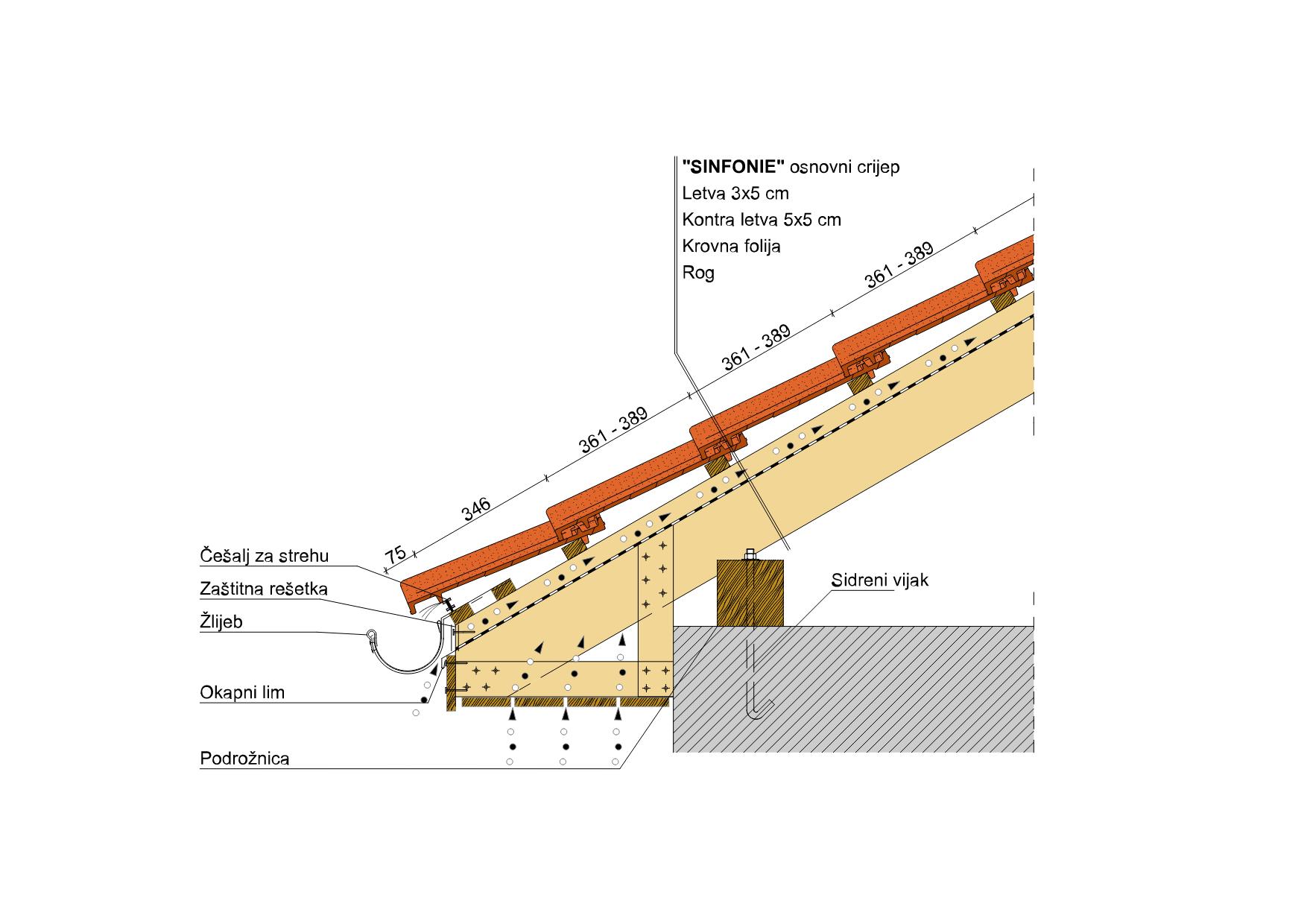

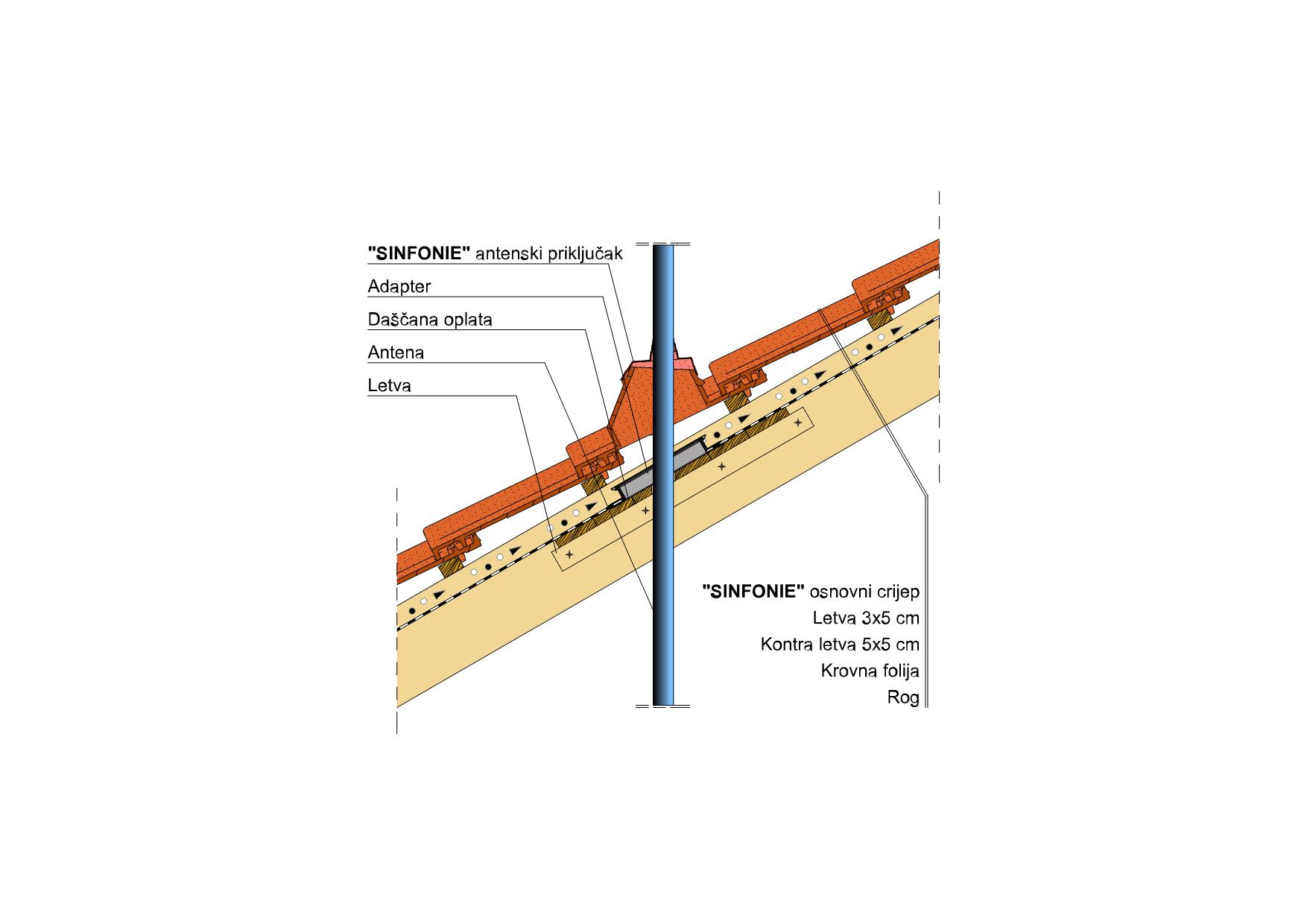

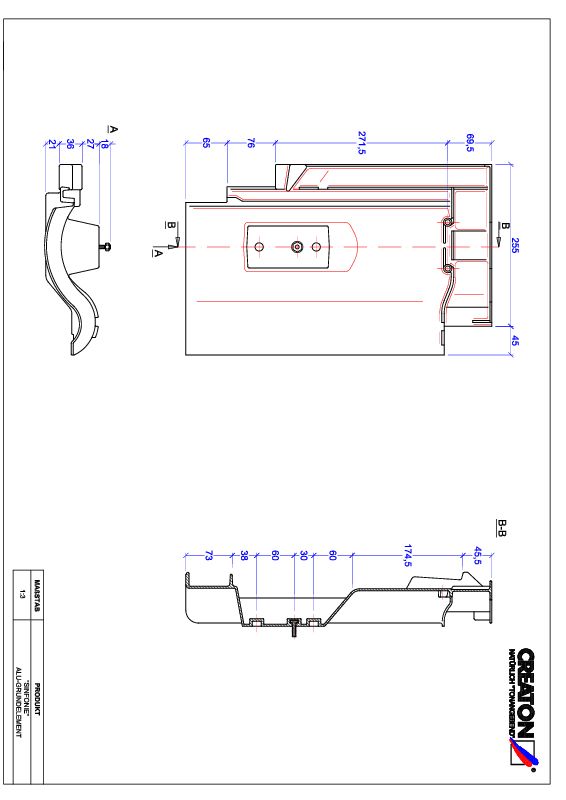

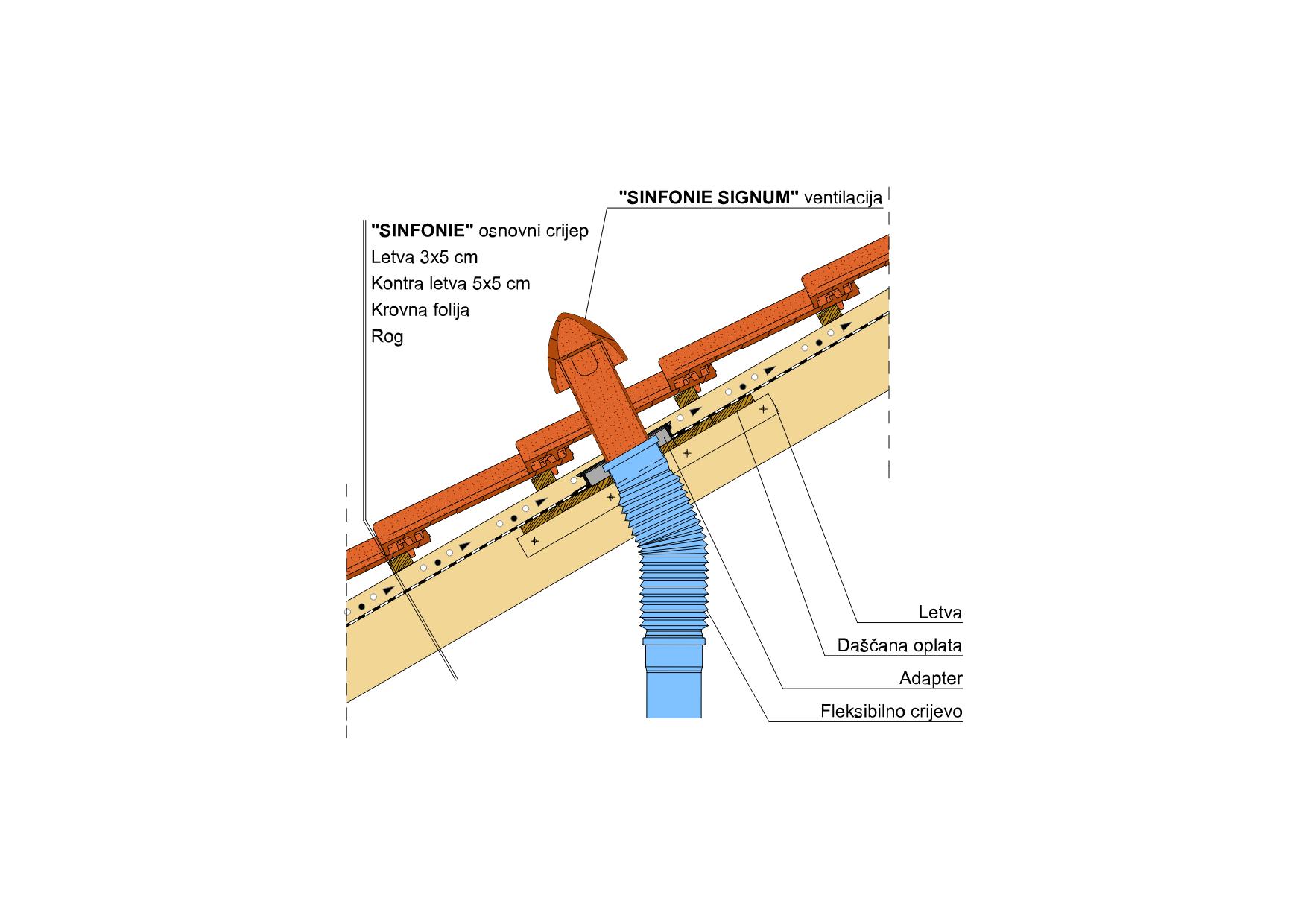

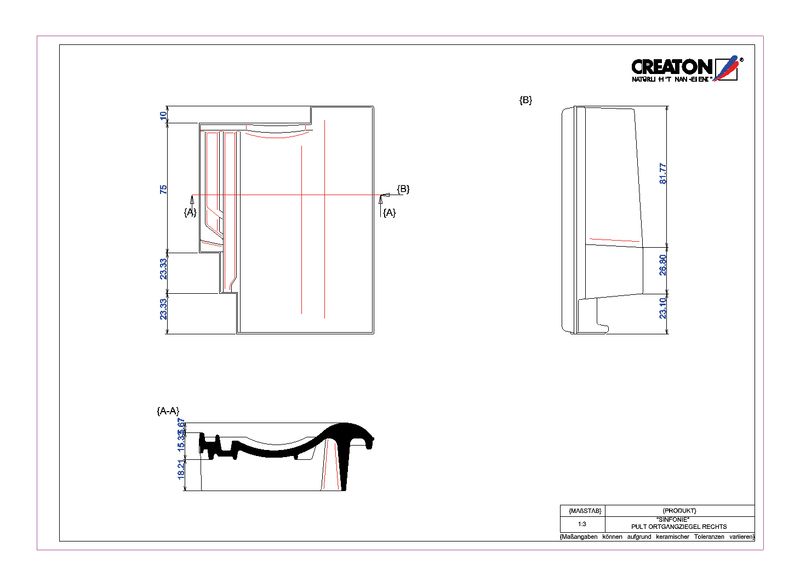

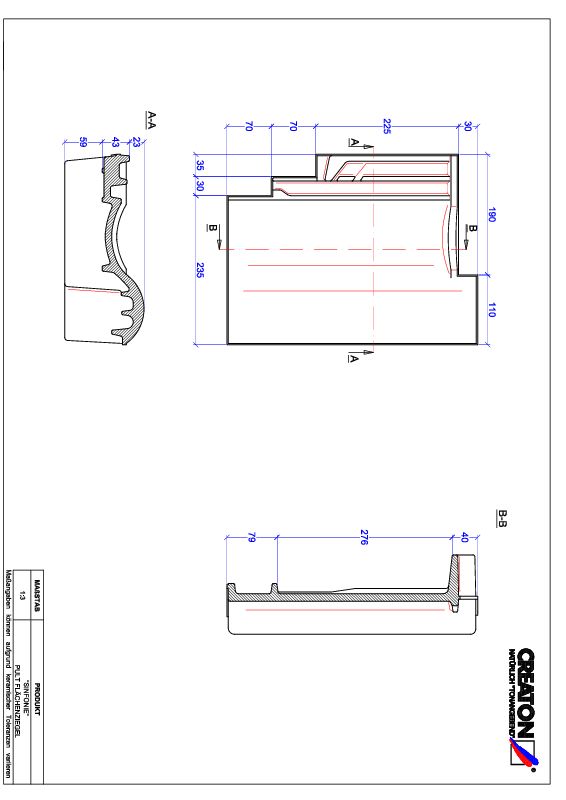

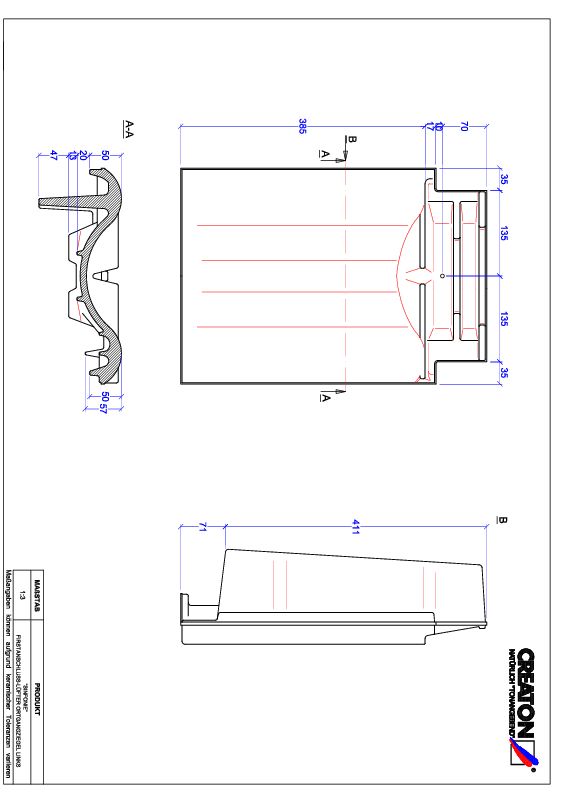

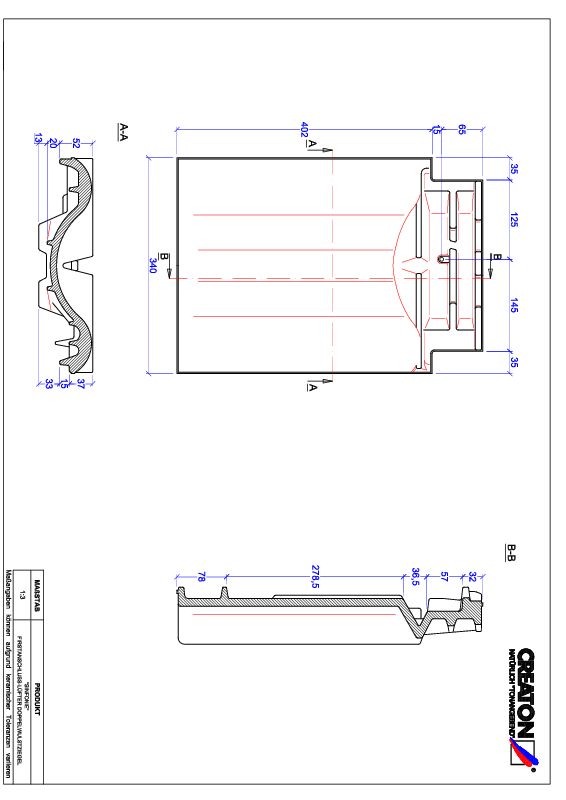

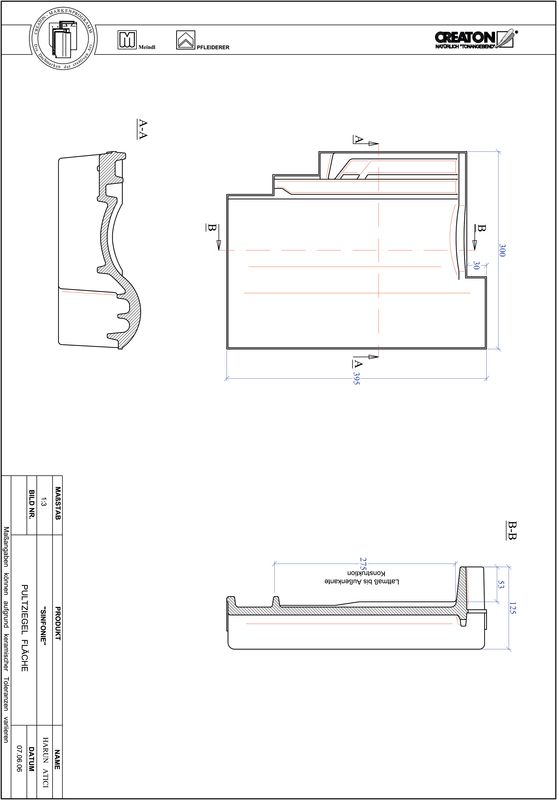

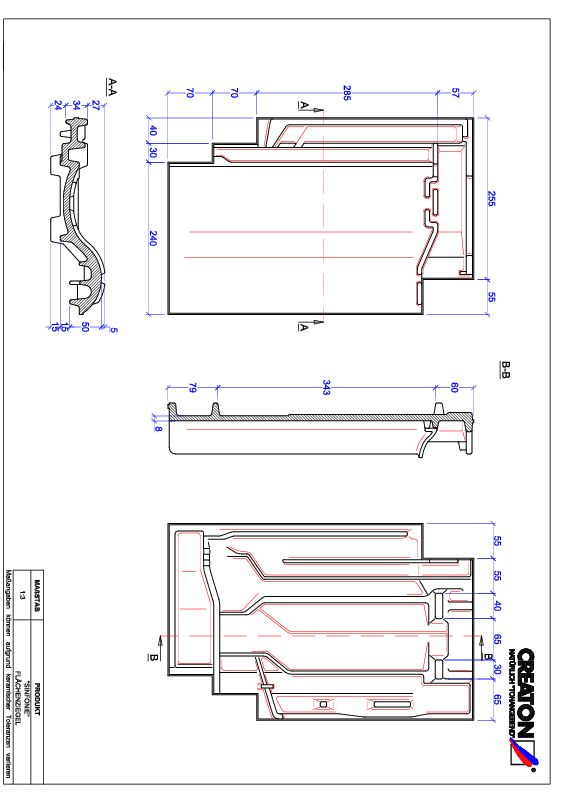

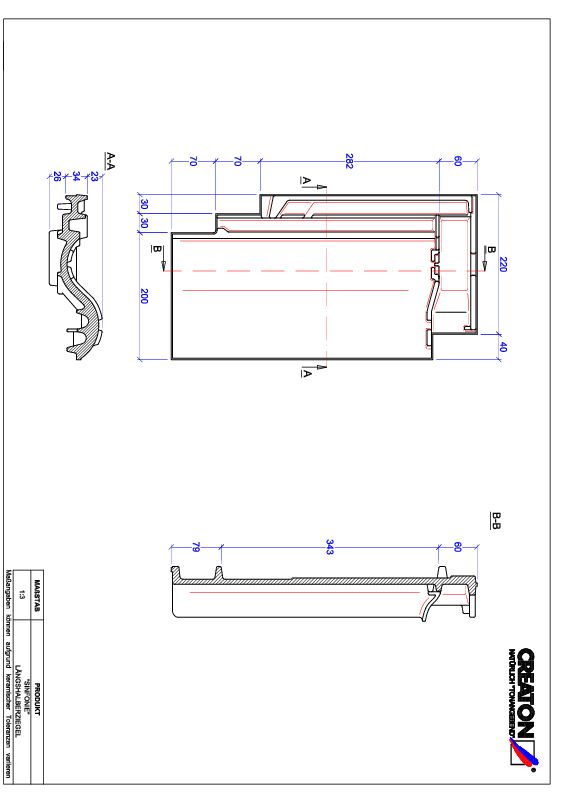

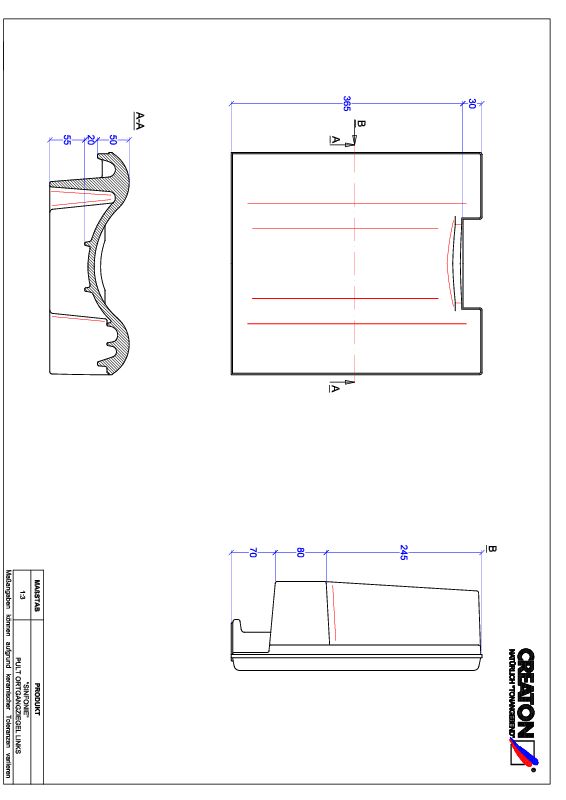

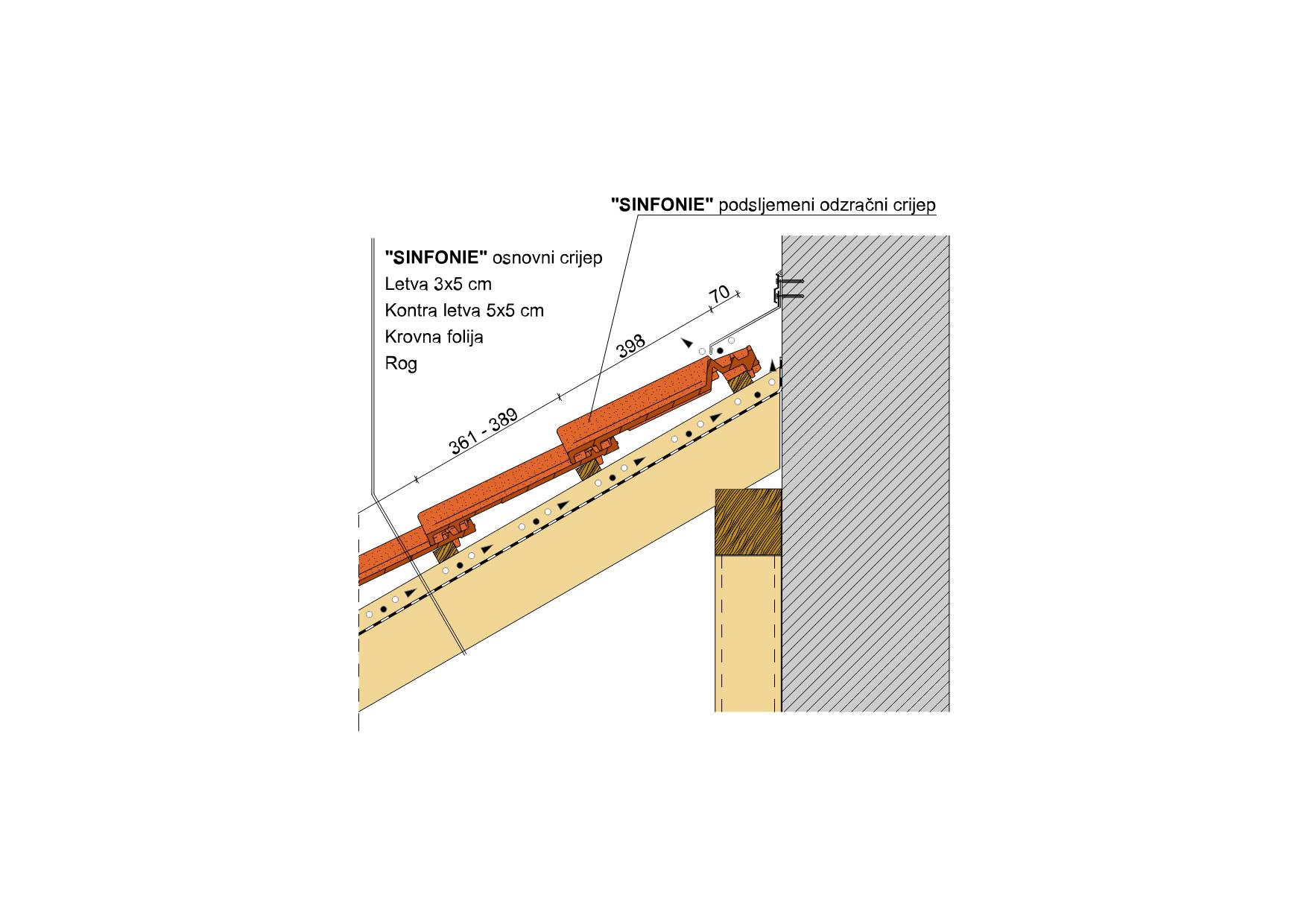

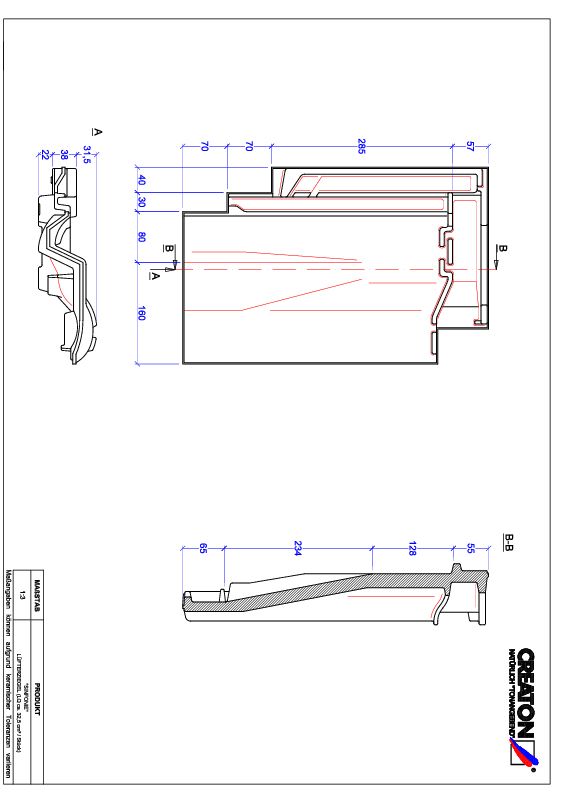

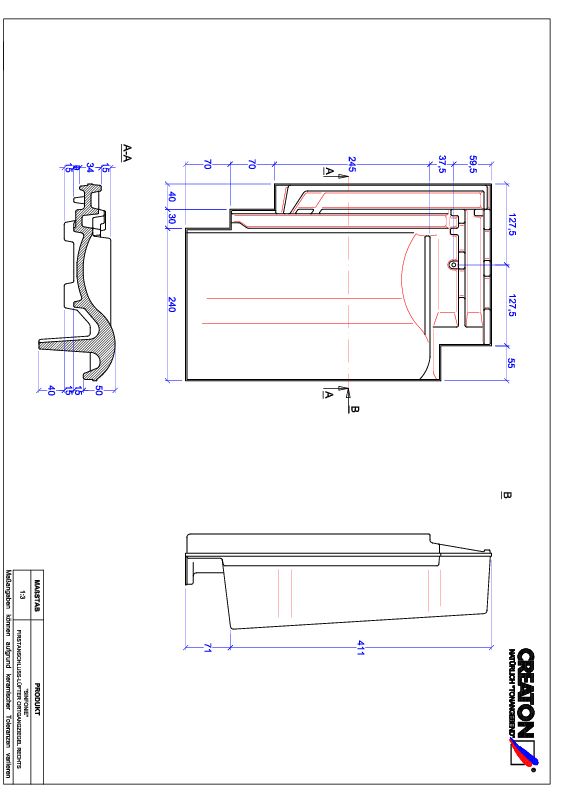

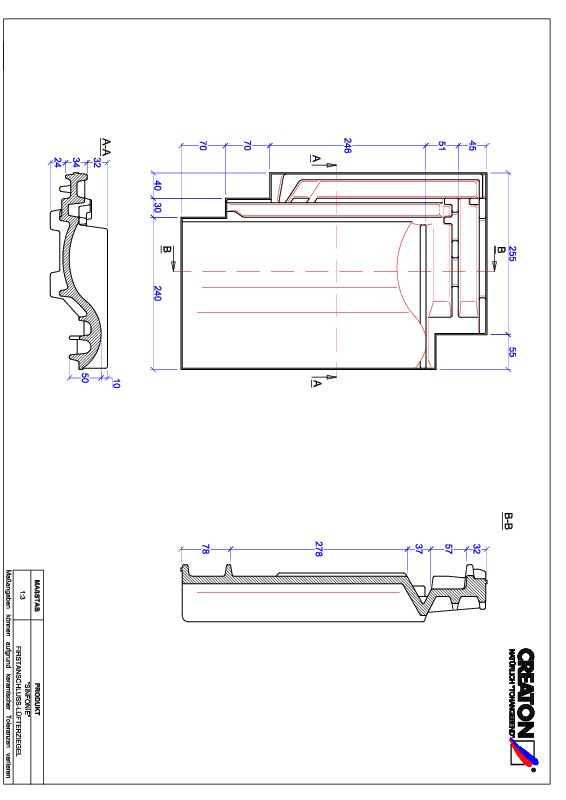

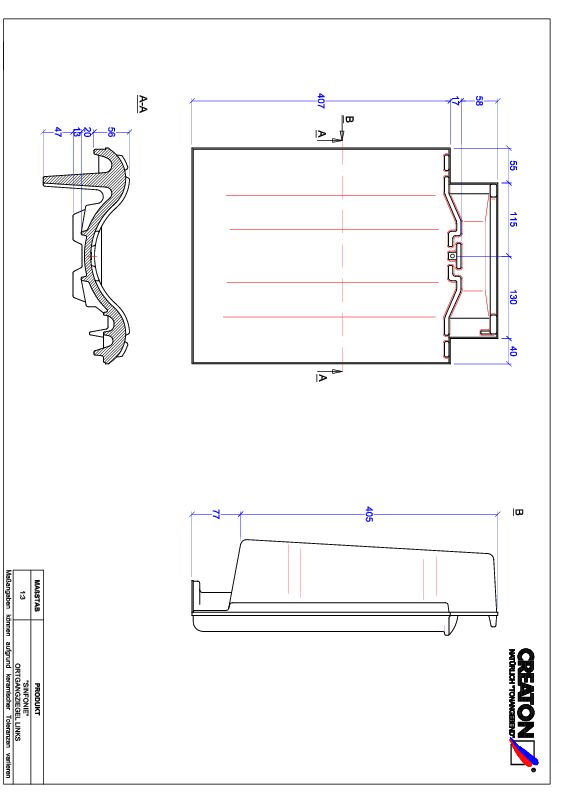

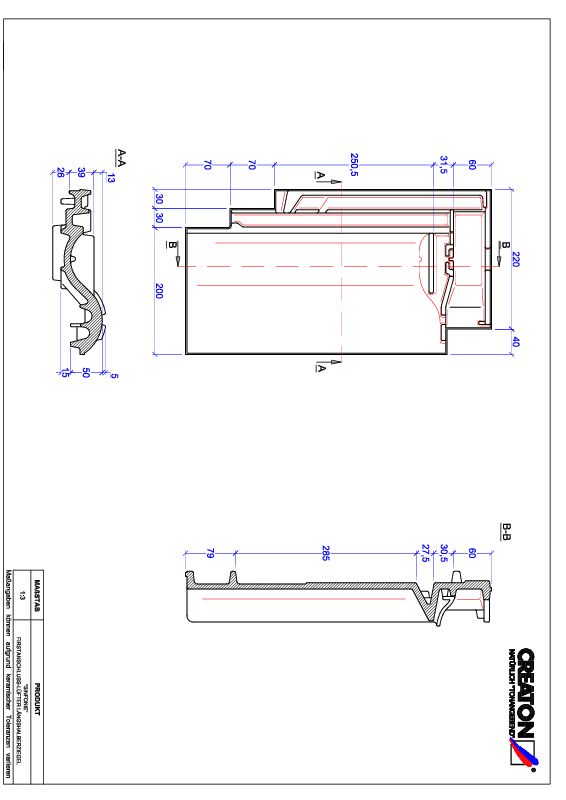

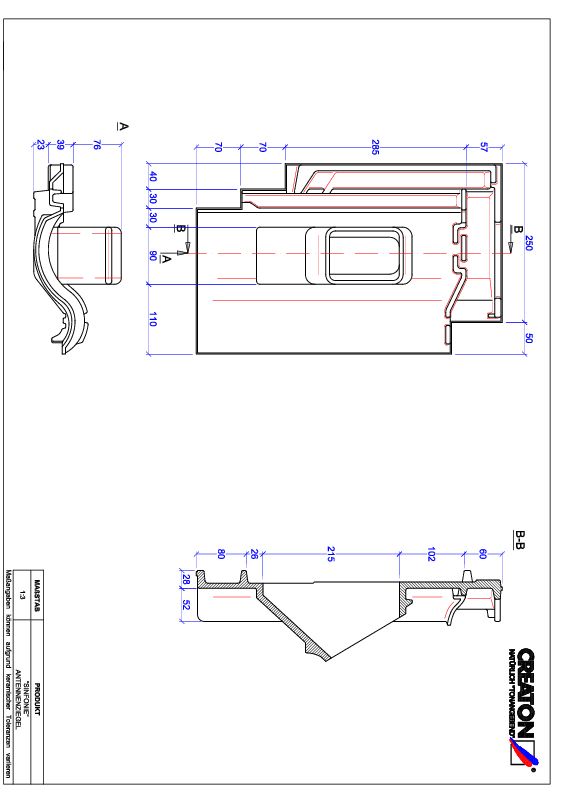

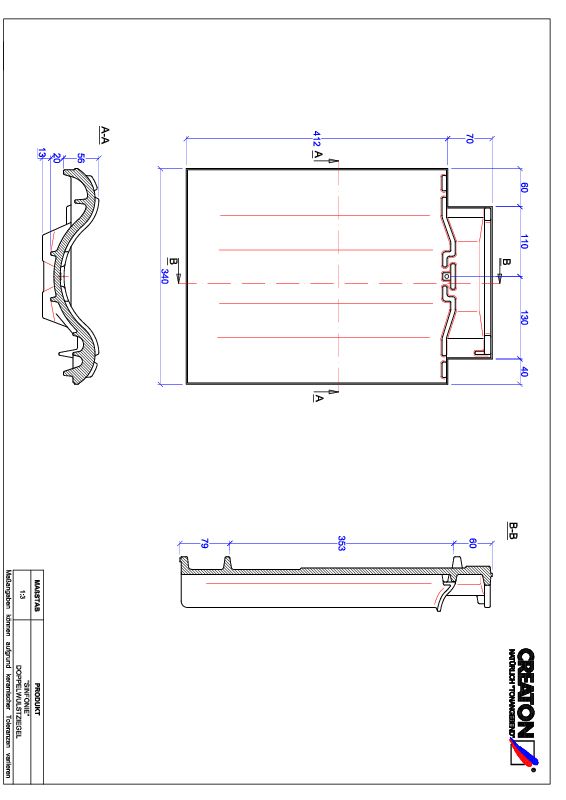

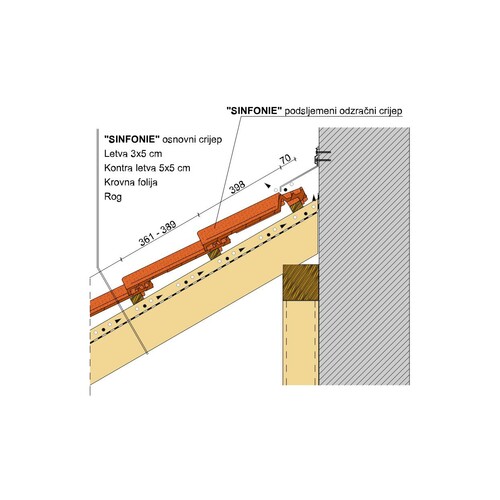

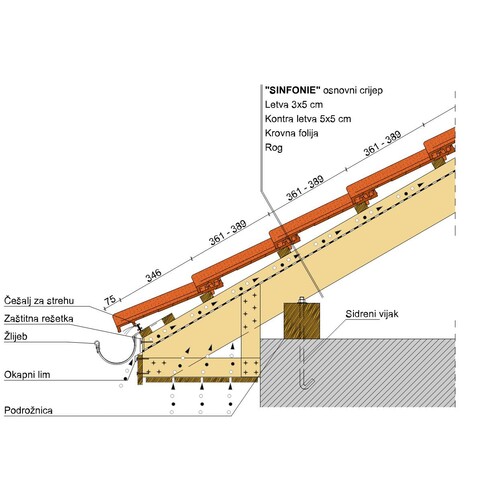

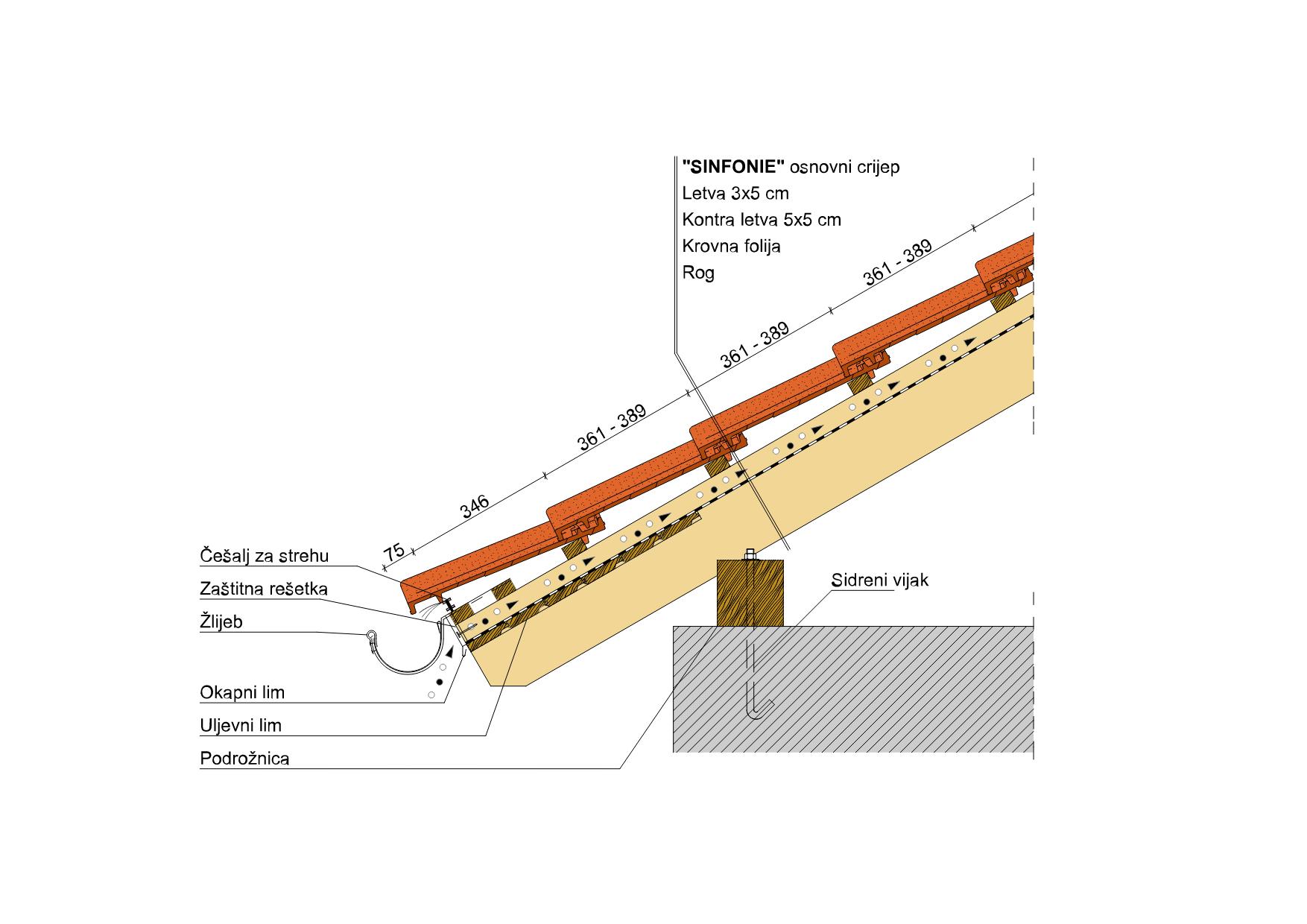

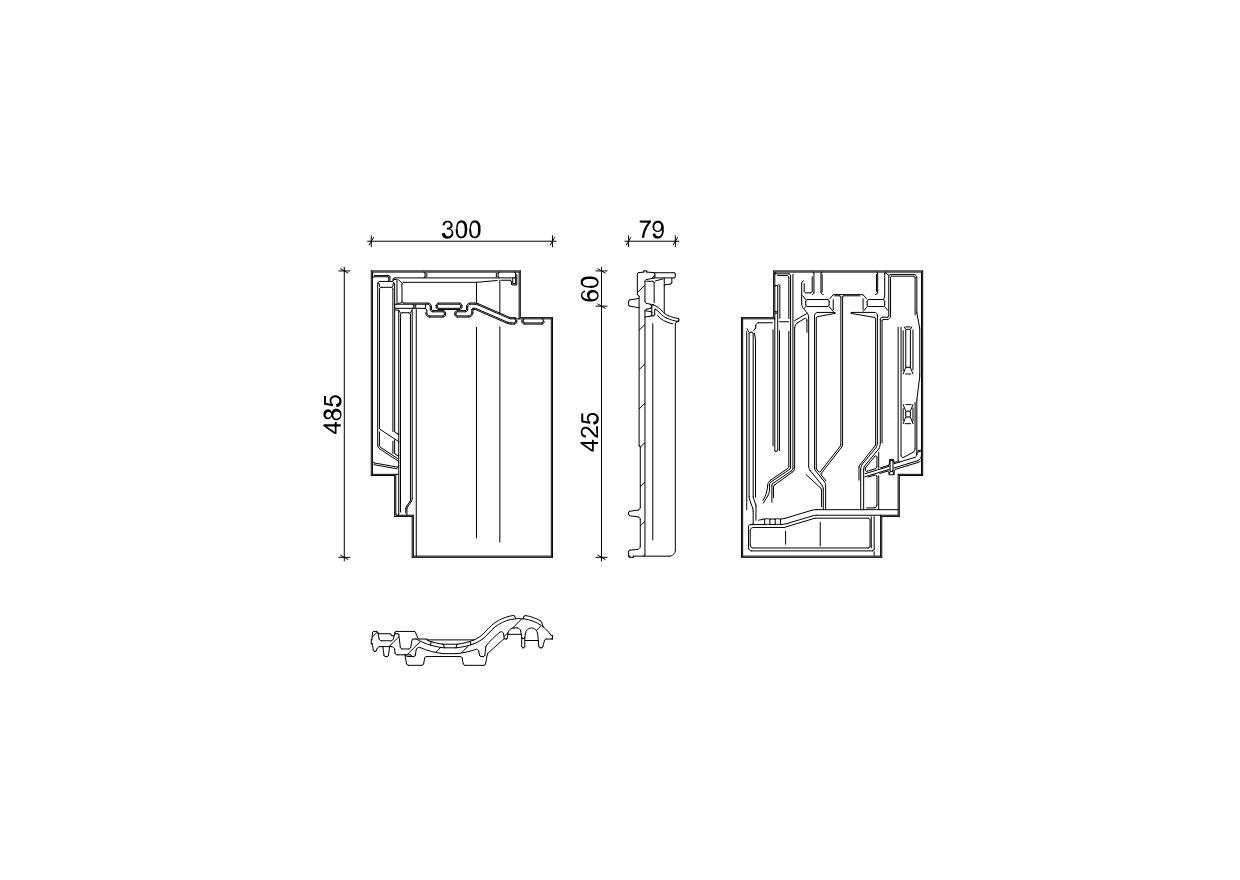

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • All roofs with a roof pitch of 7° - 9° require individual approval from CREATON Applications Technology. CREATON manufacturer's regulations must be complied with during installation.

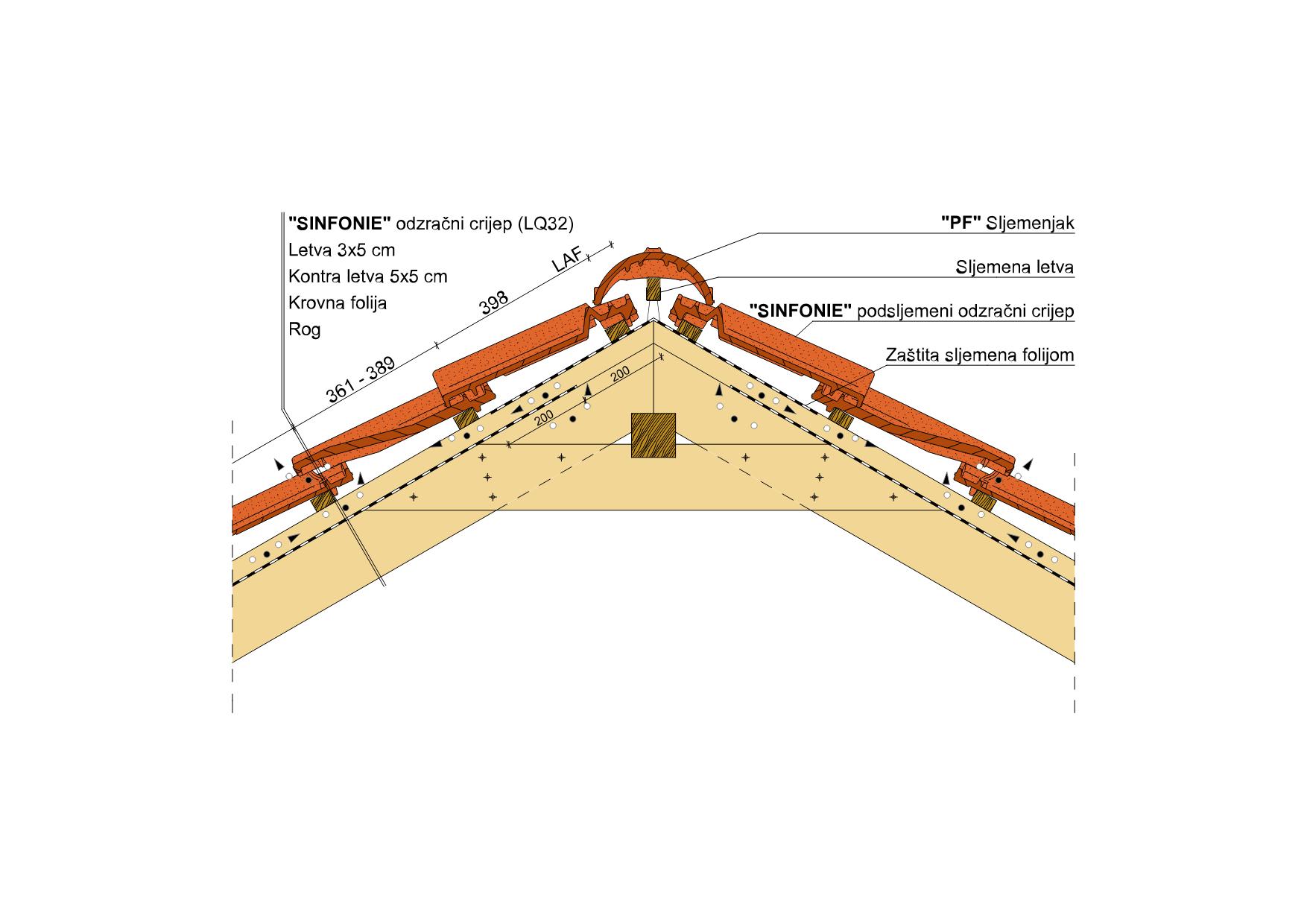

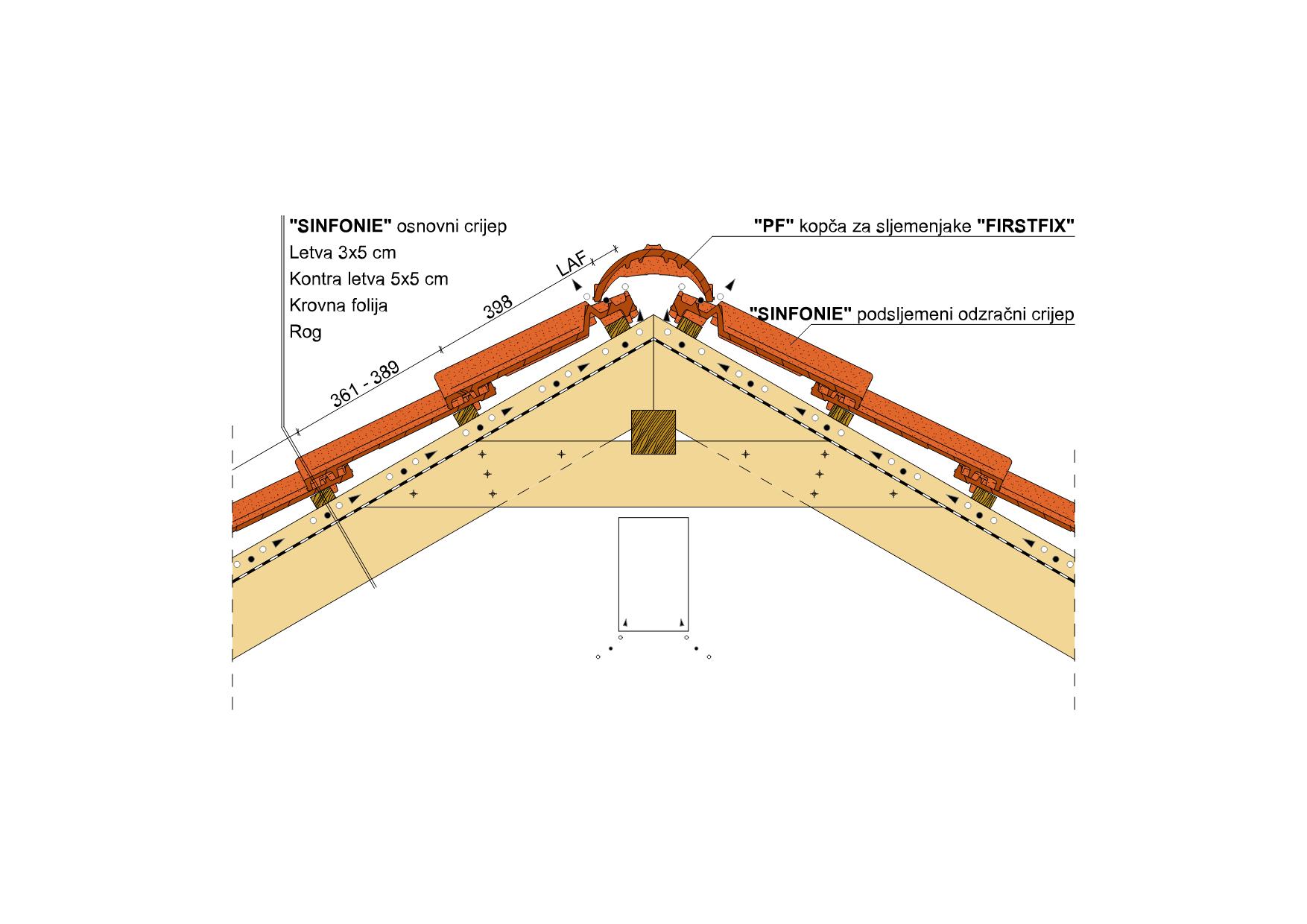

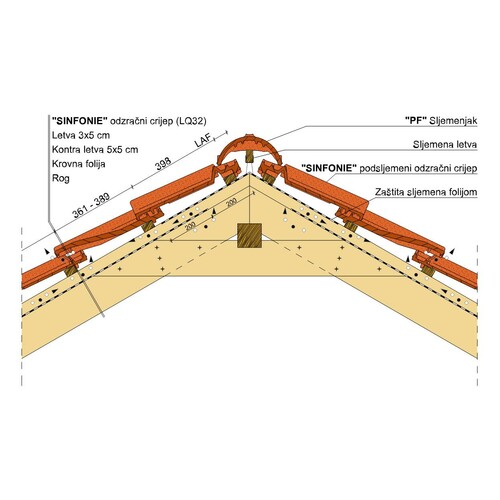

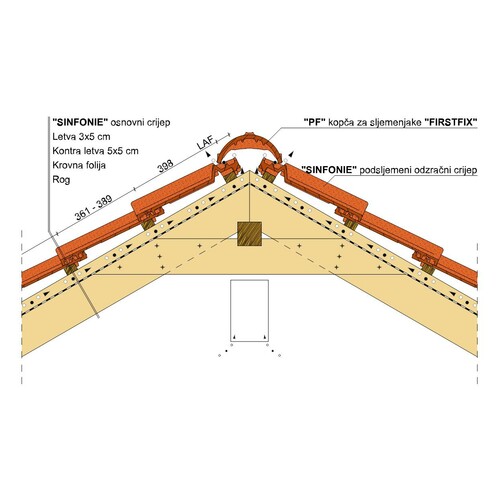

LAF-/FLA-VALUES

LAF-/FLA VALUES IN MM FOR 30x50-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°55°60°
PF 2.5 pcs./m.FLA100100908075656555505040
PF 2.5 pcs./m.LAF8080706560606050454545
PR 2.5 pcs./m.FLA100100908075656555505040
PR 2.5 pcs./m.LAF8080706560606050454545
LAF-/FLA VALUES IN MM FOR 40x60-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°55°60°
PF 2.5 pcs./m.FLA1101101009085757565606055
PF 2.5 pcs./m.LAF8080706055555540303030
PR 2.5 pcs./m.FLA1101101009085757565606055
PR 2.5 pcs./m.LAF8080706055555540303030
LAF-/FLA VALUES IN MM FOR 50x50-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°55°60°
PF 2.5 pcs./m.FLA12012011010095909080808080
PF 2.5 pcs./m.LAF7575655550454530202015
PR 2.5 pcs./m.FLA12012011010095909080808080
PR 2.5 pcs./m.LAF7575655550454530202015
