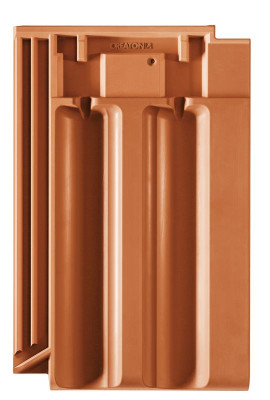

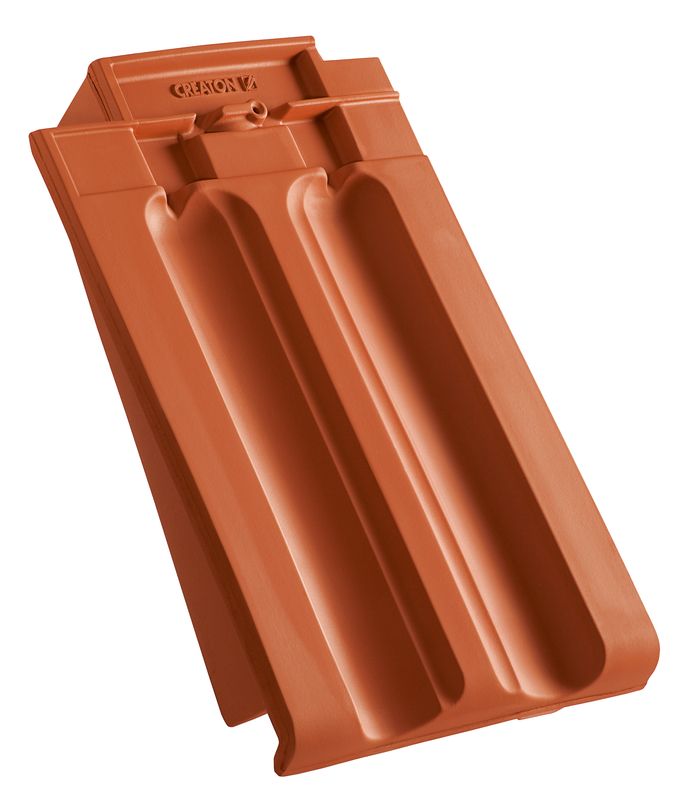

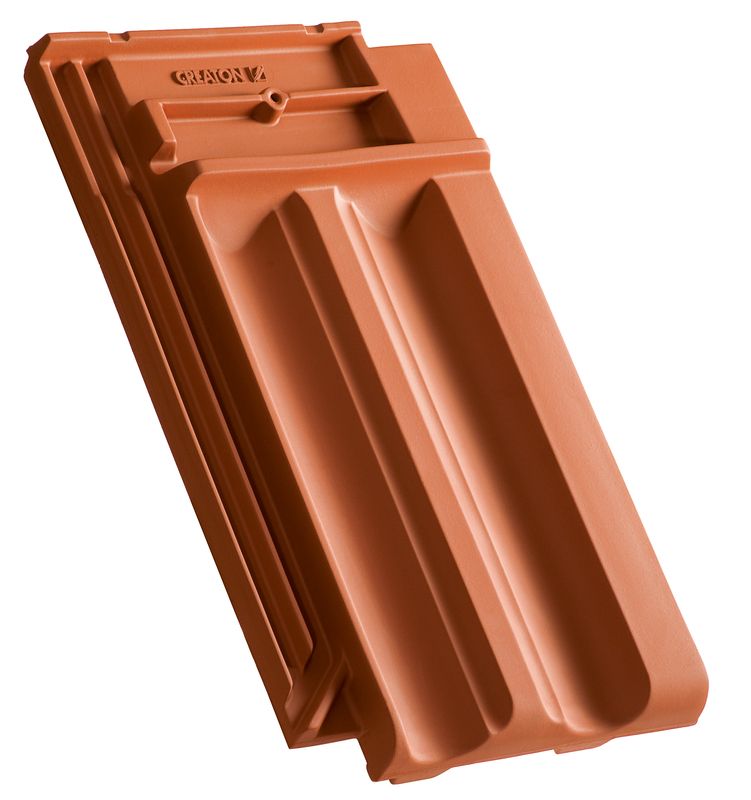

RAPIDO

Fleksibilni crijep u mega formatu

  • Markantan tradicionalni model velikog formata
  • Izuzetna fleksibilnost i pojednostavljeno polaganje zahvaljujući velikom području pomicanja od 44 mm
  • Najbolji omjer cijene i kvalitete s cca. 8,1 kom/m²
  • Potporna rebra poboljšavaju statiku i odvod eventualne kondenzirane vode
  • „Tehnikom labirint“ s pet posebno oblikovanih i dodatno naglašenih bočnih rebara sprječava se prodor kišnice čak i kod jakog vjetra.

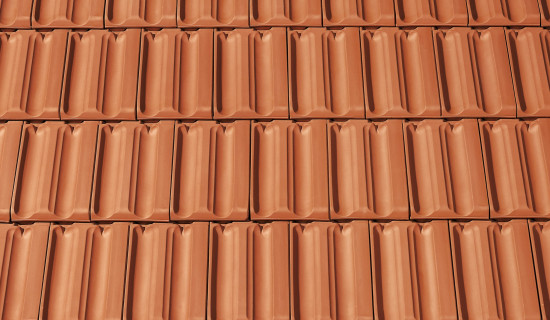

prirodno crvena
prirodno crvena
NUANCE crvena engobirana
NUANCE crvena engobirana
NUANCE bakreno crvena engobirana
NUANCE bakreno crvena engobirana
NUANCE boja crnog vina engobirana
NUANCE boja crnog vina engobirana
NUANCE starosiva engobirana
NUANCE starosiva engobirana
NUANCE boja škriljevca engobirana
NUANCE boja škriljevca engobirana
NUANCE crna engobirana
NUANCE crna engobirana
NUANCE crna mat engobirana
NUANCE crna mat engobirana

Technical data

Dimenzije(cca.)325 x 502 mm
Srednja pokrovna širina(cca.)278 mm
Maks.pokrovna širina(cca.)280 mm
Min.pokrovna širina(cca.)277 mm

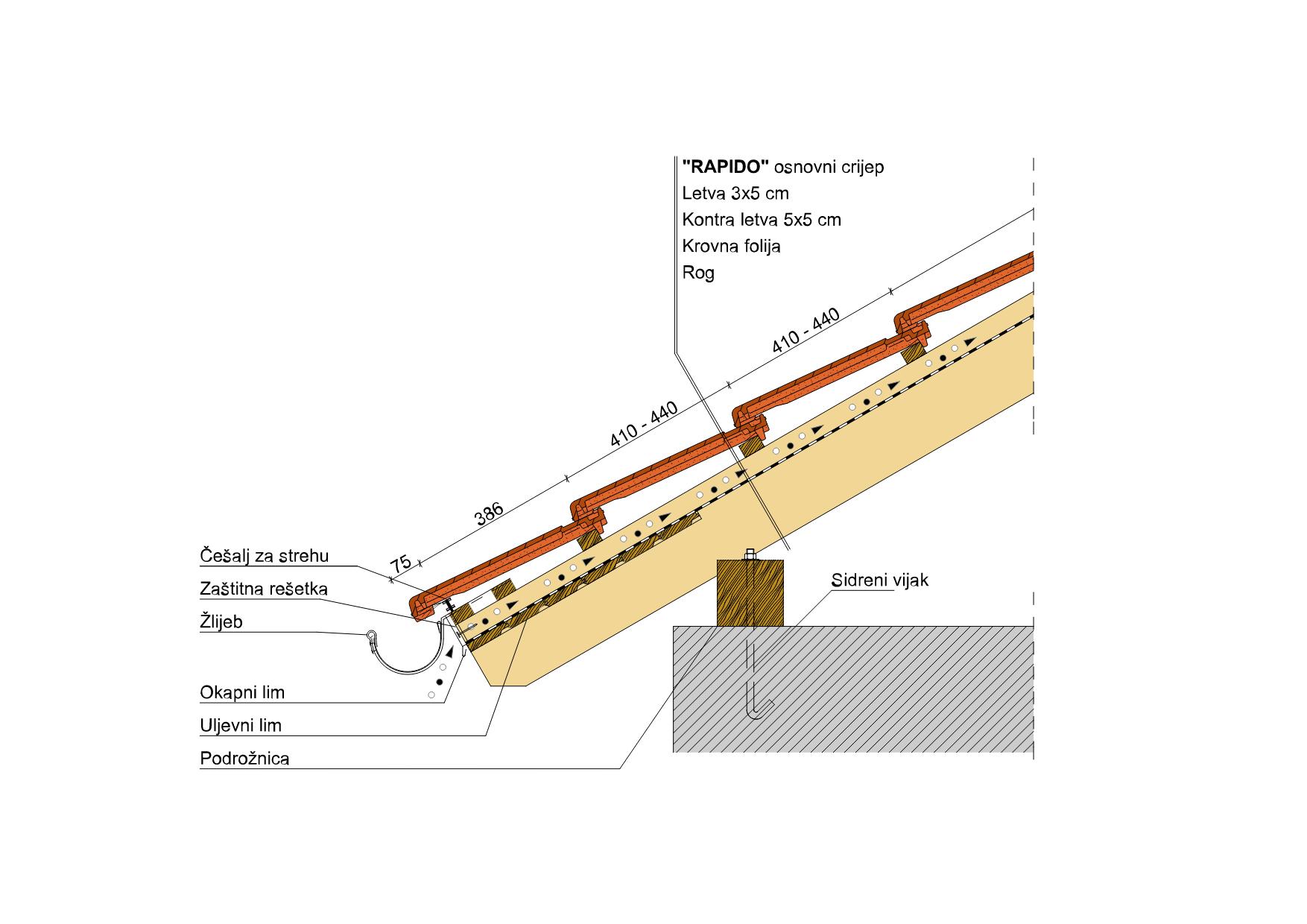

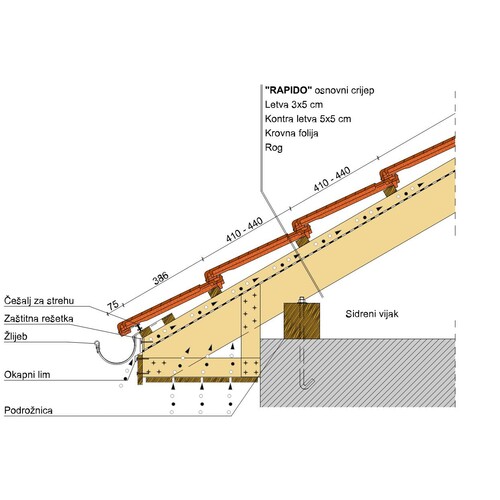

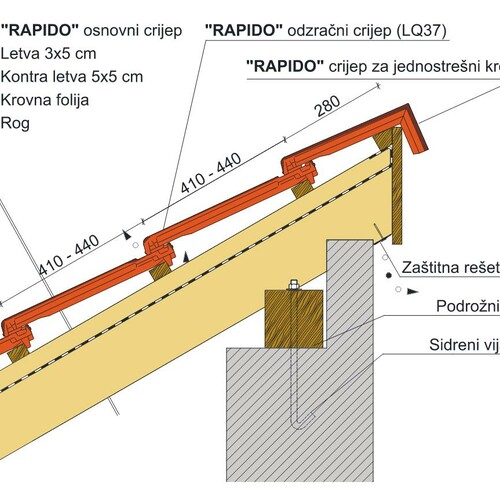

Letvanje preporučeno(cca.)425 mm
Maks. letvanje(cca.)440 mm
Min.letvanje(cca.)410 mm
Utrošak crijepa prosječno(cca.)8.4 kom/m²
Maks.utrošak crijepa8.8 kom/m²
min. utrošak crijepa (cca.)8.1 kom/m²
Masa po m²(cca.)43.7 kg/m²
Masa palete(cca.)899 kg
Masa po komadu(cca.)5.2 MENGENEINHEIT#KGPROST
Komada na paleti168 komad
BETON I VLAKNO CEMENT4 piece

Area of use

VALID FOR GERMANY
Nagib krova DUO extra (D)≥ 16 °
Nagib krova QUATTRO longlife extra (D)≥ 10 °
Nagib krova TRIO extra (D)≥ 14 °
Nagib krova DUO longlife ND extra (D)≥ 14 °
VALID FOR AUSTRIA
Nagib krova DUO longlife ND extra (A)≥ 22 °
Nagib krova DUO extra (A)≥ 22 °
Nagib krova QUATTRO longlife extra (A)≥ 20 °
Nagib krova TRIO extra (A)≥ 22 °

Technical informations

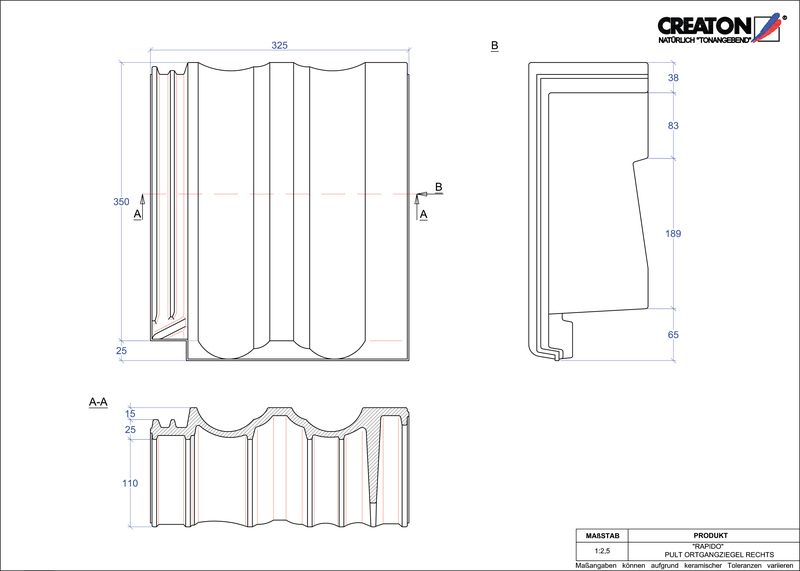

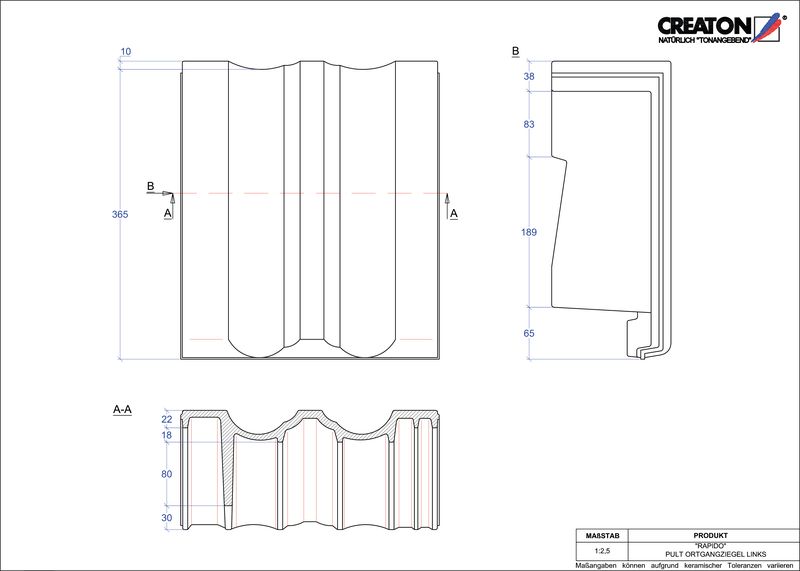

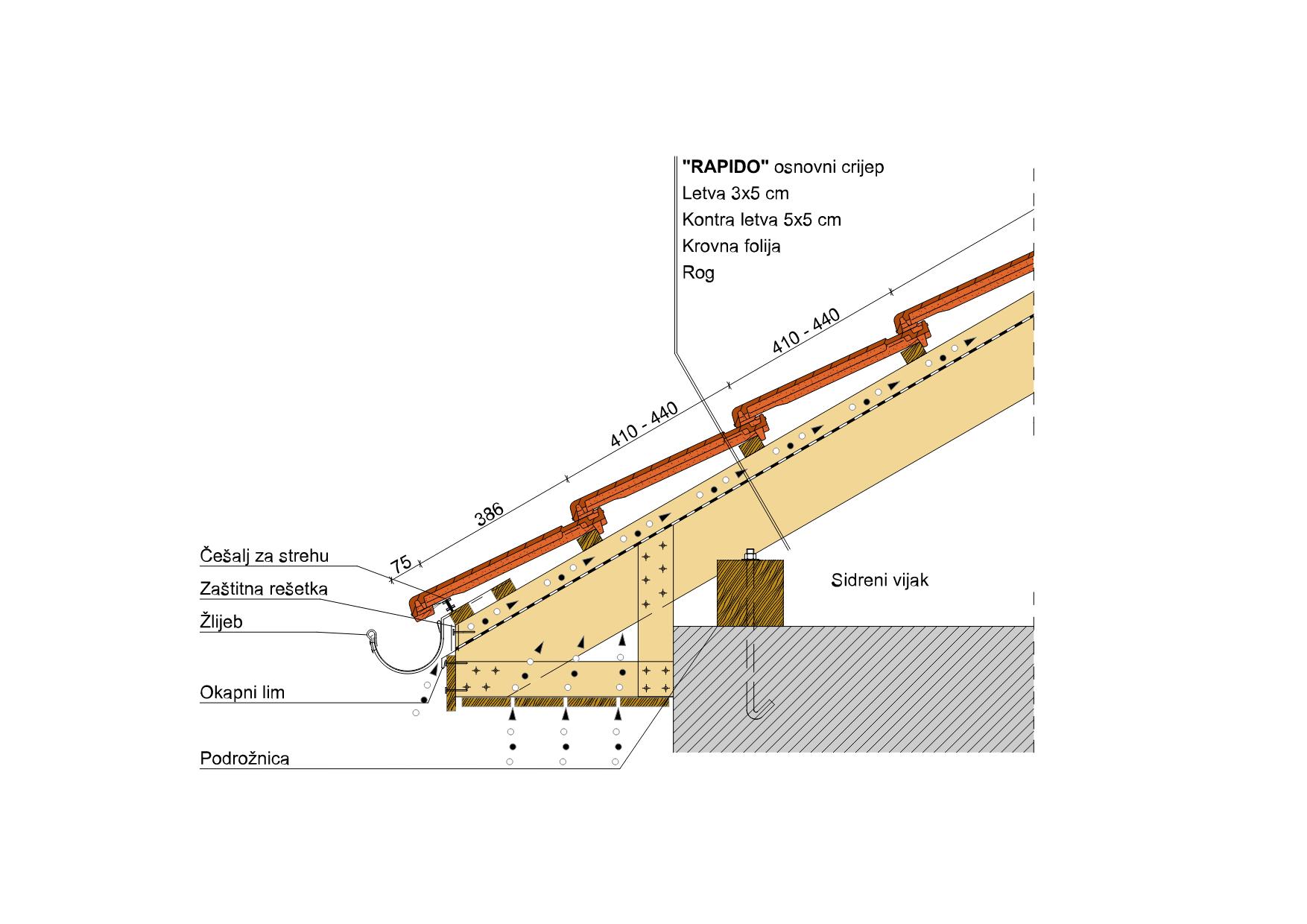

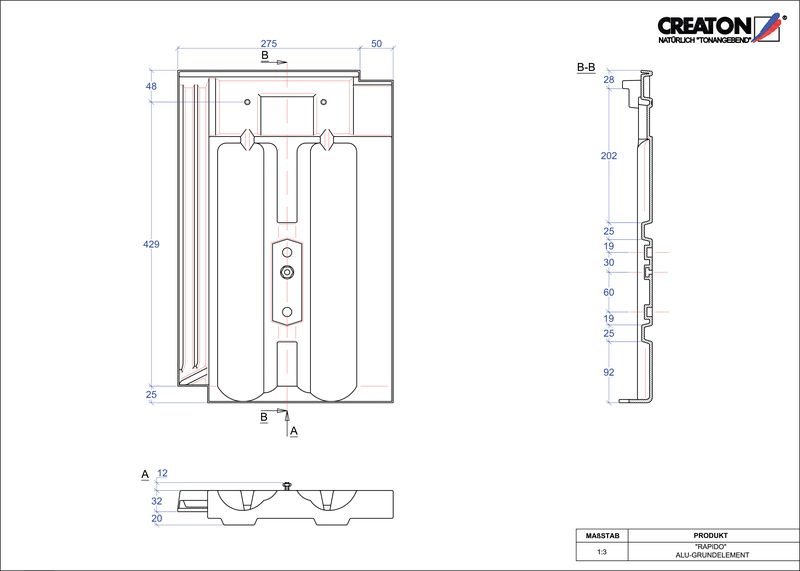

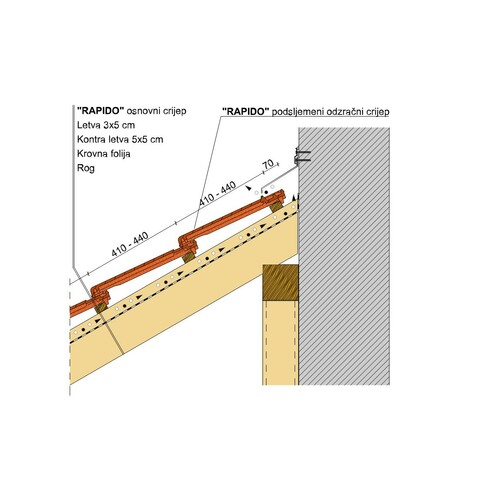

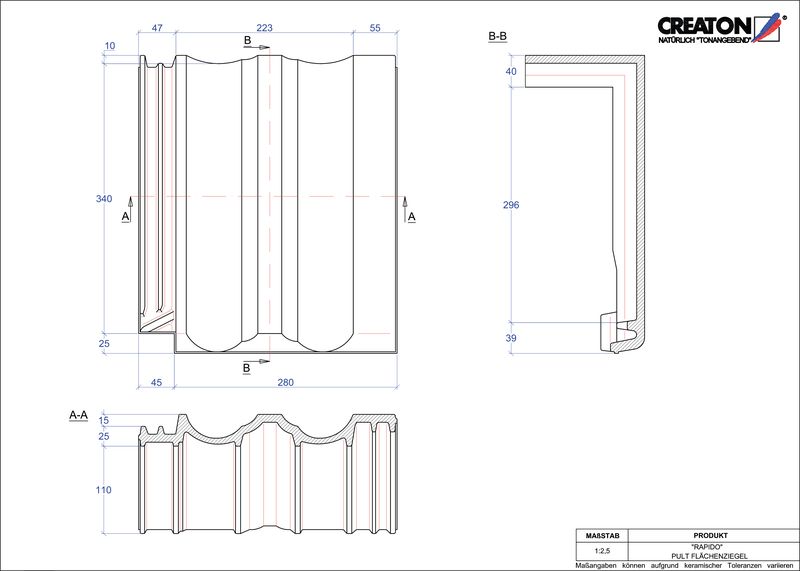

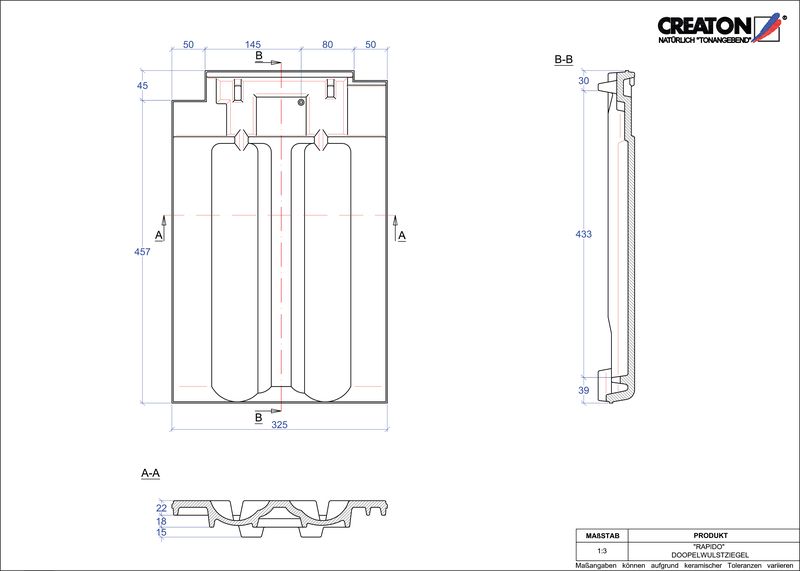

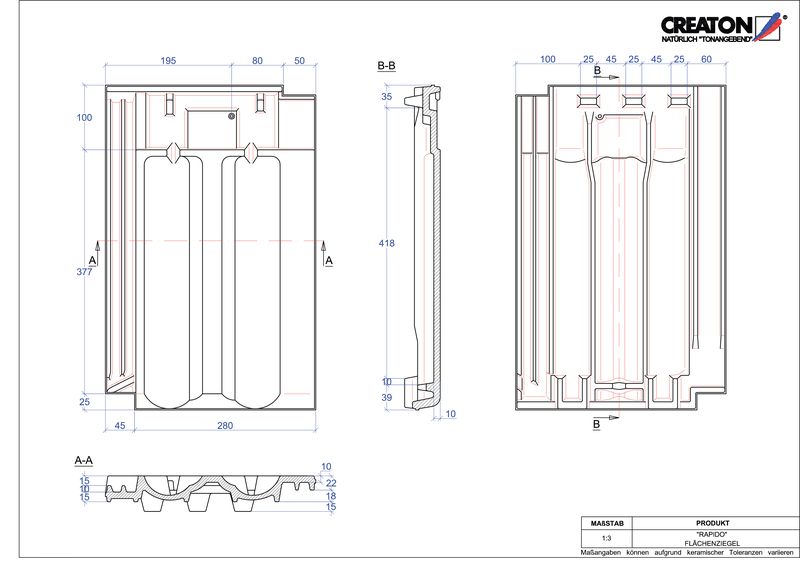

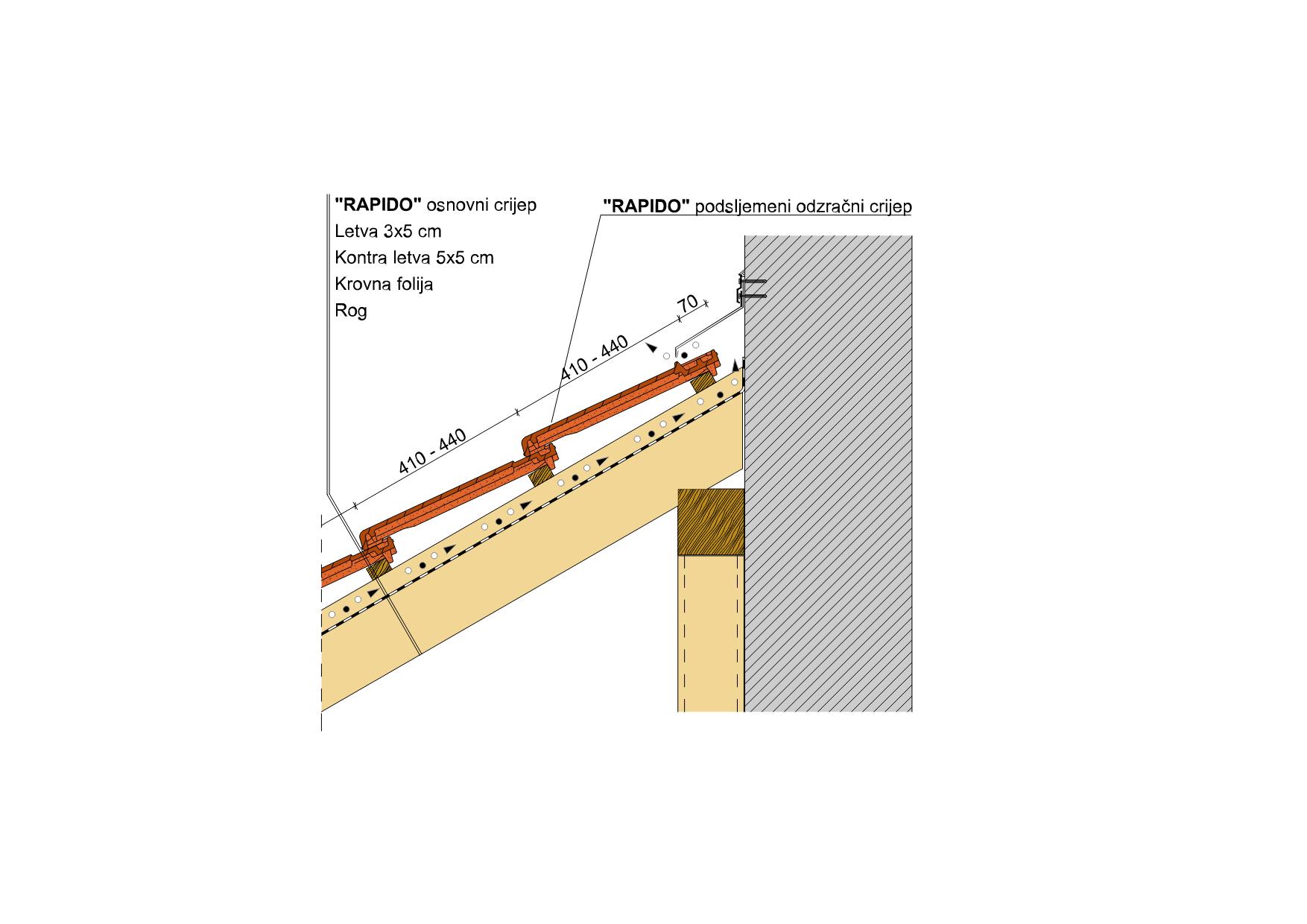

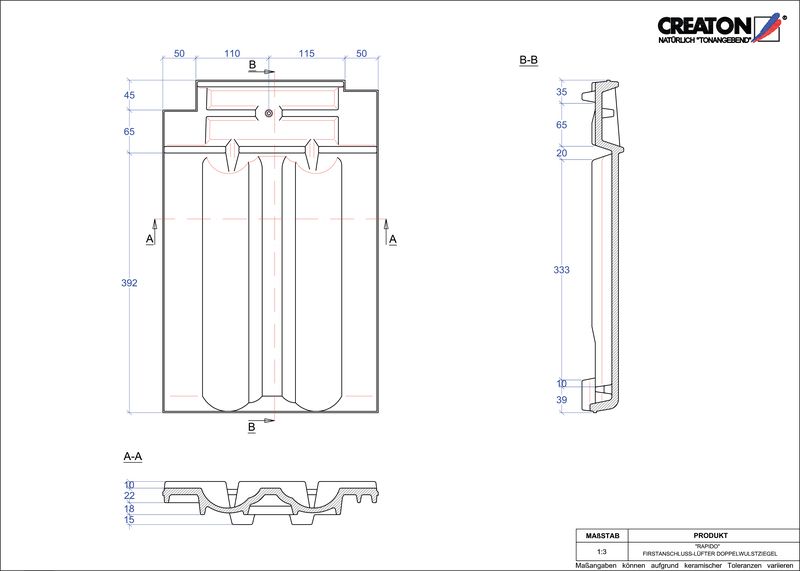

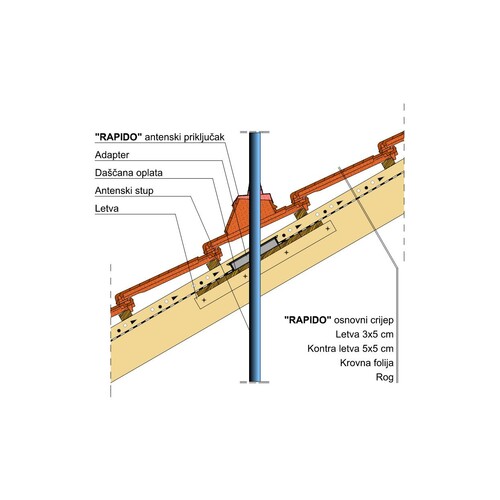

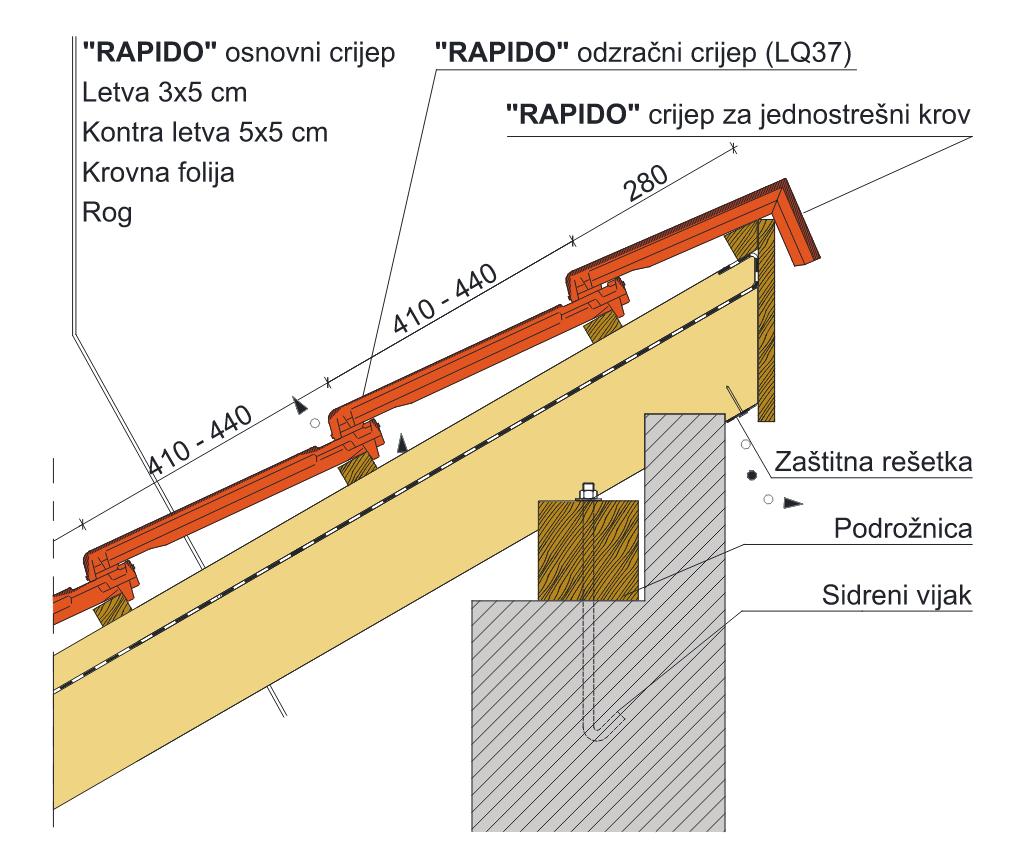

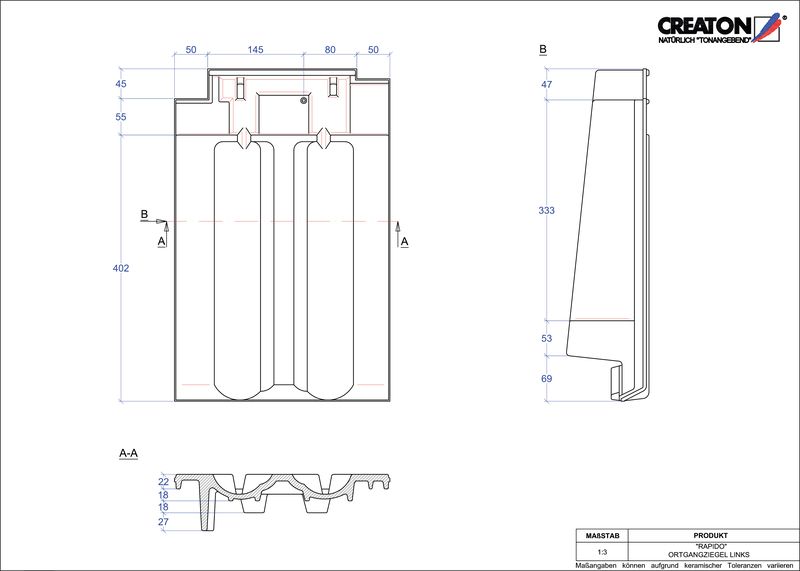

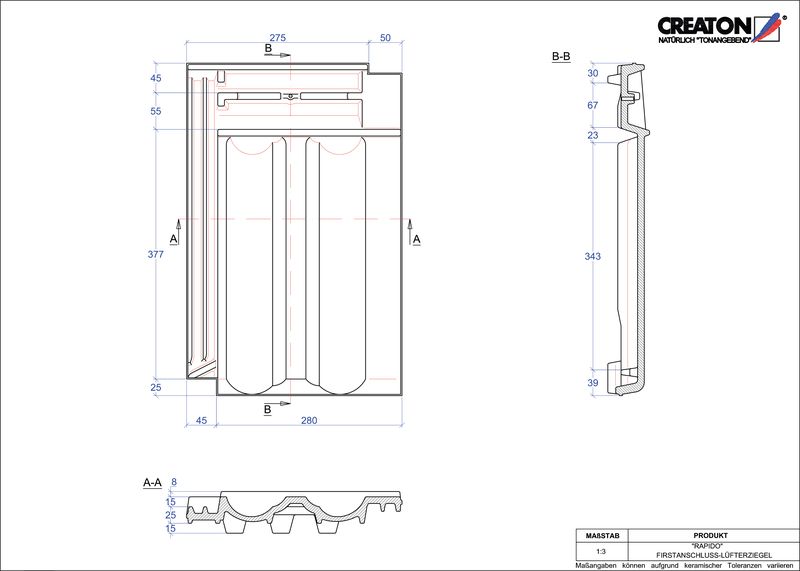

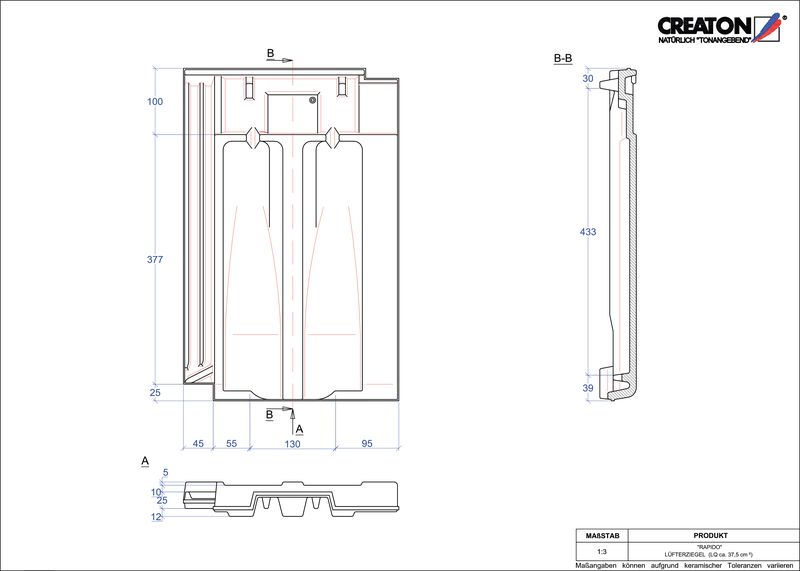

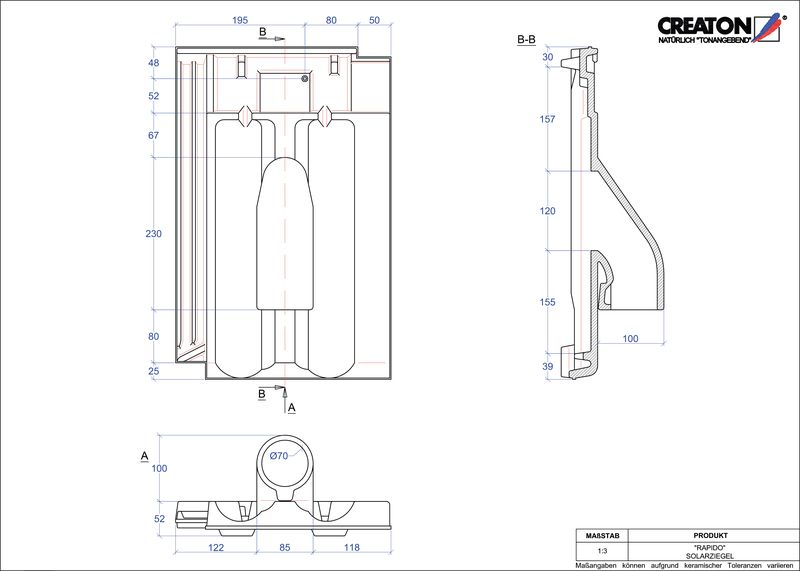

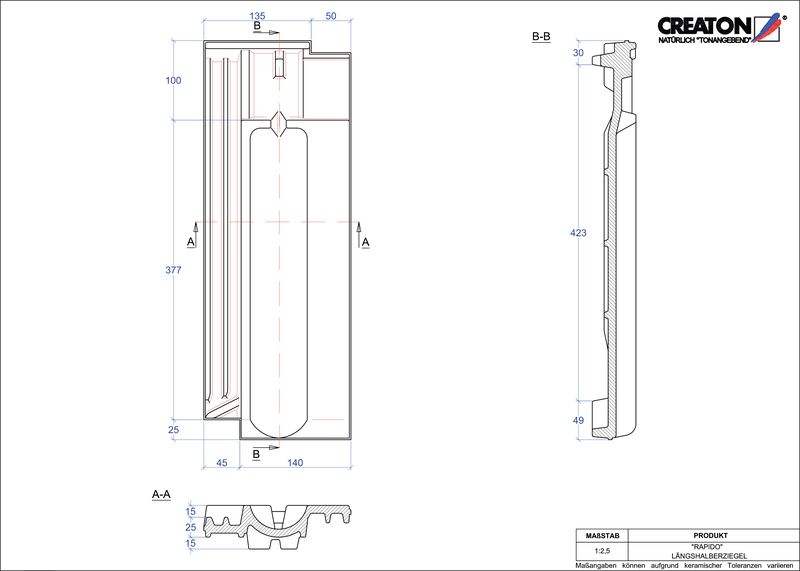

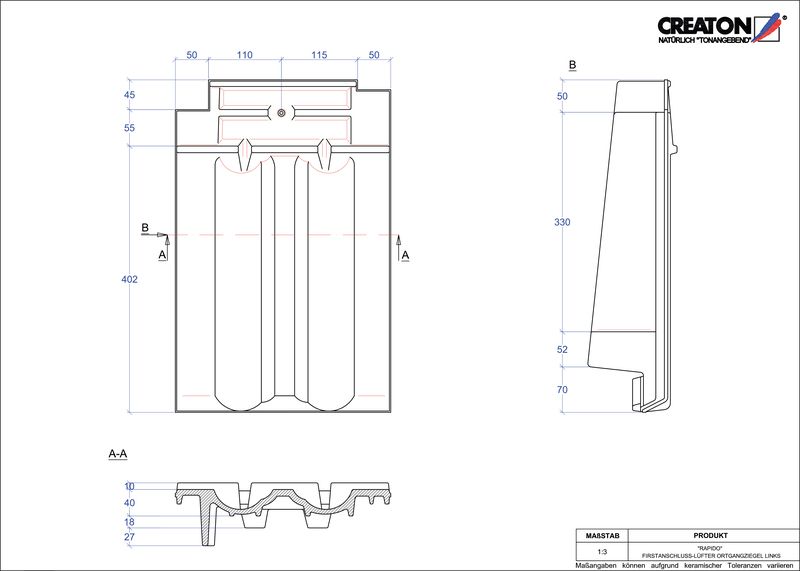

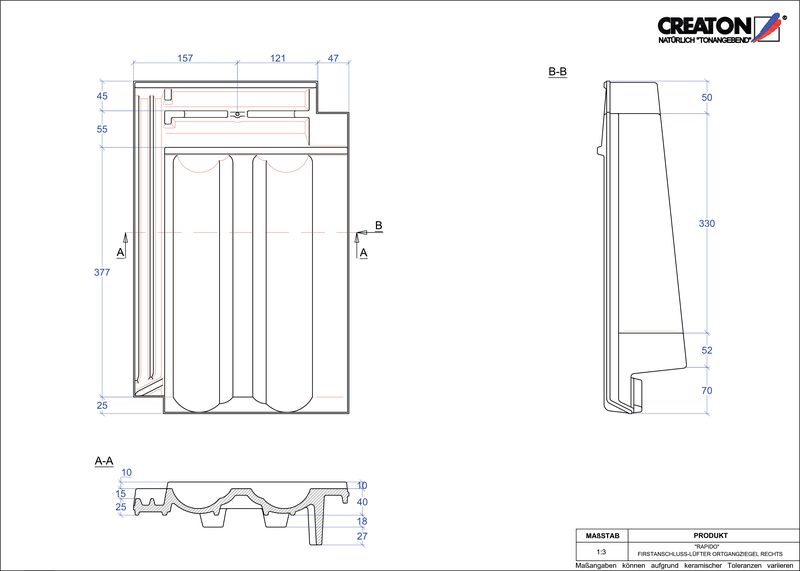

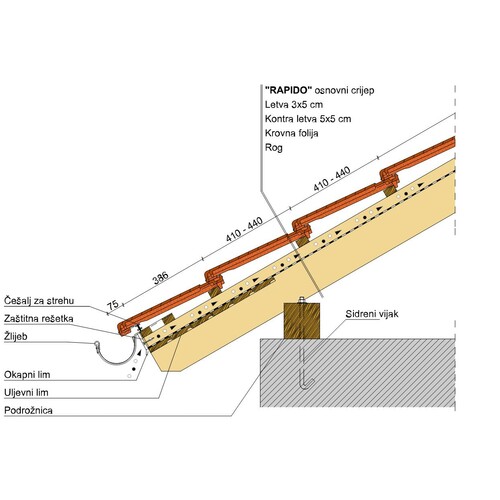

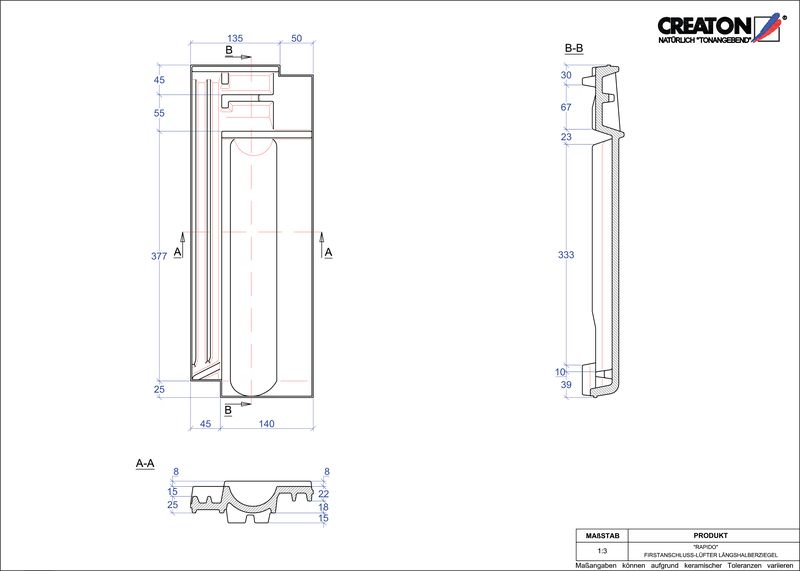

  • The technical drawing shown is merely an example.

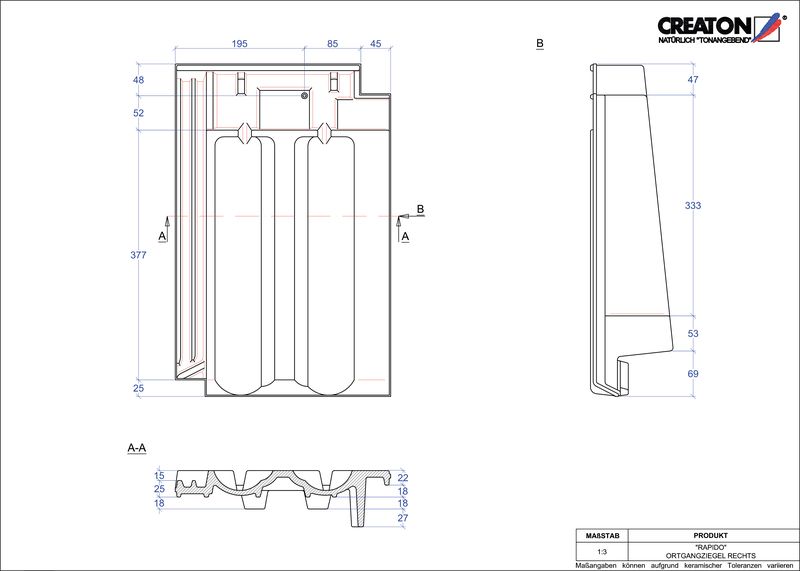

  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.

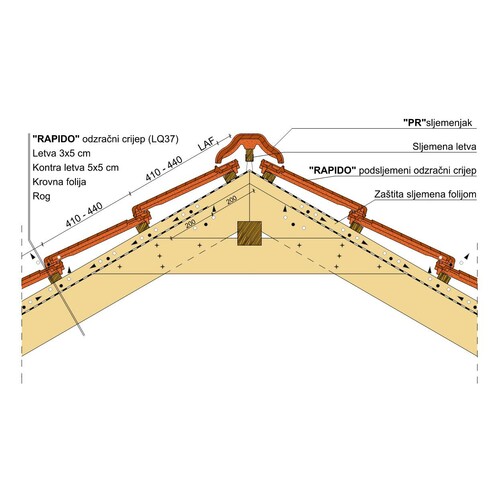

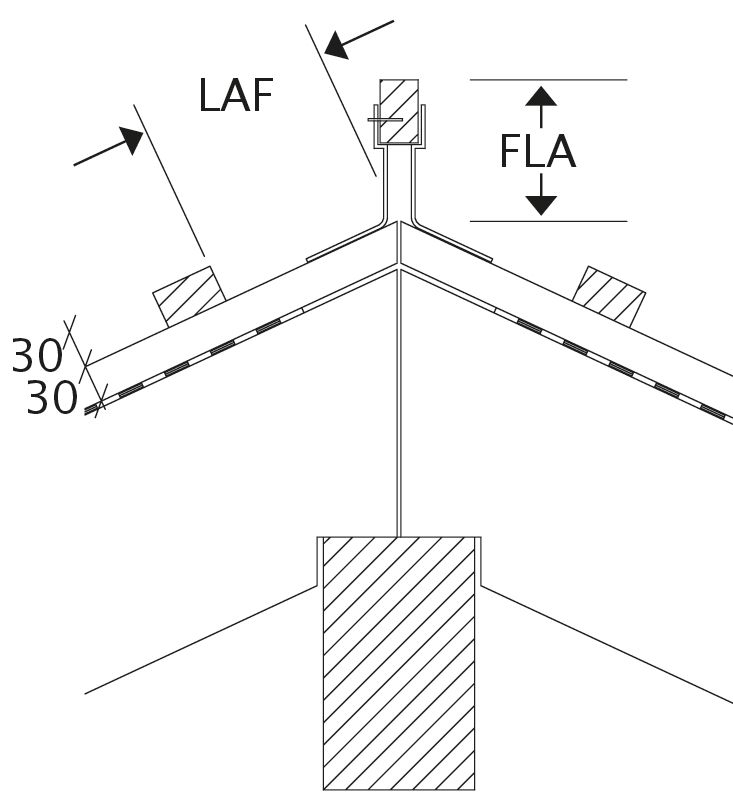

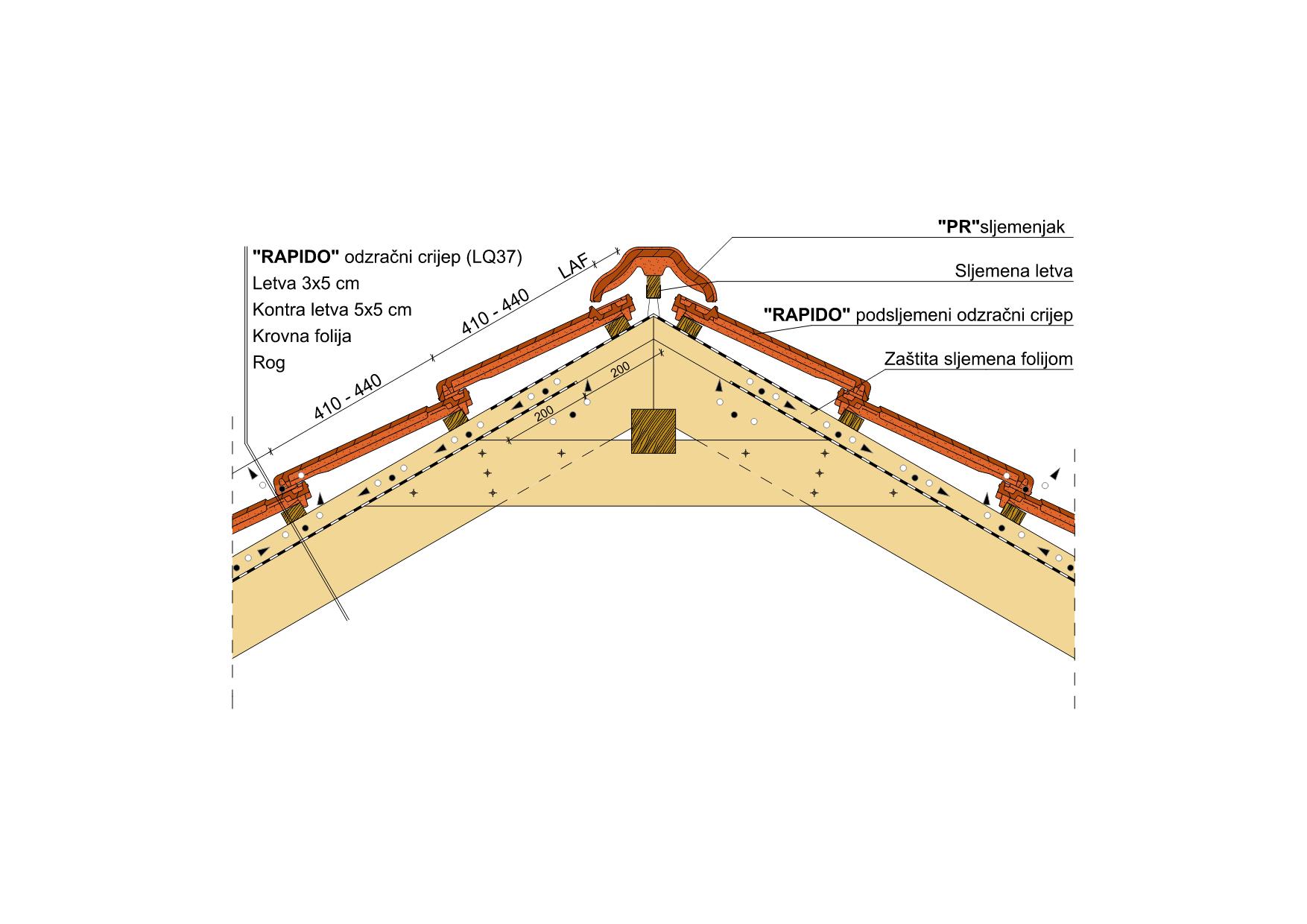

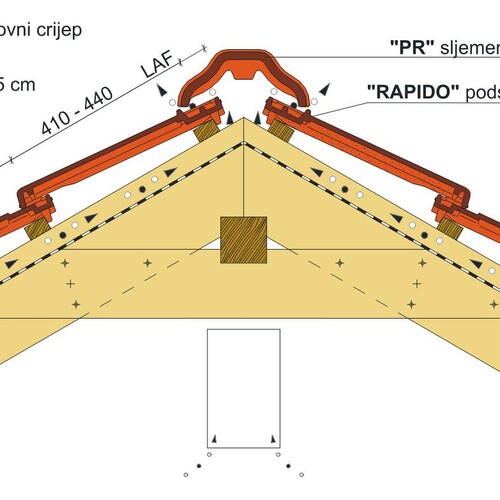

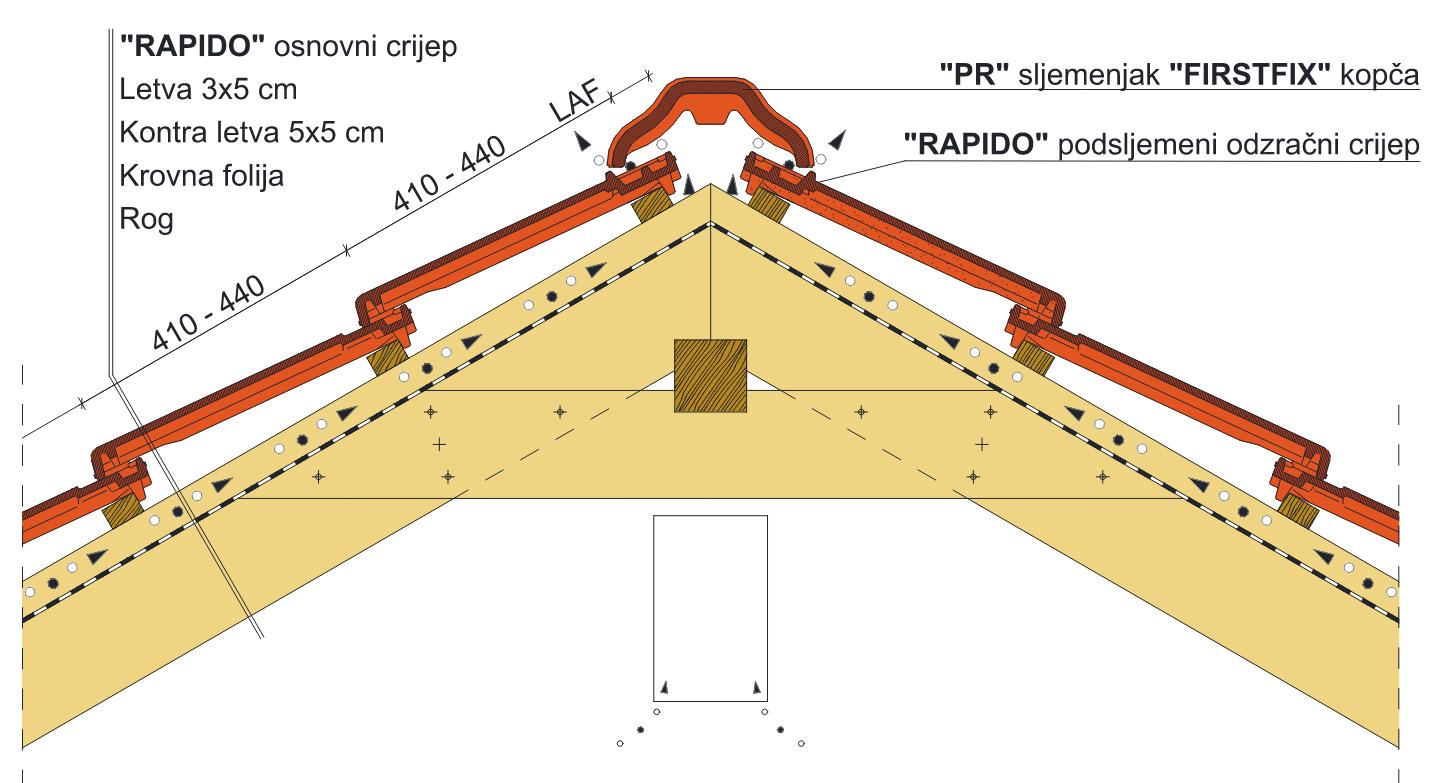

LAF-/FLA-VALUES

LAF-/FLA VALUES IN MM FOR 30x50-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°55°
PR 2.5 pcs./m.FLA110958575656050353030
PR 2.5 pcs./m.LAF75707065606060606055
LAF-/FLA VALUES IN MM FOR 40x60-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°55°
PR 2.5 pcs./m.FLA1201059585757060454020
PR 2.5 pcs./m.LAF75707060555555504540
LAF-/FLA VALUES IN MM FOR 50x50-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°55°
PR 2.5 pcs./m.FLA12511510595858575606050
PR 2.5 pcs./m.LAF70656555504545403530

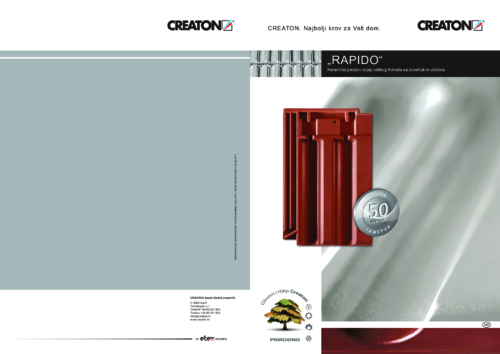

Downloads
