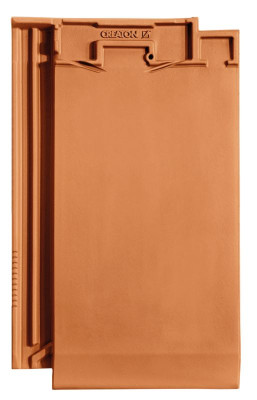

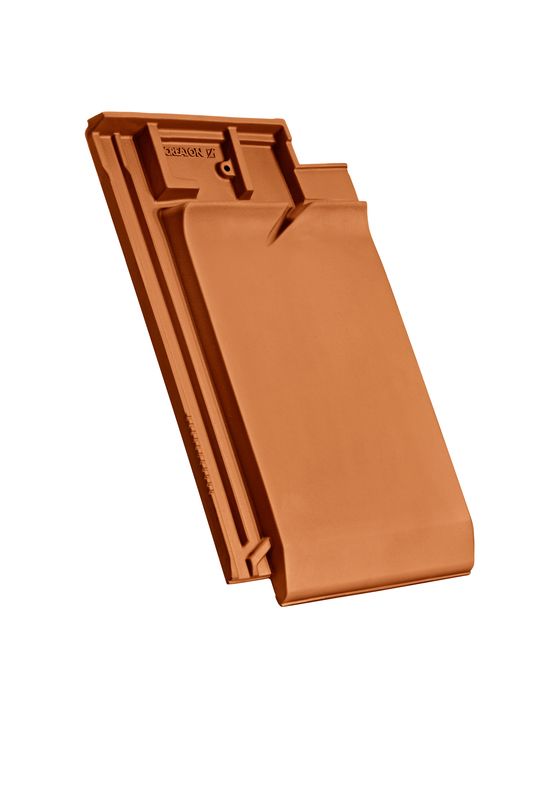

MIKADO

Uglađeni ravni crijep

  • Mogućnost pomaka od otprilike 29 mm integrirana u gornjem i donjem utorenom dijelu nudi kod svih projekata novogradnje i obnove iznimnu fleksibilnost i time pojednostavljuje pokrivanje krova
  • Prvorazredne sirovine omogućuju visok stupanj homogenosti, malo skupljanje, a visok udio željezova oksida stvara prirodne, blistavo intenzivne boje
  • Dva stabilna ovjesna nosa omogućuju sigurno držanje i pouzdano stražnje prozračivanje.
  • Prema ZVDH-u kod sporednih zgrada pri prekrivanju s preklapanjem s nagibom krova od 10° mogu se postavljati s vodonepropusnim potkrovljem

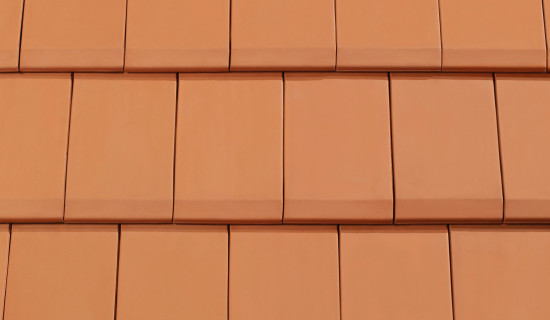

prirodno crvena
prirodno crvena
NUANCE boja škriljevca engobirana
NUANCE boja škriljevca engobirana
NUANCE crna mat engobirana
NUANCE crna mat engobirana

Technical data

GROESSE1000216260 mm
Srednja pokrovna širina(cca.)229 mm
Maks.pokrovna širina(cca.)231 mm
Min.pokrovna širina(cca.)227 mm
Letvanje preporučeno(cca.)357 mm
Maks. letvanje(cca.)371 mm
Min.letvanje(cca.)343 mm
Utrošak crijepa prosječno(cca.)12.2 kom/m²
Maks.utrošak crijepa12.8 kom/m²
min. utrošak crijepa (cca.)11.7 kom/m²
Masa po m²(cca.)39.8 kg/m²
Masa palete(cca.)841 kg
Masa po komadu(cca.)3.4 kg/piece
Komada na paleti240 komad
BETON I VLAKNO CEMENT5 piece

Applications

Valid for Germany
Nagib krova DUO extra (D)≥ 16 °
Nagib krova QUATTRO longlife extra (D)≥ 10 °
Nagib krova TRIO extra (D)≥ 14 °
Nagib krova DUO longlife ND extra (D)≥ 14 °
Valid for Austria
Nagib krova DUO longlife ND extra (A)≥ 22 °
Nagib krova DUO extra (A)≥ 22 °
Nagib krova QUATTRO longlife extra (A)≥ 20 °
Nagib krova TRIO extra (A)≥ 22 °

Technical informations

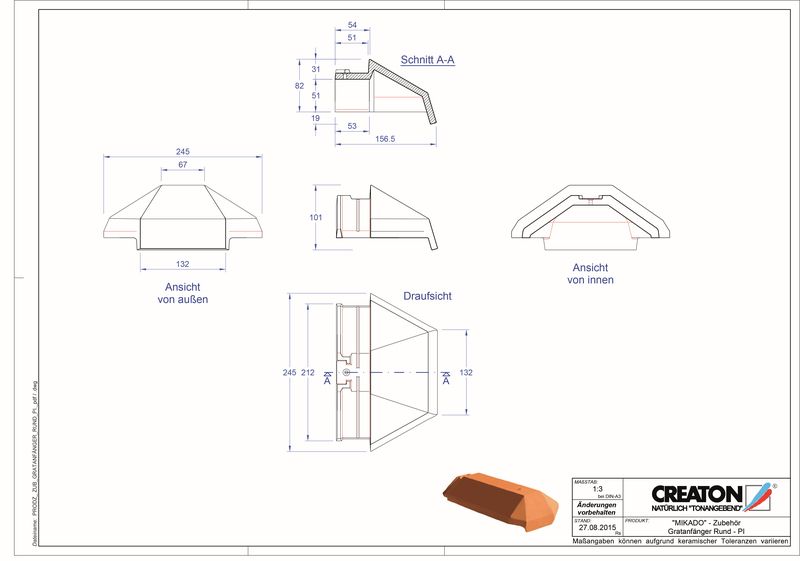

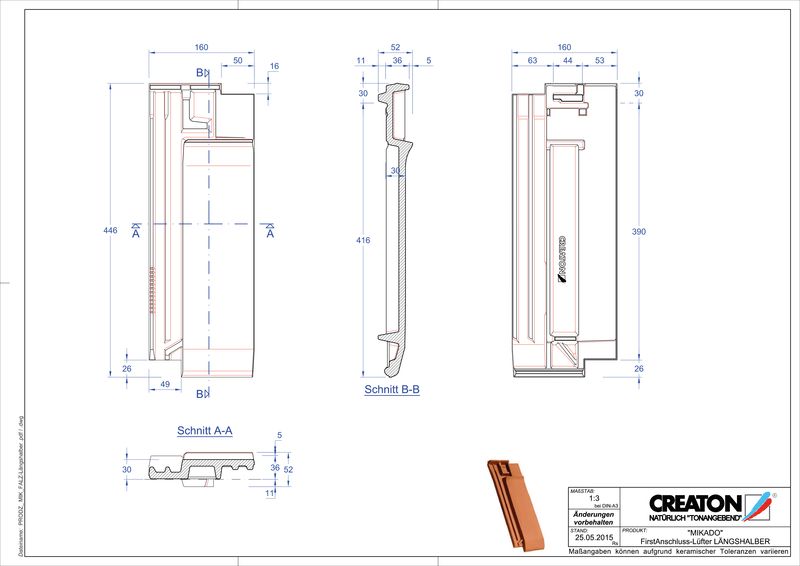

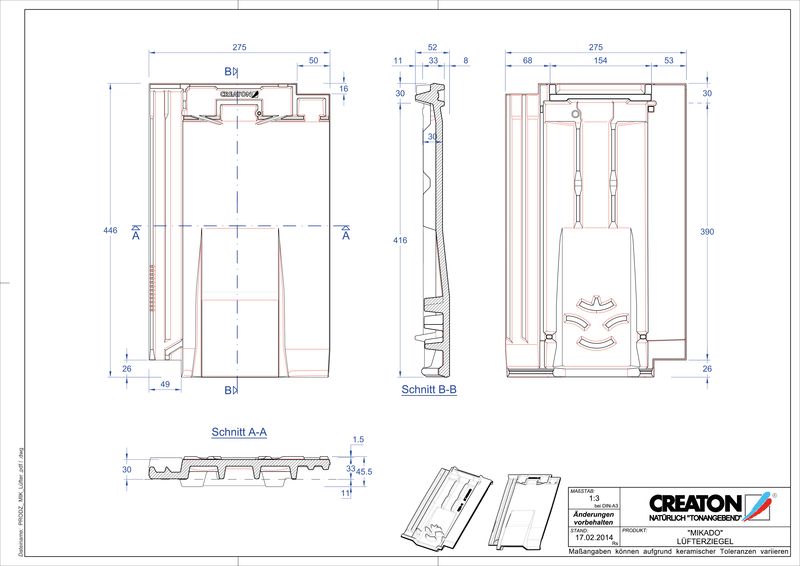

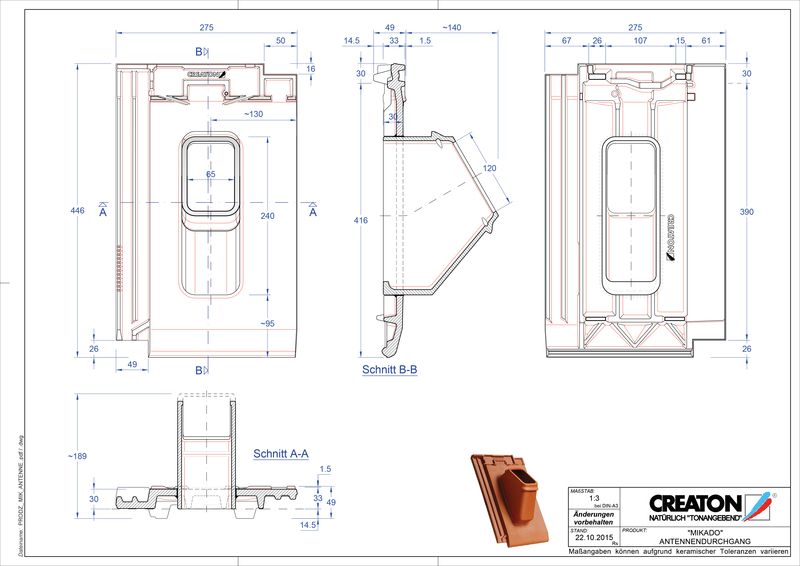

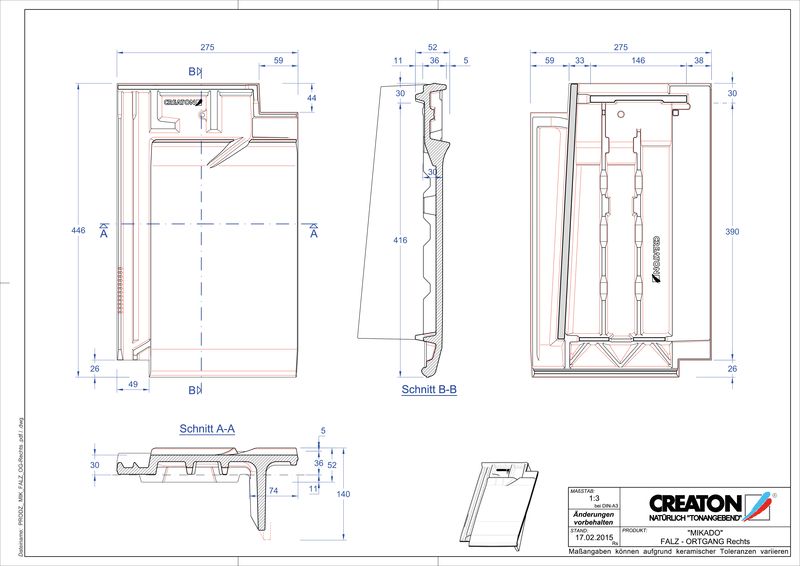

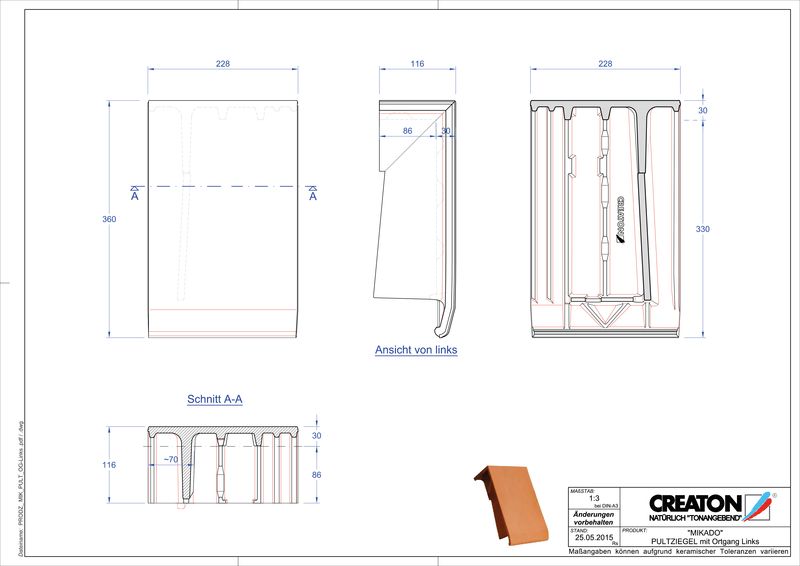

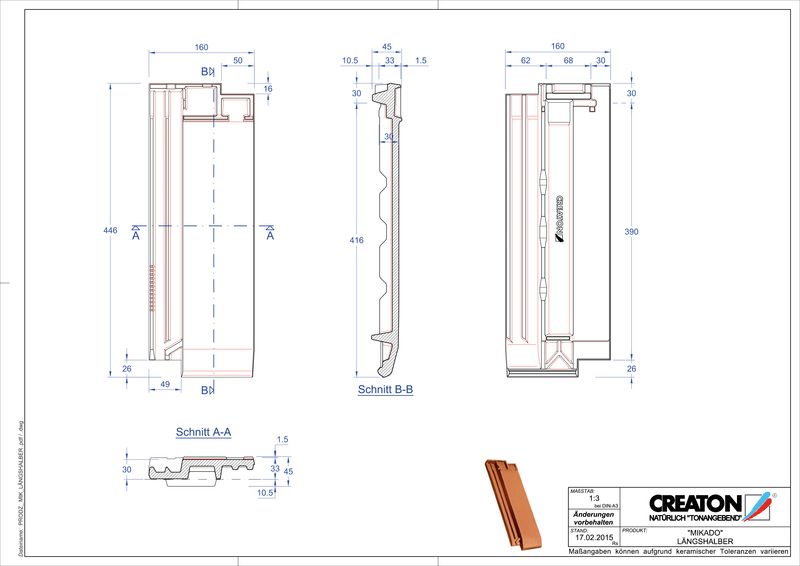

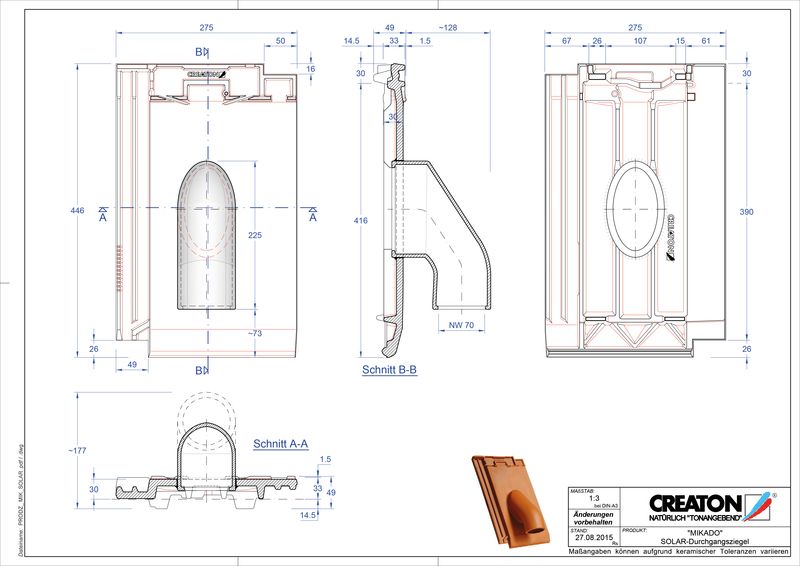

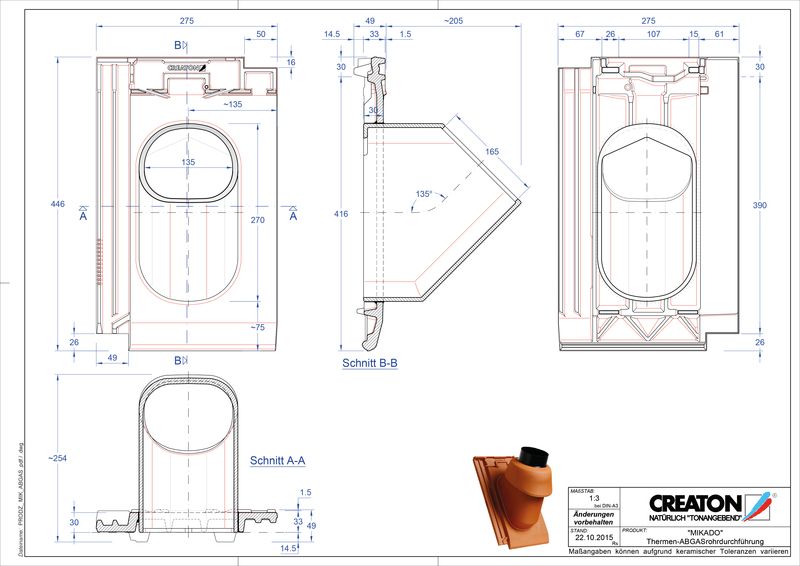

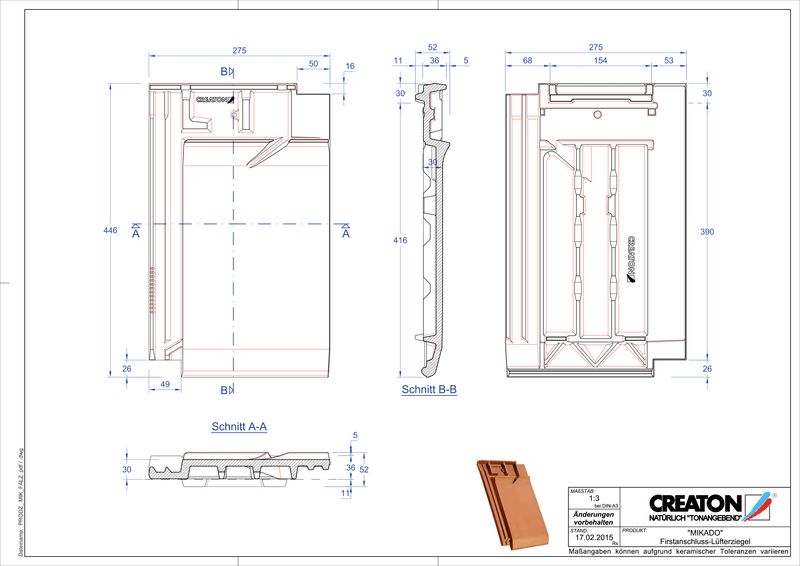

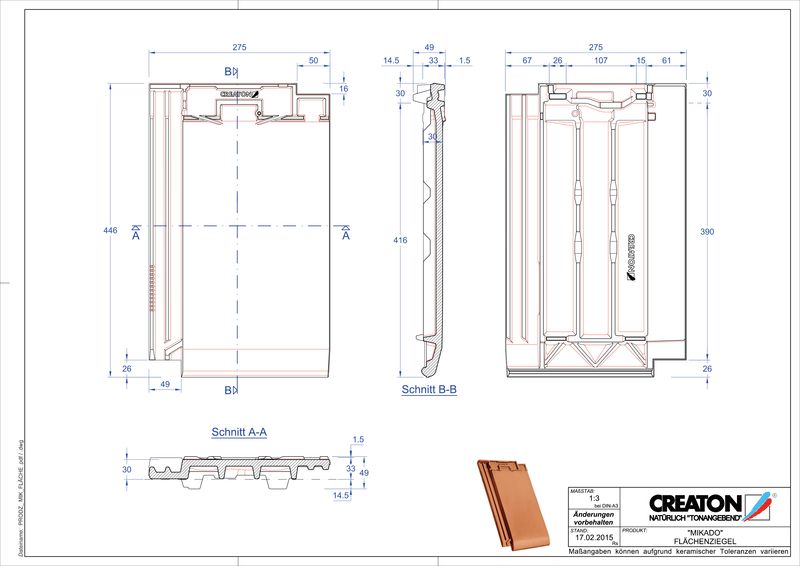

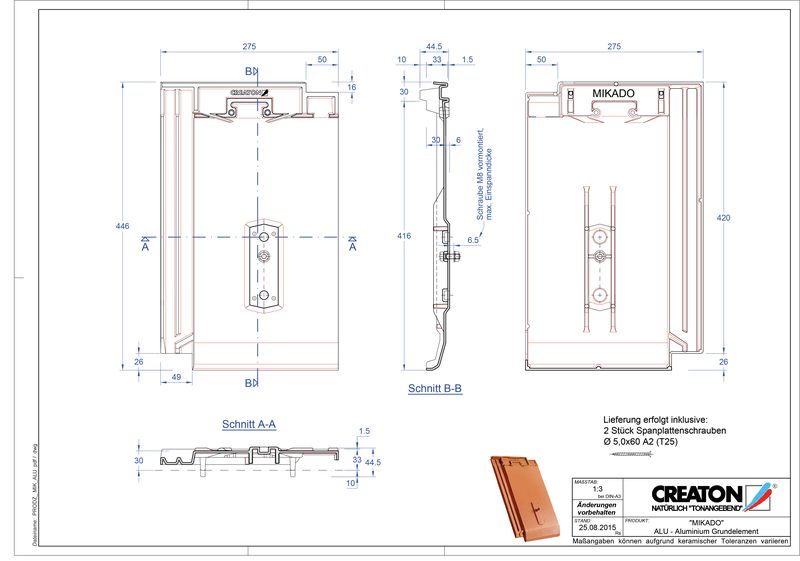

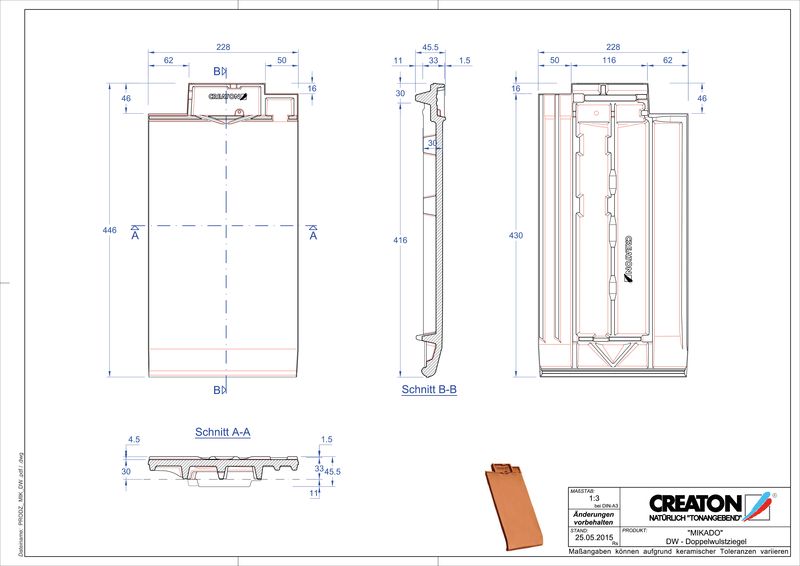

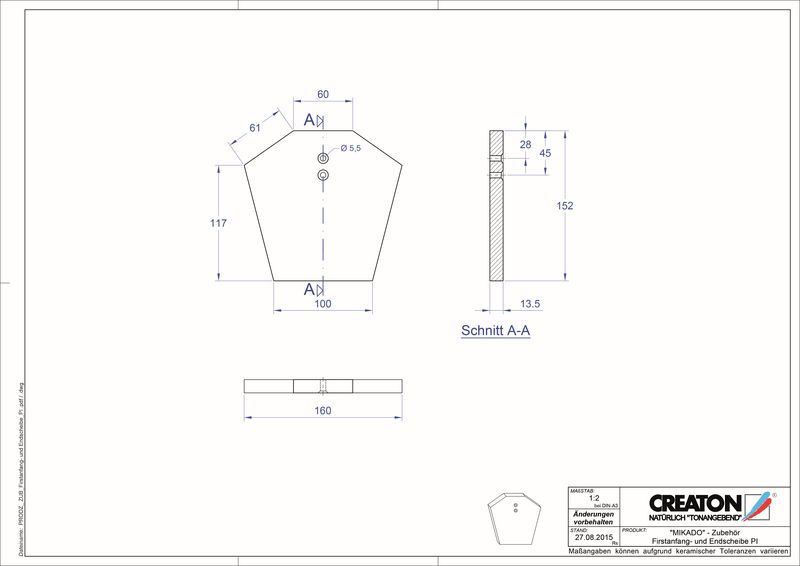

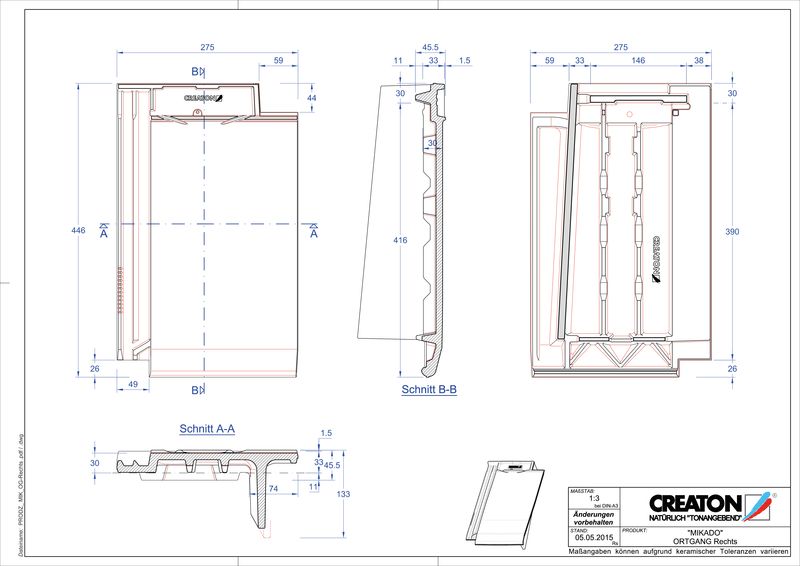

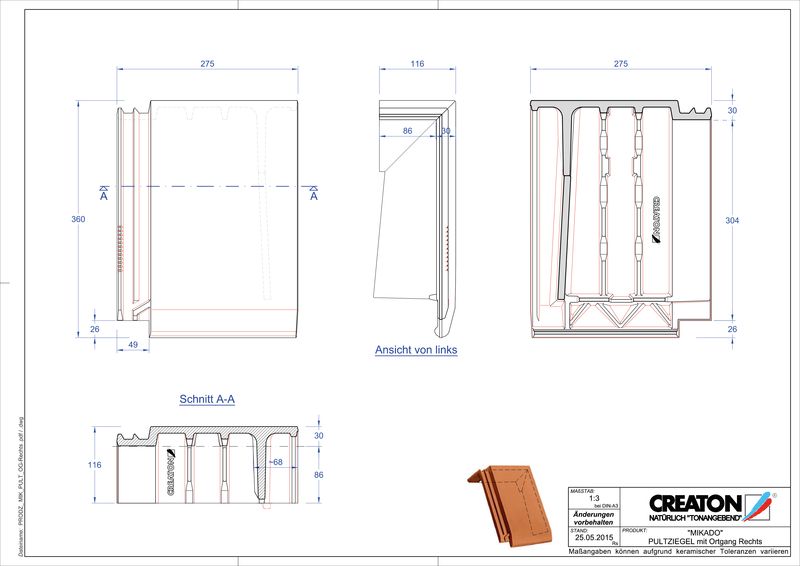

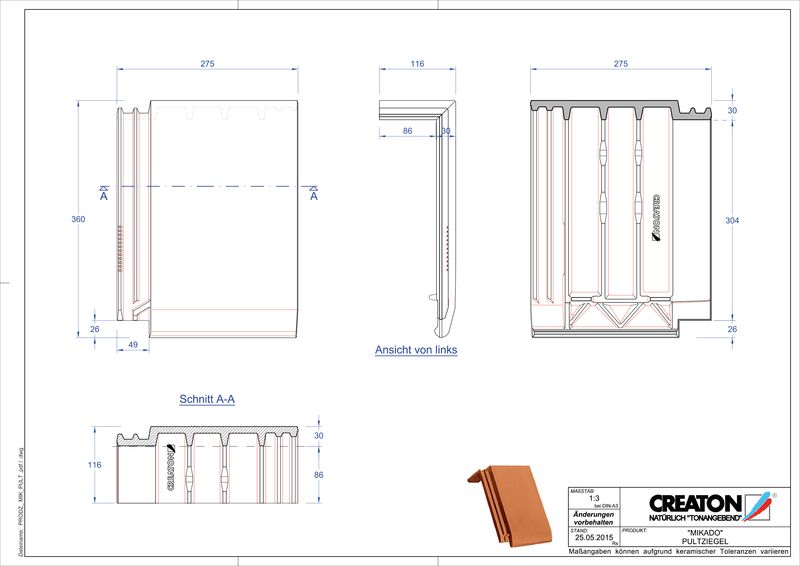

  • The technical drawing shown is merely an example.

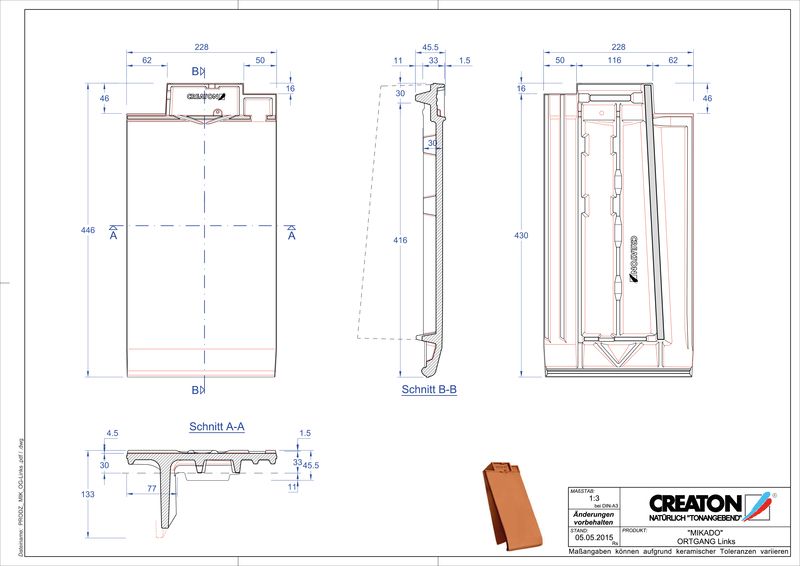

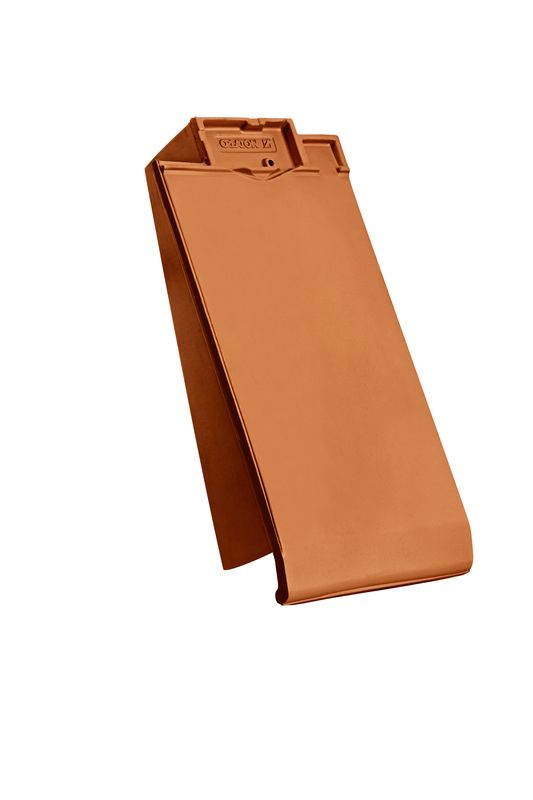

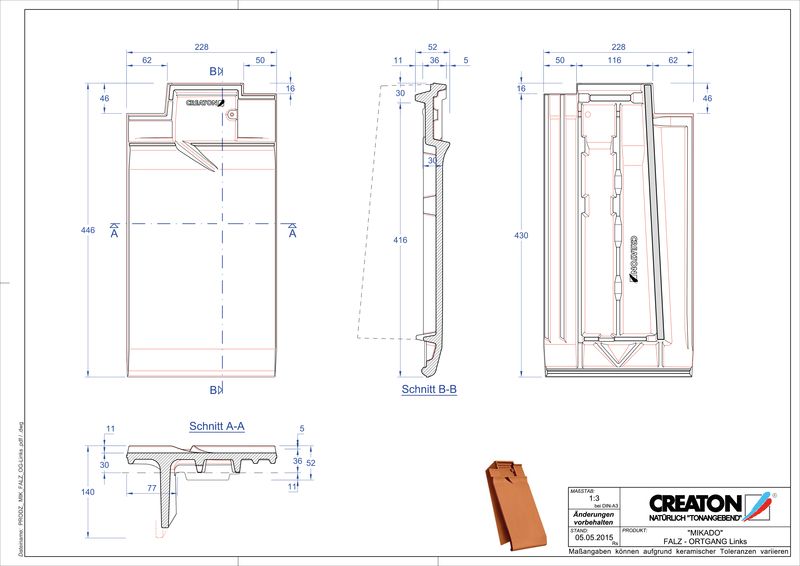

  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.

LAF-/FLA-VALUES

LAF-/FLA VALUES IN MM FOR 30x50-BATTENS

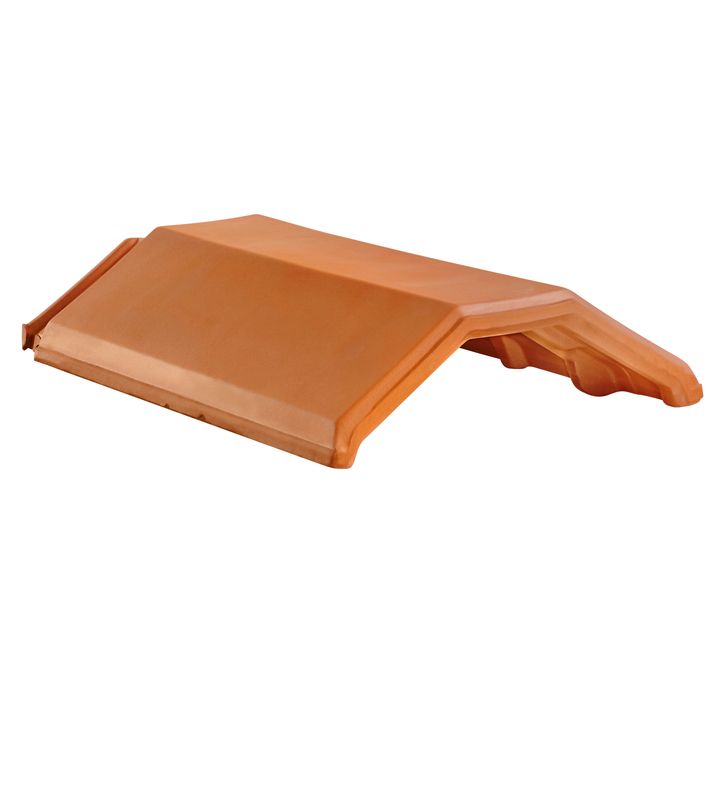

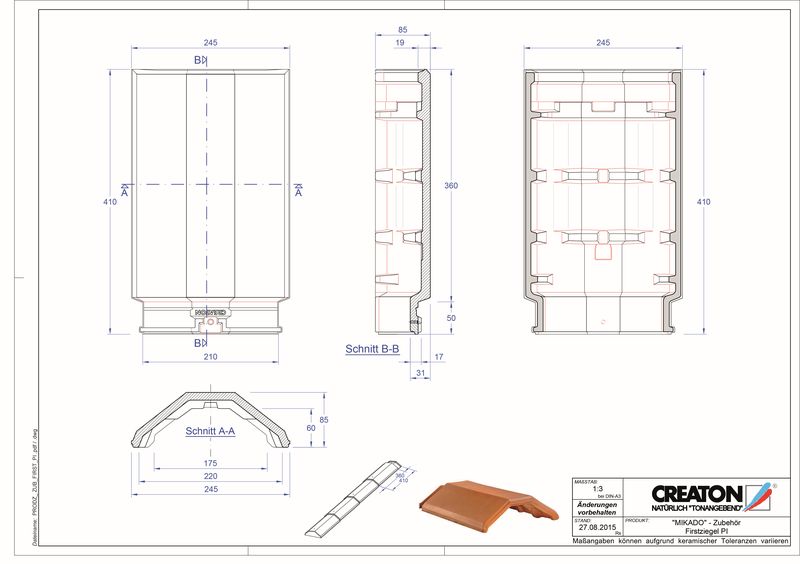

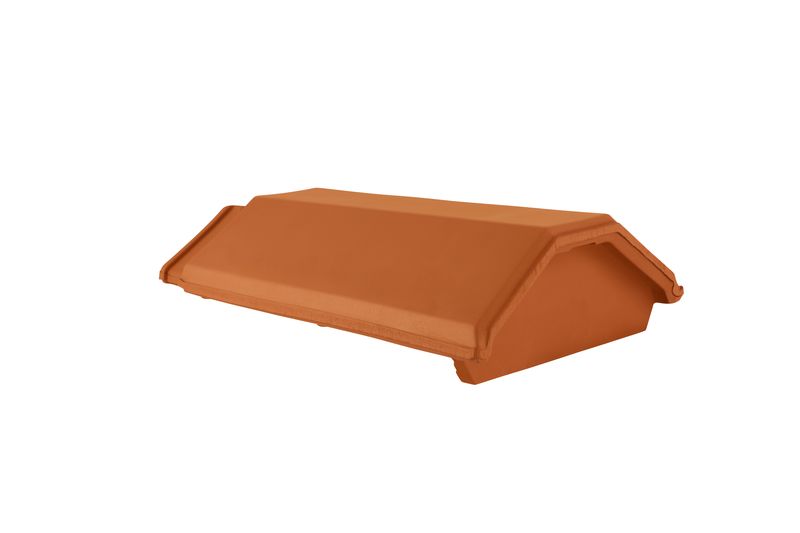

Ridge tileDN10°15°20°25°30°35°40°45°50°
PI 2.5 pcs./m.FLA1009085807070605050
PI 2.5 pcs./m.LAF505045454545404035
LAF-/FLA VALUES IN MM FOR 40x60-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°
PI 2.5 pcs./m.FLA11010095908080706060
PI 2.5 pcs./m.LAF505045404040353020
LAF-/FLA VALUES IN MM FOR 50x50-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°
PI 2.5 pcs./m.FLA1201101051009095857580
PI 2.5 pcs./m.LAF454540353530252010
