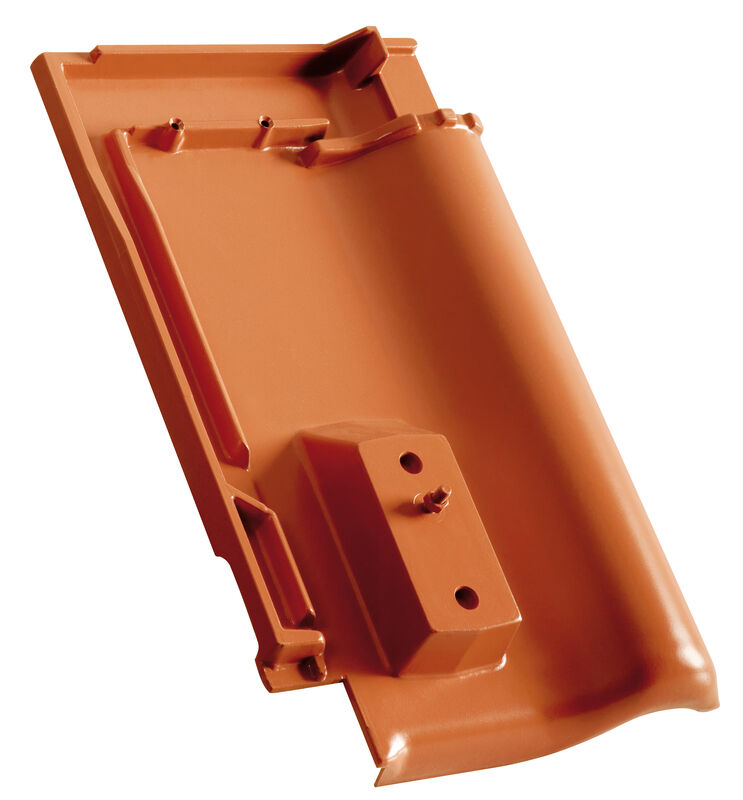

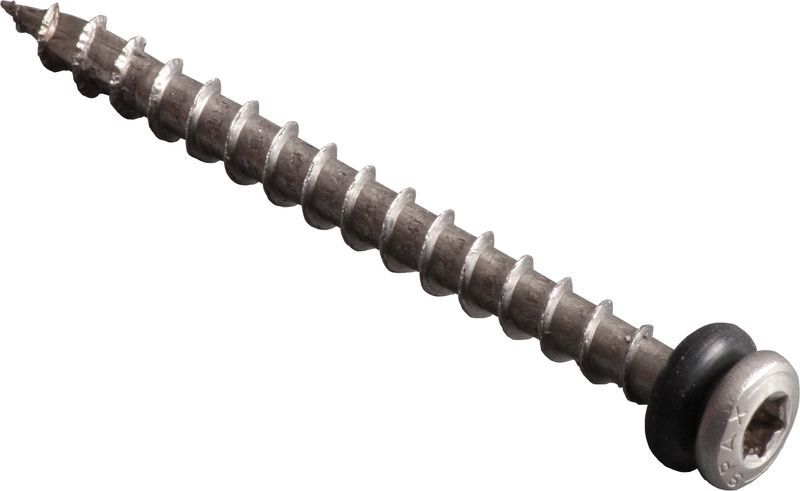

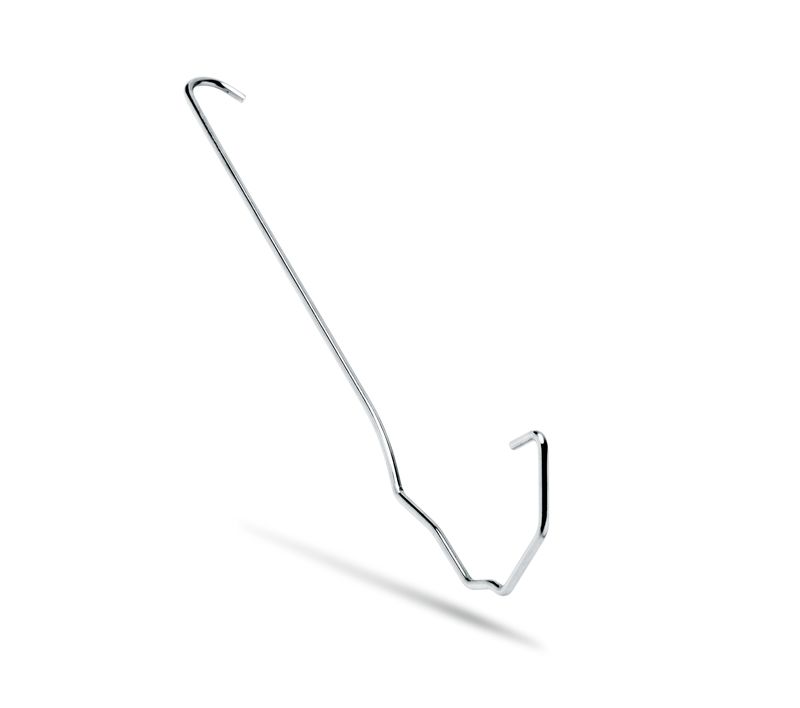

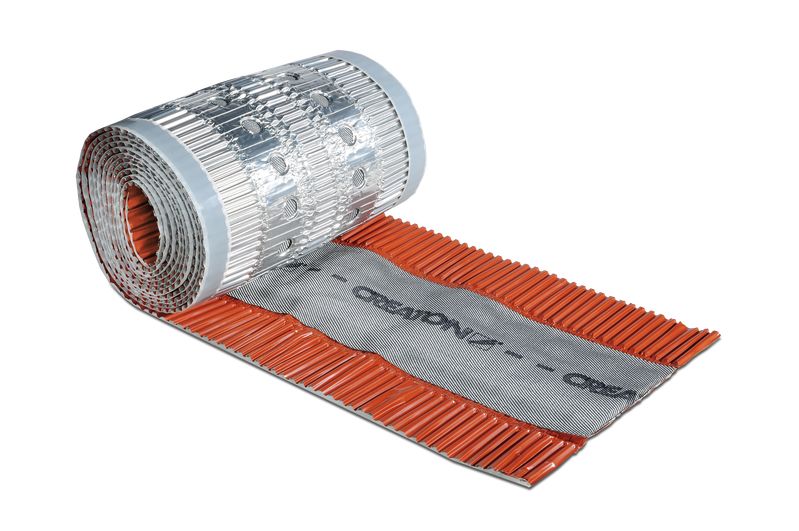

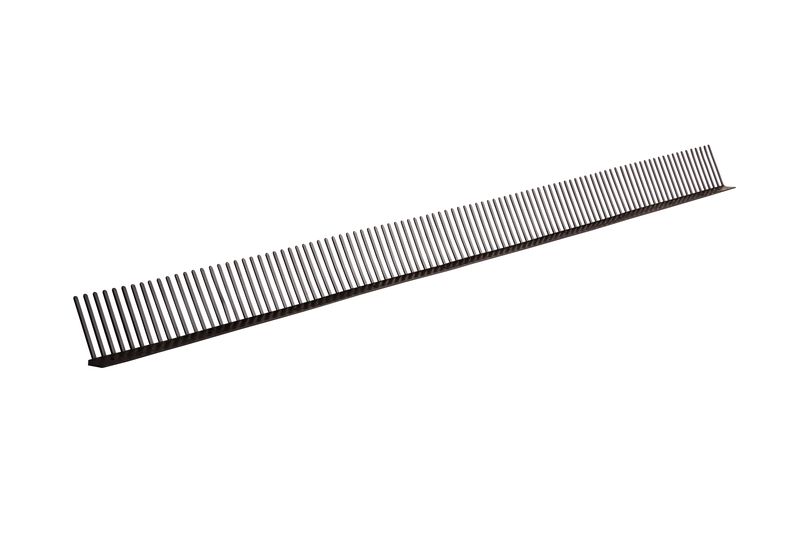

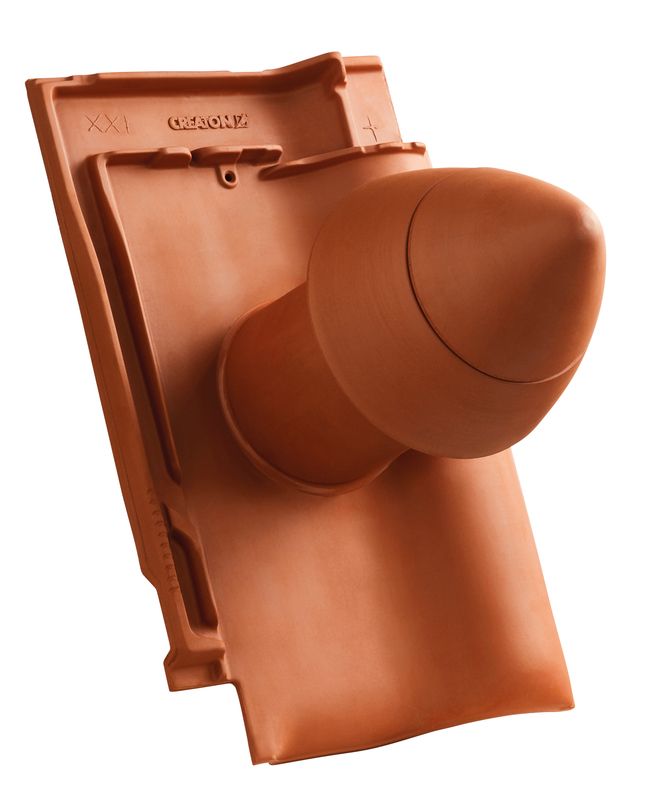

FUTURA

Suvremena tehnlogoja igre svjetla i sjene

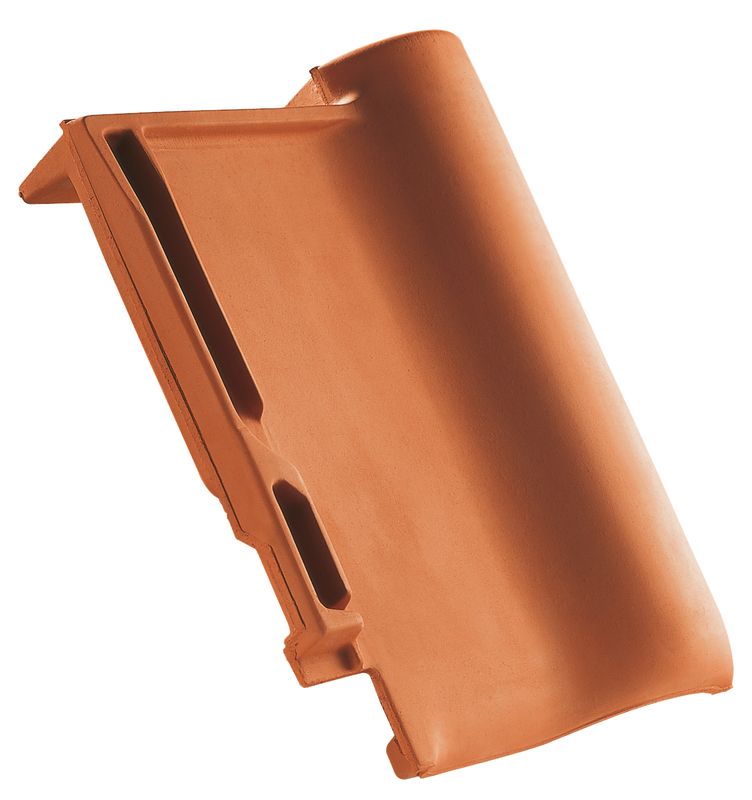

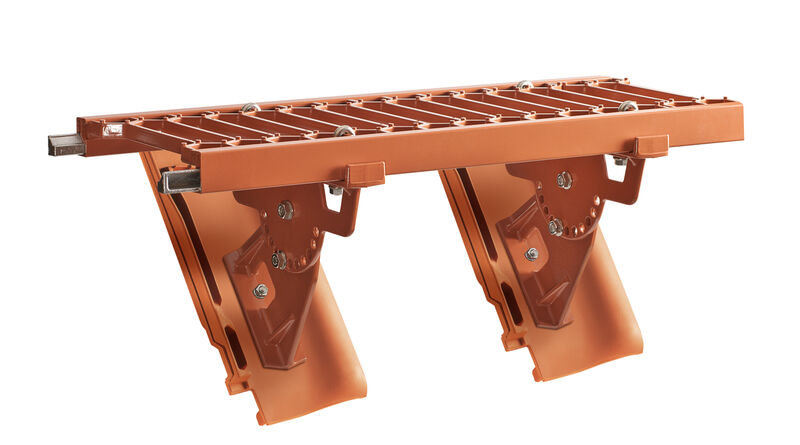

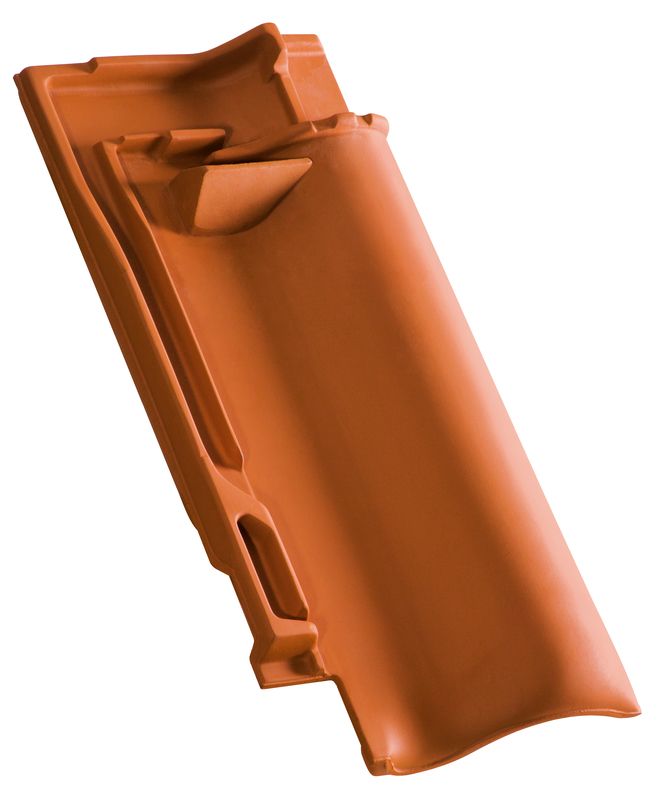

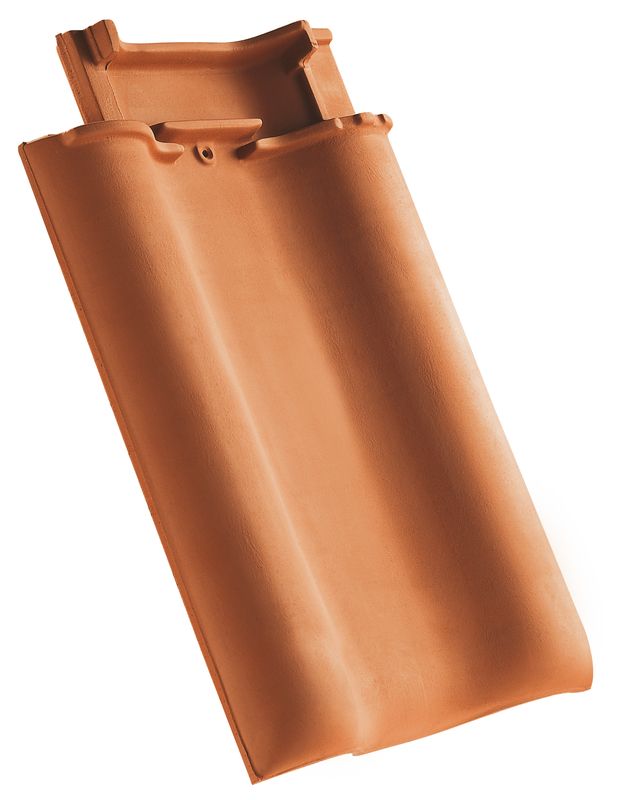

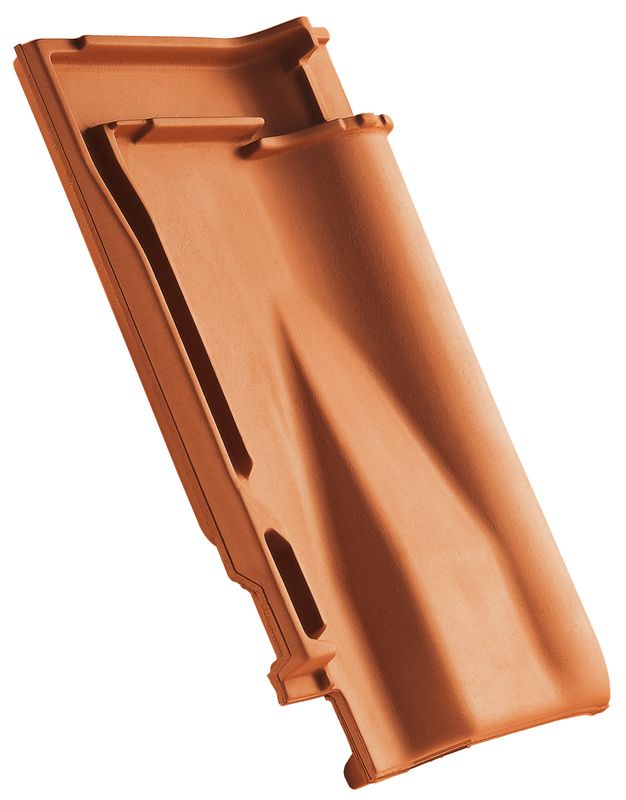

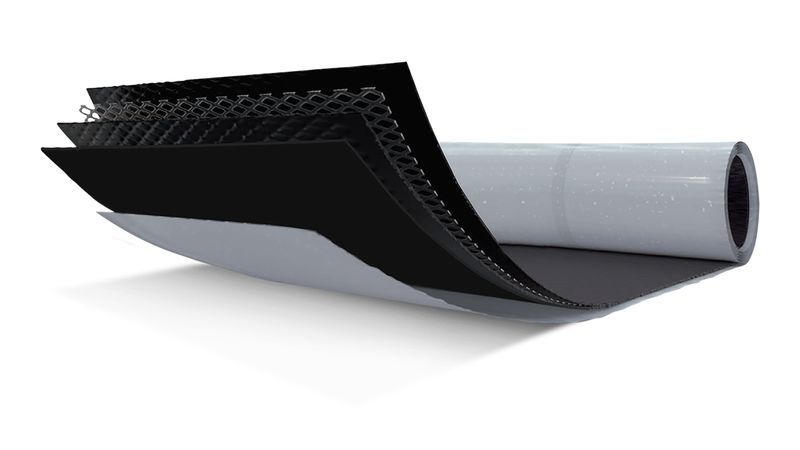

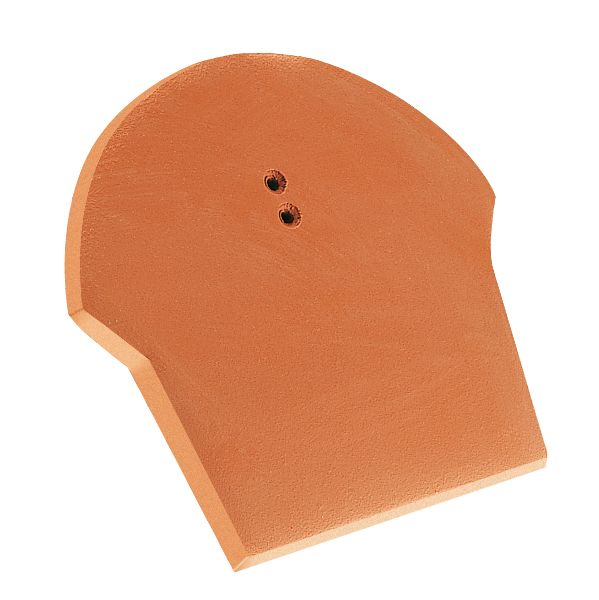

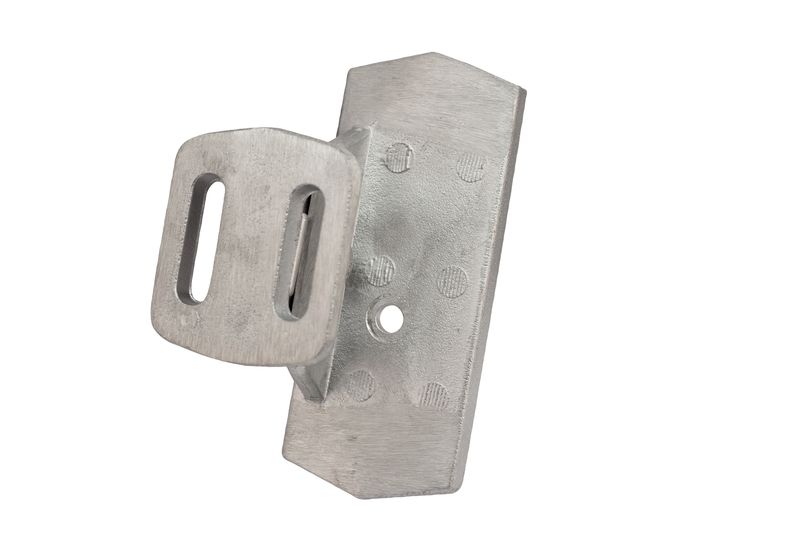

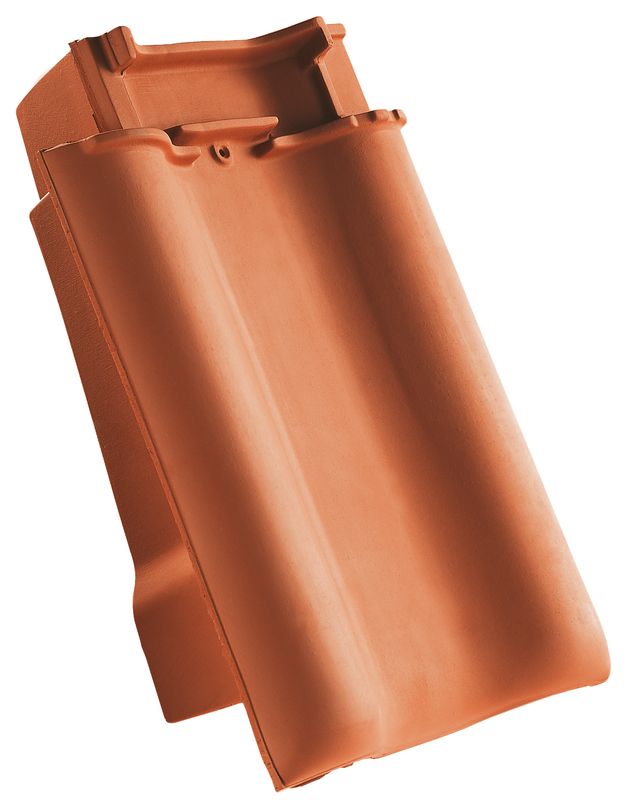

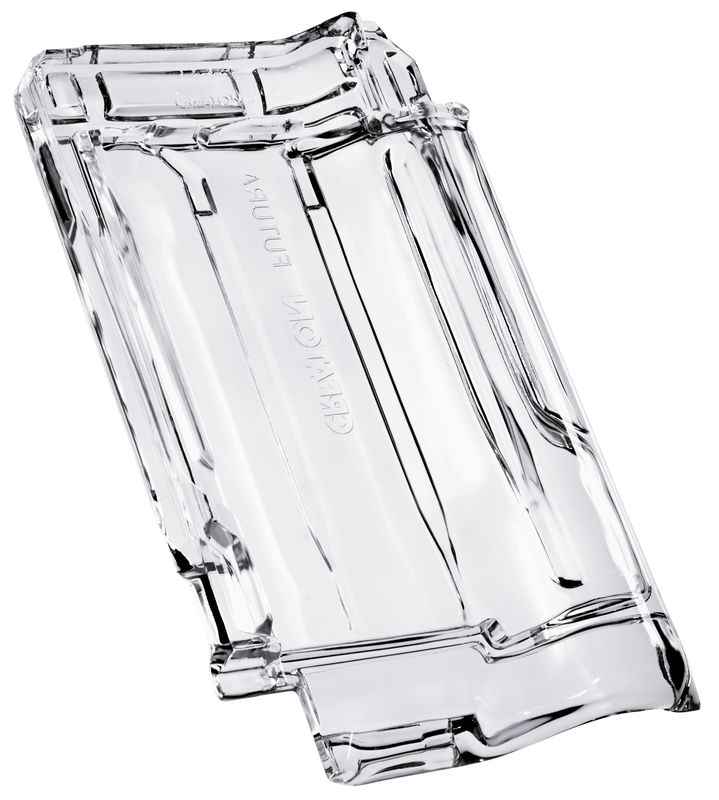

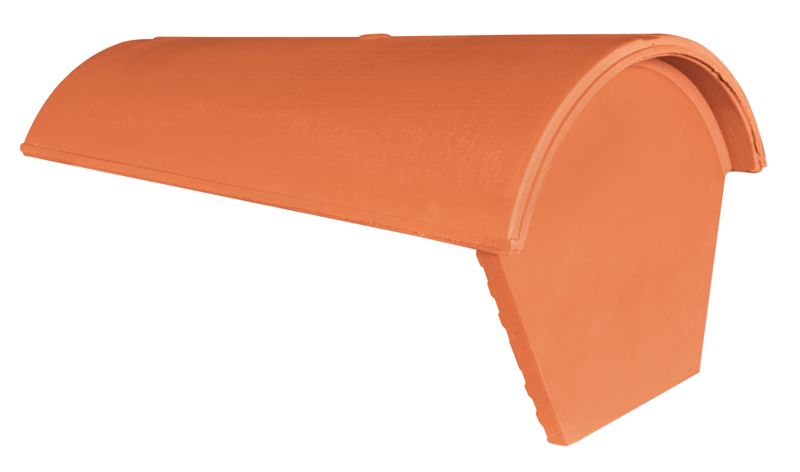

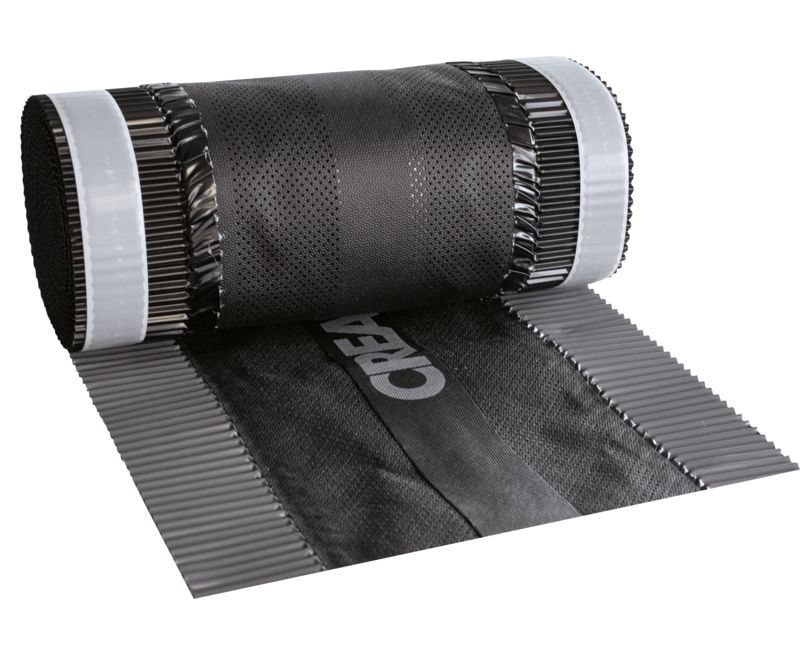

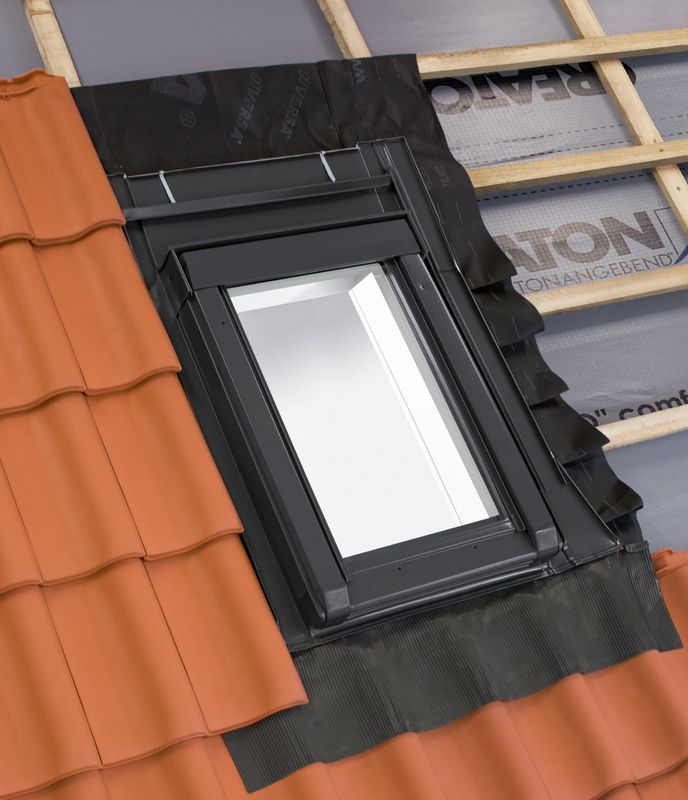

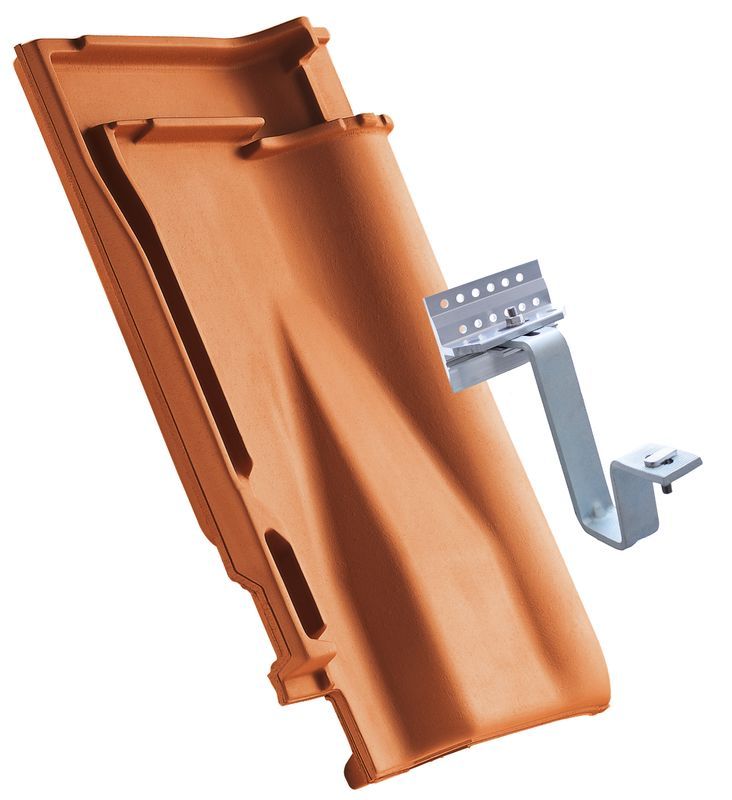

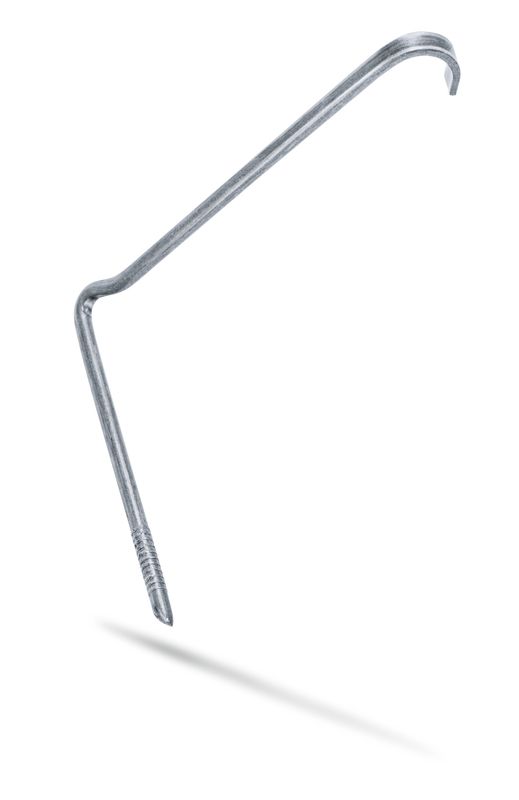

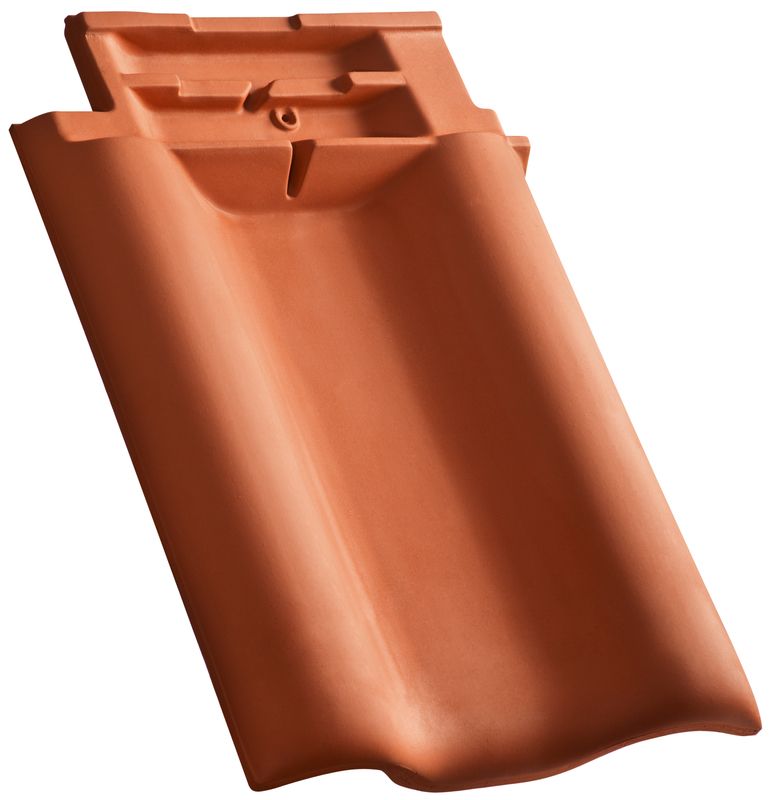

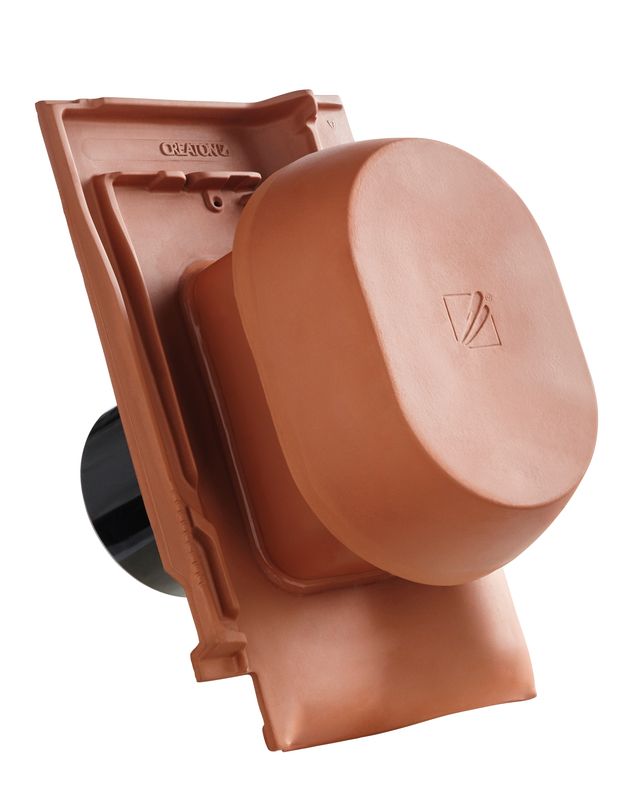

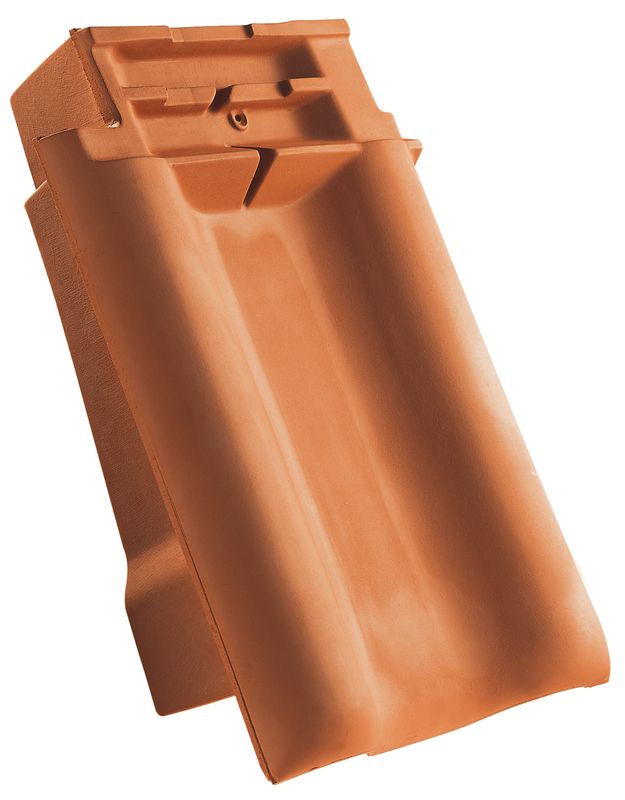

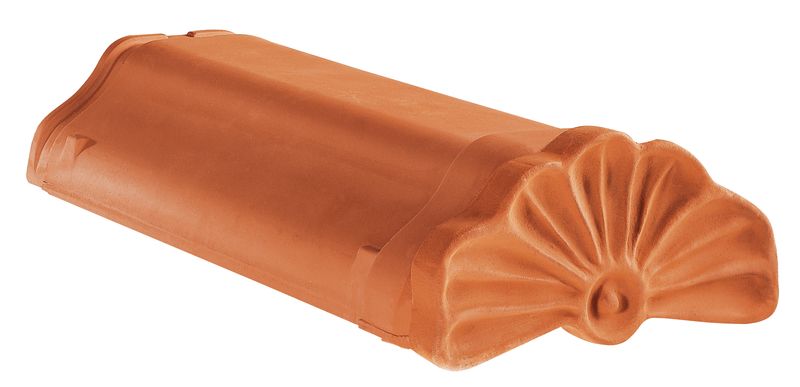

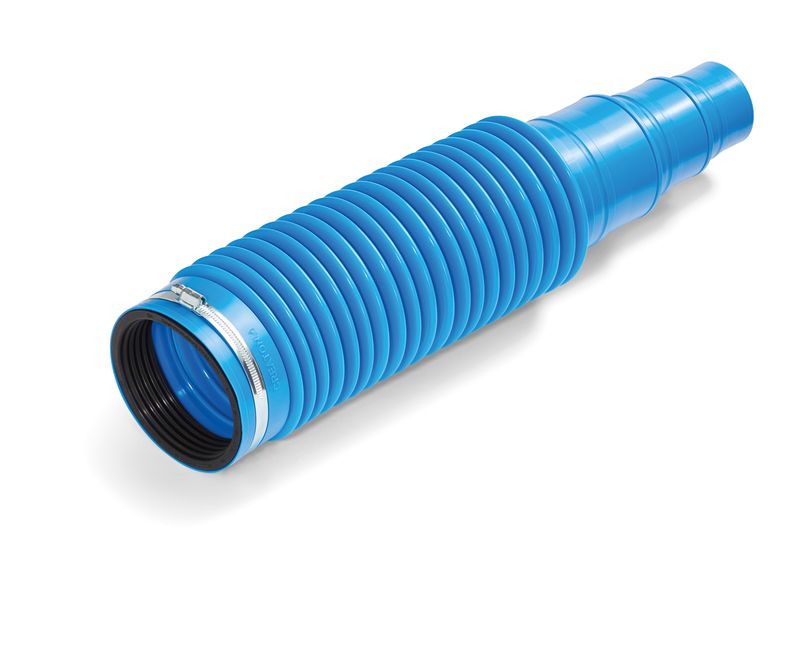

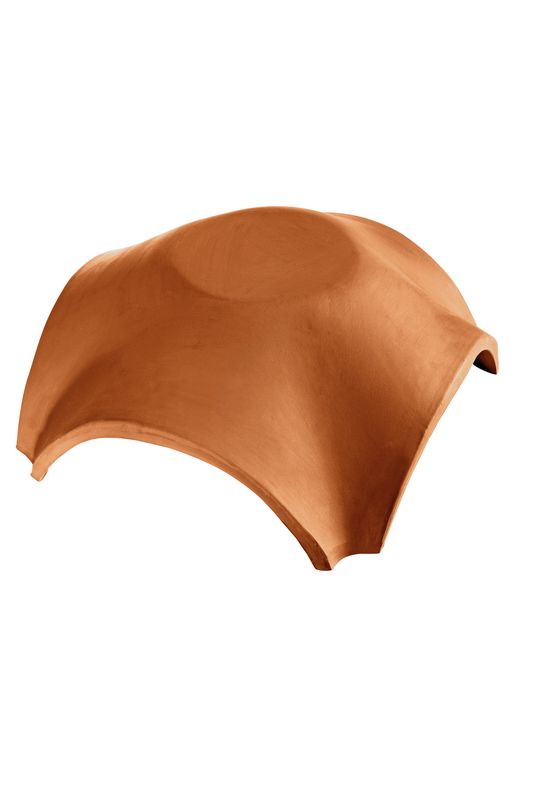

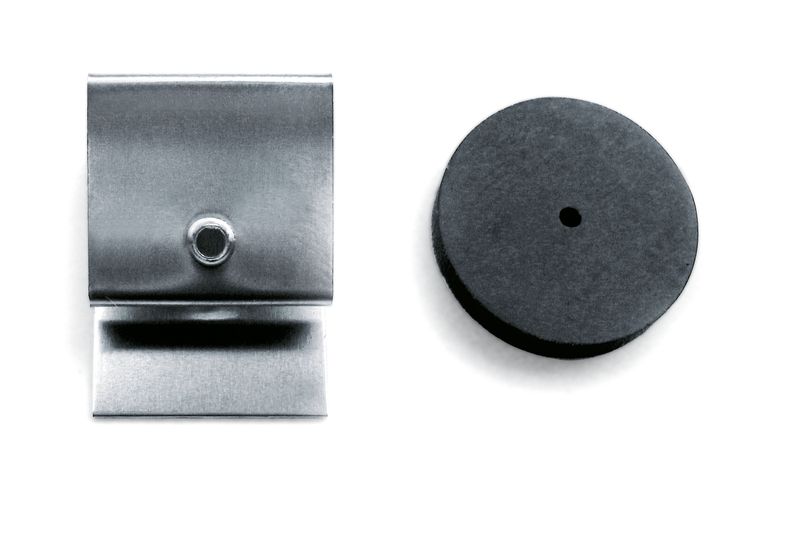

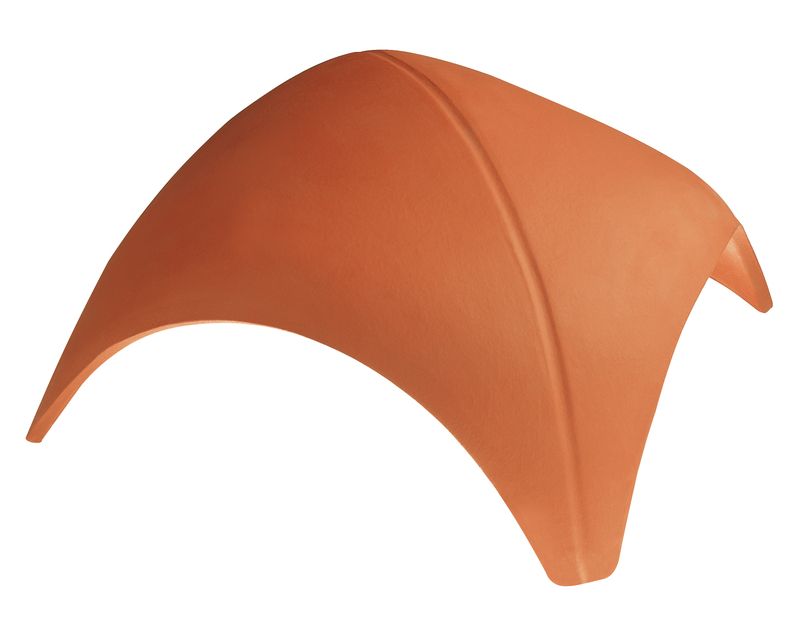

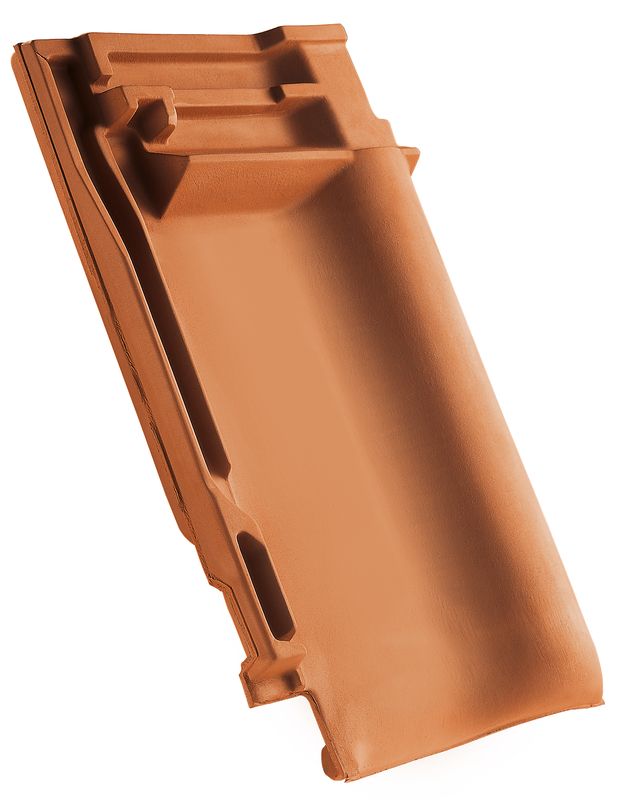

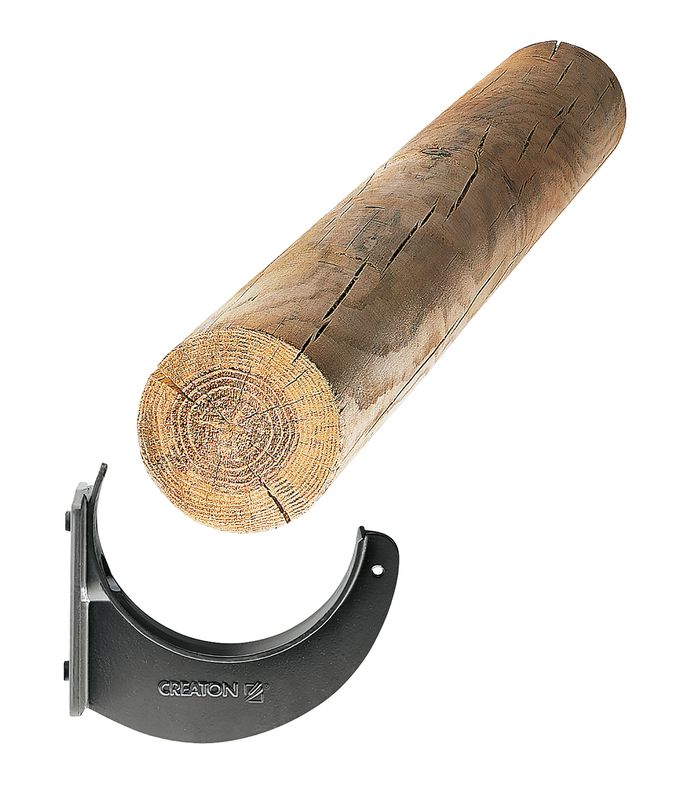

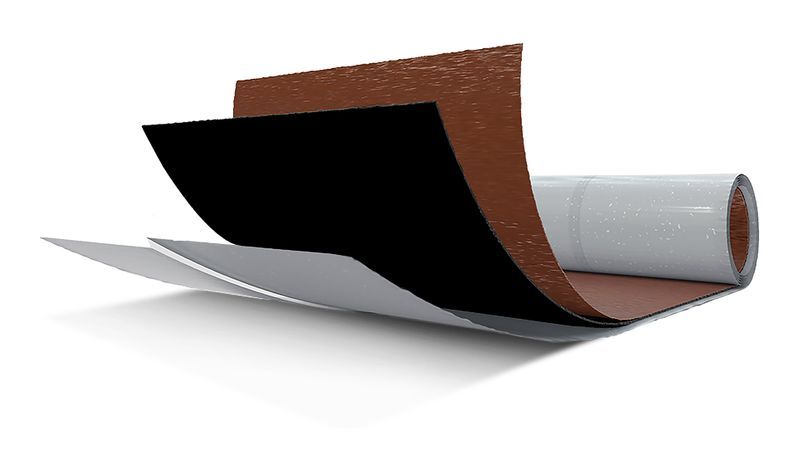

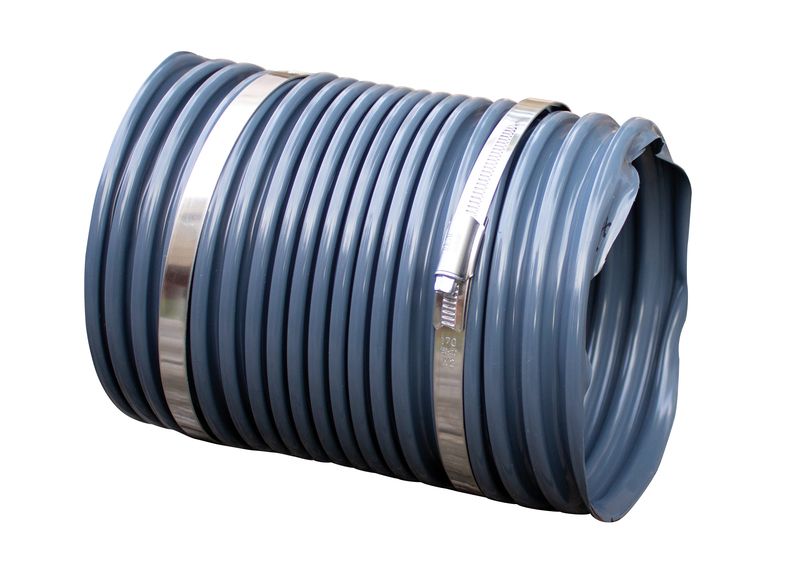

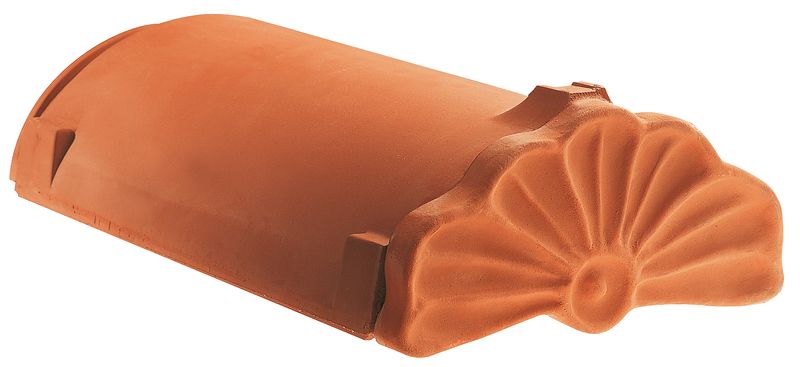

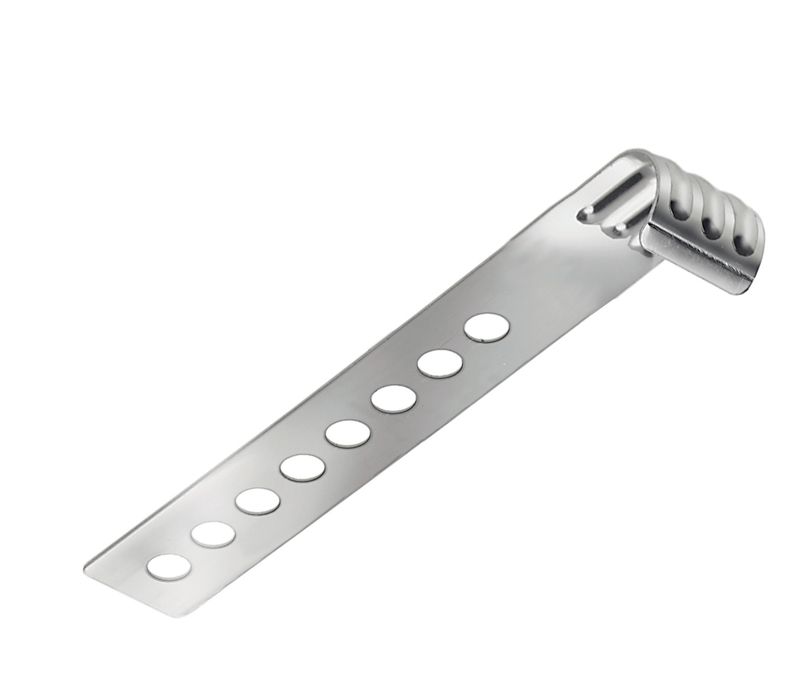

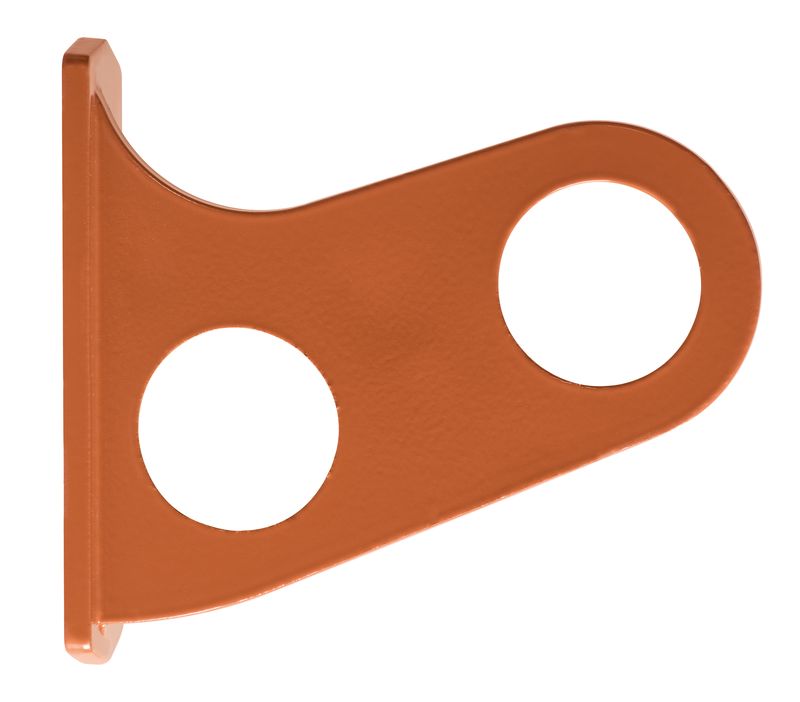

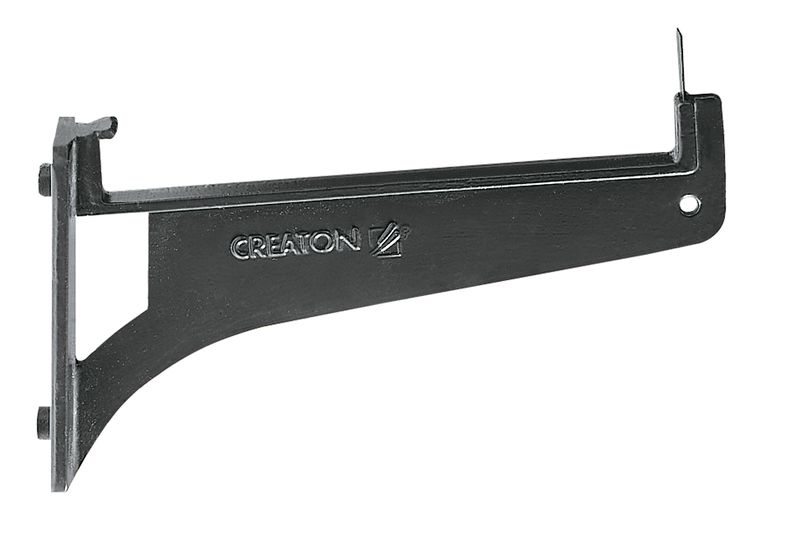

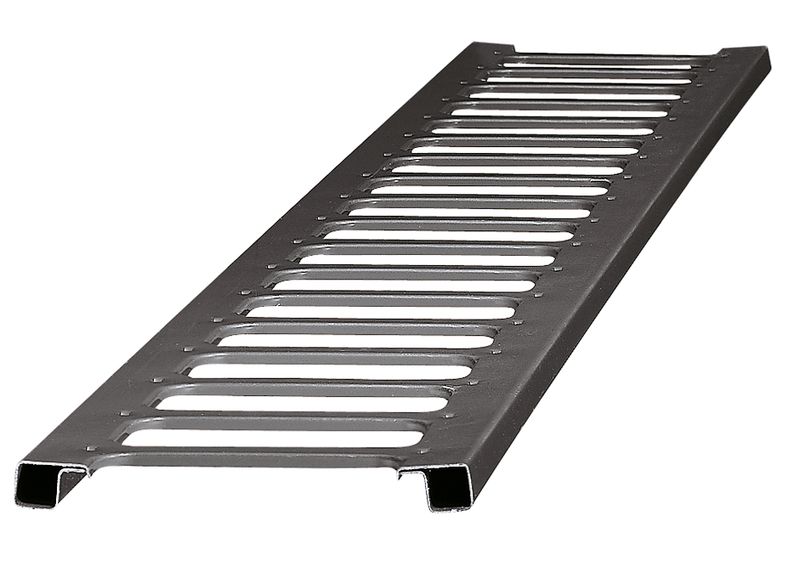

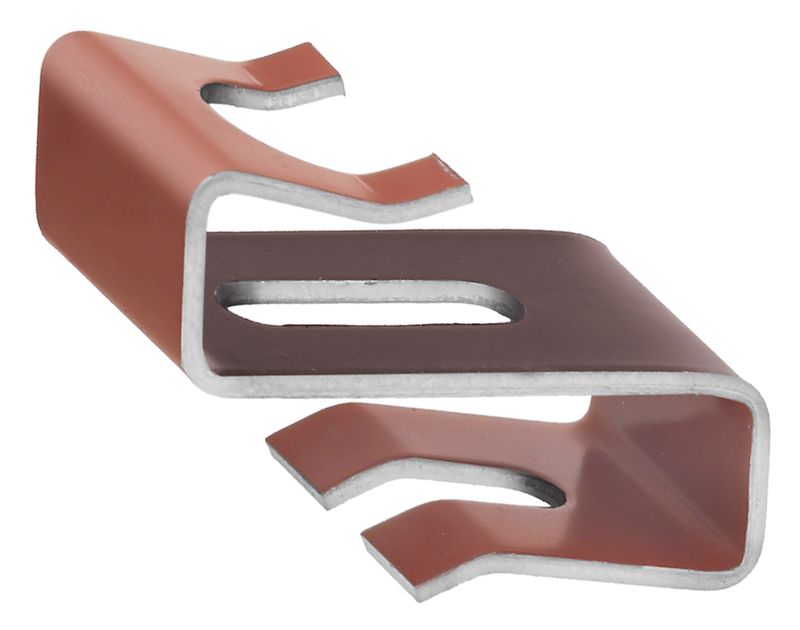

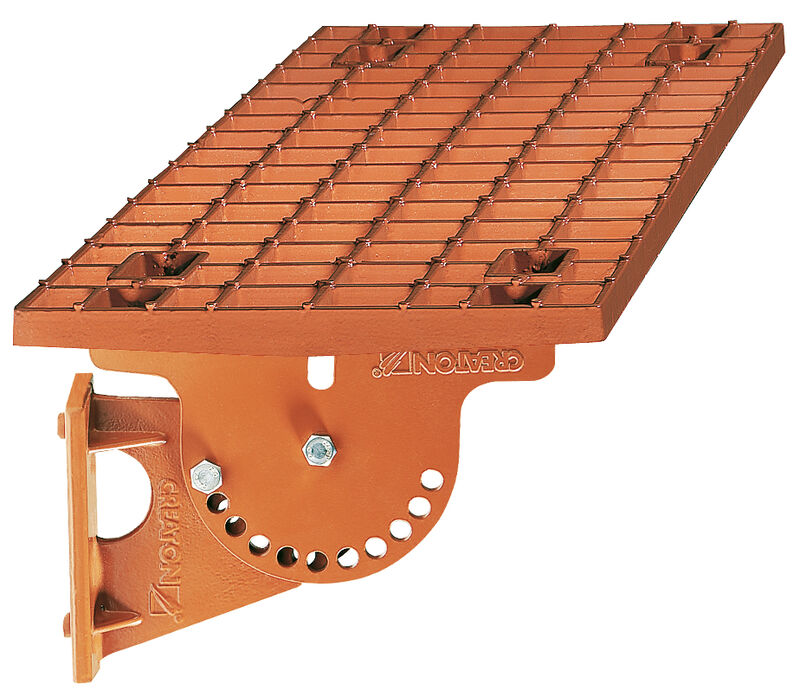

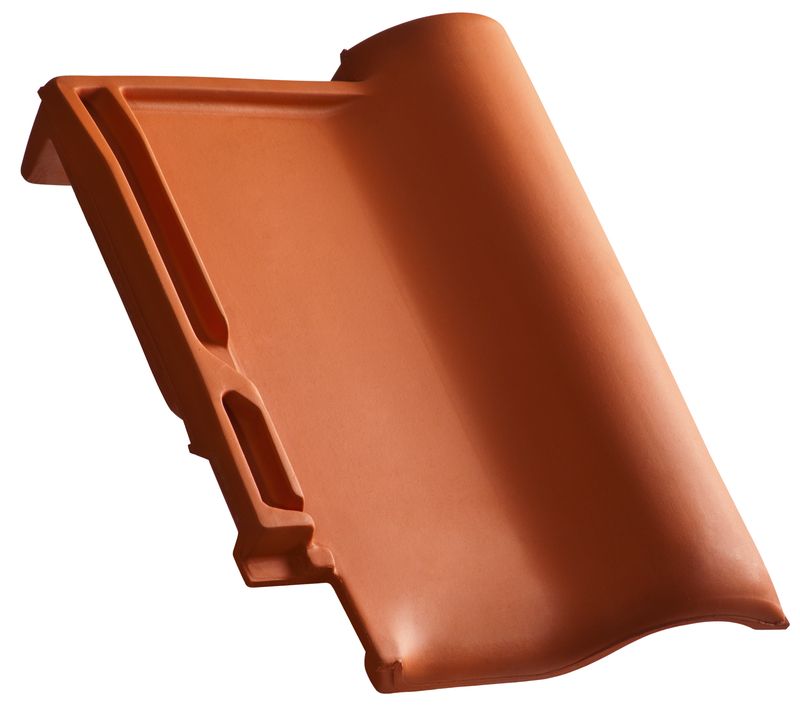

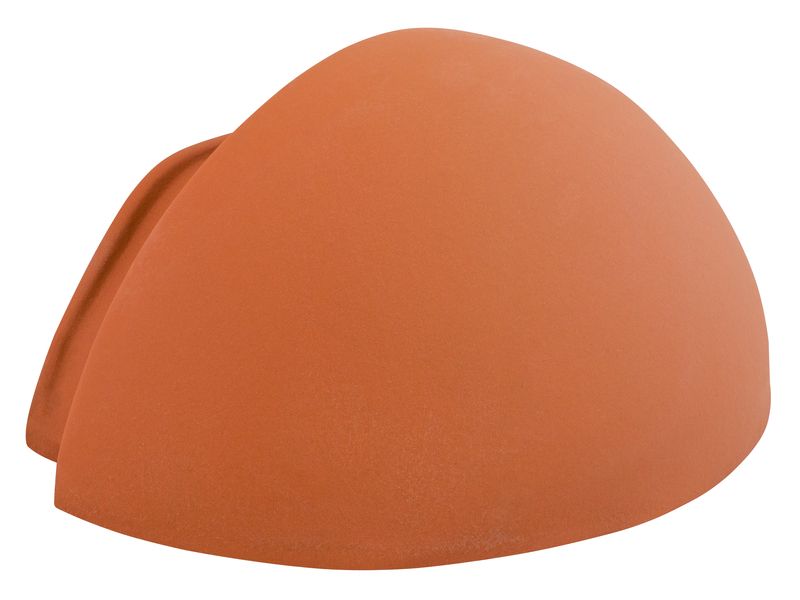

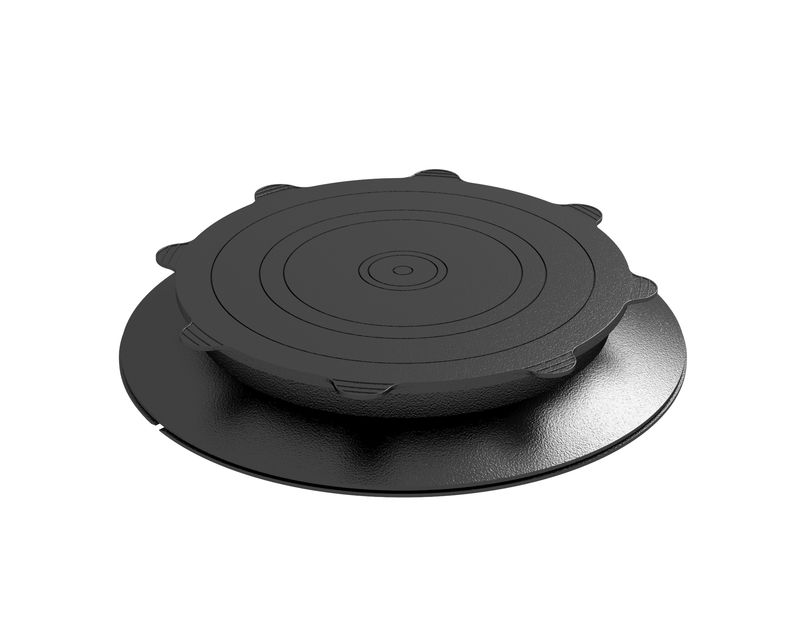

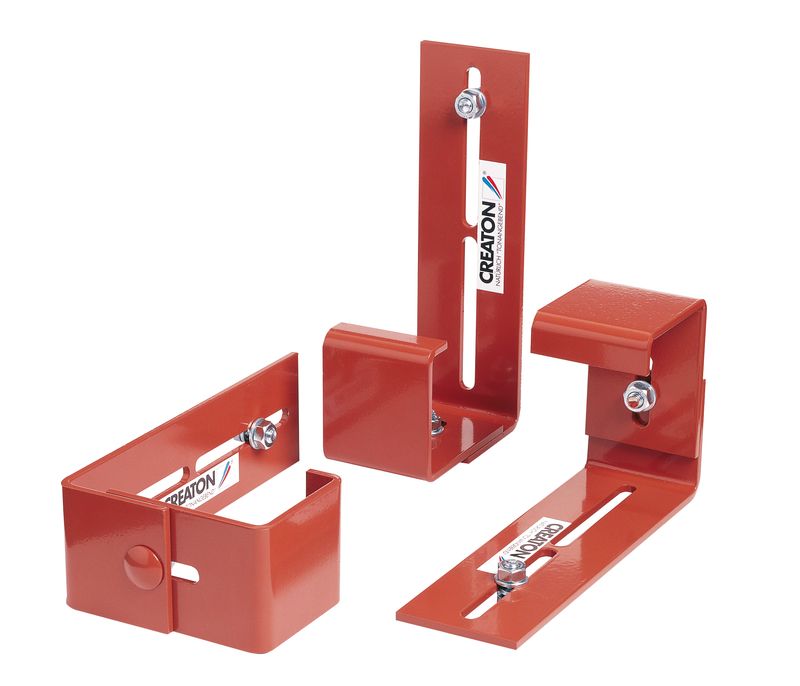

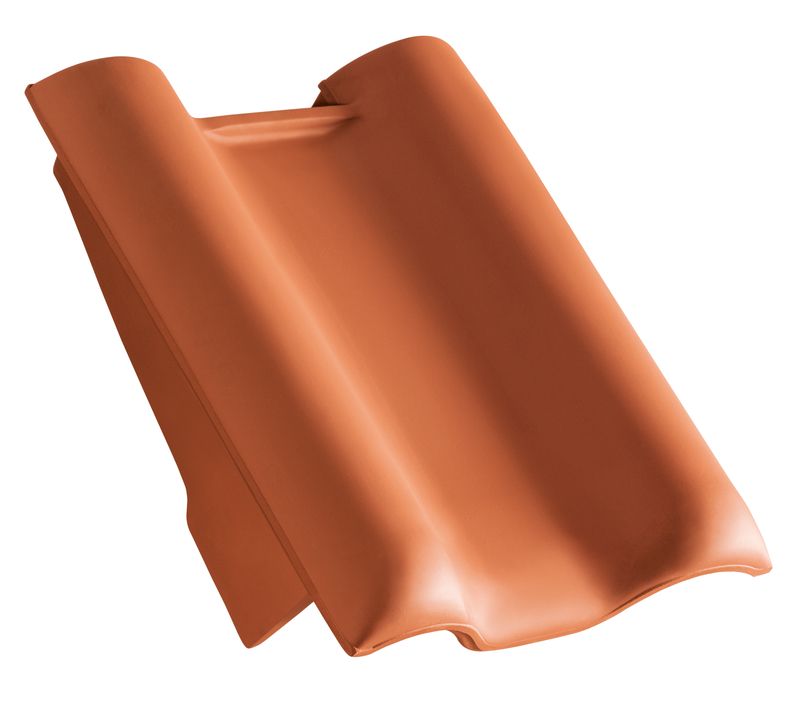

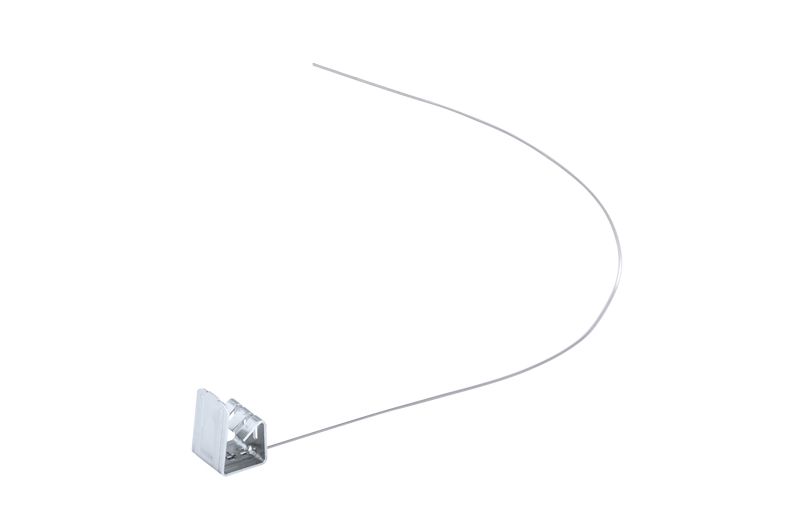

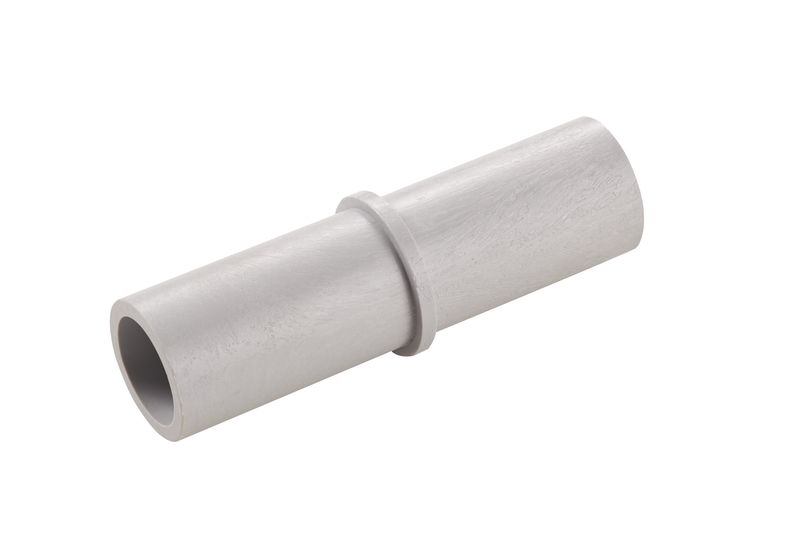

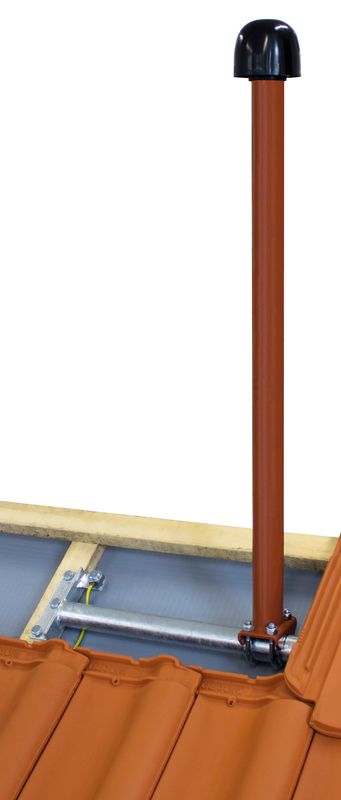

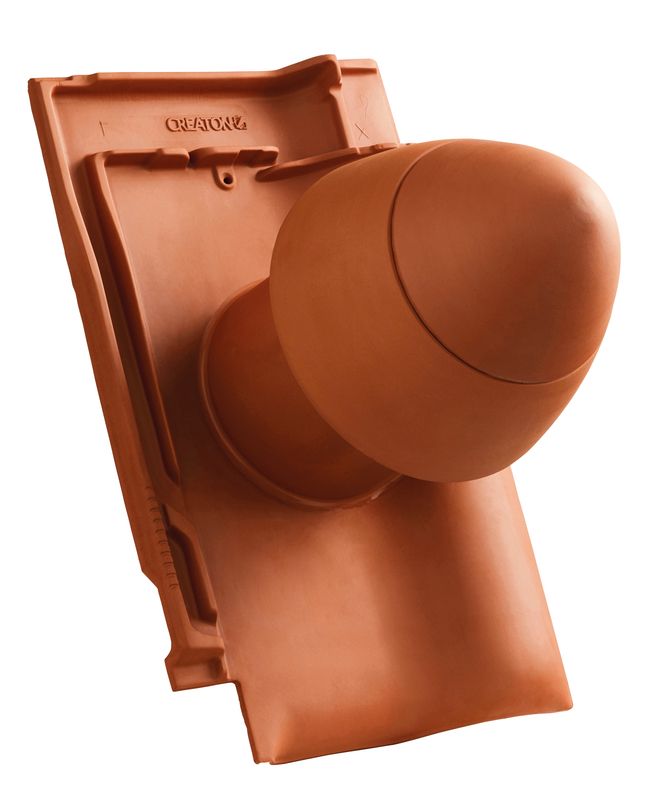

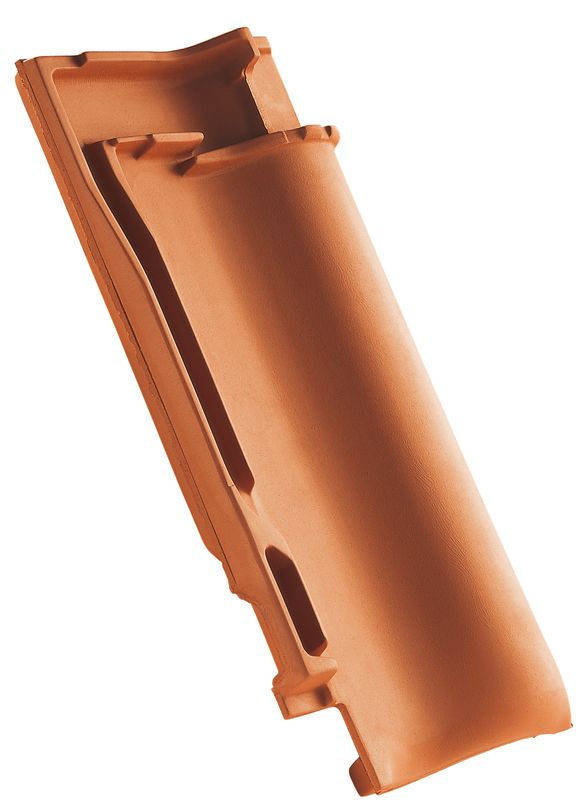

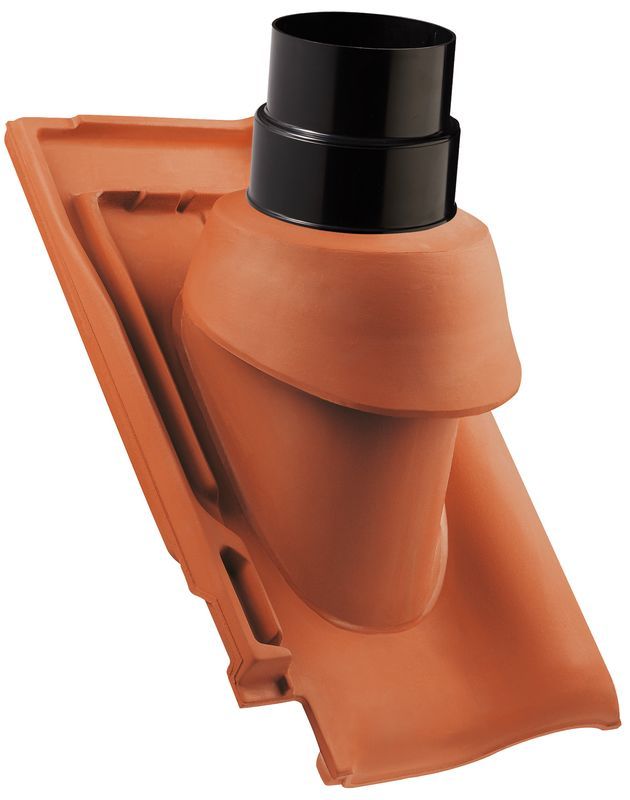

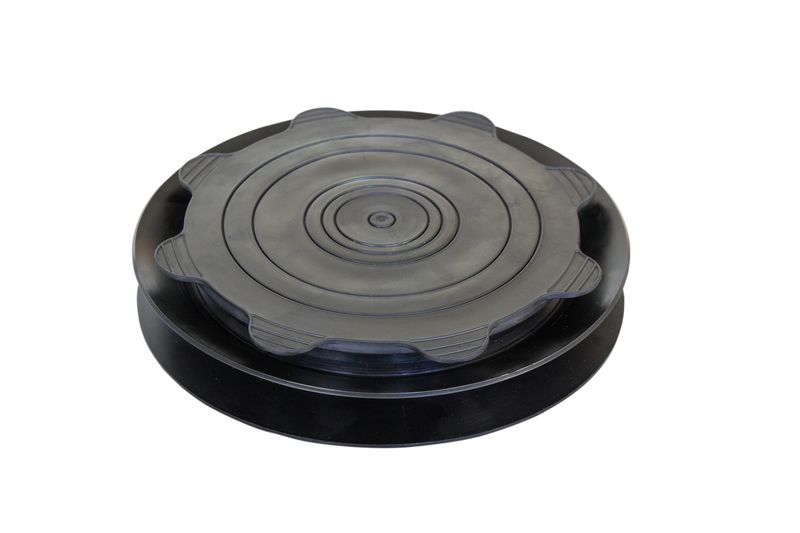

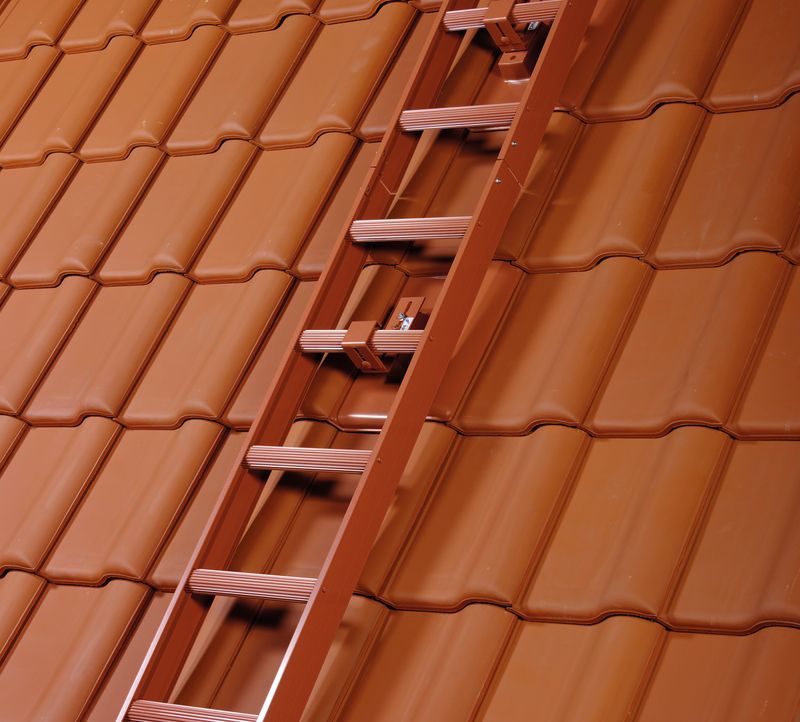

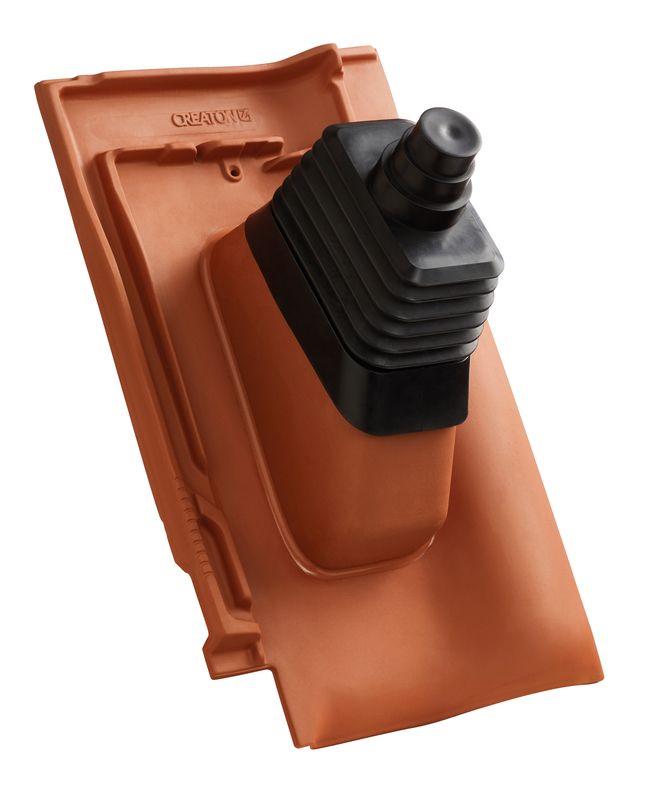

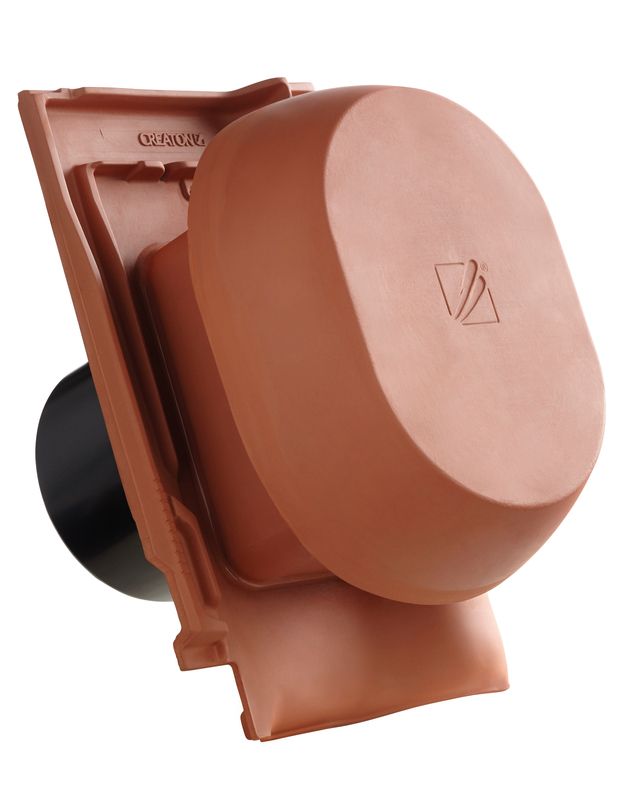

  • GAL točkasti metalni snjegobran

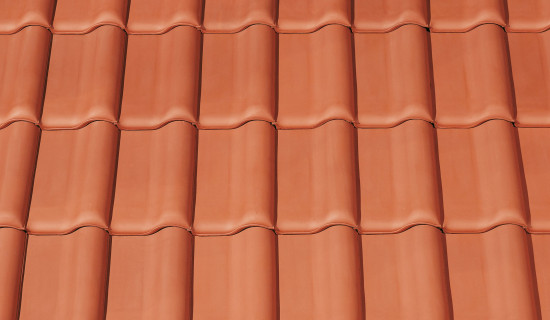

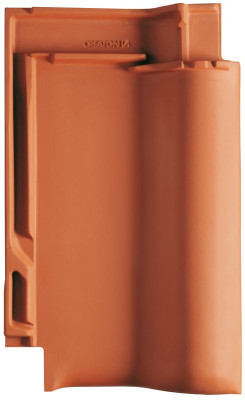

prirodno crvena
prirodno crvena
NUANCE bakreno crvena engobirana
NUANCE bakreno crvena engobirana
NUANCE boja crnog vina engobirana
NUANCE boja crnog vina engobirana
NUANCE tamnosmeđa engobirana
NUANCE tamnosmeđa engobirana

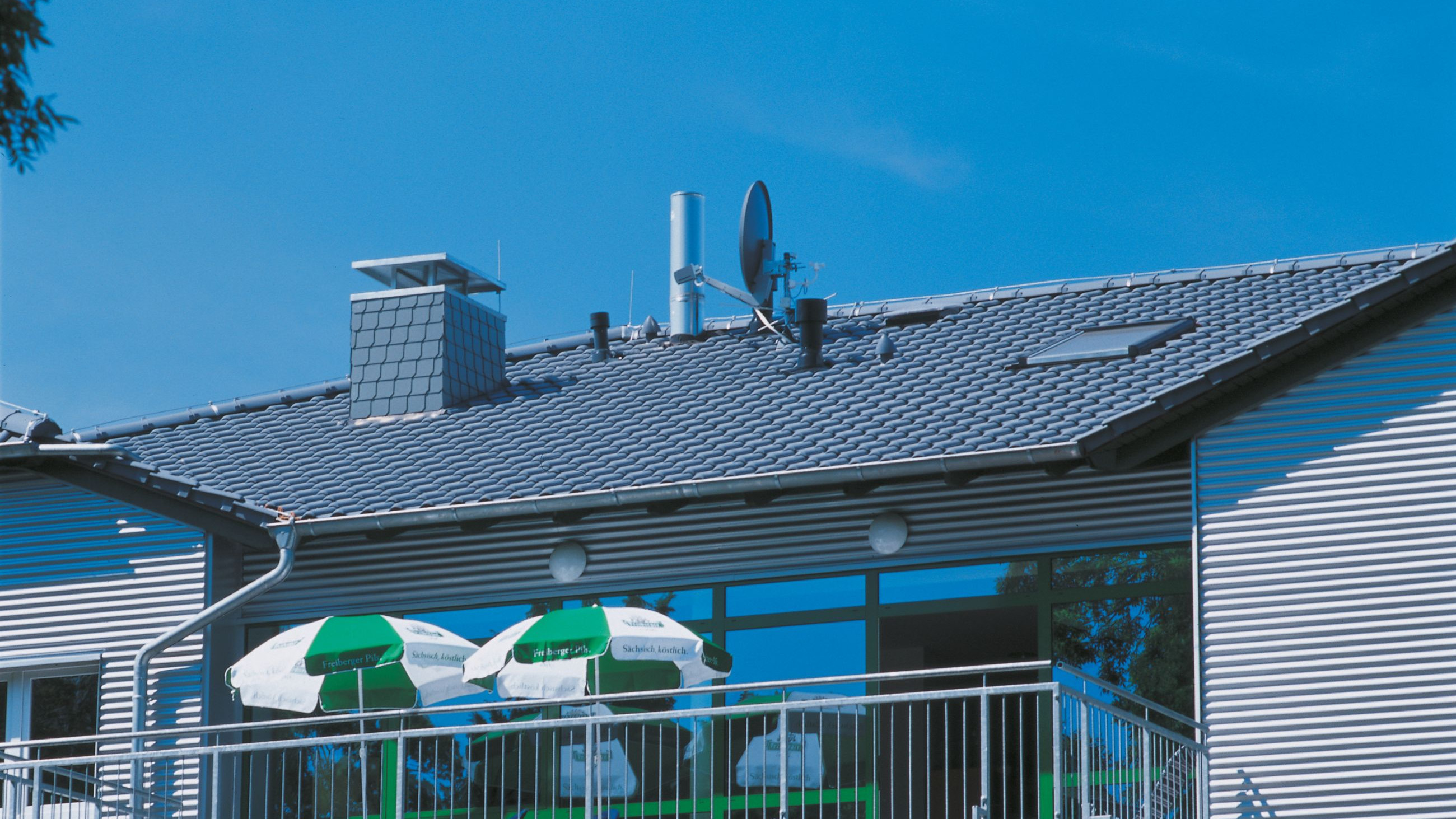

NUANCE siva engobirana
NUANCE siva engobirana
NUANCE boja škriljevca engobirana
NUANCE boja škriljevca engobirana
NUANCE crna mat engobirana
NUANCE crna mat engobirana
FINESSE crvena glazirana
FINESSE crvena glazirana
FINESSE boja crnog vina glazirana
FINESSE boja crnog vina glazirana
FINESSE boja škriljevca glazirana
FINESSE boja škriljevca glazirana
FINESSE crna glazirana
FINESSE crna glazirana
NOBLESSE smeđa glazirana
NOBLESSE smeđa glazirana
NOBLESSE tamnoplava glazirana
NOBLESSE tamnoplava glazirana
NOBLESSE tamnozelena glazirana
NOBLESSE tamnozelena glazirana
NOBLESSE smeđa glazirana
NOBLESSE smeđa glazirana

Technical data

GROESSE1000143634 mm
Srednja pokrovna širina(cca.)237 mm
Maks.pokrovna širina(cca.)239 mm
Min.pokrovna širina(cca.)234 mm
Letvanje preporučeno(cca.)374 mm
Maks. letvanje(cca.)388 mm
Min.letvanje(cca.)360 mm
Utrošak crijepa prosječno(cca.)11.3 kom/m²
Maks.utrošak crijepa11.9 kom/m²
min. utrošak crijepa (cca.)10.8 kom/m²
Masa po m²(cca.)48.6 kg/m²
Masa palete(cca.)1081 kg
Masa po komadu(cca.)4.3 kg/piece
Komada na paleti240 komad
BETON I VLAKNO CEMENT5 piece

Applications

Valid for Germany
Nagib krova DUO extra (D)≥ 12 °
Nagib krova QUATTRO longlife extra (D)≥ 7 °
Nagib krova TRIO extra (D)≥ 10 °
Nagib krova DUO longlife ND extra (D)≥ 10 °
Valid for Austria
Nagib krova DUO longlife ND extra (A)≥ 17 °
Nagib krova DUO extra (A)≥ 17 °
Nagib krova QUATTRO longlife extra (A)≥ 15 °
Nagib krova TRIO extra (A)≥ 17 °

Technical informations

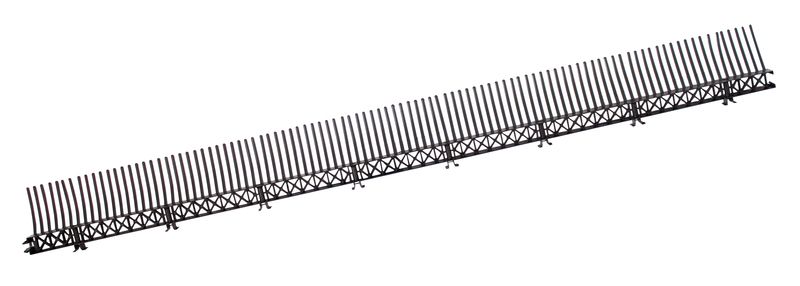

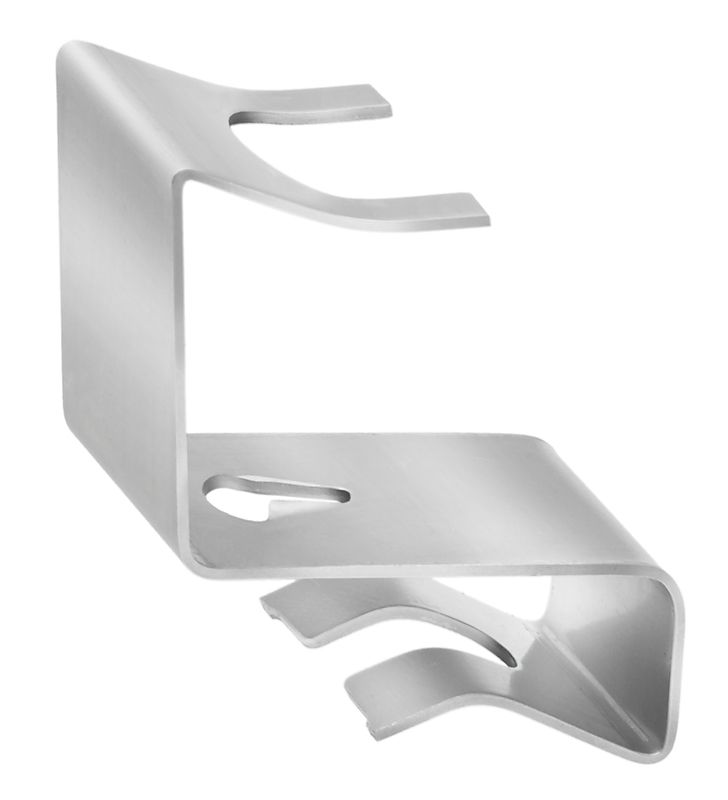

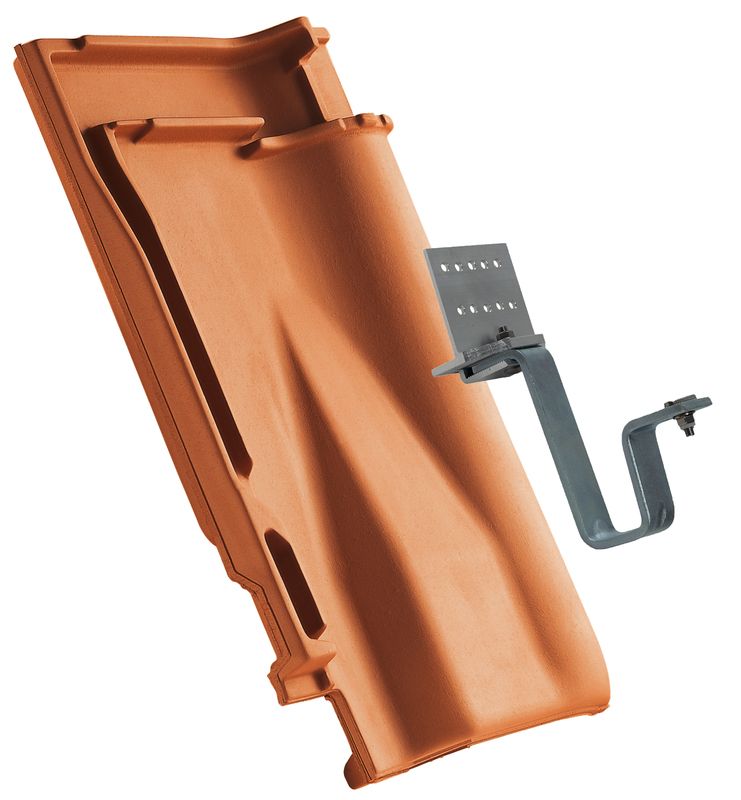

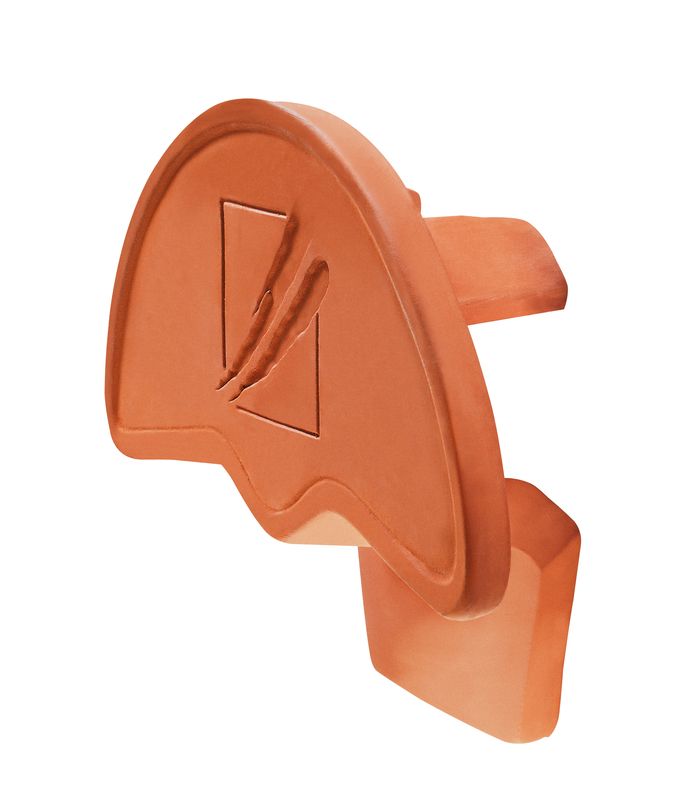

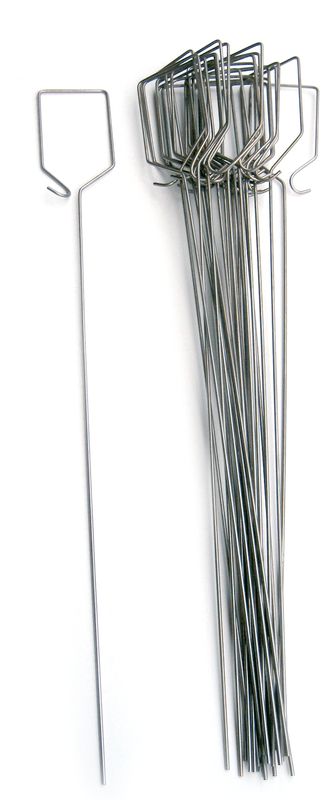

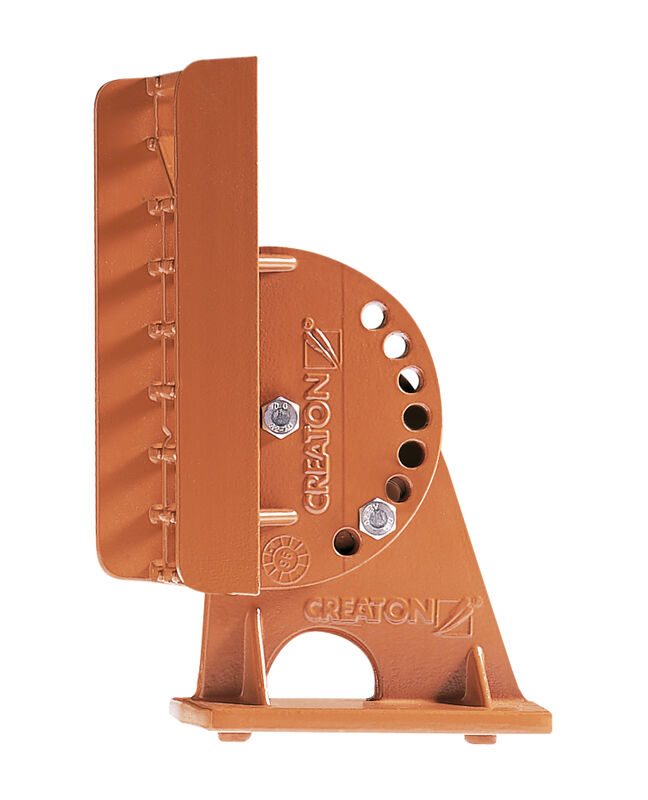

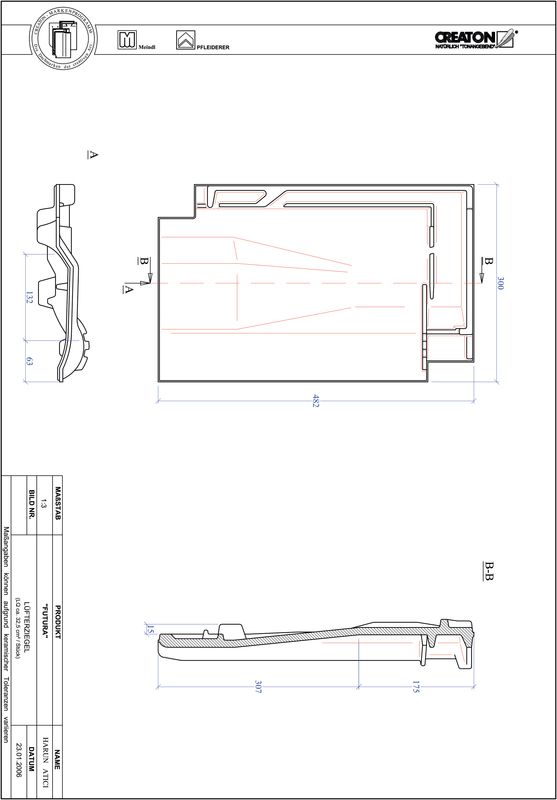

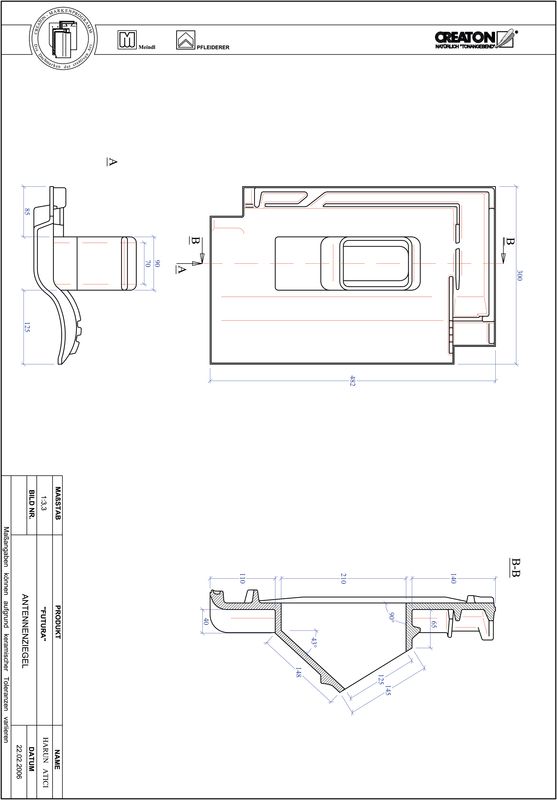

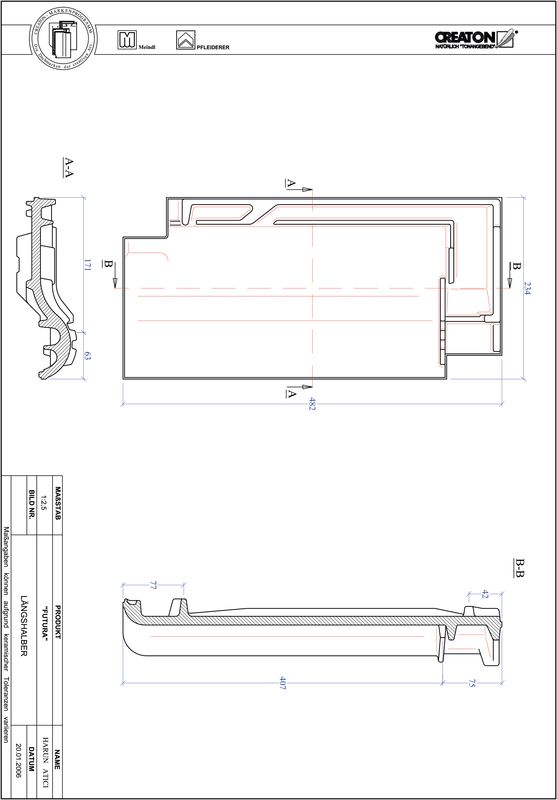

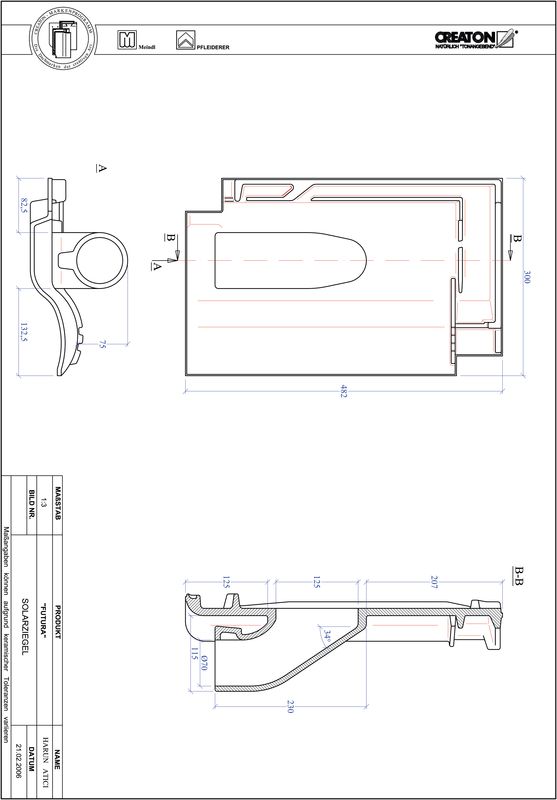

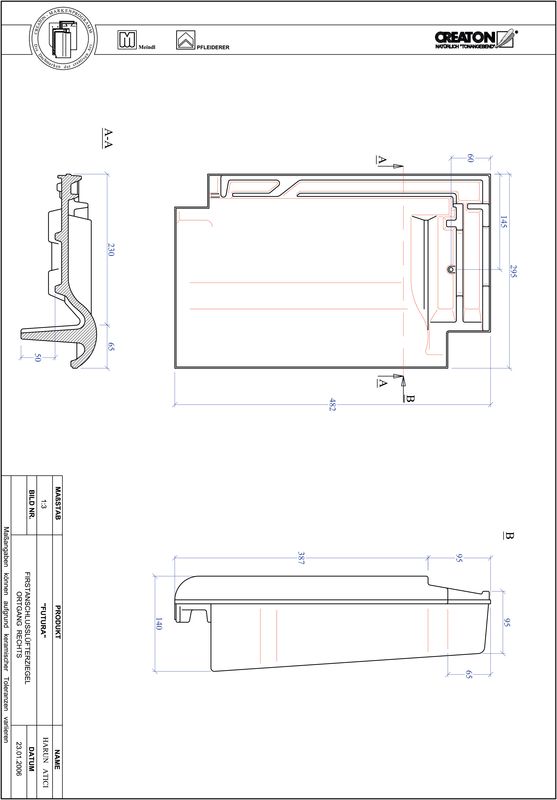

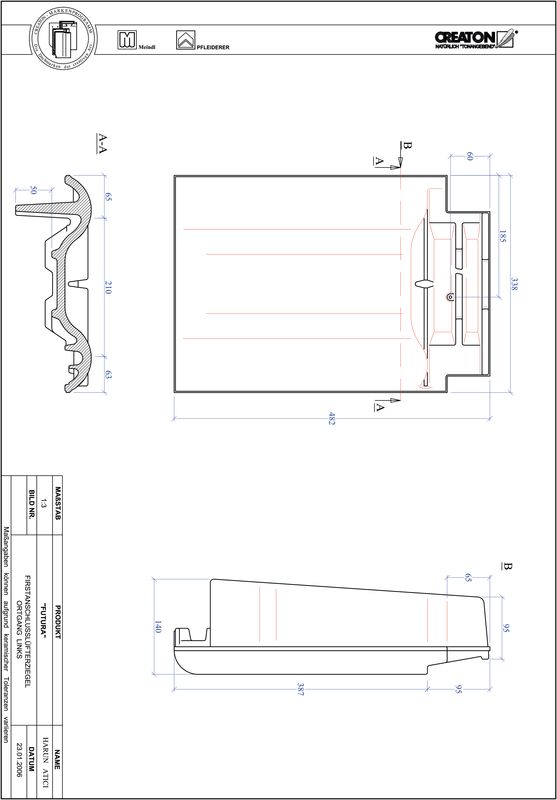

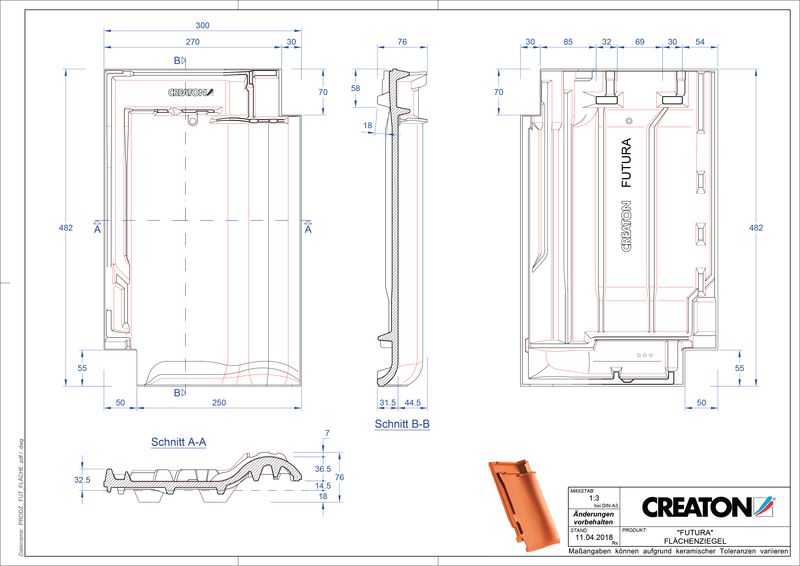

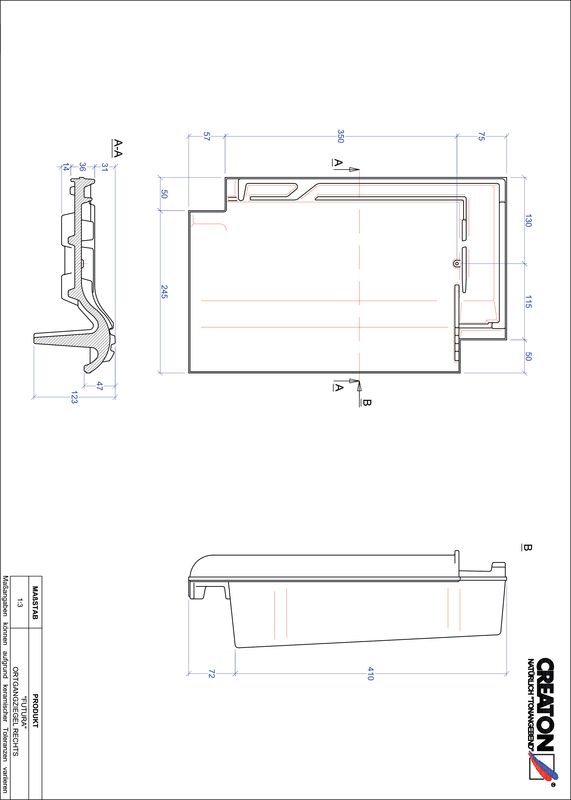

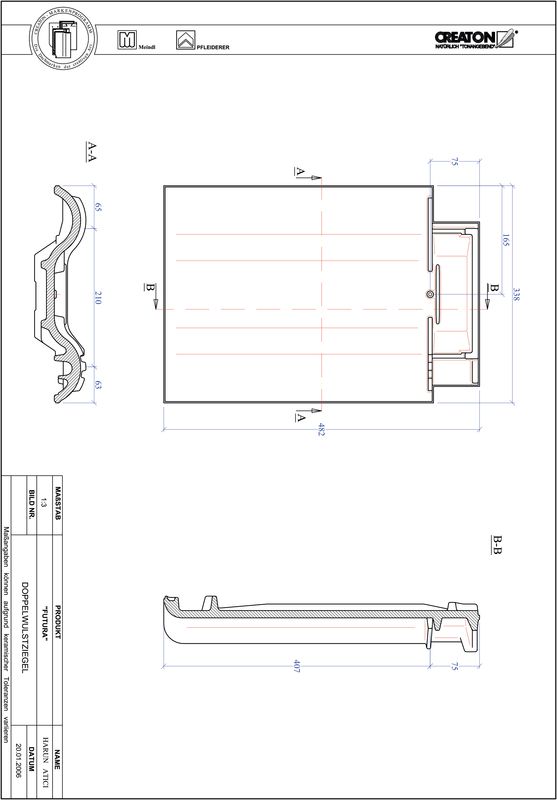

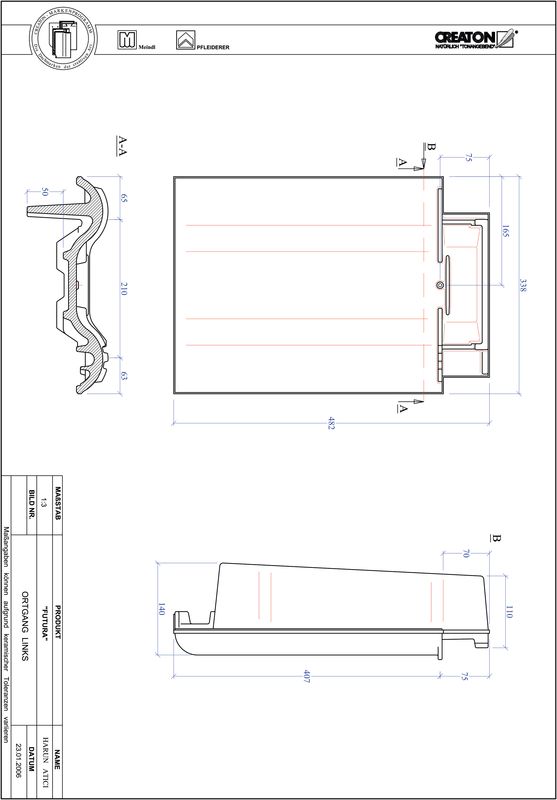

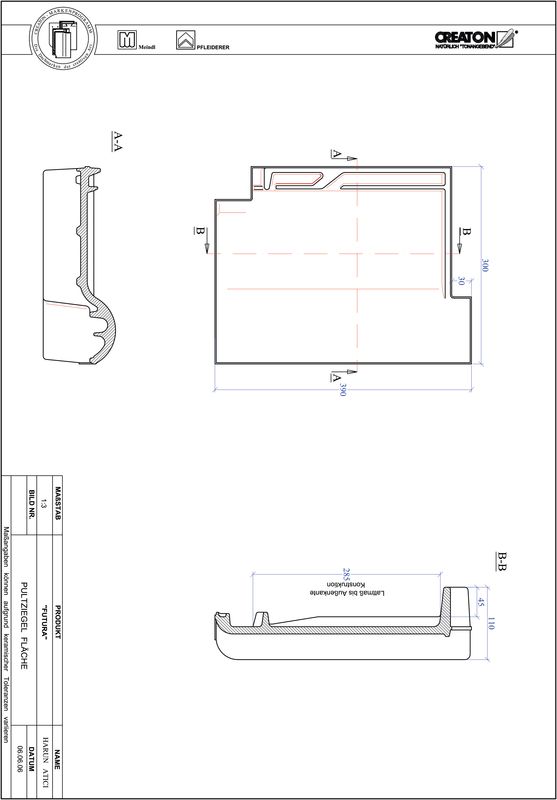

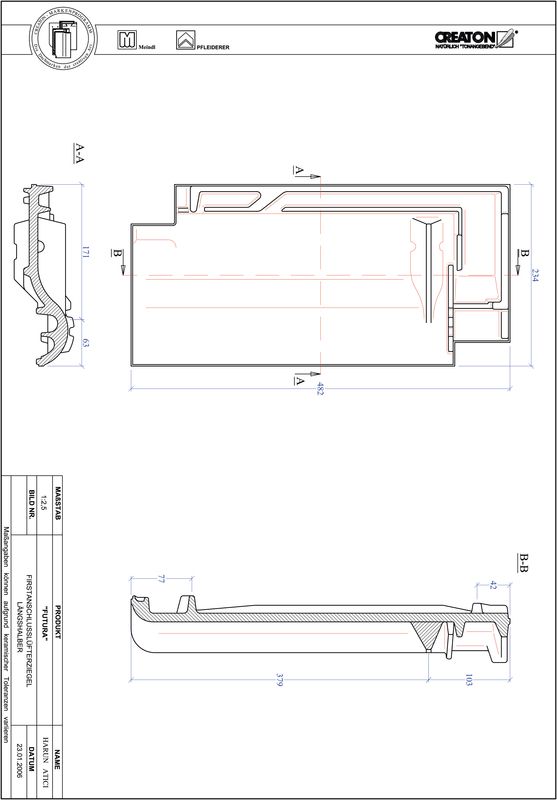

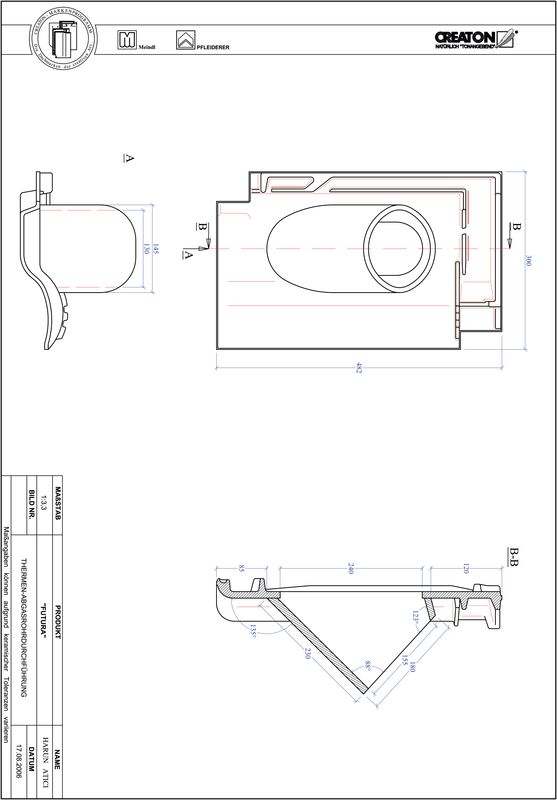

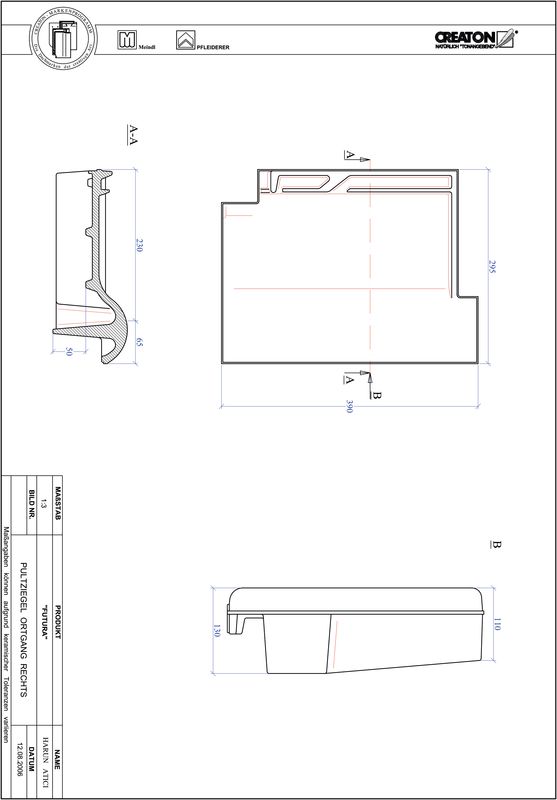

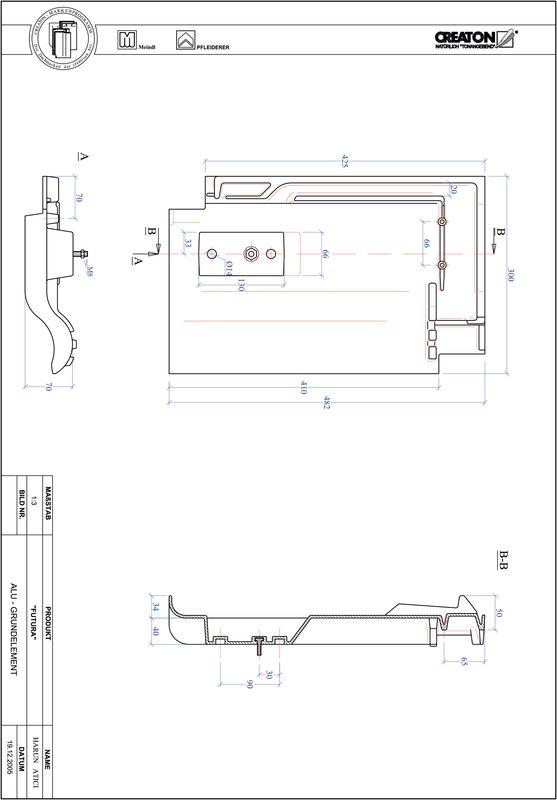

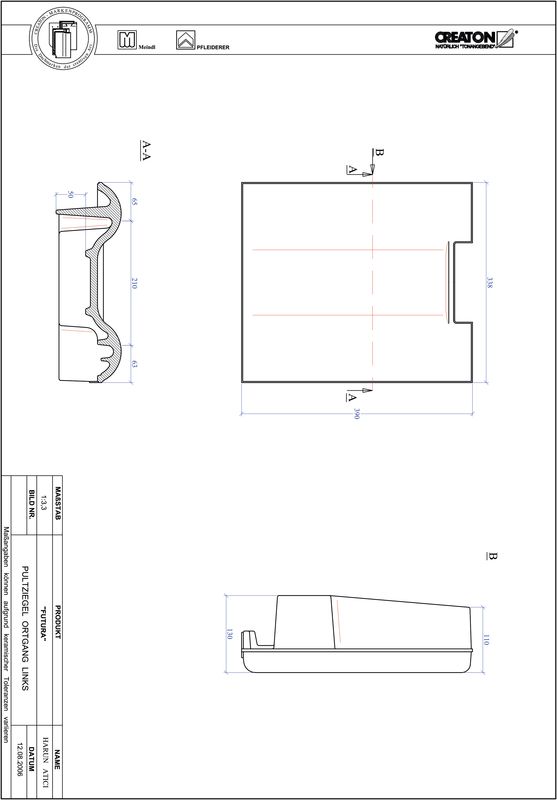

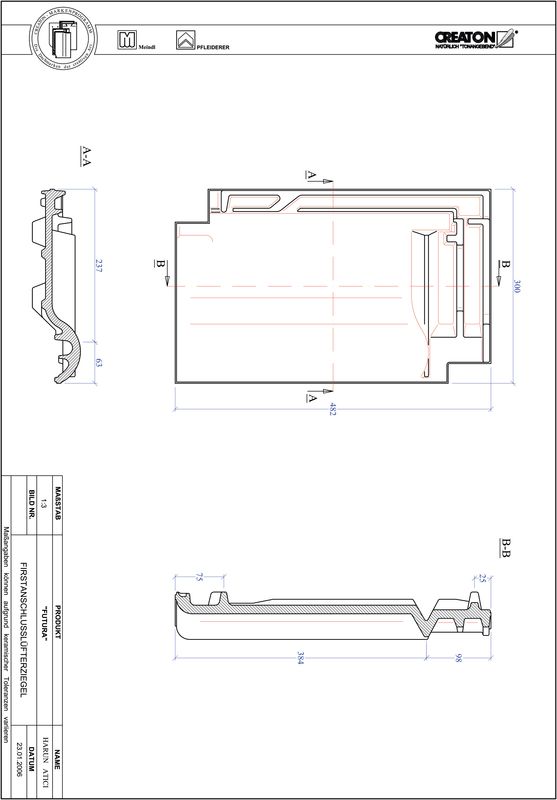

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • All roofs with a roof pitch of 7° - 9° require individual approval from CREATON Applications Technology. CREATON manufacturer's regulations must be complied with during installation.

LAF-/FLA-VALUES

LAF-/FLA VALUES IN MM FOR 30x50-BATTENS

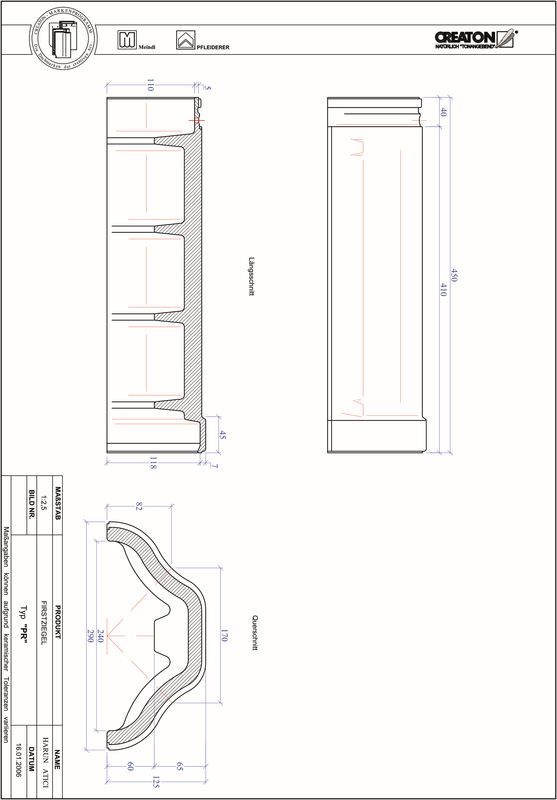

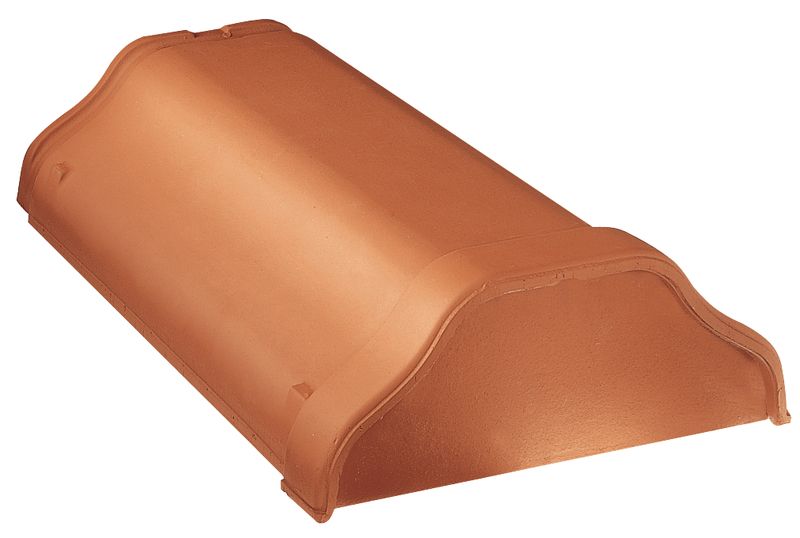

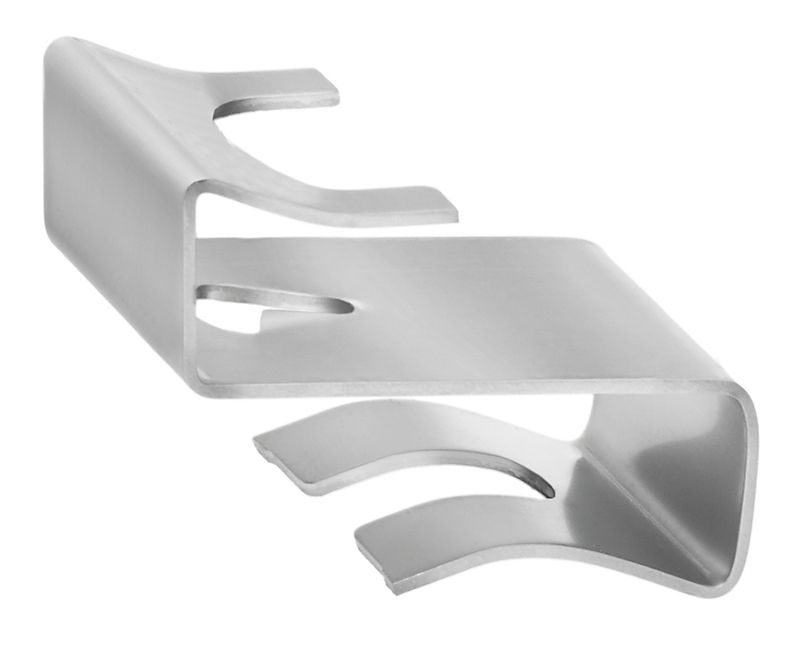

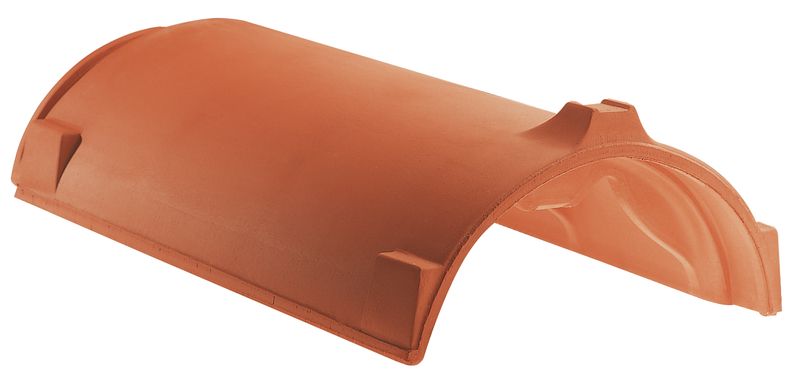

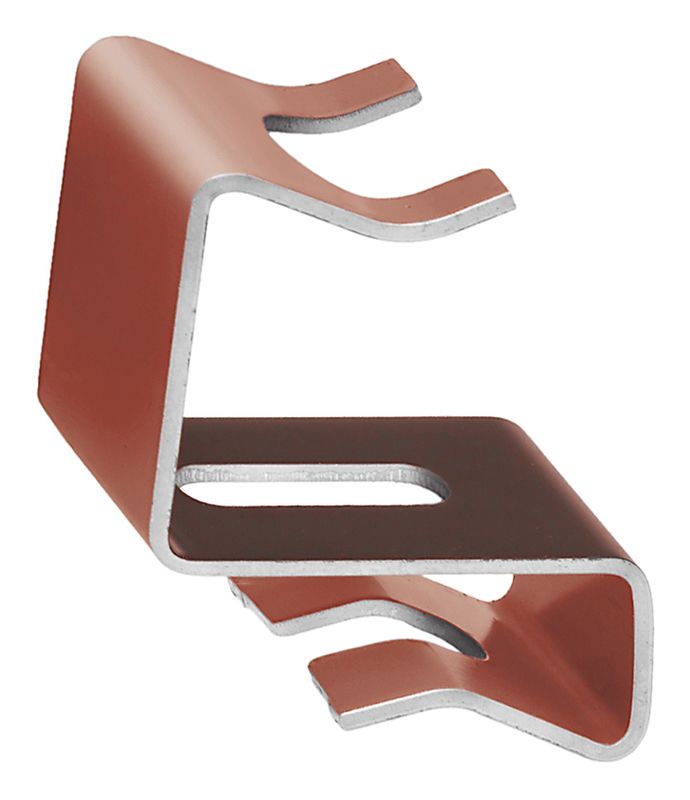

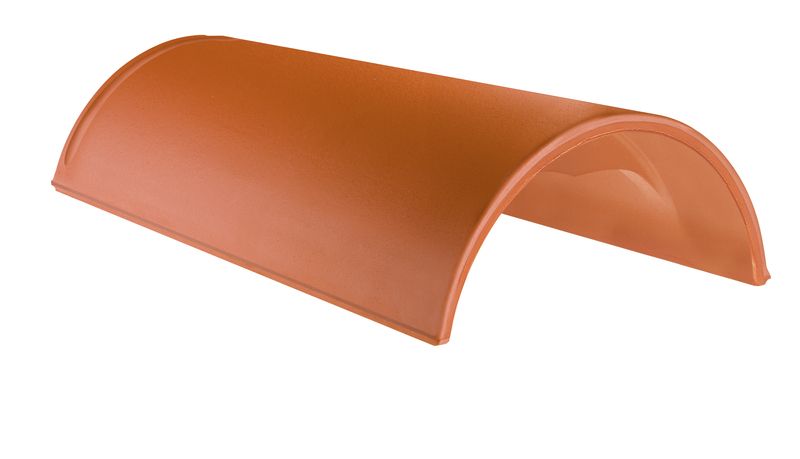

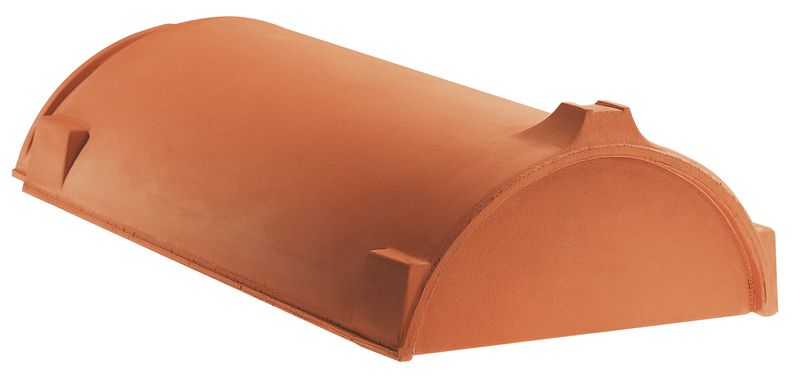

Ridge tileDN10°15°20°25°30°35°40°45°50°55°60°
PF 2.5 pcs./m.FLA10095908070605555505040
PF 2.5 pcs./m.LAF8080757065656050454545

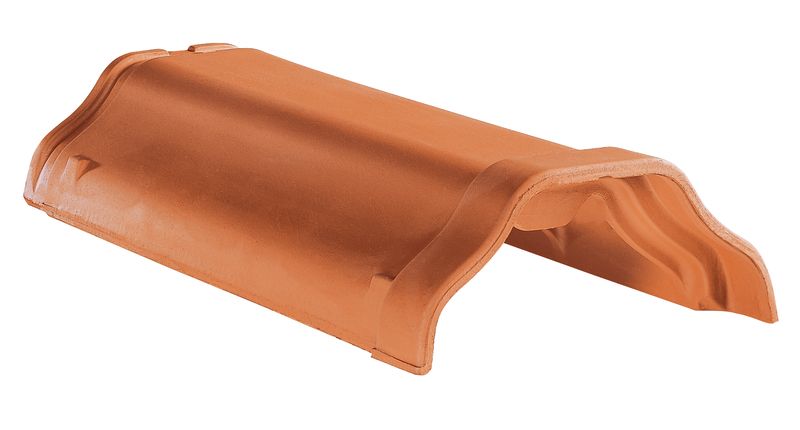

PR 2.5 pcs./m.FLA10095908070605555505040
PR 2.5 pcs./m.LAF8080757065656050454545
LAF-/FLA VALUES IN MM FOR 40x60-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°55°60°
PF 2.5 pcs./m.FLA1101051009080706565606050
PF 2.5 pcs./m.LAF8080756560605540303030
PR 2.5 pcs./m.FLA1101051009080706565606050
PR 2.5 pcs./m.LAF8080756560605540303030
LAF-/FLA VALUES IN MM FOR 50x50-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°55°60°
PF 2.5 pcs./m.FLA12011511010090858080808080
PF 2.5 pcs./m.LAF7575706055504530202015
PR 2.5 pcs./m.FLA12011511010090858080808080
PR 2.5 pcs./m.LAF7575706055504530202015
