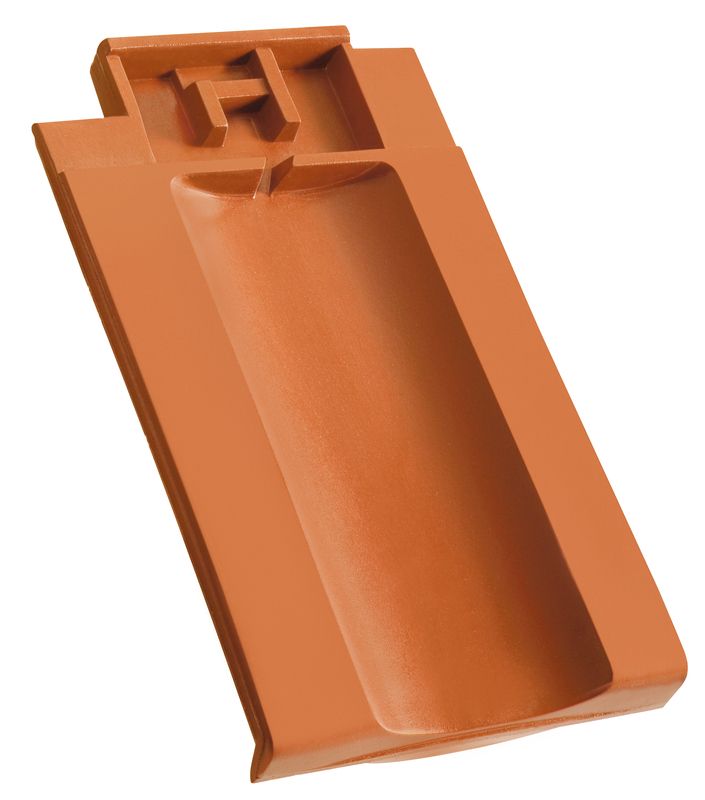

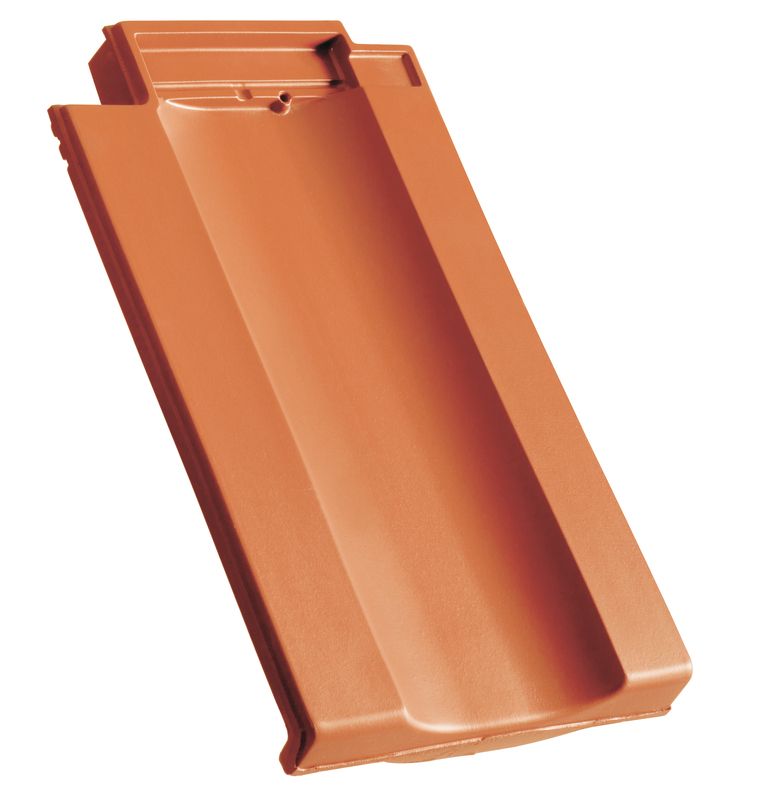

TERRA OPTIMA

Univerzalni crijep za obnovu postojećih krovova

  • Reformni crijep – u sjeverozapadnoj Njemačkoj poznatiji kao "crijep Porajnja" – optimalno povezuje tradicionalno i suvremeno. Pomični crijep s čeonim zaporom, istodobno funkcionalan i lijepo oblikovan.Mislilo se na sve i pri sanacijama i renoviranjima. Zahvaljujući velikoj mogućnosti pomaka, crijep se može lako prilagoditi različitim razmacima između krovnih letvi - to je idealno kod mansardnih krovova s kratkim rogovima. Ipak, crijep „TERRA OPTIMA“ očarava i drugim izuzetnim osobinama. Dvostruki žljebovi s bočnim odvodom vode osiguravaju optimalnu zaštitu od vlage. Meki valovi stvaraju ugodno mirnu strukturu krova.

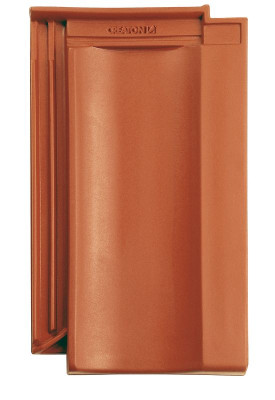

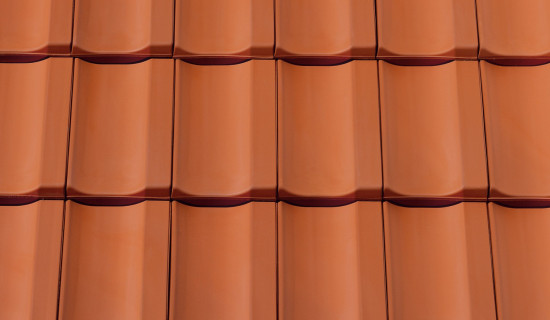

prirodno crvena
prirodno crvena

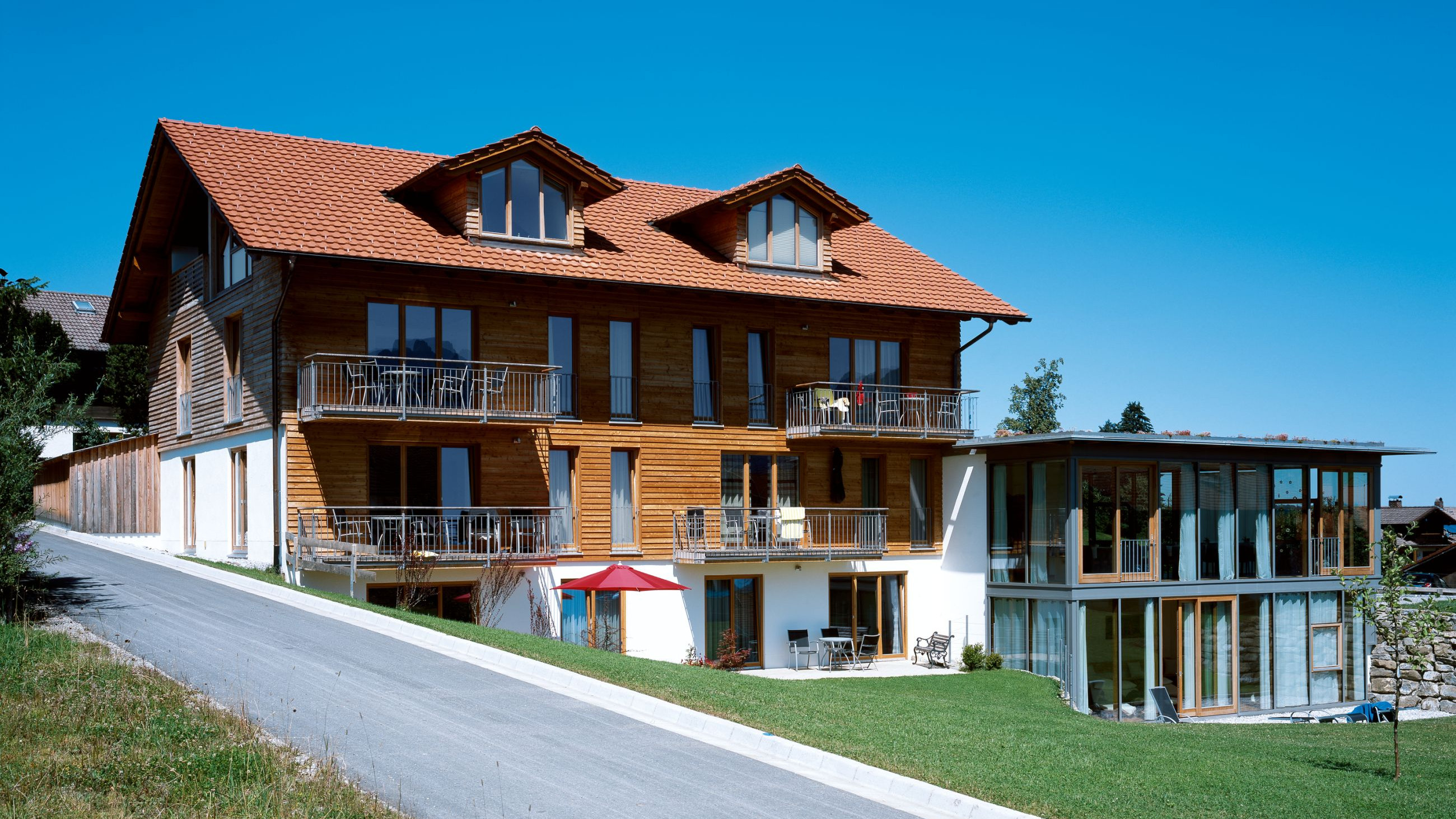

NUANCE bakreno crvena engobirana
NUANCE bakreno crvena engobirana
NUANCE boja crnog vina engobirana
NUANCE boja crnog vina engobirana
NUANCE smeđa engobirana
NUANCE smeđa engobirana
NUANCE tamnosmeđa engobirana
NUANCE tamnosmeđa engobirana

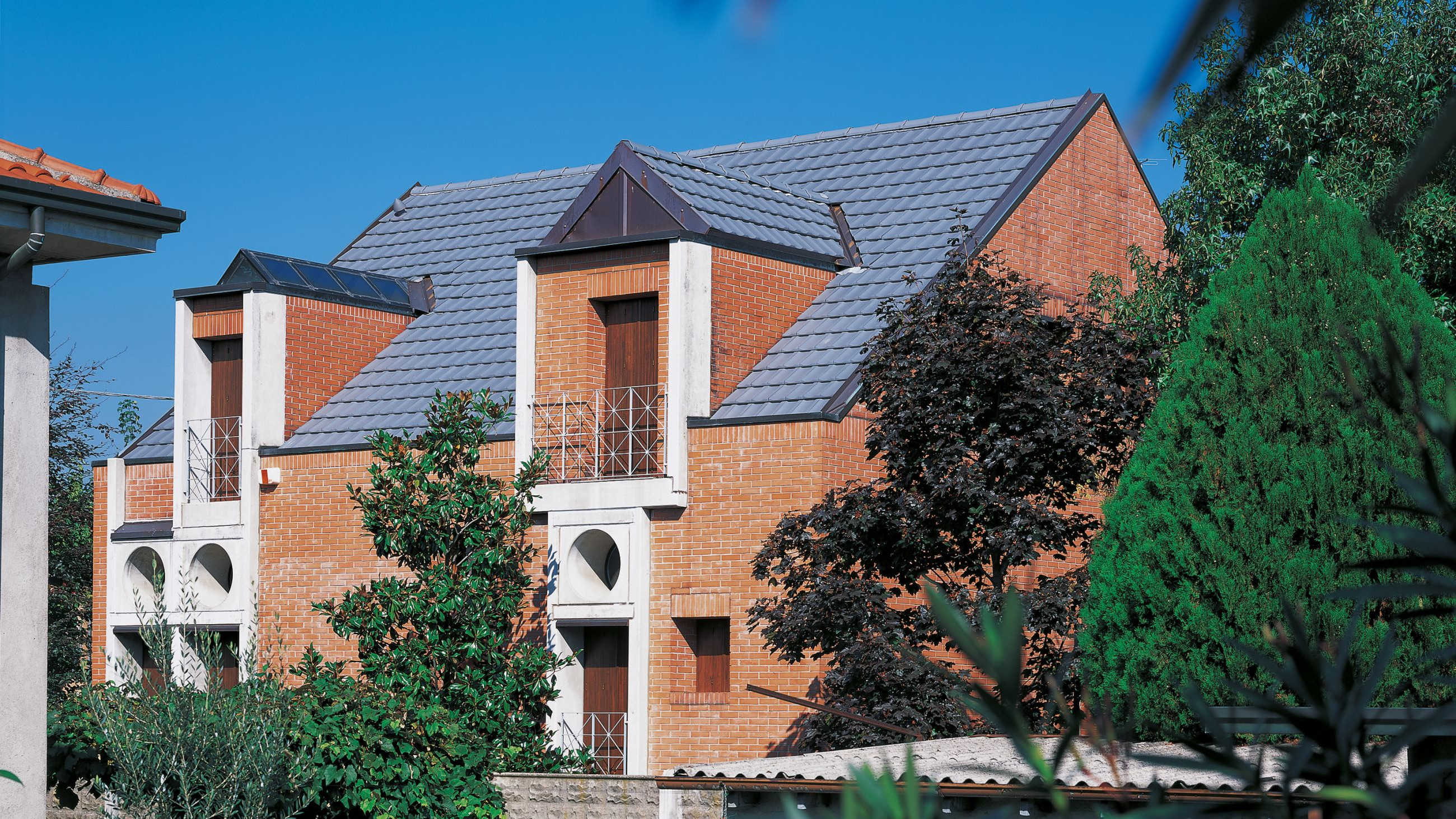

NUANCE siva engobirana
NUANCE siva engobirana
NUANCE boja škriljevca engobirana
NUANCE boja škriljevca engobirana
NUANCE antracit engobirana
NUANCE antracit engobirana
FINESSE boja crnog vina glazirana
FINESSE boja crnog vina glazirana
FINESSE crna glazirana
FINESSE crna glazirana

Technical data

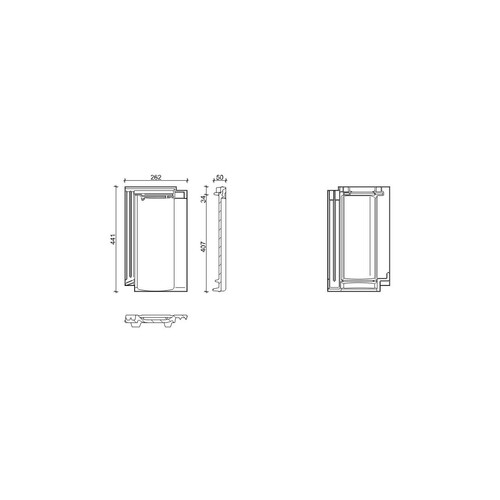

GROESSE1000149636 mm
Srednja pokrovna širina(cca.)223 mm
Maks.pokrovna širina(cca.)224 mm
Min.pokrovna širina(cca.)221 mm

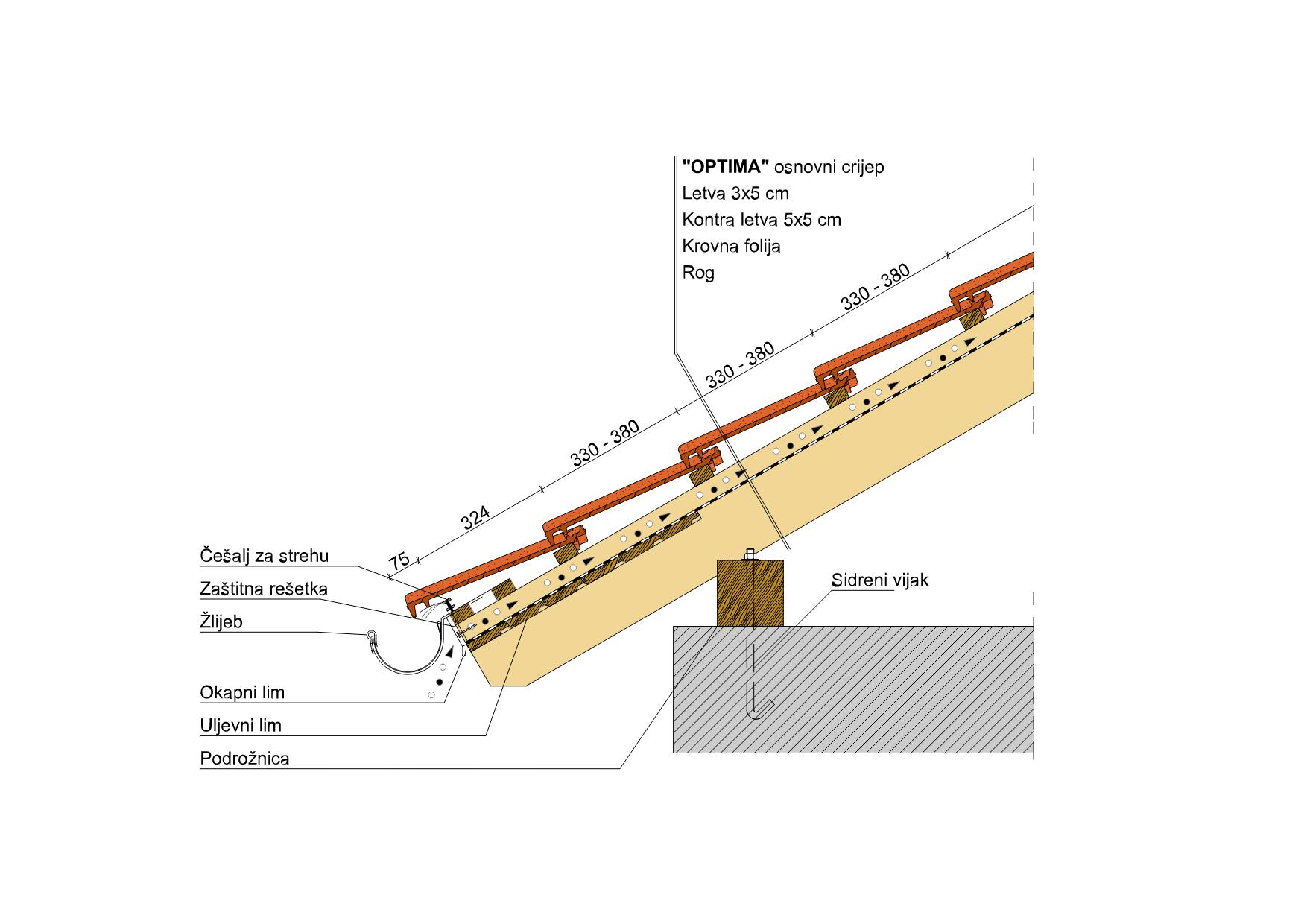

Letvanje preporučeno(cca.)355 mm
Maks. letvanje(cca.)380 mm
Min.letvanje(cca.)330 mm
Utrošak crijepa prosječno(cca.)12.6 kom/m²
Maks.utrošak crijepa13.7 kom/m²
min. utrošak crijepa (cca.)11.9 kom/m²
Masa po m²(cca.)42.2 kg/m²
Masa palete(cca.)975 kg
Masa po komadu(cca.)3.3 kg/piece
Komada na paleti288 komad
BETON I VLAKNO CEMENT6 piece

Applications

Valid for Germany
Nagib krova DUO extra (D)≥ 16 °
Nagib krova QUATTRO longlife extra (D)≥ 10 °
Nagib krova TRIO extra (D)≥ 14 °
Nagib krova DUO longlife ND extra (D)≥ 14 °
Valid for Austria
Nagib krova DUO longlife ND extra (A)≥ 22 °
Nagib krova DUO extra (A)≥ 22 °
Nagib krova QUATTRO longlife extra (A)≥ 20 °
Nagib krova TRIO extra (A)≥ 22 °

Technical informations

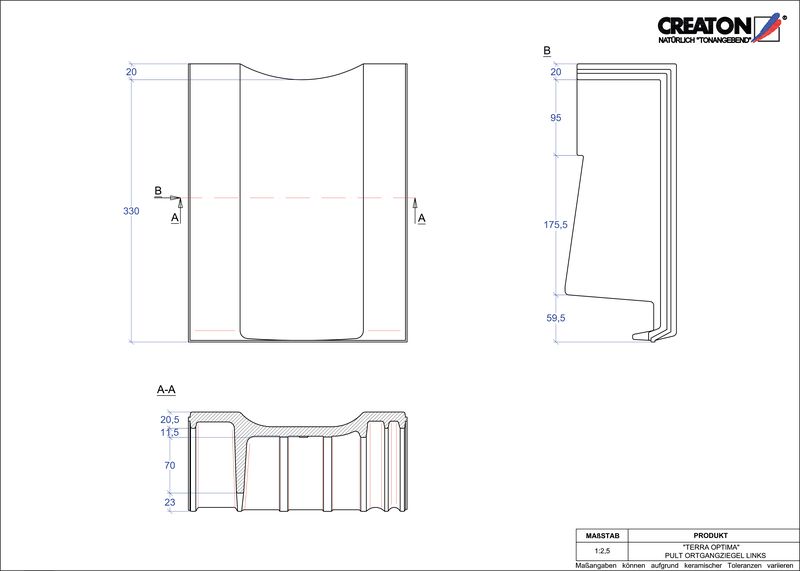

  • With 330 mm > 350 mm gauge, verges must be notched.

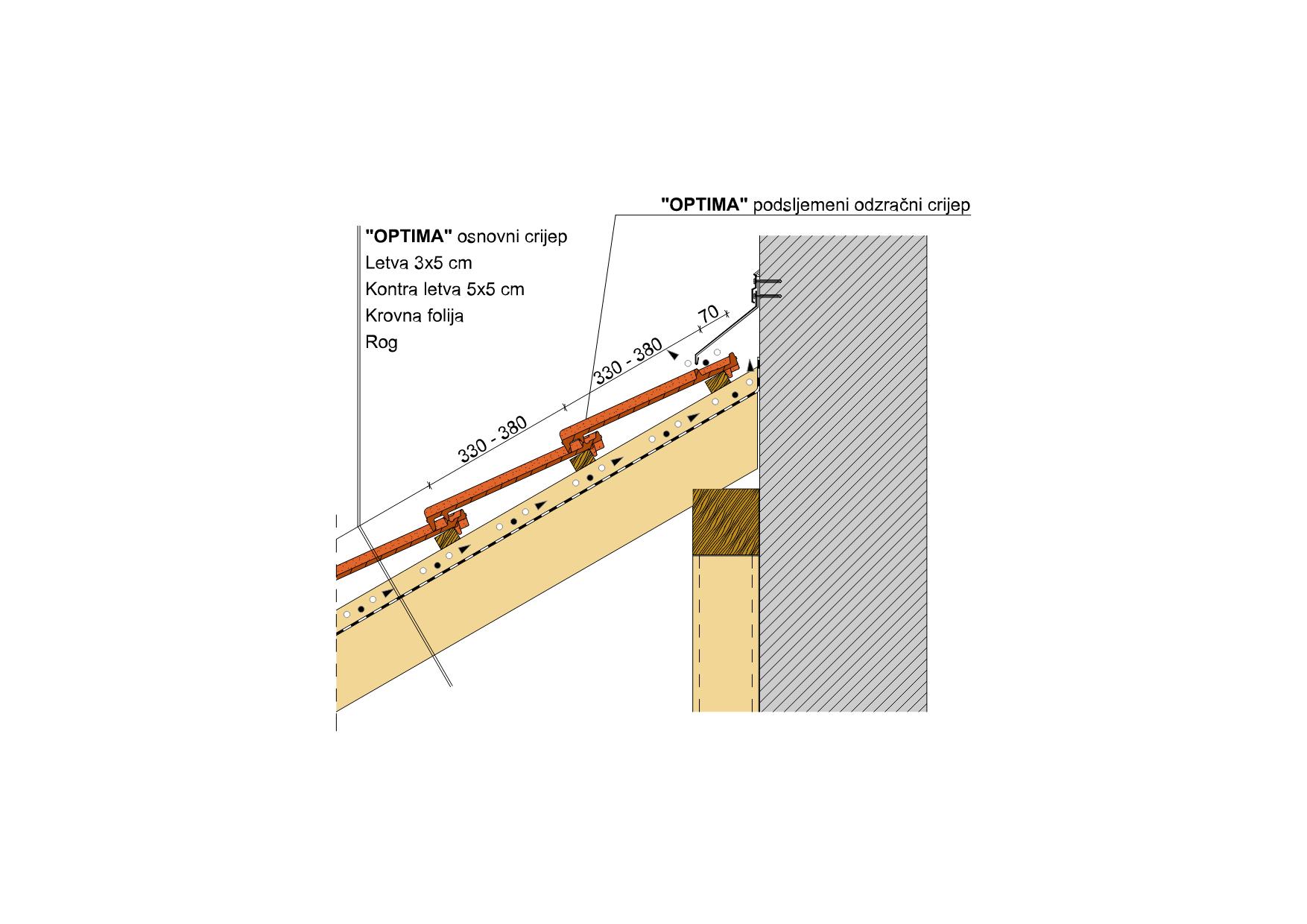

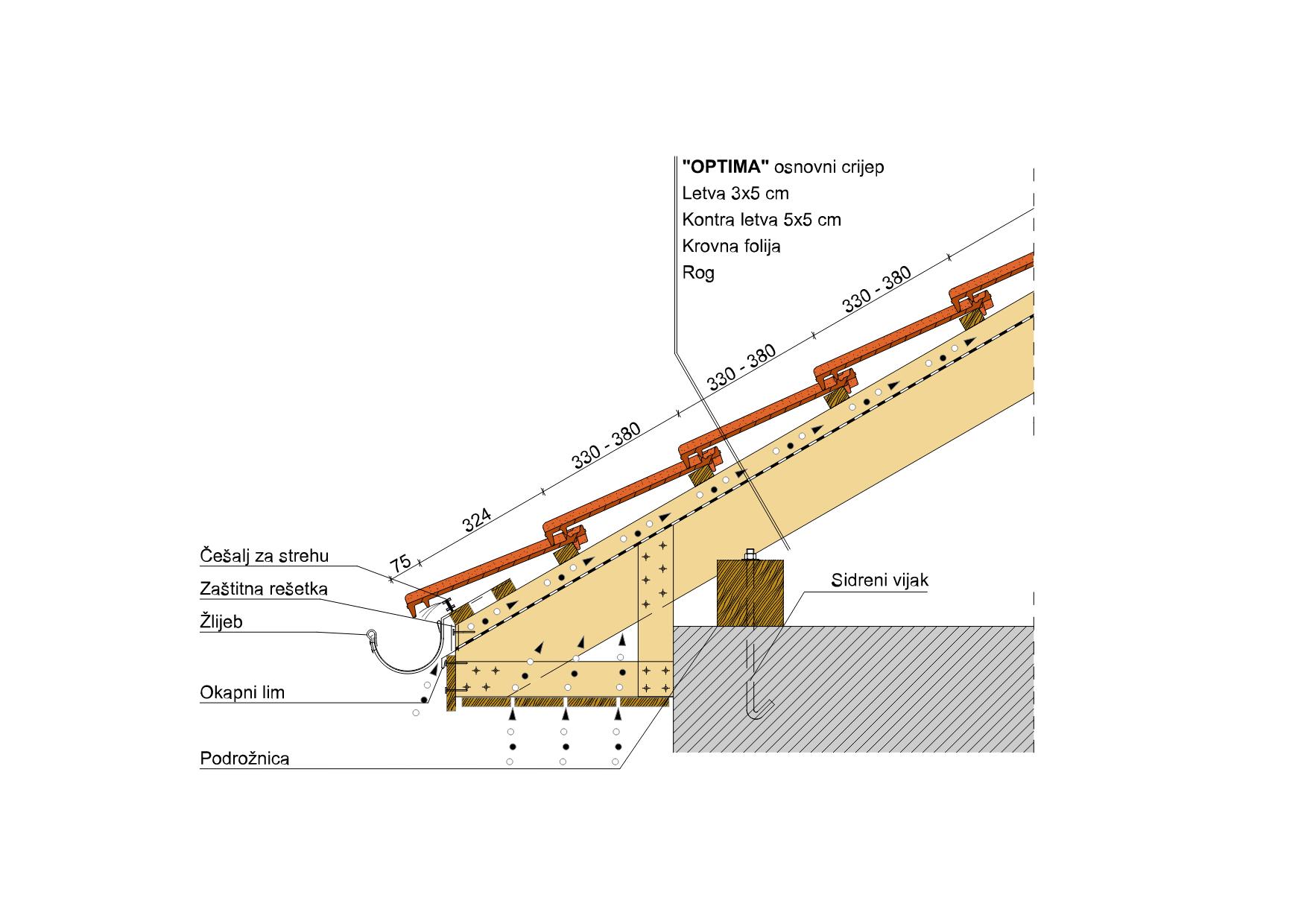

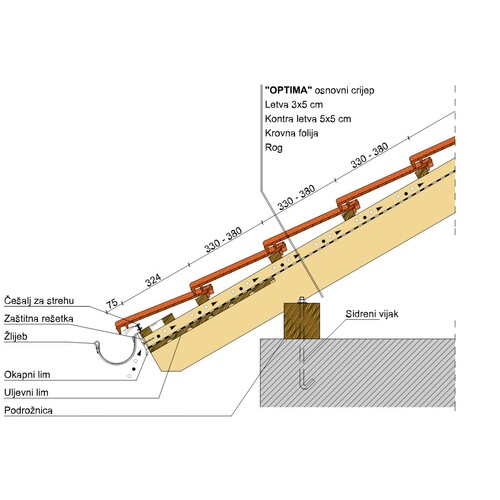

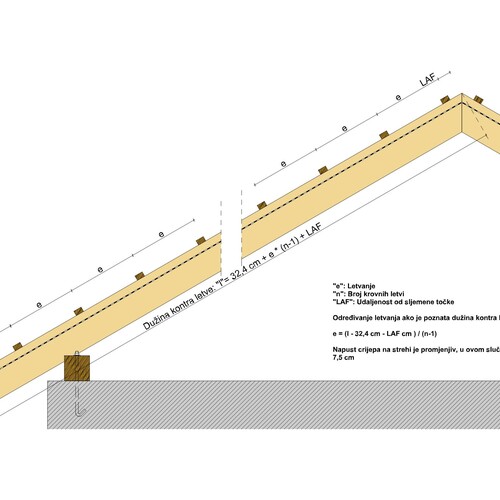

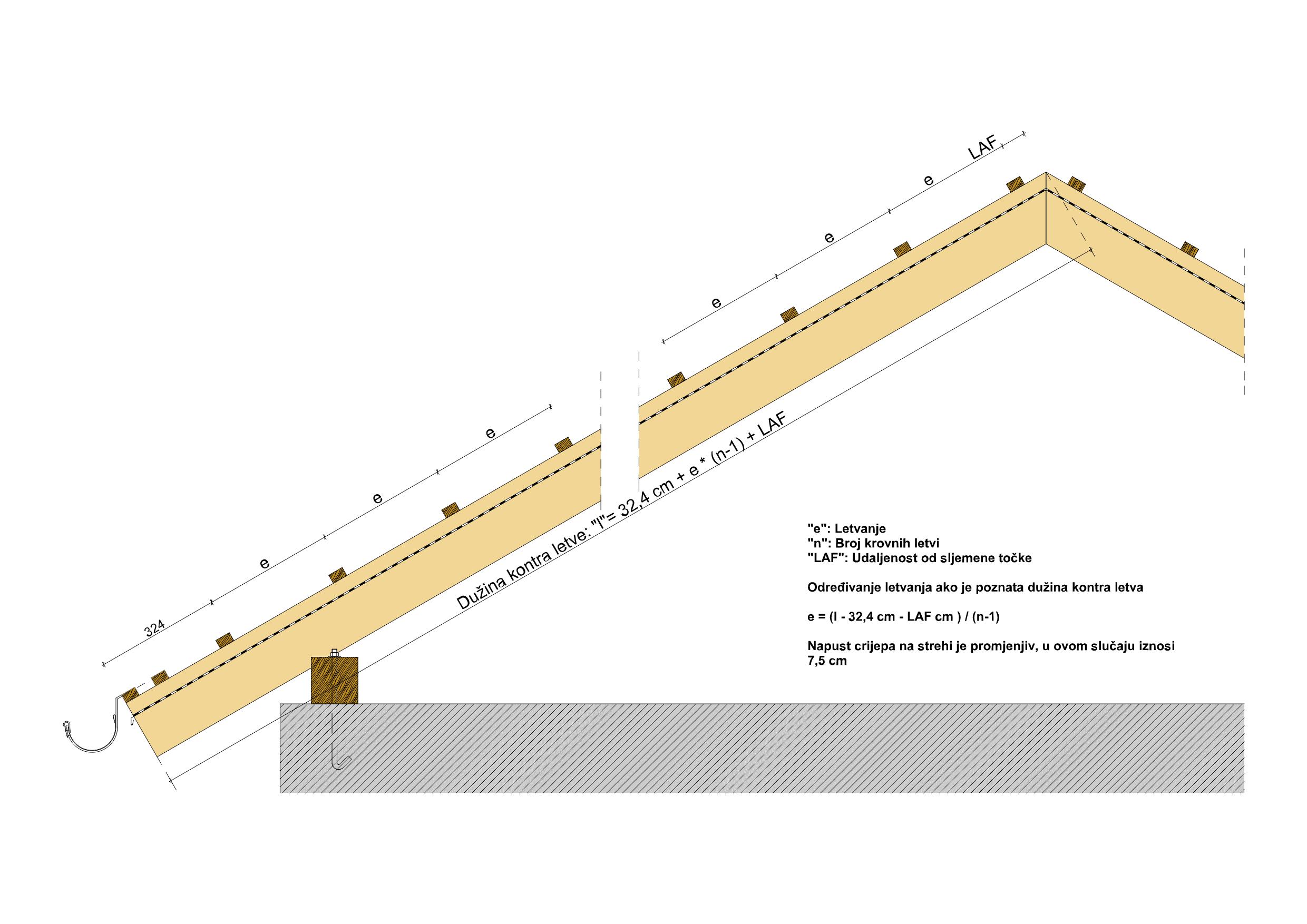

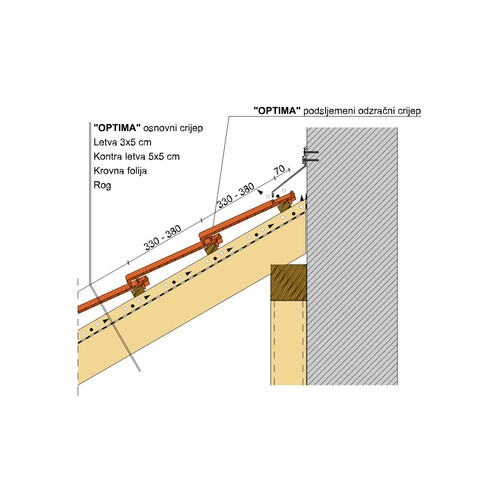

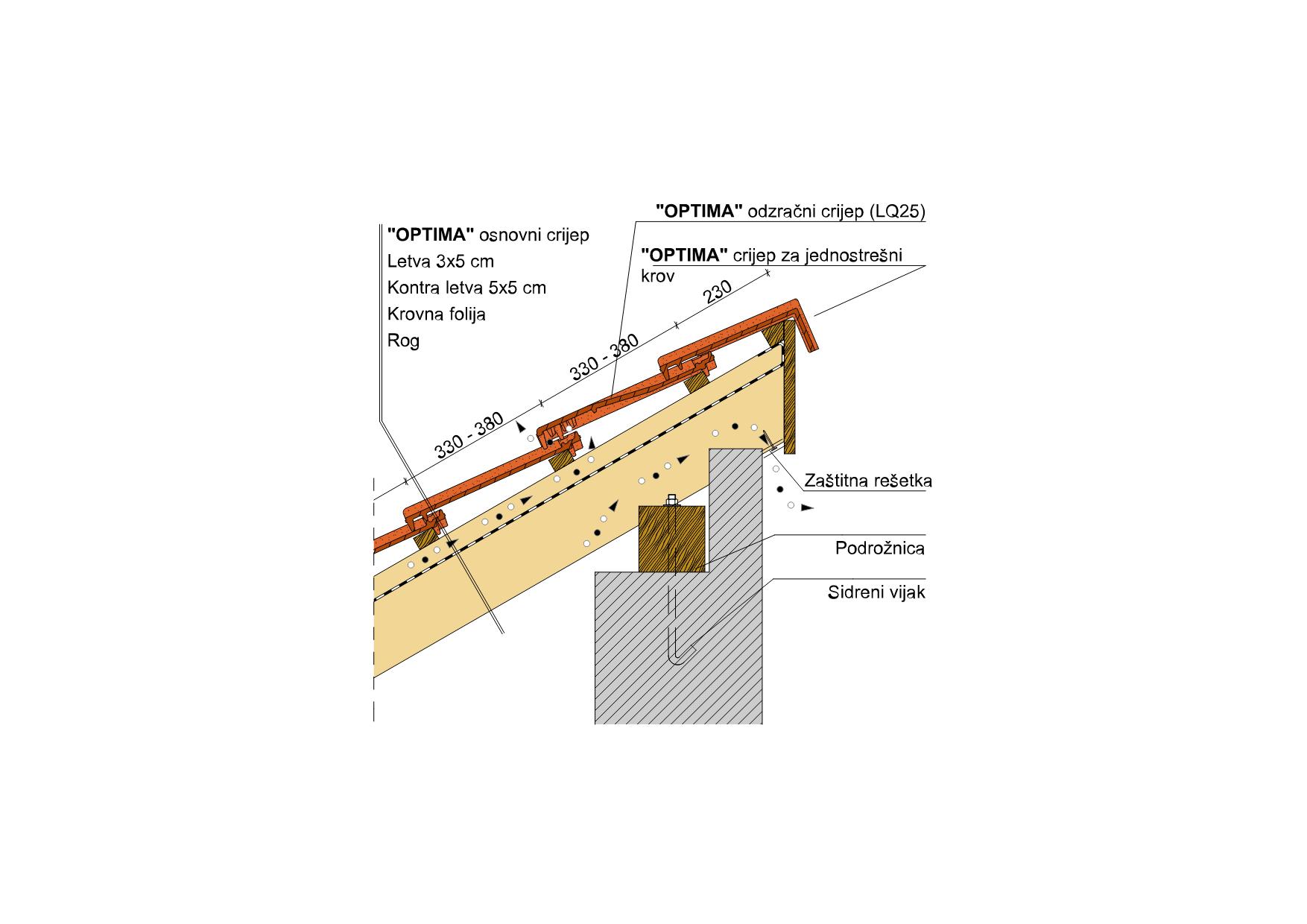

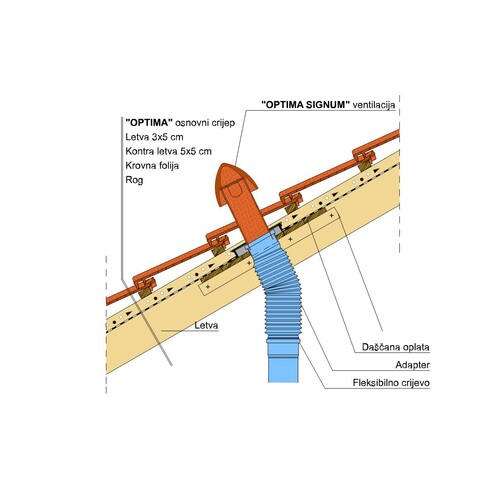

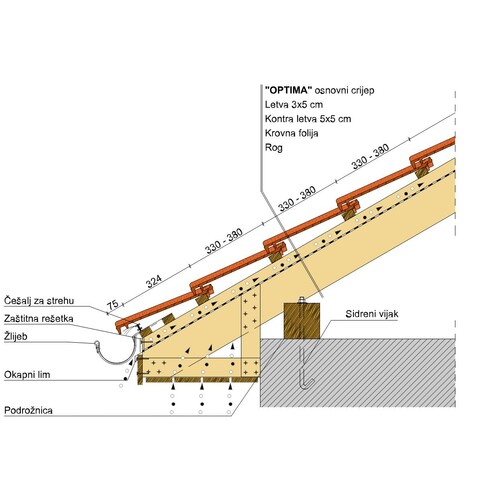

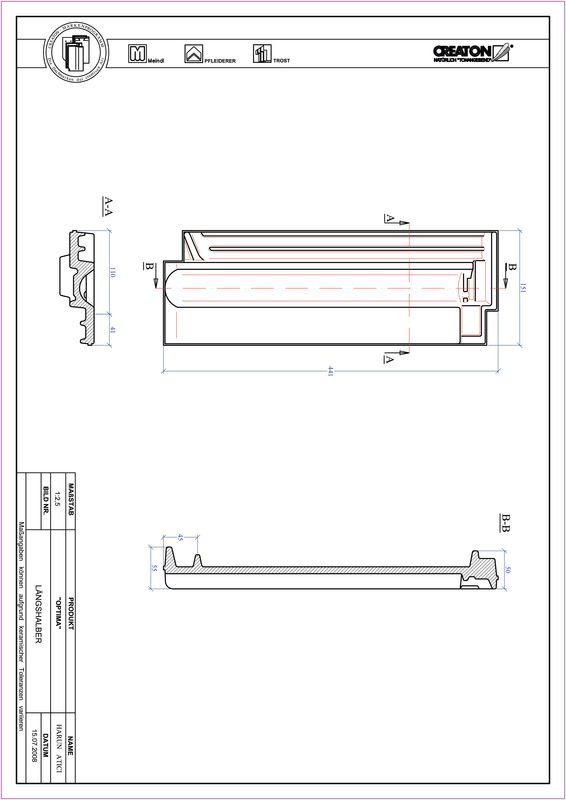

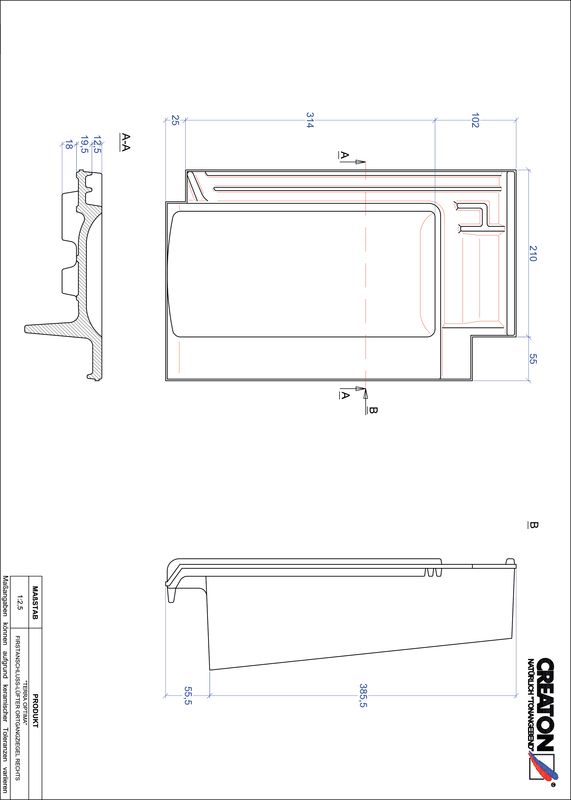

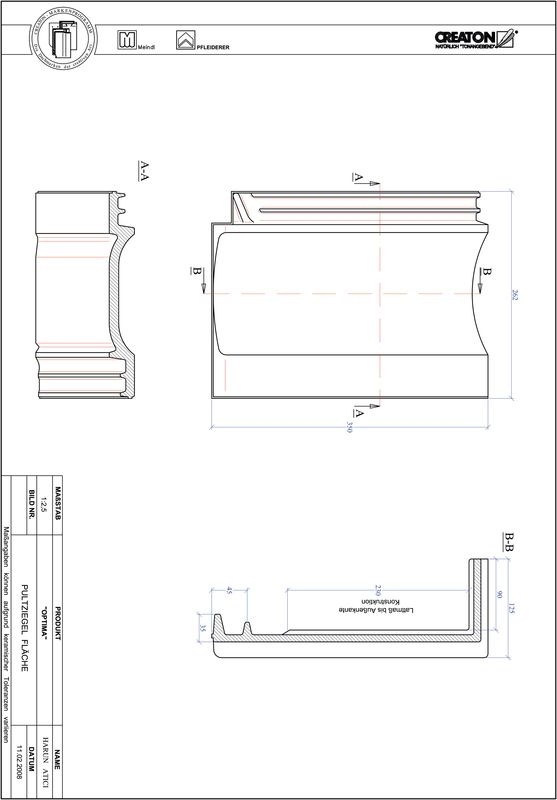

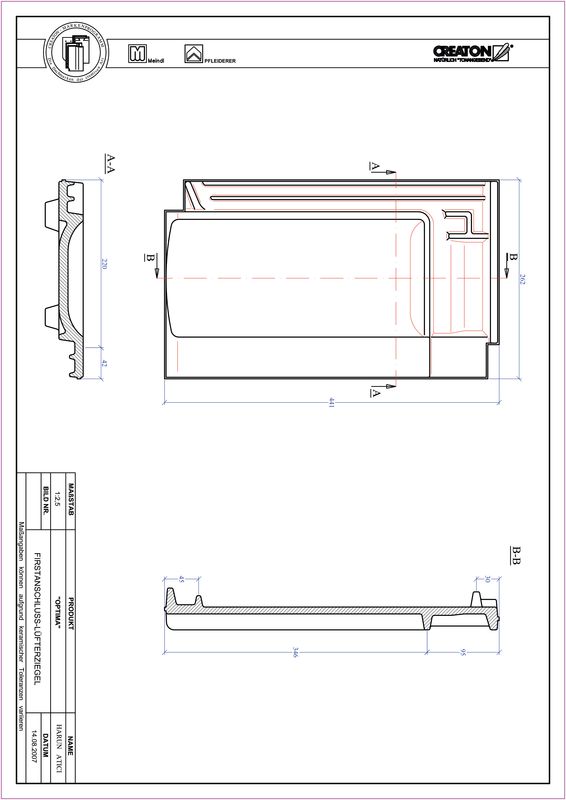

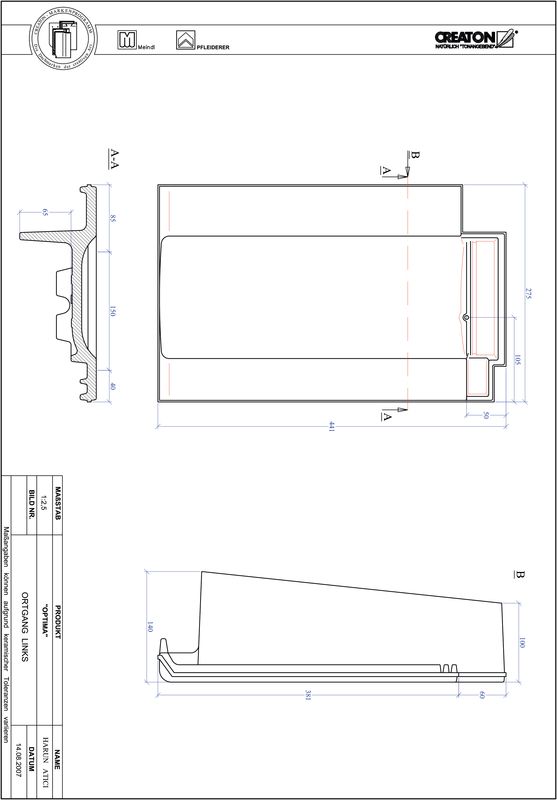

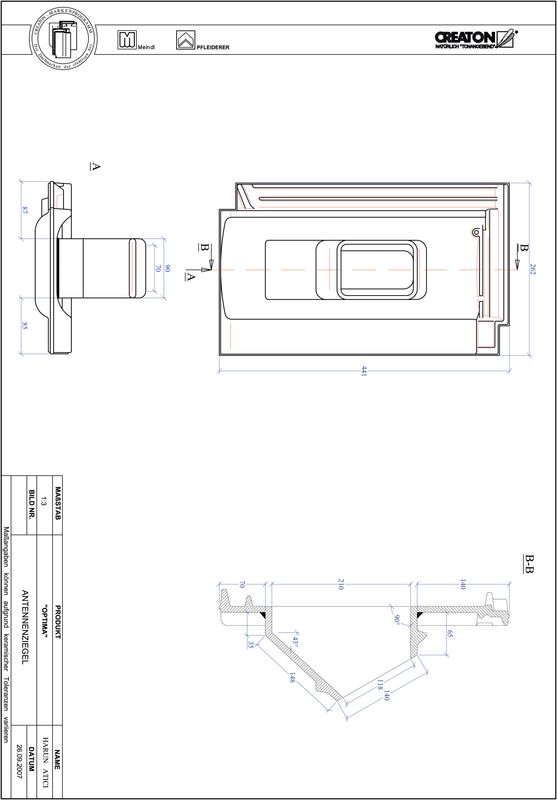

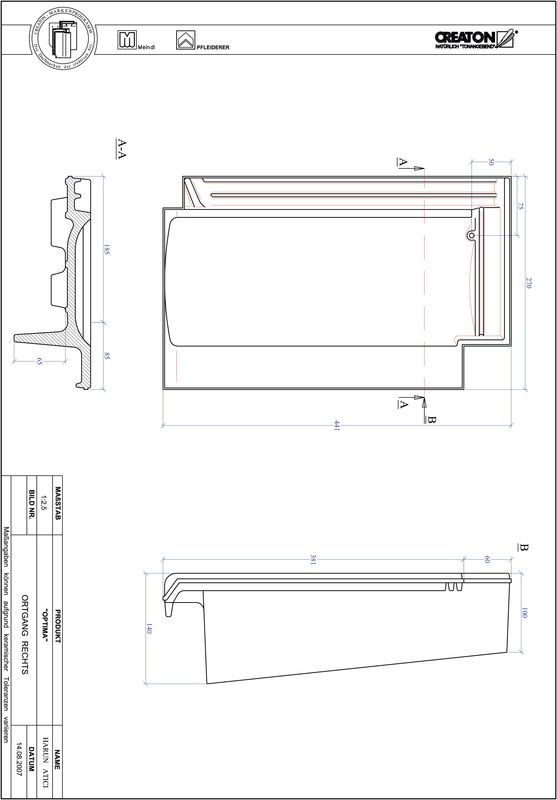

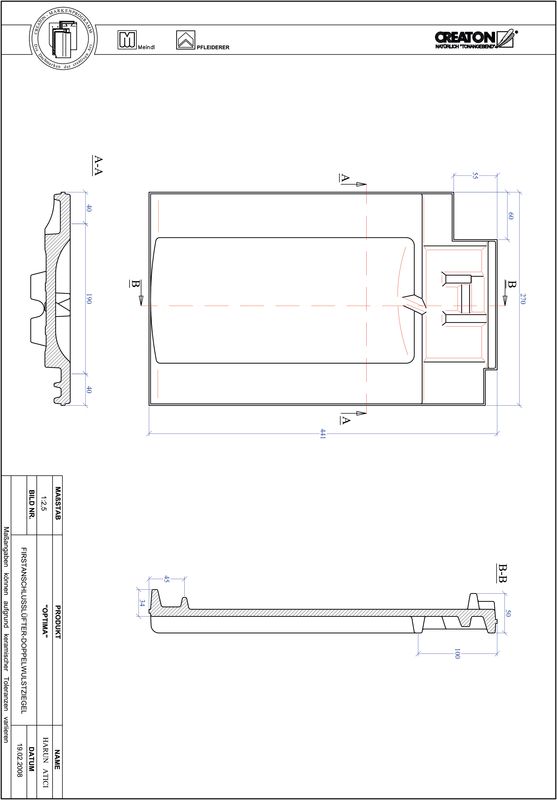

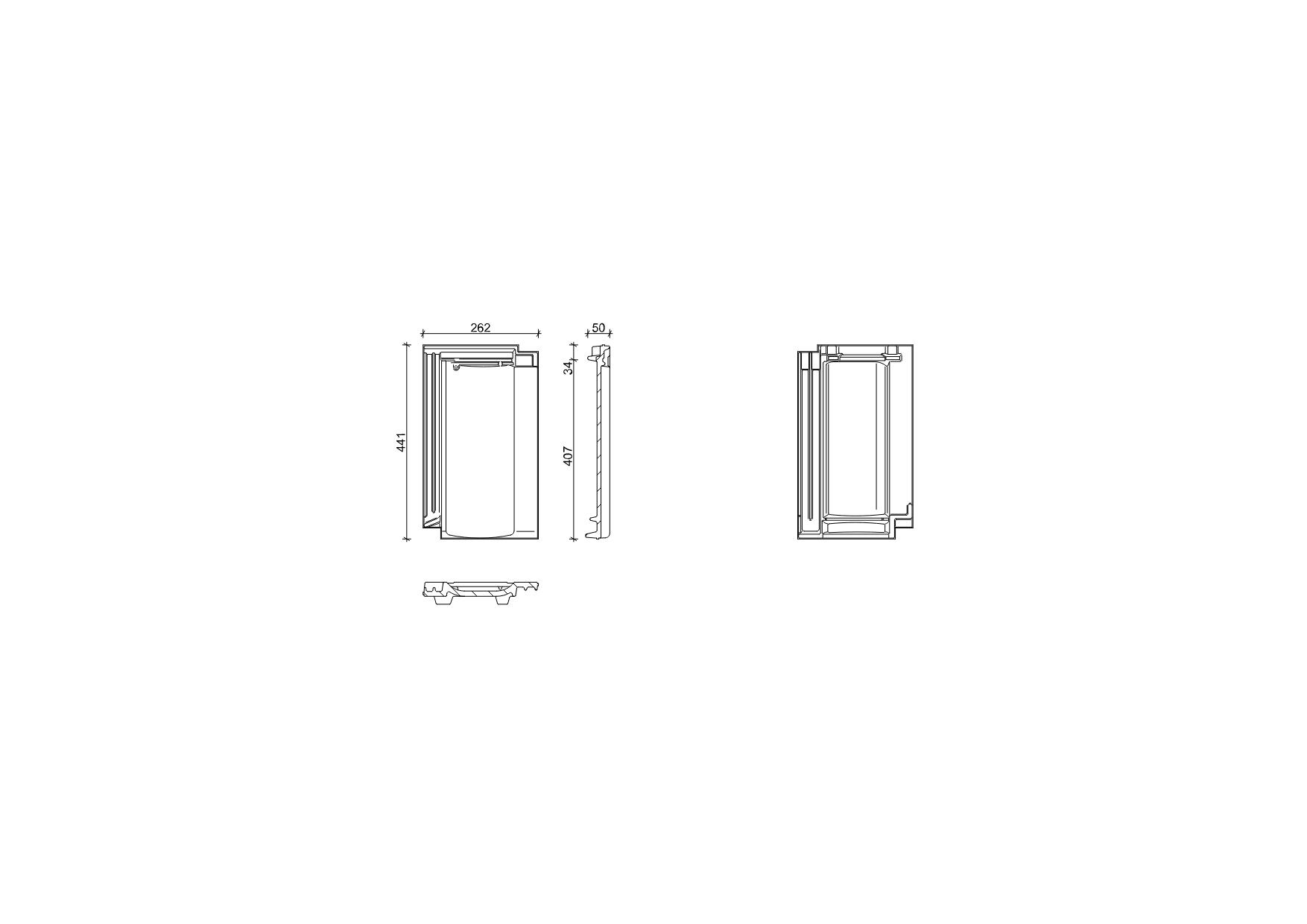

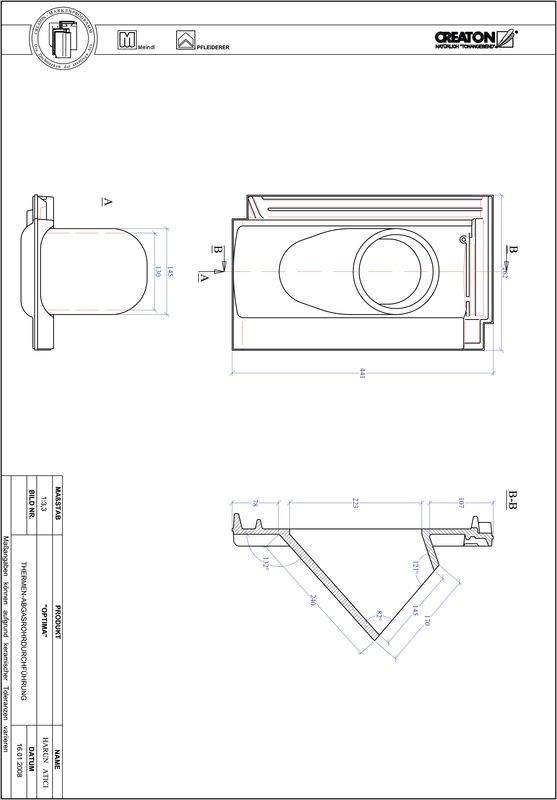

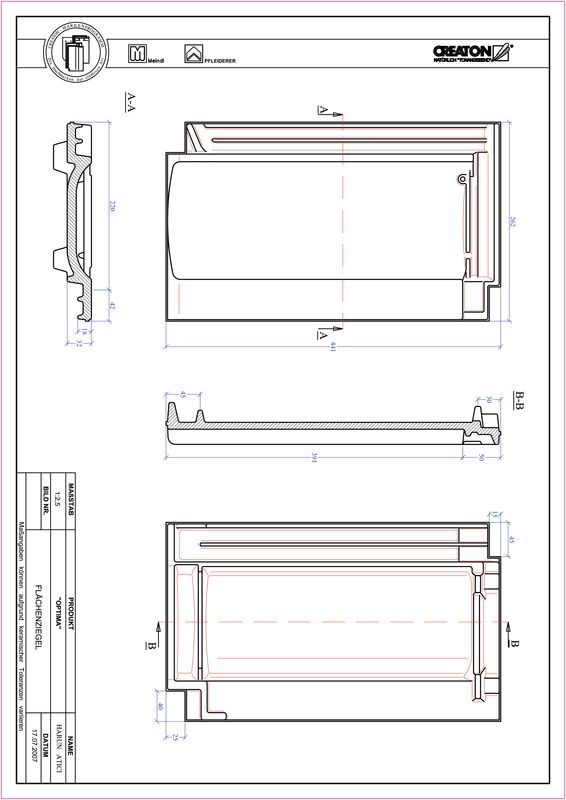

  • The technical drawing shown is merely an example.

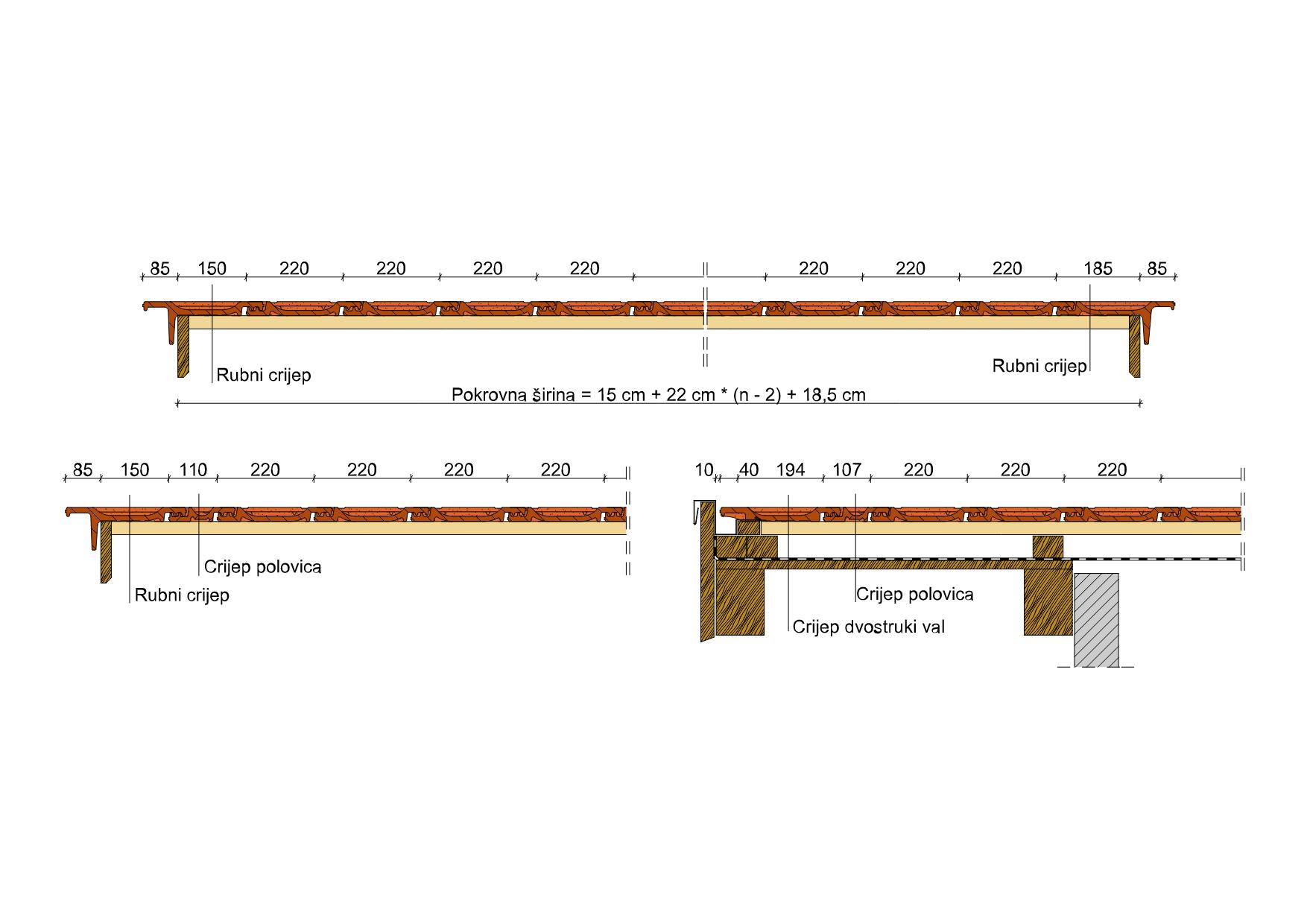

  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.

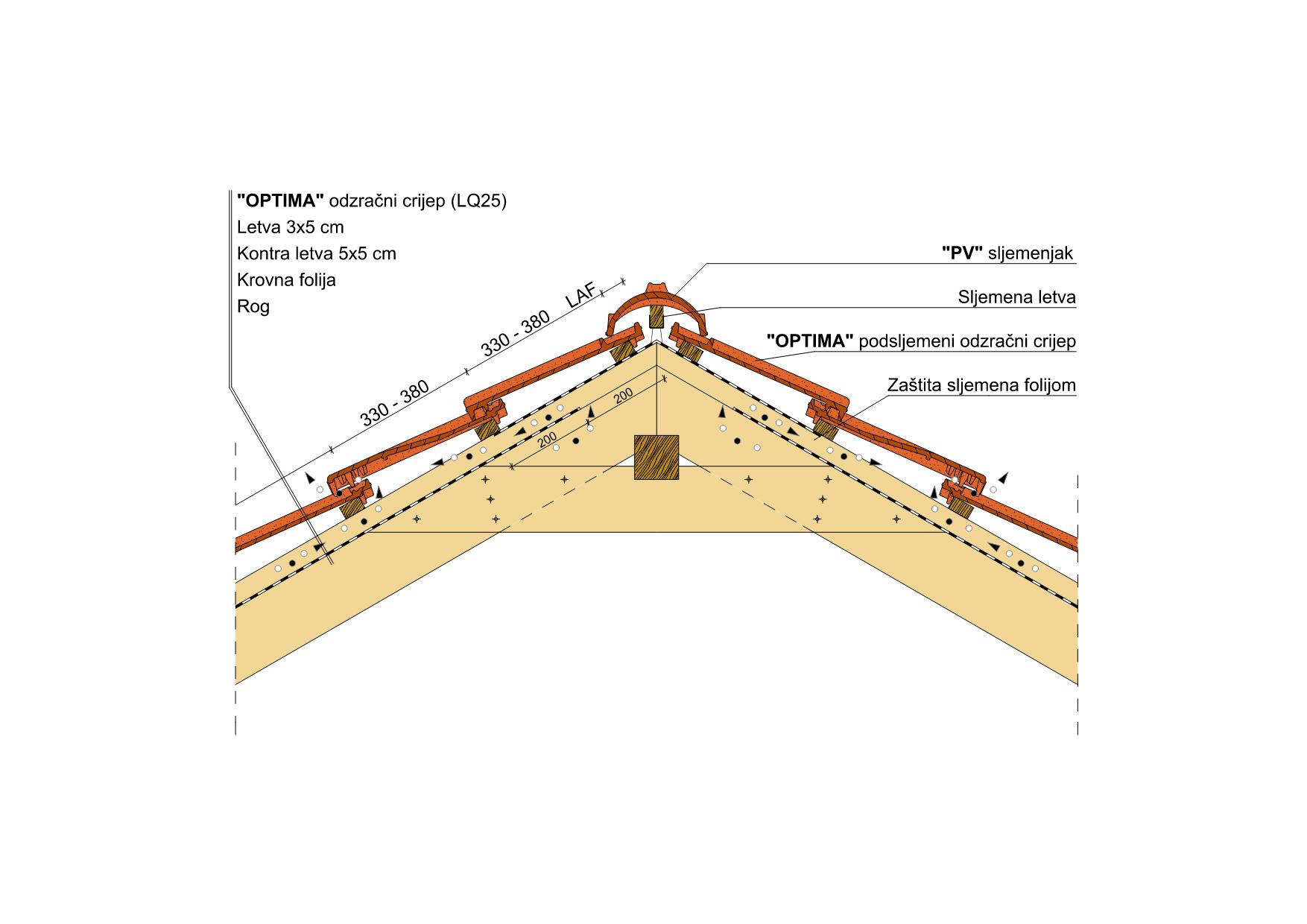

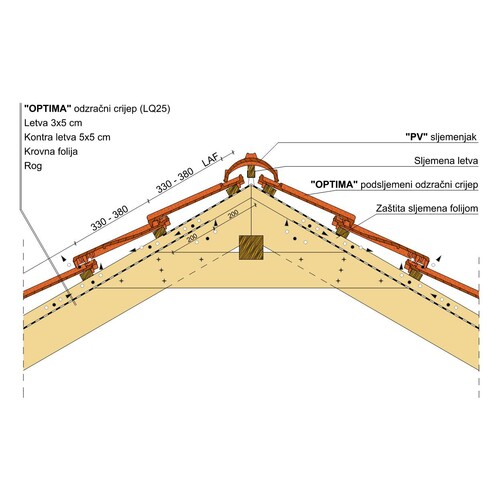

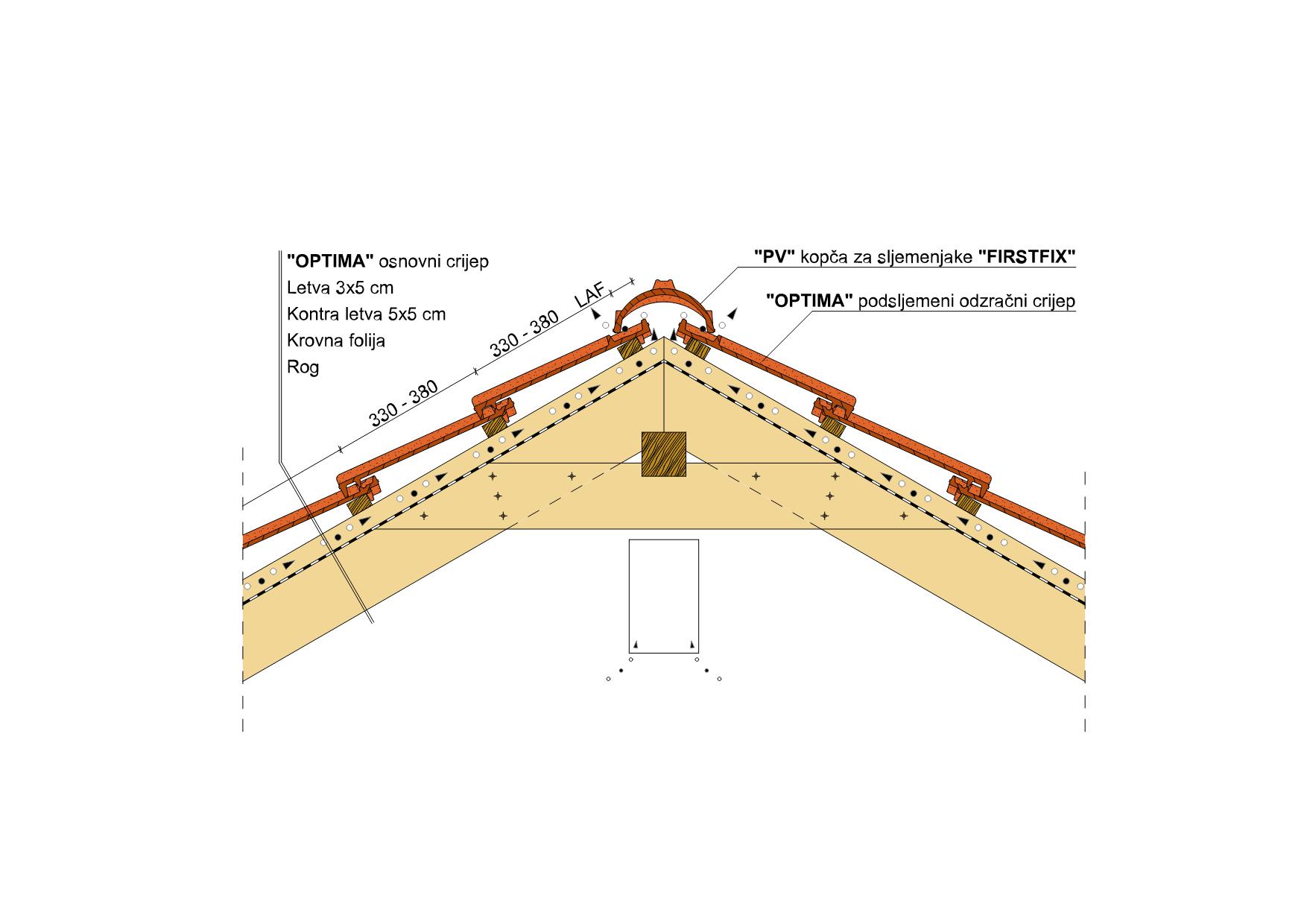

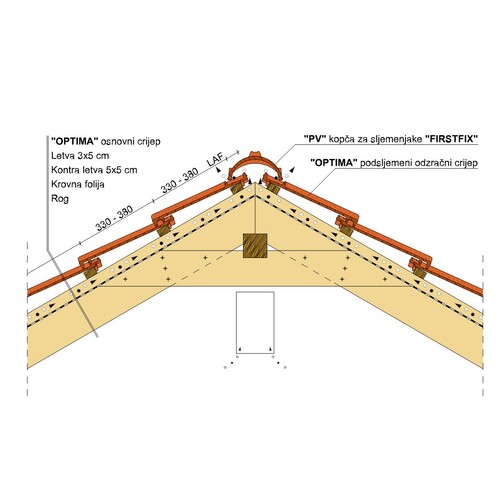

LAF-/FLA-VALUES

LAF-/FLA VALUES IN MM FOR 30x50-BATTENS

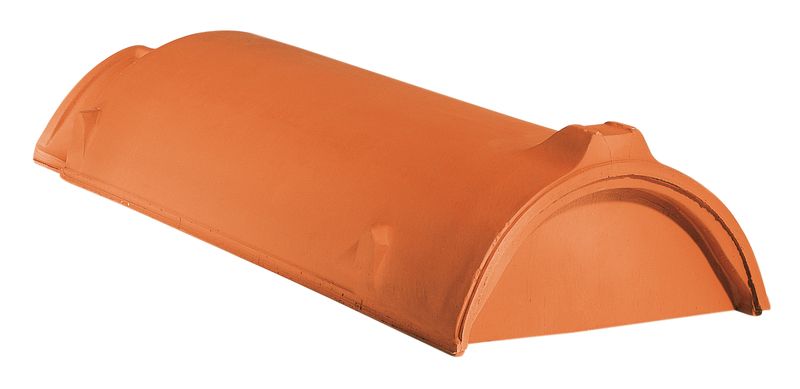

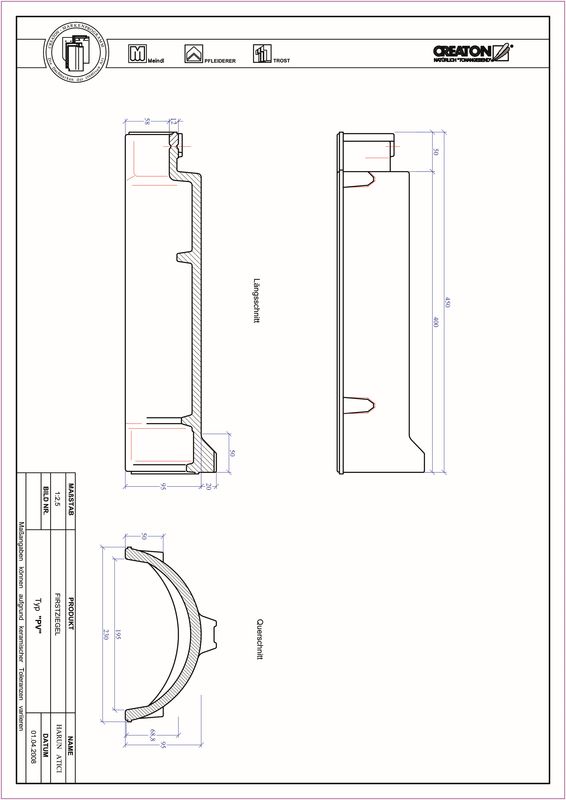

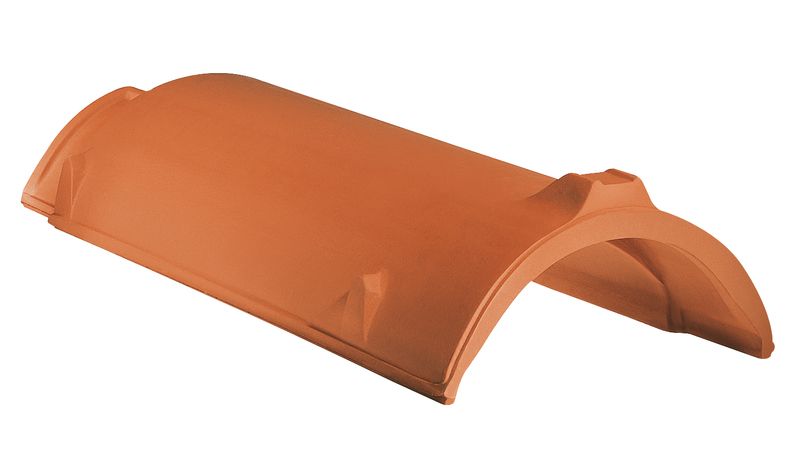

Ridge tileDN15°20°25°30°35°40°45°50°55°60°
PH 2.5 pcs./m.FLA9080757055555050
PH 2.5 pcs./m.LAF6055504545403535
PV 2.5 pcs./m.FLA90807565605045353535
PV 2.5 pcs./m.LAF60606055554545454040
LAF-/FLA VALUES IN MM FOR 40x60-BATTENS
Ridge tileDN20°25°30°35°40°45°50°55°60°
PH 2.5 pcs./m.FLA90858065656060
PH 2.5 pcs./m.LAF55454040352520
PV 2.5 pcs./m.FLA908575706055454545
PV 2.5 pcs./m.LAF605550504035303030
LAF-/FLA VALUES IN MM FOR 50x50-BATTENS
Ridge tileDN20°25°30°35°40°45°50°
PH 2.5 pcs./m.FLA100959080807580
PH 2.5 pcs./m.LAF50403530251510
PV 2.5 pcs./m.FLA100958585757065
PV 2.5 pcs./m.LAF55504540302520
