SIMPLA

Moderan minimalistički ravni crijep

  • Odvođenje kišnice zahvaljujući dvostrukim gornjim i bočnim utorima
  • Visoka ekonomičnost zahvaljujući velikom formatu
  • Fleksibilnost i pojednostavljeno polaganje zahvaljujući velikom području pomicanja od 29 mm

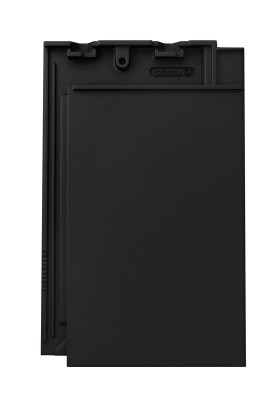

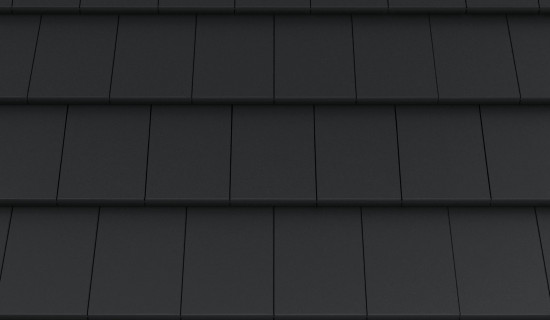

NUANCE crna mat engobirana
NUANCE crna mat engobirana
FINESSE crna glazirana
FINESSE crna glazirana

Technical data

Dimenzije(cca.)300 x 500 mm
Srednja pokrovna širina(cca.)261 mm
Maks.pokrovna širina(cca.)263 mm
Min.pokrovna širina(cca.)260 mm
Letvanje preporučeno(cca.)352 mm
Maks. letvanje(cca.)366 mm
Min.letvanje(cca.)338 mm
Utrošak crijepa prosječno(cca.)10.9 kom/m²
Maks.utrošak crijepa11.4 kom/m²
min. utrošak crijepa (cca.)10.4 kom/m²
Masa po m²(cca.)52.3 kg/m²
Masa palete(cca.)947 kg
Masa po komadu(cca.)4.8 MENGENEINHEIT#KGPROST
Komada na paleti192 komad
BETON I VLAKNO CEMENT4 piece

Area of use

VALID FOR GERMANY
Nagib krova DUO extra (D)≥ 16 °
Nagib krova QUATTRO longlife extra (D)≥ 10 °
Nagib krova TRIO extra (D)≥ 14 °
Nagib krova DUO longlife ND extra (D)≥ 14 °
VALID FOR AUSTRIA
Nagib krova DUO longlife ND extra (A)≥ 22 °
Nagib krova DUO extra (A)≥ 22 °
Nagib krova QUATTRO longlife extra (A)≥ 18 °
Nagib krova TRIO extra (A)≥ 22 °

Technical informations

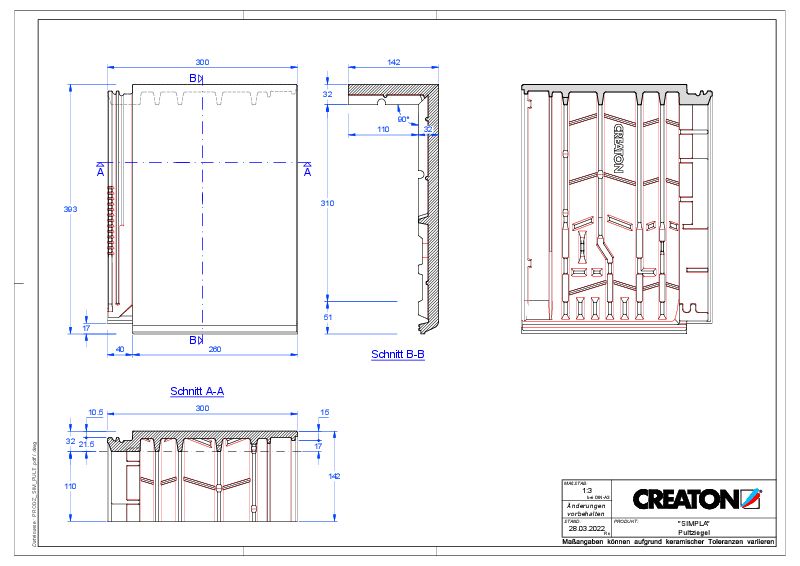

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.

LAF-/FLA-VALUES

LAF-/FLA VALUES IN MM FOR 40x60-BATTENS

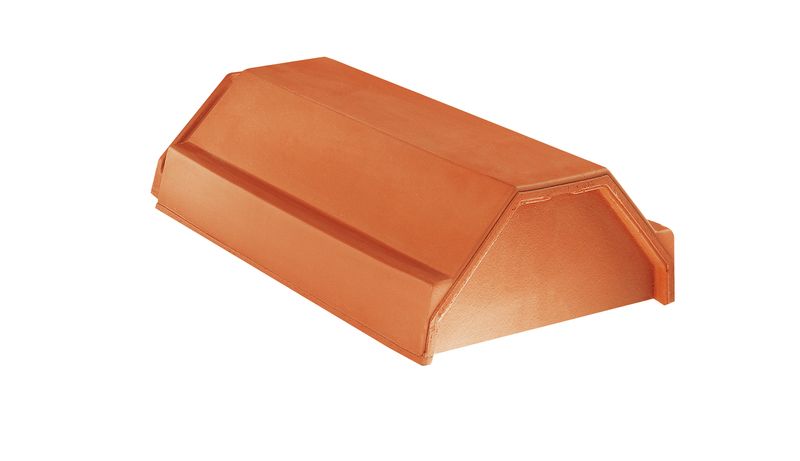

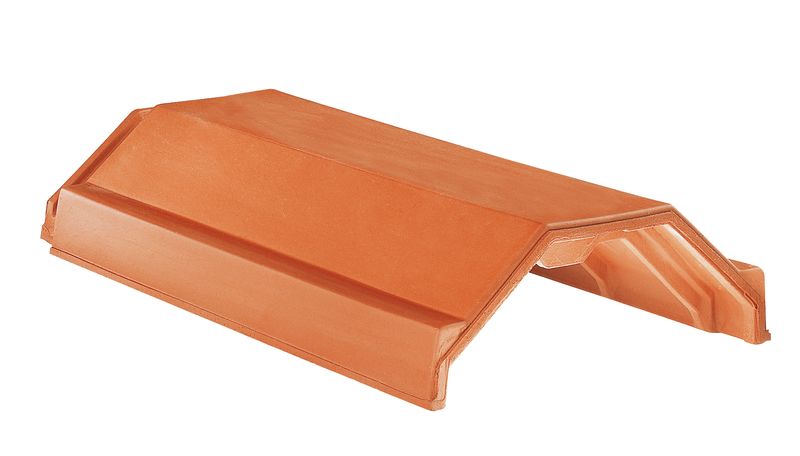

Ridge tileDN15°
PS 2.5 pcs./m.FLA75
PS 2.5 pcs./m.LAF75
