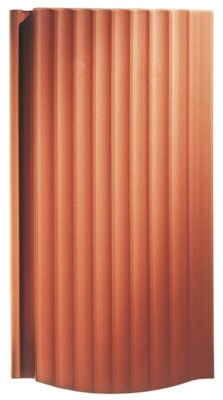

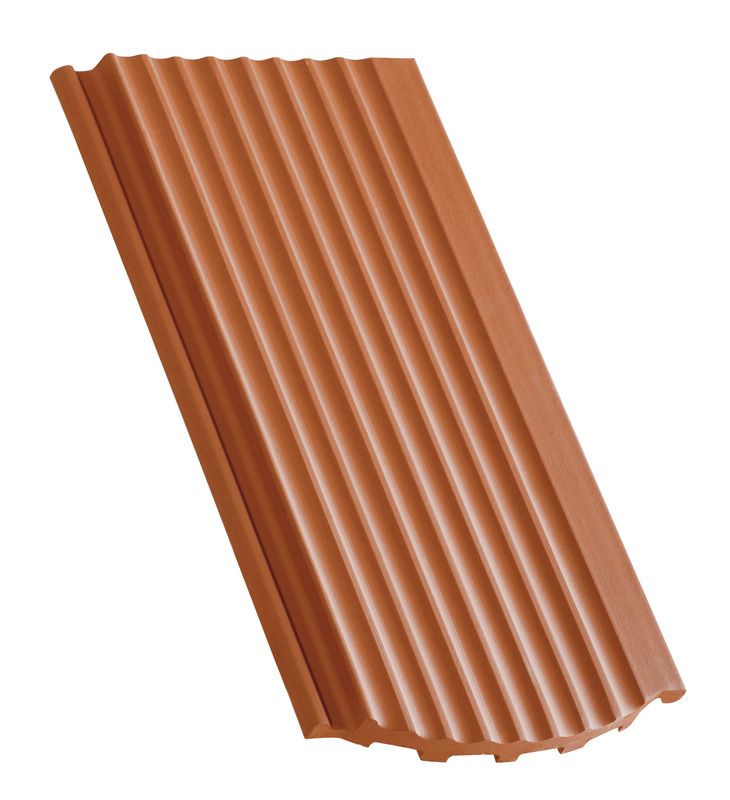

PROFIL utoreni biber s valovitom površinom segmentni oblik

Biber crijep sa profiliranom površinom

  • Naglašeno profilirana struktura
  • Diferencirana boja
  • Jedinstvene mogućnosti kombiniranja i oblikovanja
  • Harmonično se uklapa u postojeće krovne krajolike

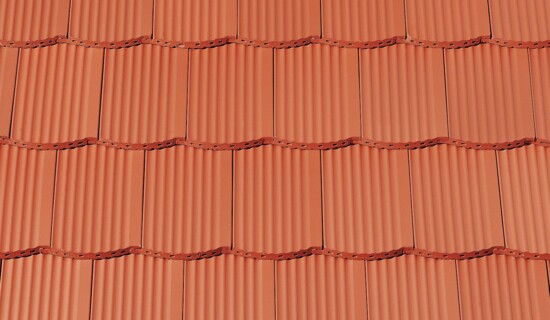

prirodno crvena
prirodno crvena
NUANCE bakreno crvena engobirana
NUANCE bakreno crvena engobirana
NUANCE crna engobirana
NUANCE crna engobirana
NUANCE crna mat engobirana
NUANCE crna mat engobirana

Technical data

Dimenzije(cca.)205 x 400 x 21 mm
Maks.pokrovna širina(cca.)180 mm
Letvanje preporučeno(cca.)290 mm
Maks. letvanje(cca.)300 mm
Min.letvanje(cca.)270 mm
Utrošak crijepa prosječno(cca.)19.2 kom/m²
Masa po m²(cca.)48.4 kg/m²
Masa palete(cca.)803 kg
Masa po komadu(cca.)2.52 kg/piece
Komada na paleti324 komad
BETON I VLAKNO CEMENT6 piece

Area of use

VALID FOR GERMANY
Nagib krova DUO extra (D)≥ 22 °
Nagib krova QUATTRO longlife extra (D)≥ 10 °
Nagib krova TRIO extra (D)≥ 18 °
VALID FOR AUSTRIA
Nagib krova DUO extra (A)≥ 35 °
Nagib krova QUATTRO longlife extra (A)≥ 35 °

Technical informations

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Batten spacing / tile gauge is dependent on the roofing type and roof pitch.
