PREMION

Crijep za male nagibe sa visokim faktorom zaštite

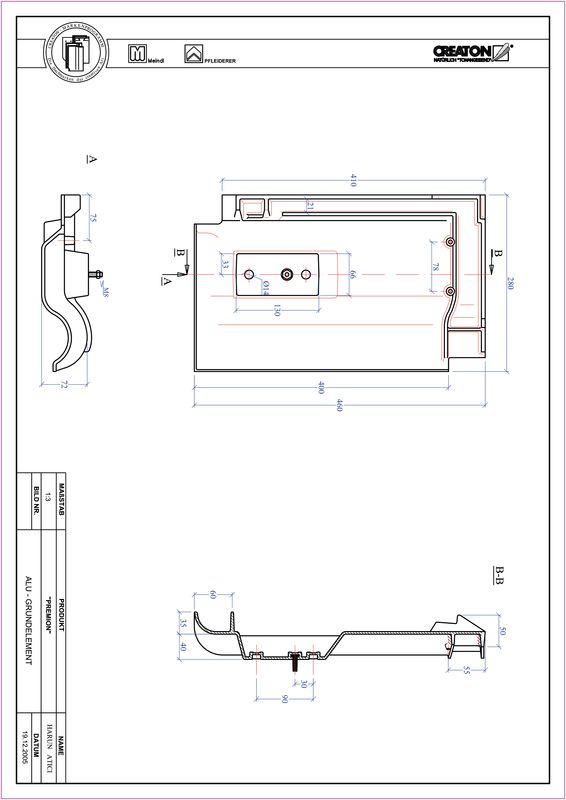

  • SIN aluminijski crijep

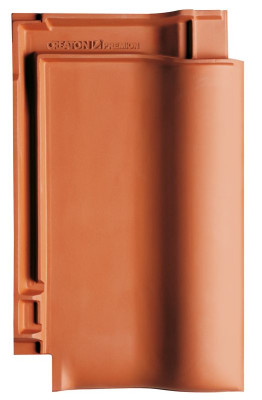

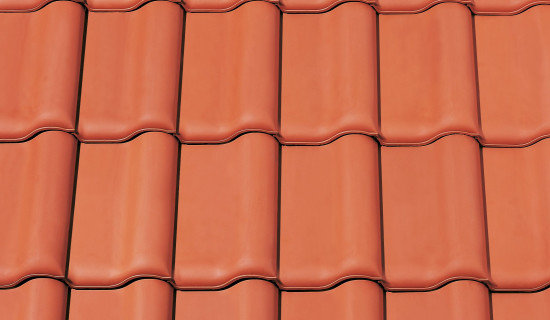

prirodno crvena
prirodno crvena
NUANCE bakreno crvena engobirana
NUANCE bakreno crvena engobirana
NUANCE smeđa engobirana
NUANCE smeđa engobirana
NUANCE mangan engobirana
NUANCE mangan engobirana
NUANCE boja škriljevca engobirana
NUANCE boja škriljevca engobirana

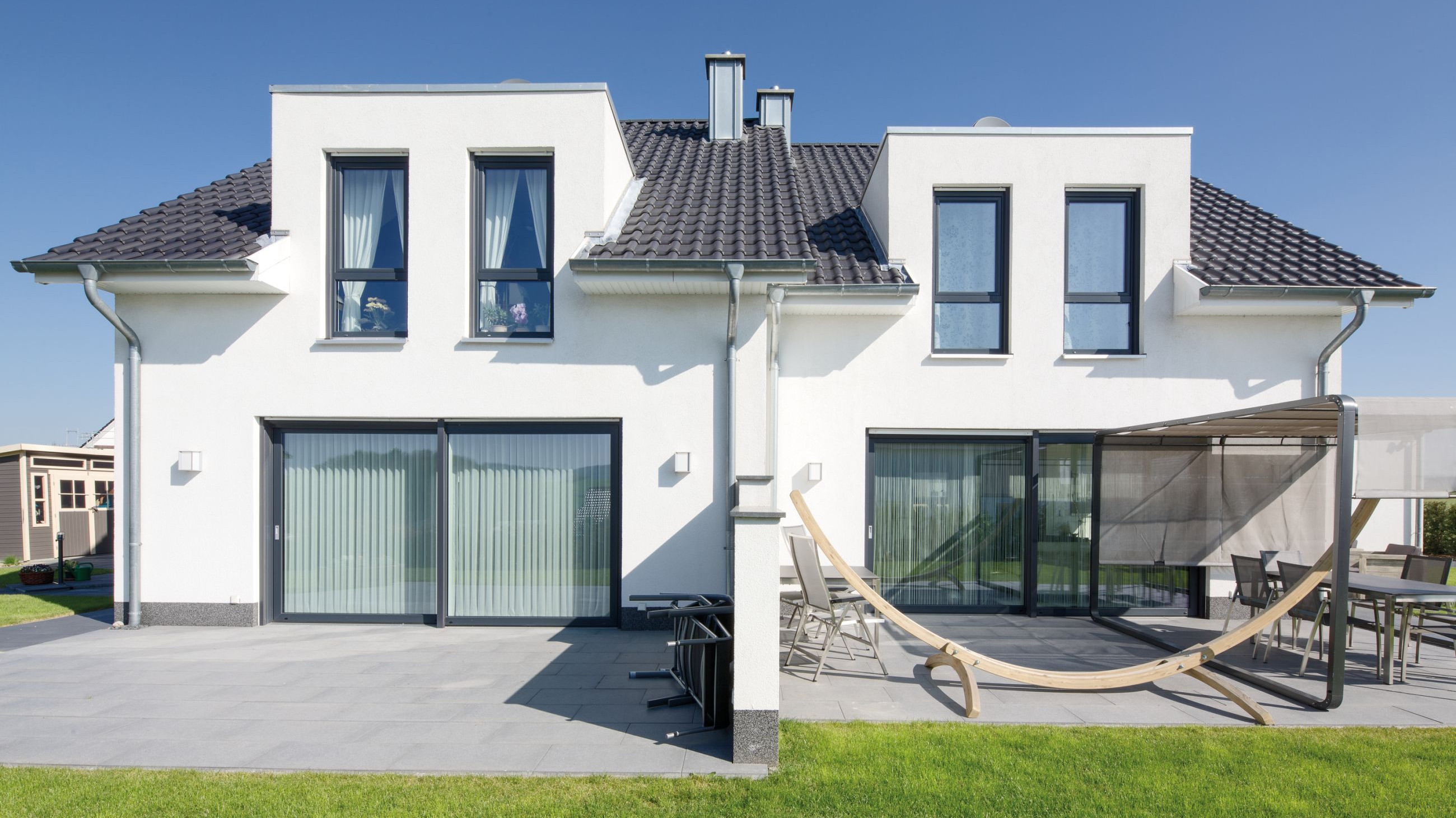

NUANCE crna mat engobirana
NUANCE crna mat engobirana
FINESSE boja crnog vina glazirana
FINESSE boja crnog vina glazirana
FINESSE smeđa glazirana
FINESSE smeđa glazirana
FINESSE crna glazirana
FINESSE crna glazirana
NOBLESSE kristal boja škriljevca glazirana
NOBLESSE kristal boja škriljevca glazirana
NOBLESSE kristal crna glazirana
NOBLESSE kristal crna glazirana

Technical data

Dimenzije(cca.)280 x 460 mm
Srednja pokrovna širina(cca.)225 mm
Maks.pokrovna širina(cca.)228 mm
Min.pokrovna širina(cca.)222 mm
Letvanje preporučeno(cca.)368 mm
Maks. letvanje(cca.)379 mm
Min.letvanje(cca.)357 mm
Utrošak crijepa prosječno(cca.)12.1 kom/m²
Maks.utrošak crijepa12.6 kom/m²
min. utrošak crijepa (cca.)11.6 kom/m²
Masa po m²(cca.)42.4 kg/m²
Masa palete(cca.)865 kg
Masa po komadu(cca.)3.5 kg/piece
Komada na paleti240 komad
BETON I VLAKNO CEMENT5 piece

Area of use

VALID FOR GERMANY
Nagib krova DUO extra (D)≥ 12 °
Nagib krova QUATTRO longlife extra (D)≥ 7 °
Nagib krova TRIO extra (D)≥ 10 °
Nagib krova DUO longlife ND extra (D)≥ 10 °
VALID FOR AUSTRIA
Nagib krova DUO longlife ND extra (A)≥ 17 °
Nagib krova DUO extra (A)≥ 17 °
Nagib krova QUATTRO longlife extra (A)≥ 15 °
Nagib krova TRIO extra (A)≥ 17 °

Technical informations

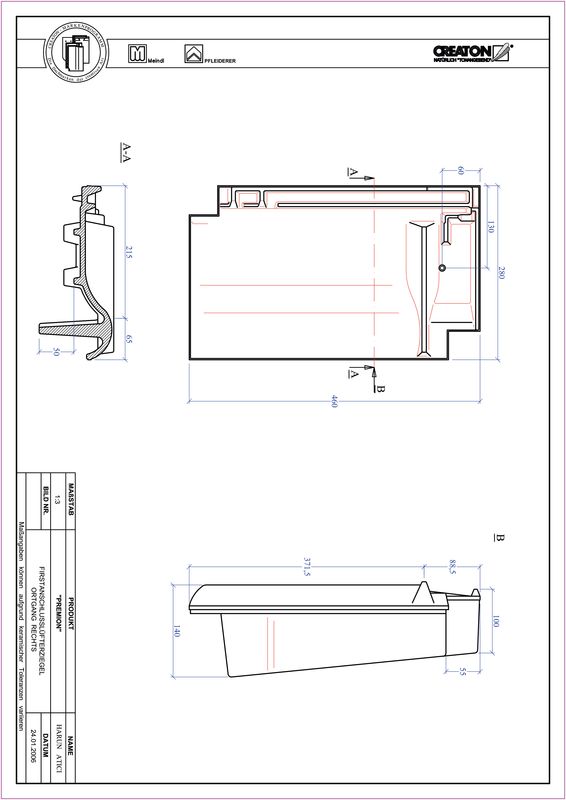

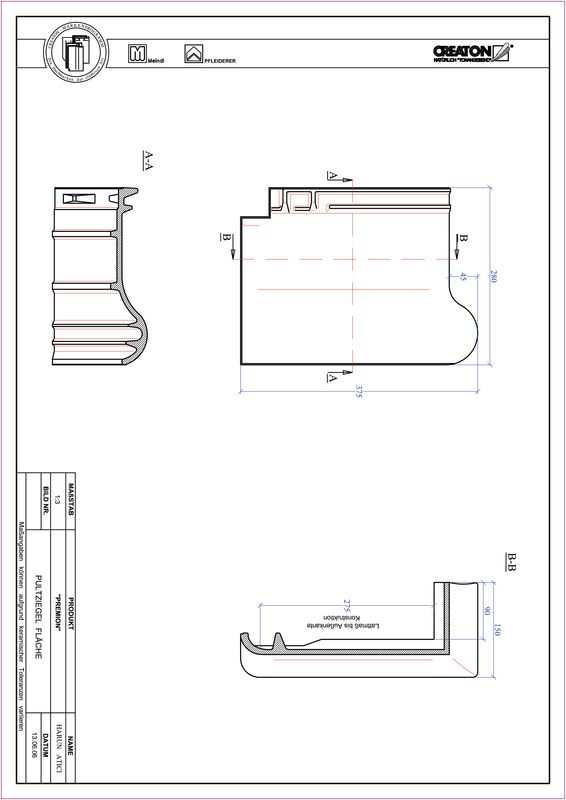

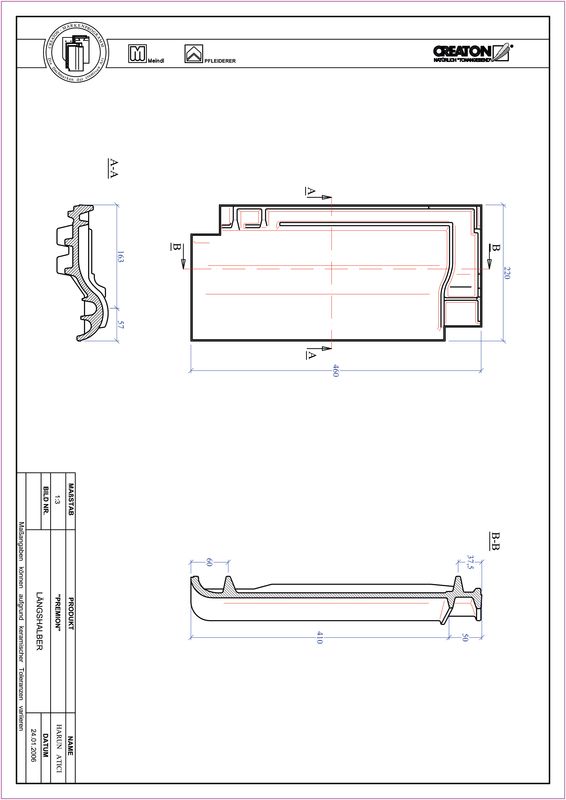

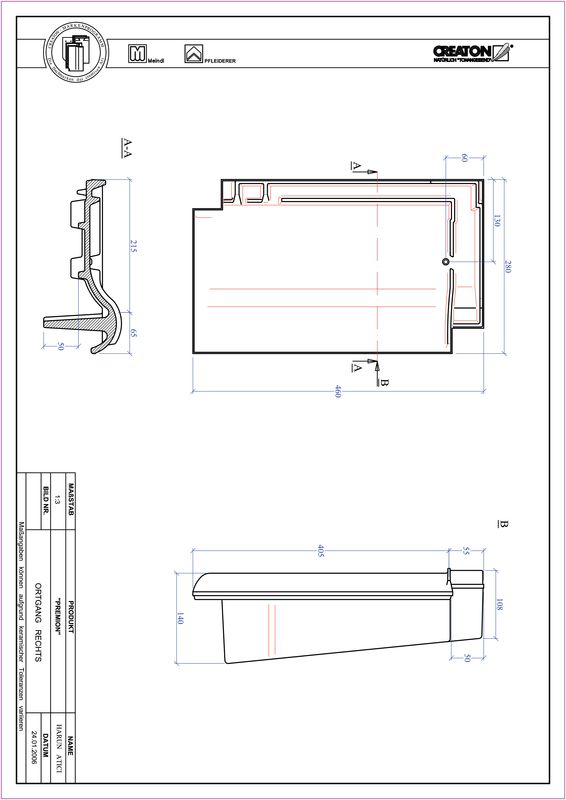

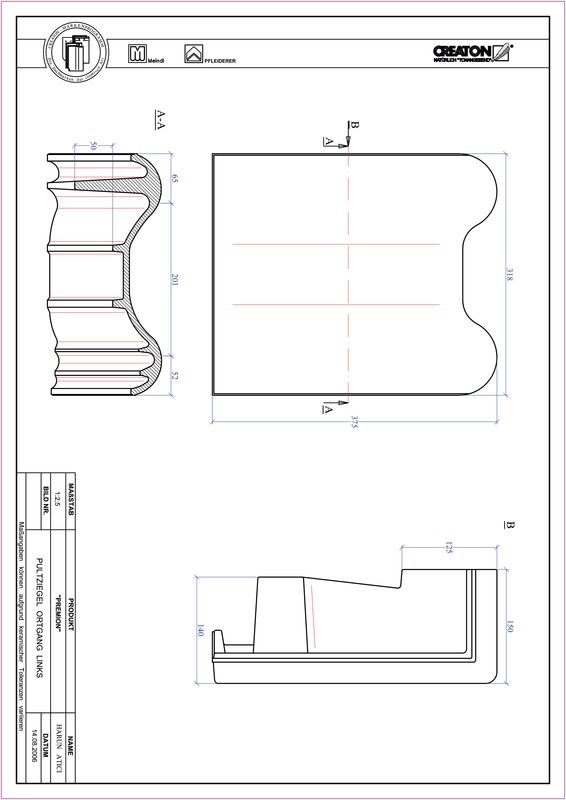

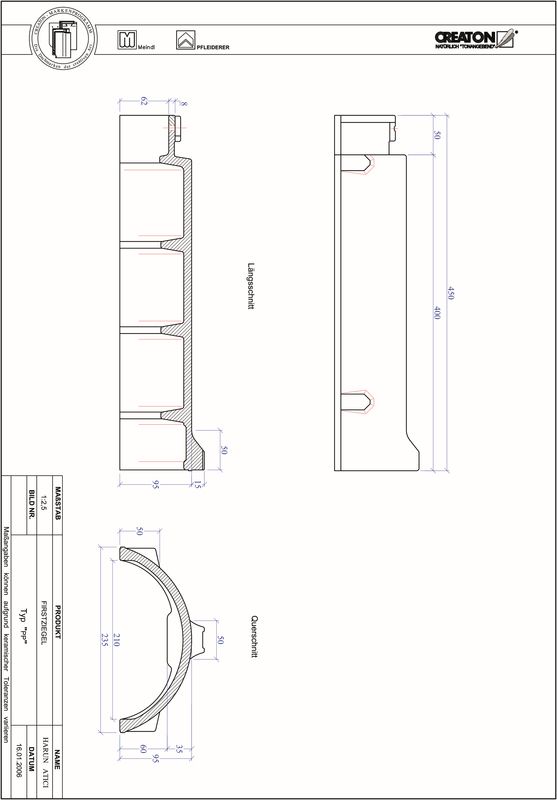

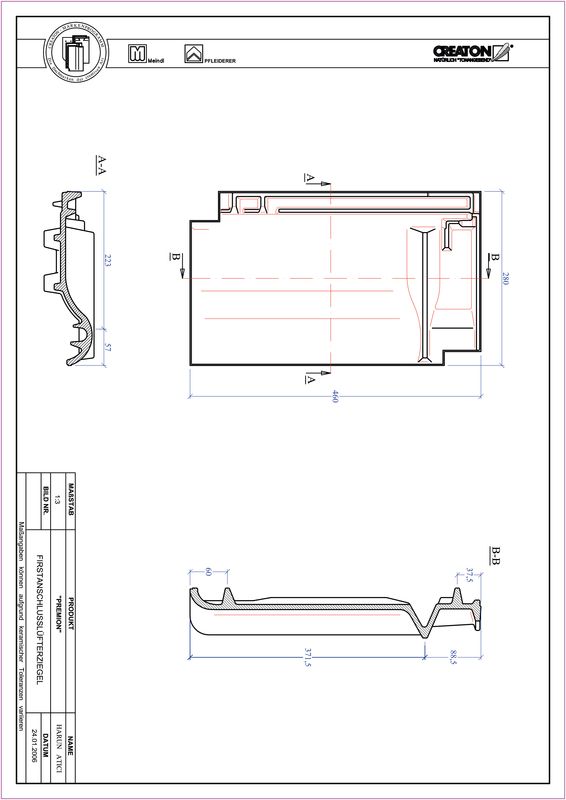

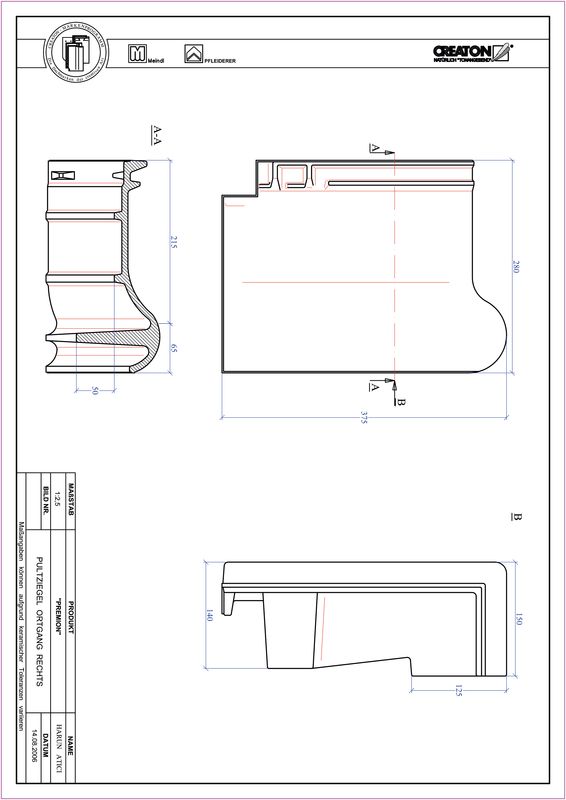

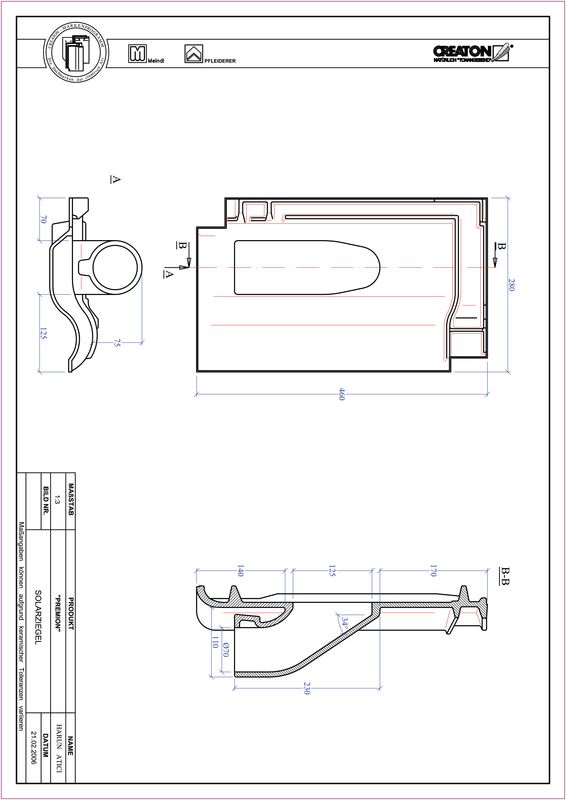

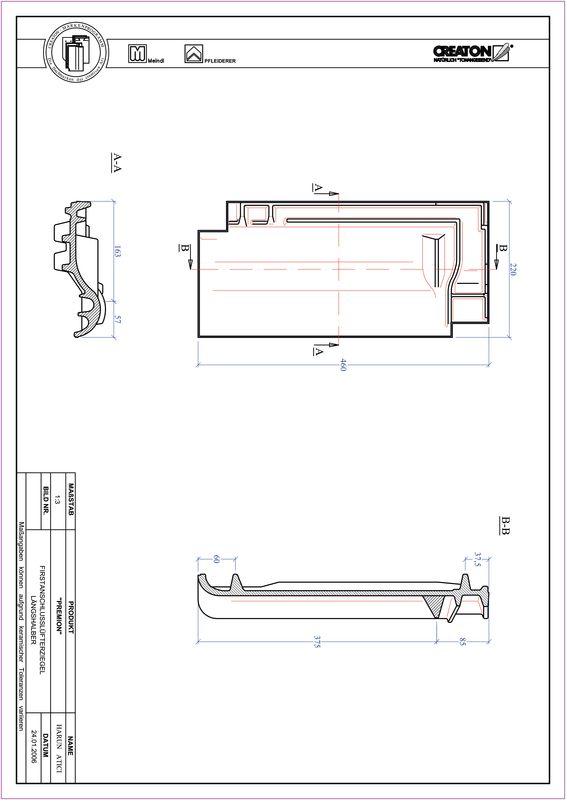

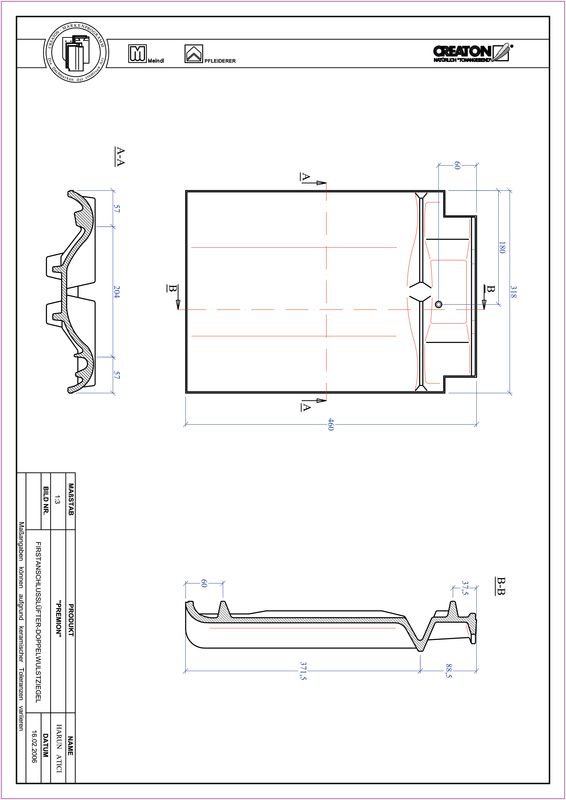

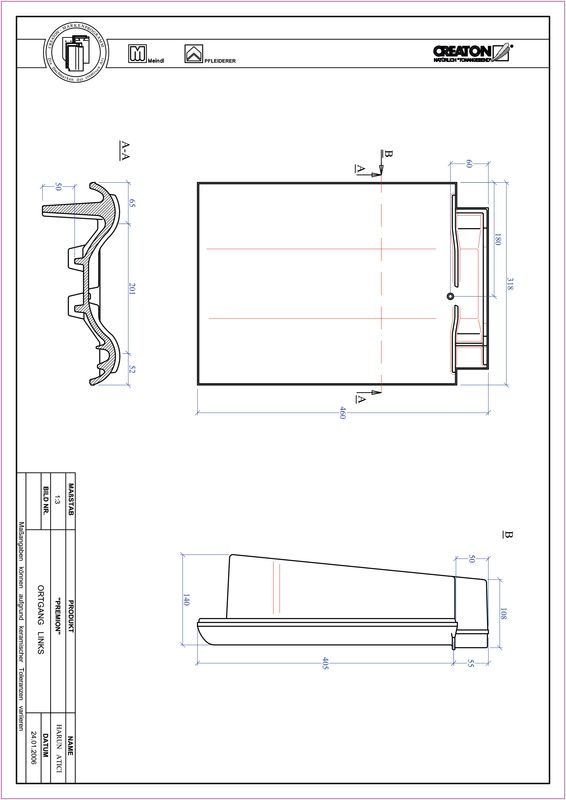

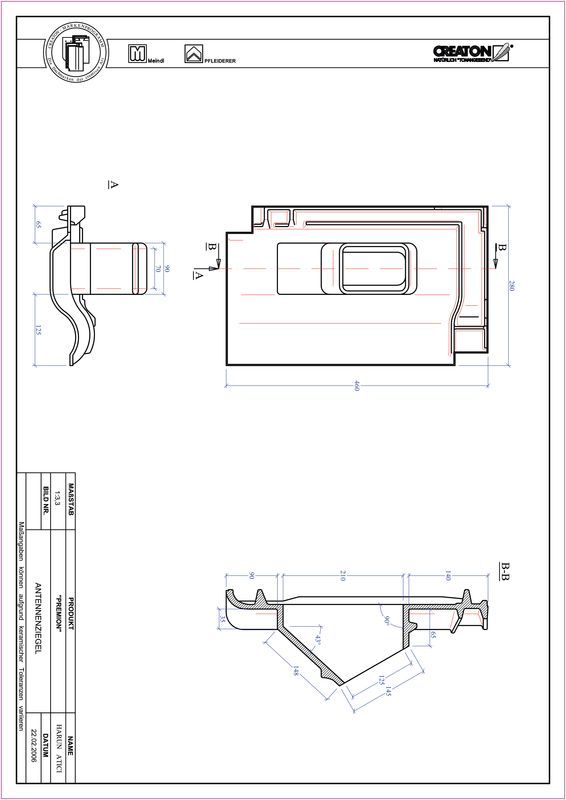

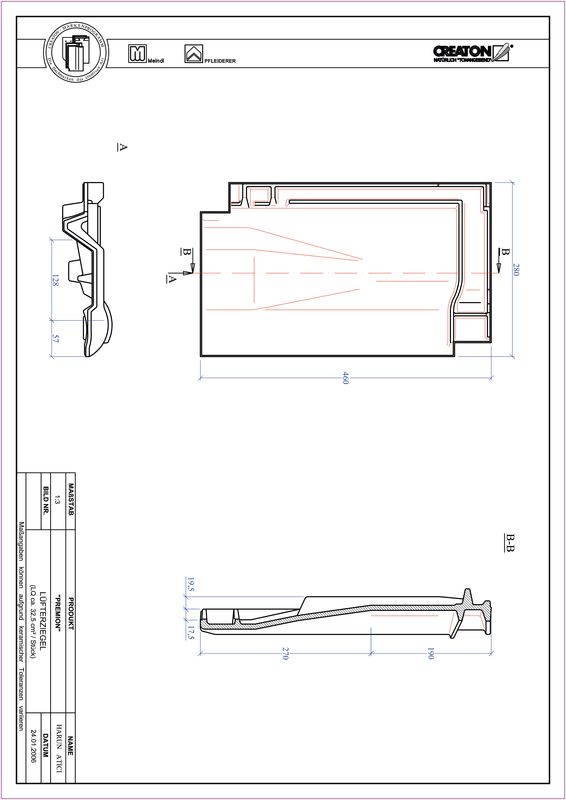

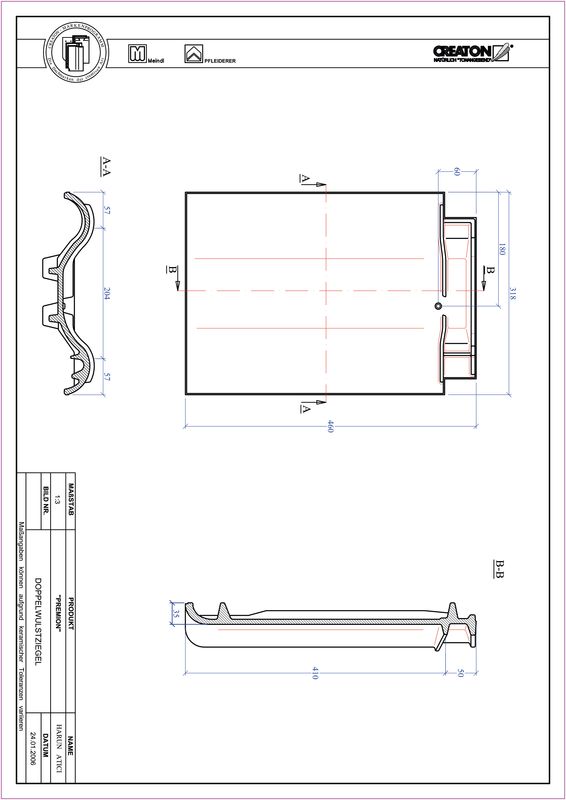

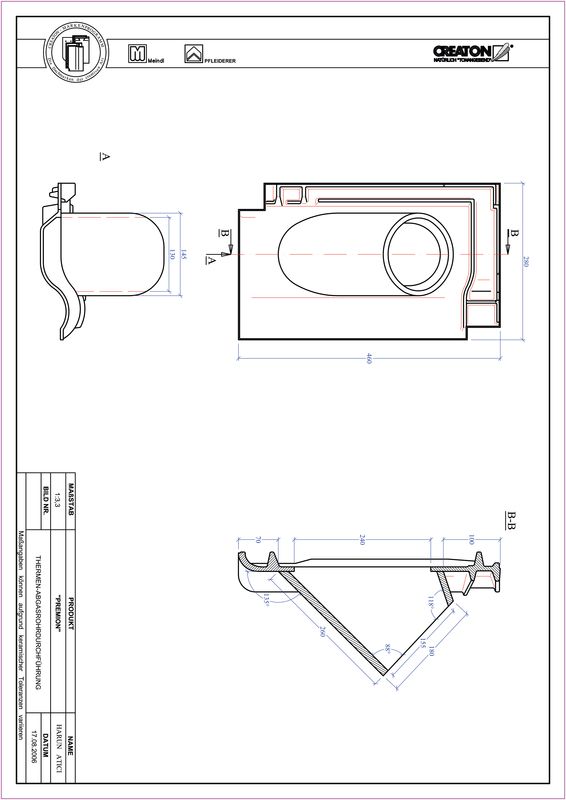

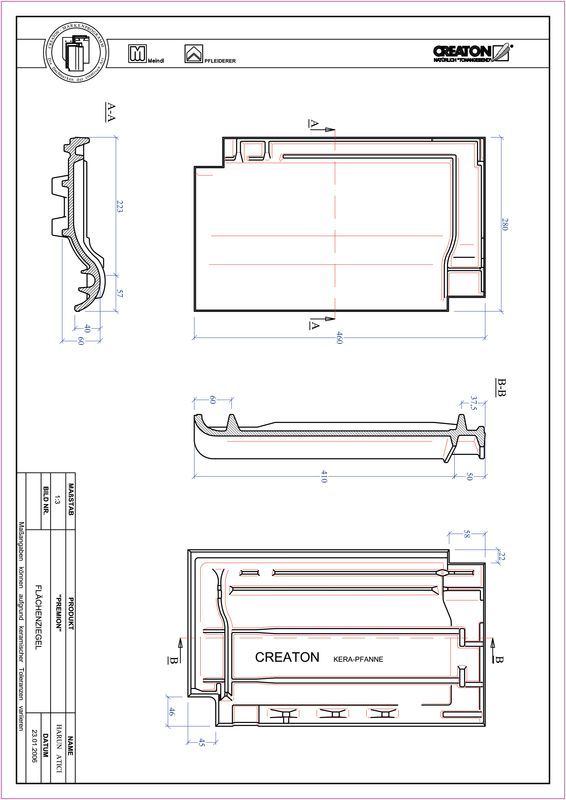

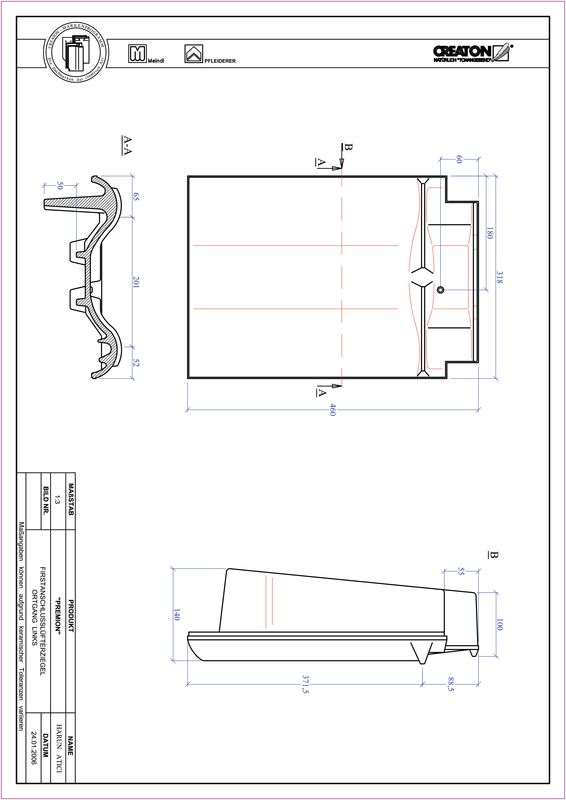

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • All roofs with a roof pitch of 7° - 9° require individual approval from CREATON Applications Technology. CREATON manufacturer's regulations must be complied with during installation.

LAF-/FLA-VALUES

LAF-/FLA VALUES IN MM FOR 30x50-BATTENS

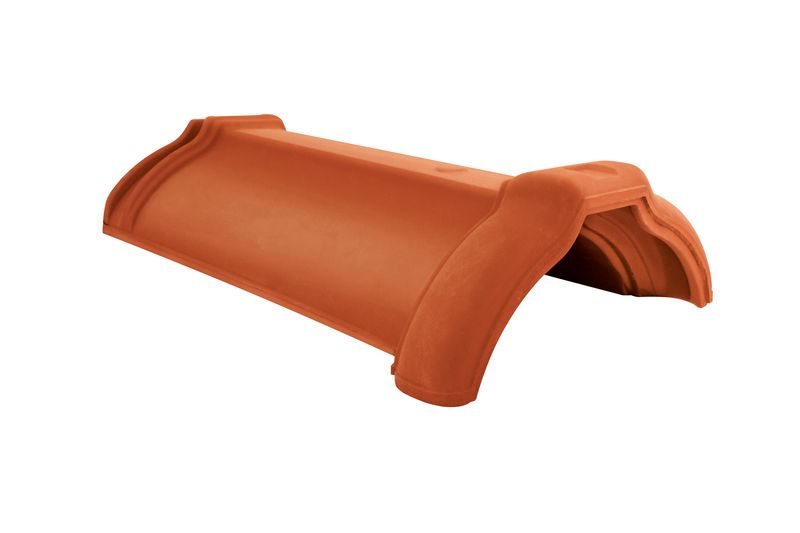

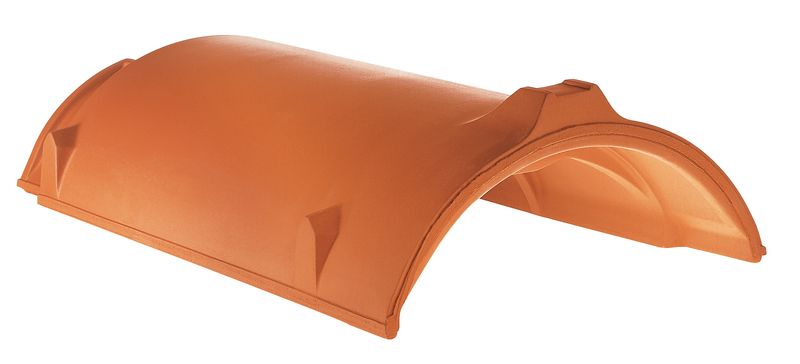

Ridge tileDN10°15°20°25°30°35°40°45°50°55°60°
PHP 2.5 pcs./m.FLA13012512011511011010095908585
PHP 2.5 pcs./m.LAF8585807570656055504540
PP 2.5 pcs./m.FLA100100908080757060604540
PP 2.5 pcs./m.LAF8070656055504545403530
LAF-/FLA VALUES IN MM FOR 40x60-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°55°60°
PHP 2.5 pcs./m.FLA14013513012512012011010510095
PHP 2.5 pcs./m.LAF85858070656055453530
PP 2.5 pcs./m.FLA1101101009090858070705550
PP 2.5 pcs./m.LAF8070655550454035252015
LAF-/FLA VALUES IN MM FOR 50x50-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°55°
PHP 2.5 pcs./m.FLA150145140135130135125120120115
PHP 2.5 pcs./m.LAF80807565605045352520
PP 2.5 pcs./m.FLA12012011010010010095859075
PP 2.5 pcs./m.LAF75656050453530251510
