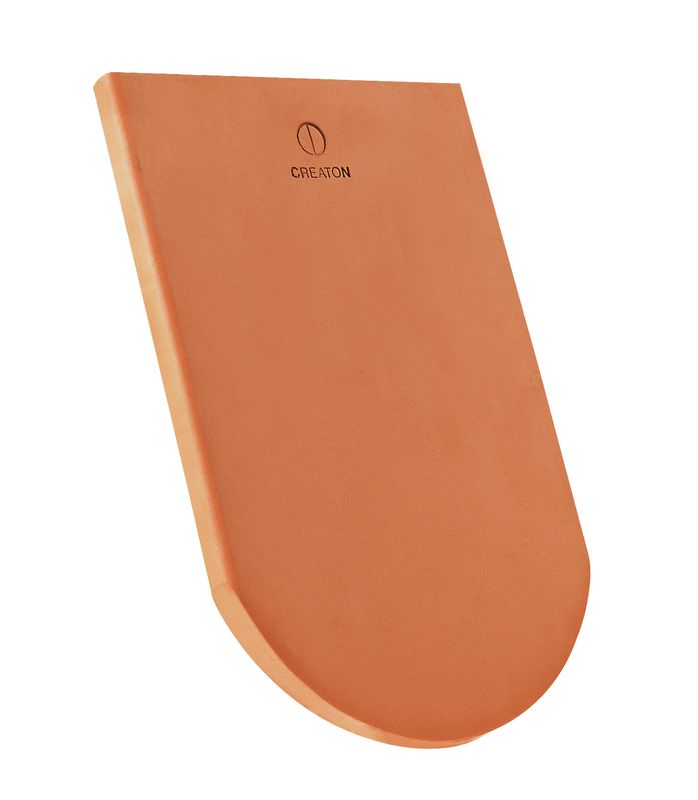

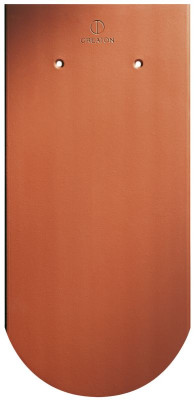

Biber KLASSIK zaobljeni(ROG)

  • Najšire područje primjene omogućuje individualna rješenja za pokrivanje krova
  • Idealan za sanacije i novogradnju
  • Elegantan, diskretan i bezvremenski oblik za površine krova klasične ljepote
  • Optički omekšava krovni krajolik
  • Široki spektar boja i površinskih materijala

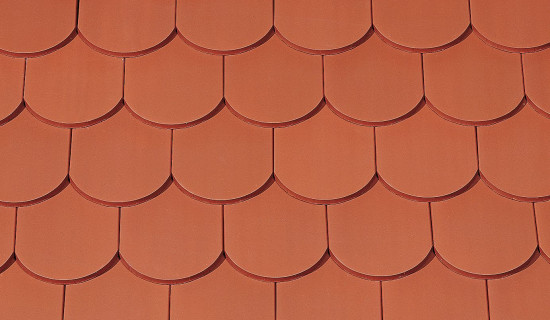

prirodno crvena
prirodno crvena
NUANCE prirodno crvena engobirana
NUANCE prirodno crvena engobirana
NUANCE crvena engobirana
NUANCE crvena engobirana
NUANCE bakreno crvena engobirana
NUANCE bakreno crvena engobirana
NUANCE boja crnog vina engobirana
NUANCE boja crnog vina engobirana
NUANCE smeđa engobirana
NUANCE smeđa engobirana
NUANCE tamnosmeđa engobirana
NUANCE tamnosmeđa engobirana
NUANCE boja škriljevca engobirana
NUANCE boja škriljevca engobirana
NUANCE antracit engobirana
NUANCE antracit engobirana
NUANCE starosiva engobirana
NUANCE starosiva engobirana
NUANCE siva engobirana
NUANCE siva engobirana
FINESSE crvena glazirana
FINESSE crvena glazirana
FINESSE boja crnog vina glazirana
FINESSE boja crnog vina glazirana
FINESSE smeđa glazirana
FINESSE smeđa glazirana
FINESSE zelena glazirana
FINESSE zelena glazirana
FINESSE crna glazirana
FINESSE crna glazirana

Technical data

Dimenzije(cca.)180 x 380 x 14 mm
Maks.pokrovna širina(cca.)180 mm
Letvanje preporučeno(cca.)155 mm
Maks. letvanje(cca.)165 mm
Min.letvanje(cca.)145 mm
Utrošak crijepa prosječno(cca.)36 kom/m²
min. utrošak crijepa (cca.)33.6 kom/m²
Masa po m²(cca.)64.8 kg/m²
Masa palete(cca.)927 kg
Masa po komadu(cca.)1.8 MENGENEINHEIT#KGPROST
Komada na paleti480 komad
BETON I VLAKNO CEMENT8 piece

Area of use

VALID FOR GERMANY
Nagib krova DUO extra (D)≥ 22 °
Nagib krova QUATTRO longlife extra (D)≥ 10 °
Nagib krova TRIO extra (D)≥ 18 °
Nagib krova DUO longlife ND extra (D)≥ 18 °
VALID FOR AUSTRIA
Nagib krova DUO longlife ND extra (A)≥ 25 °
Nagib krova DUO extra (A)≥ 25 °
Nagib krova QUATTRO longlife extra (A)≥ 25 °
Nagib krova TRIO extra (A)≥ 25 °

Technical informations

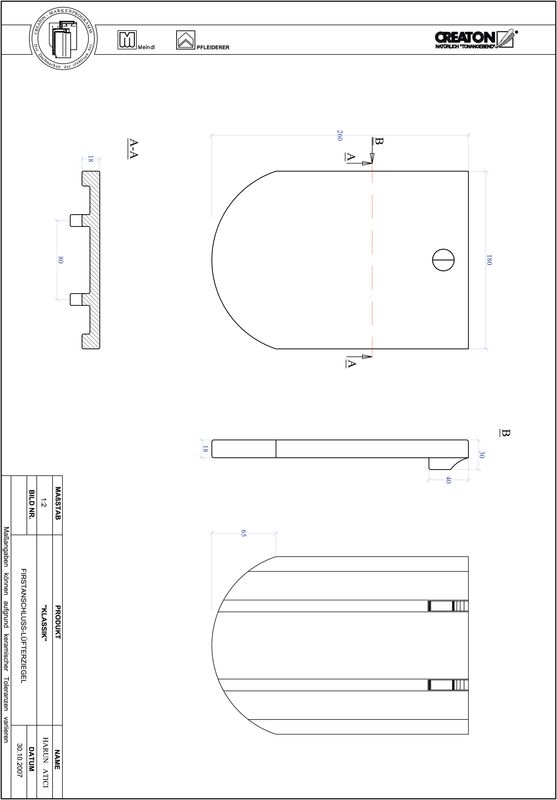

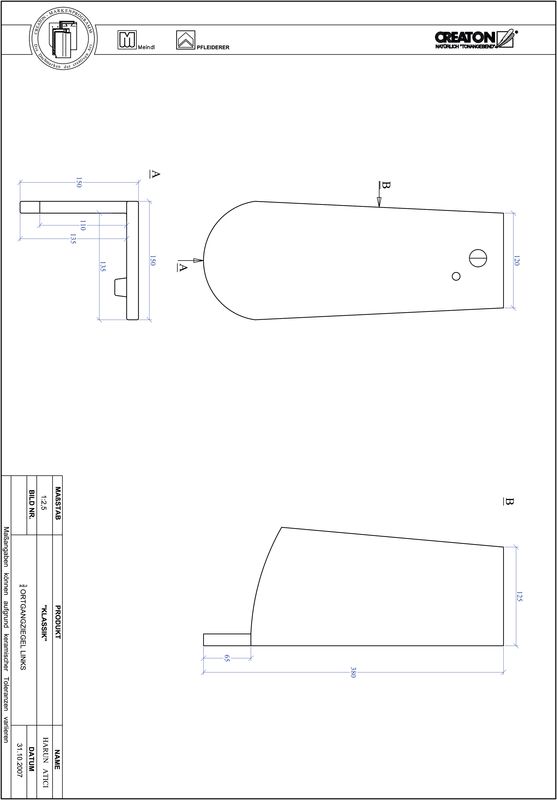

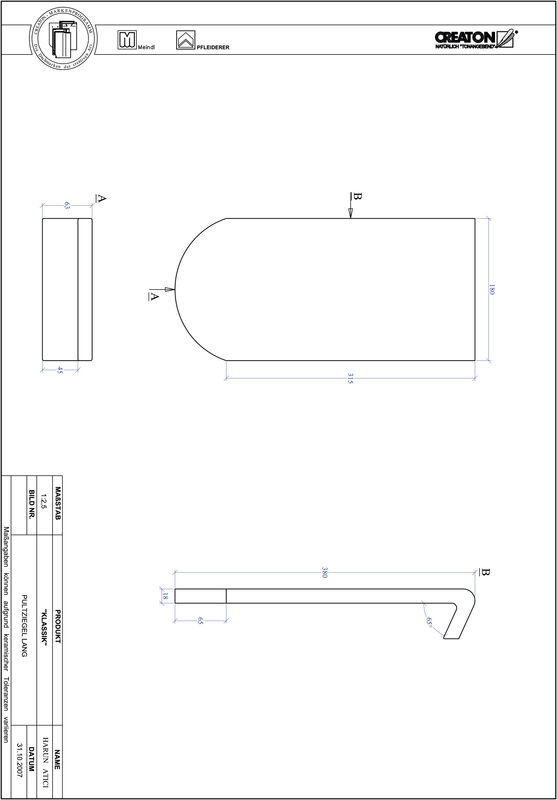

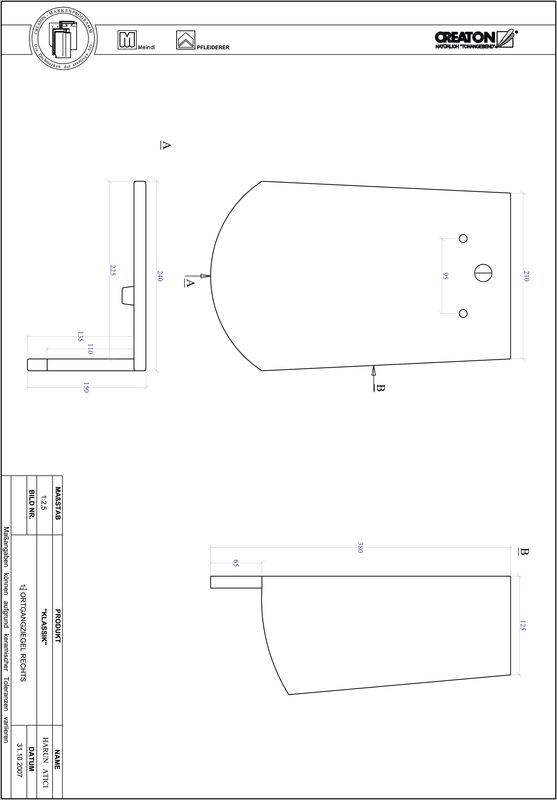

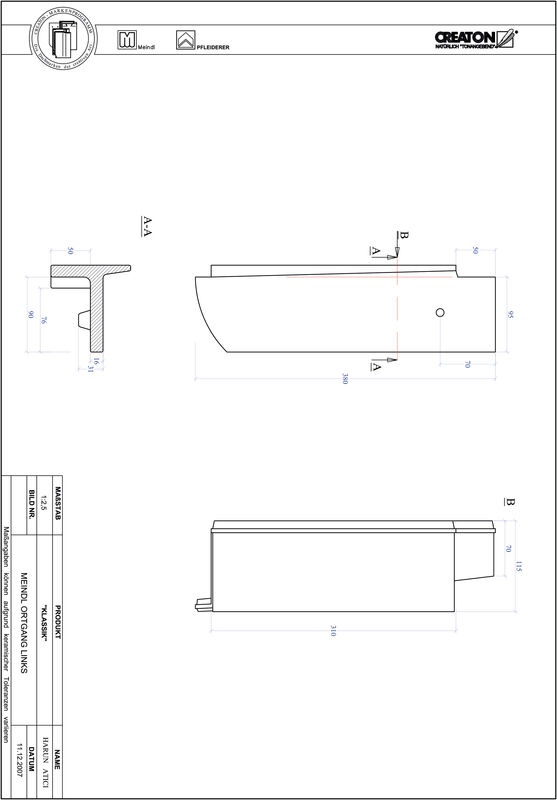

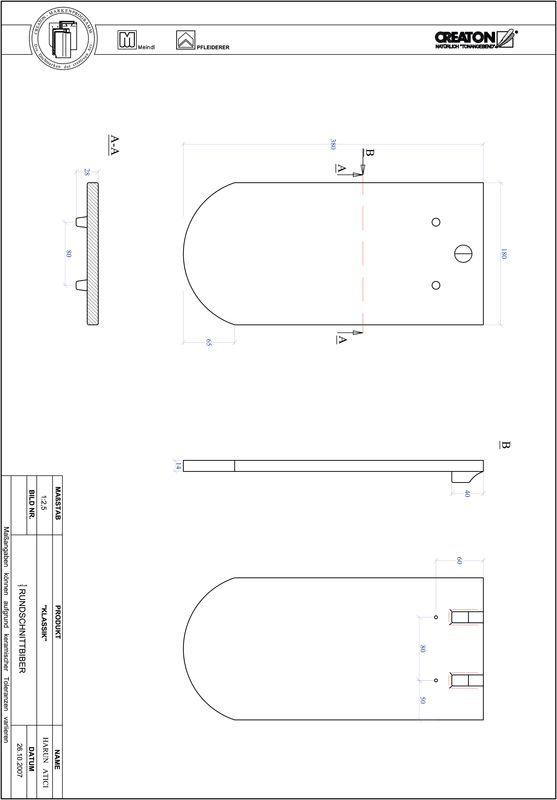

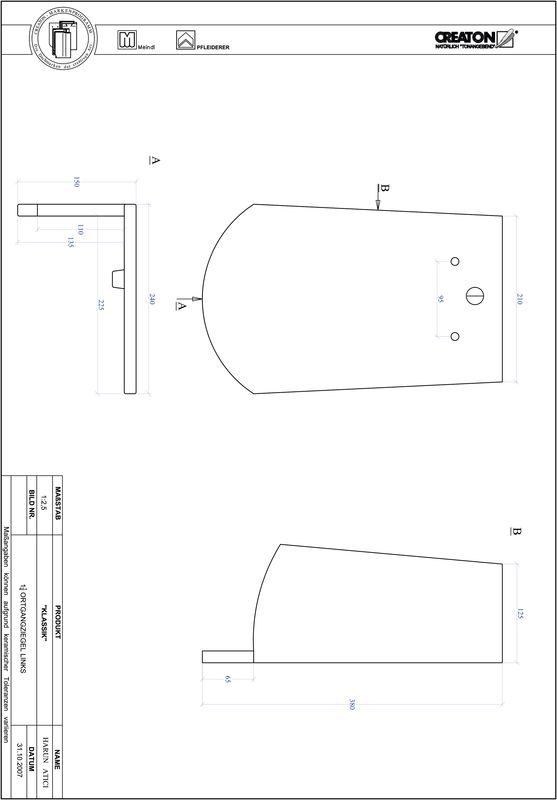

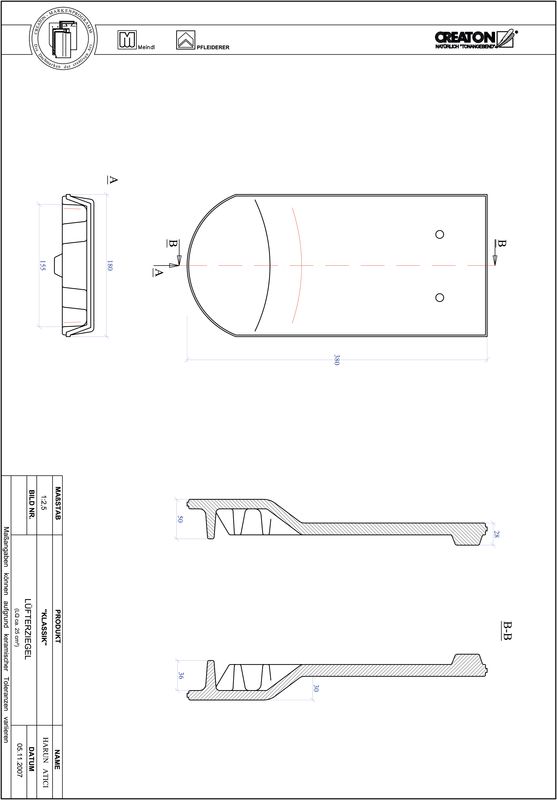

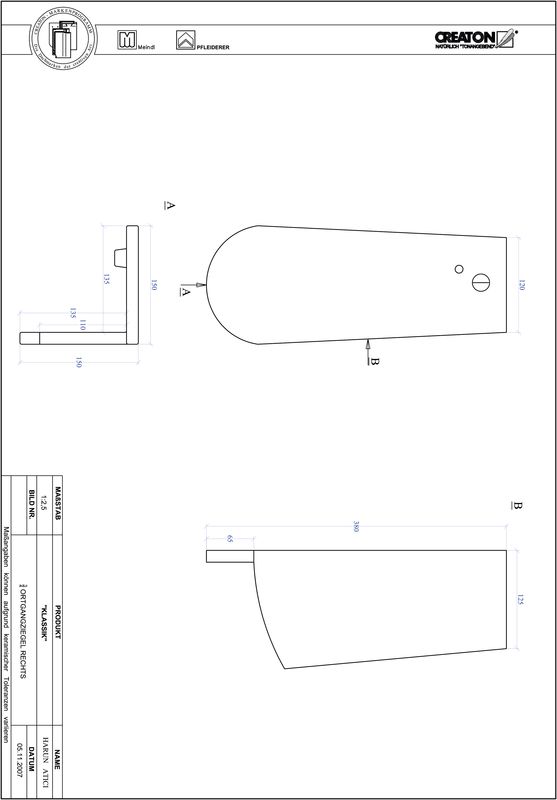

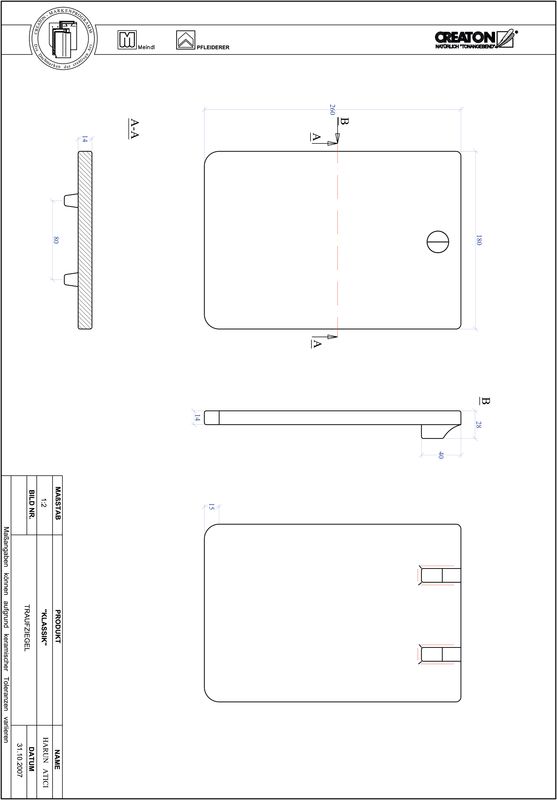

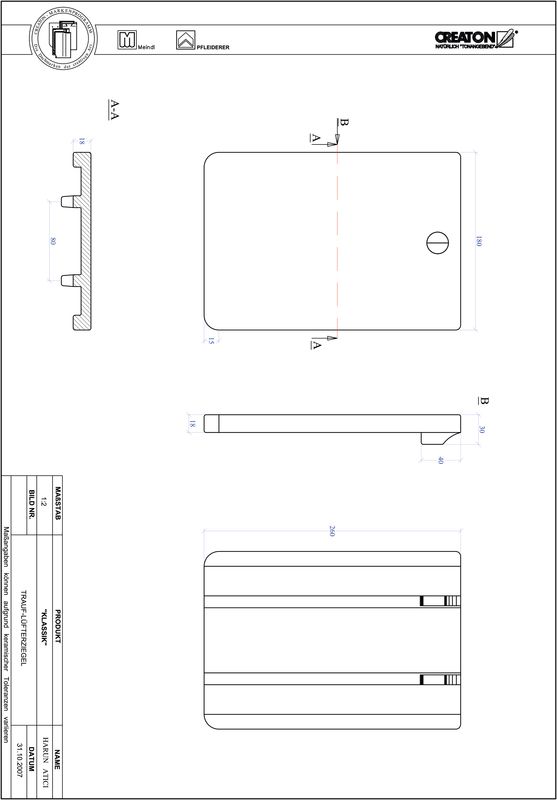

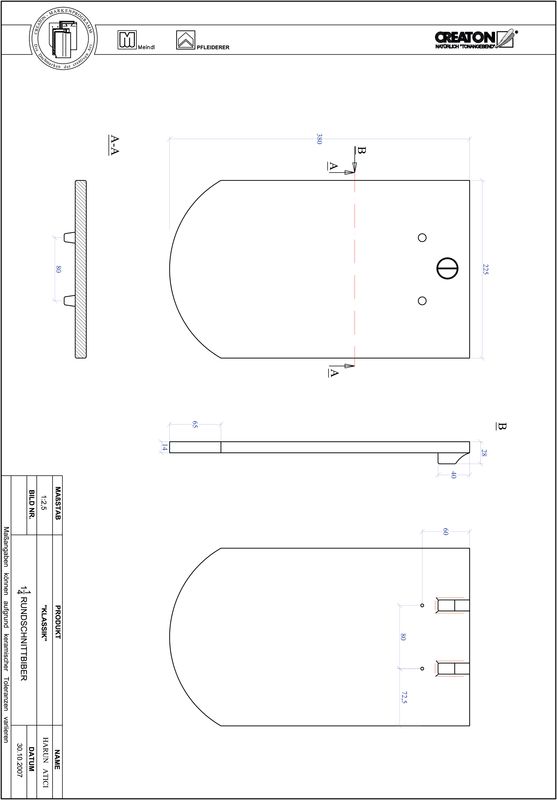

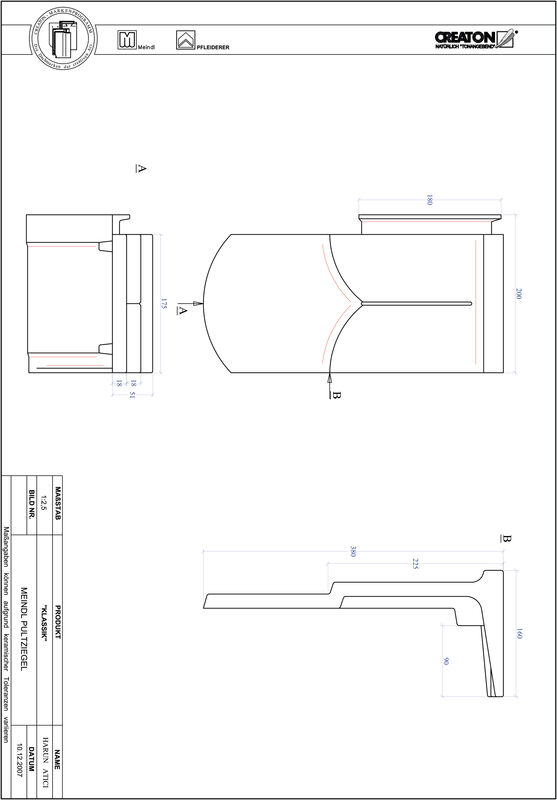

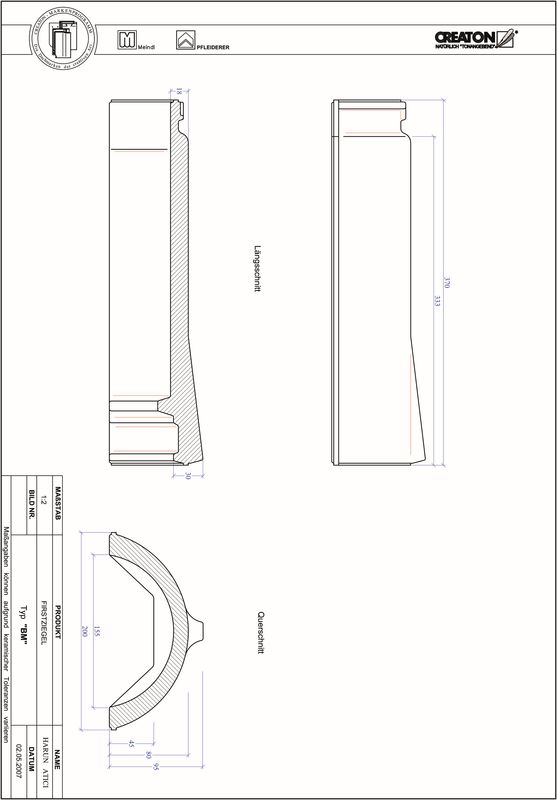

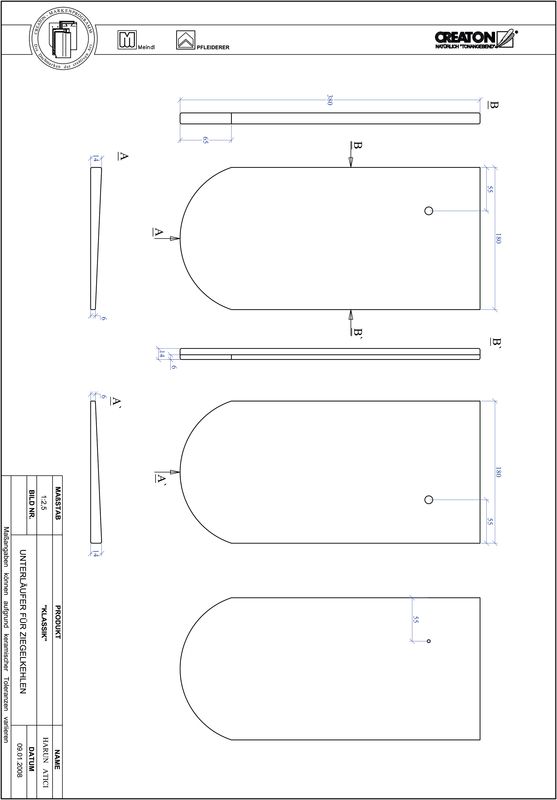

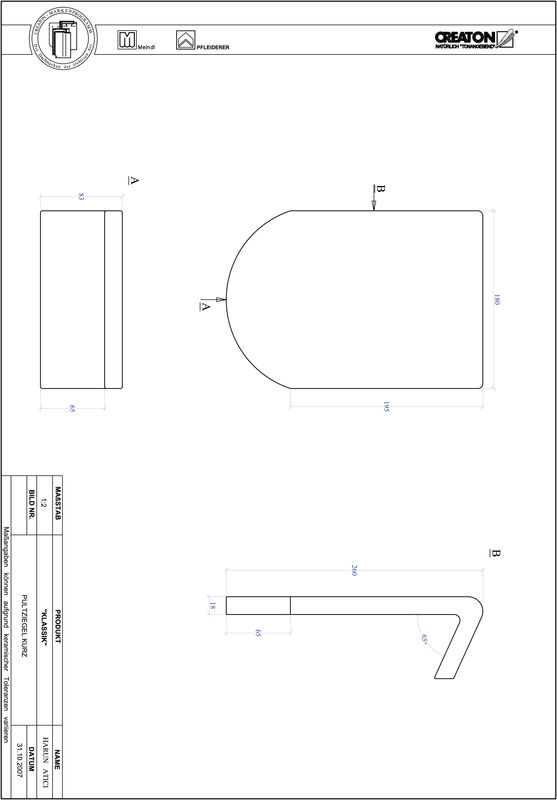

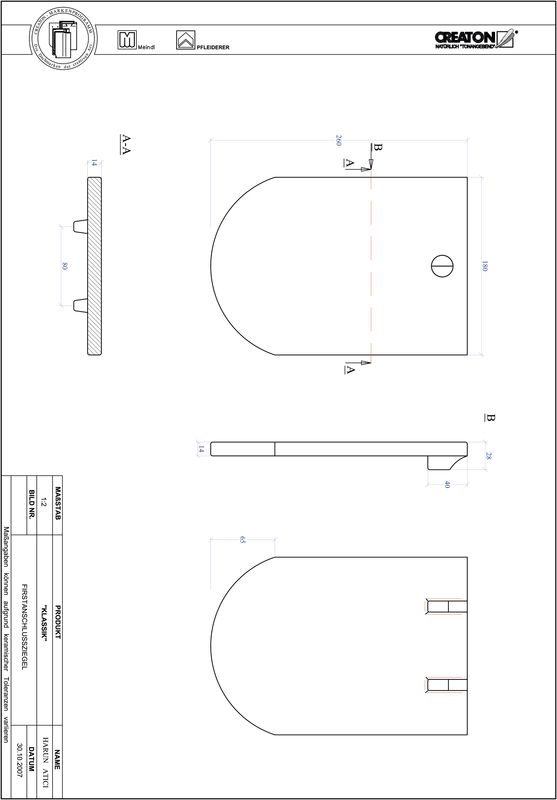

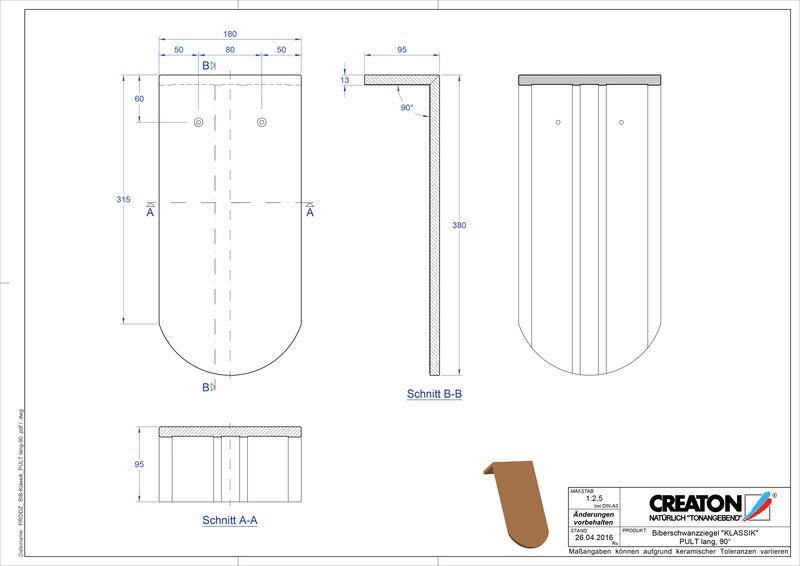

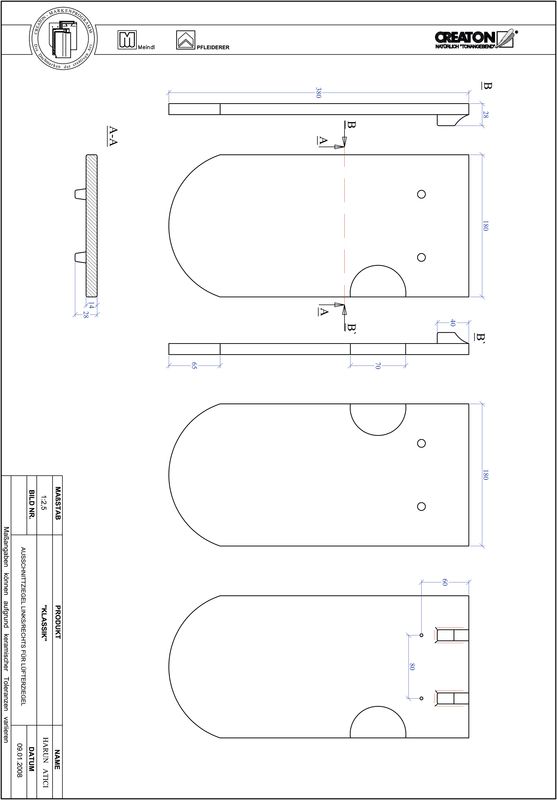

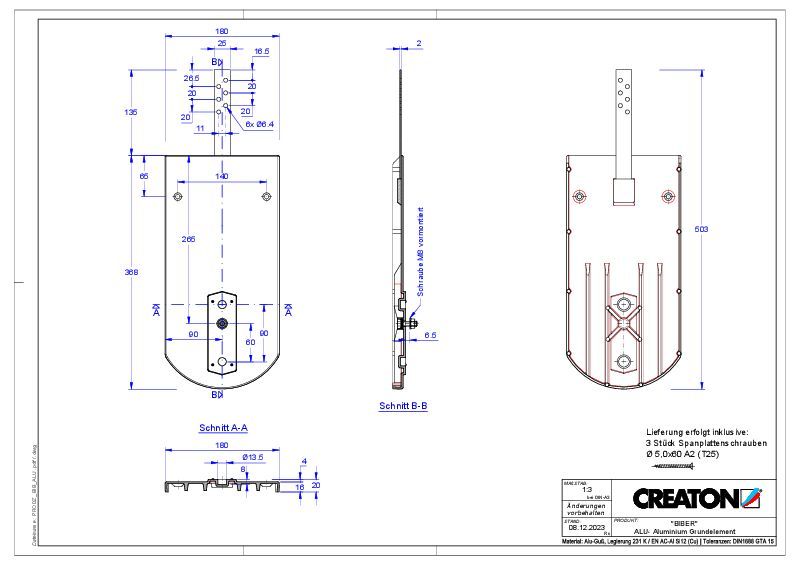

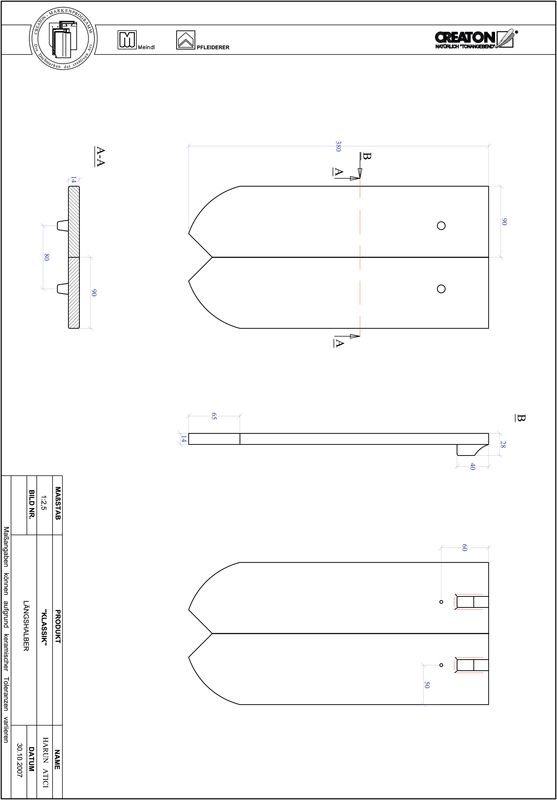

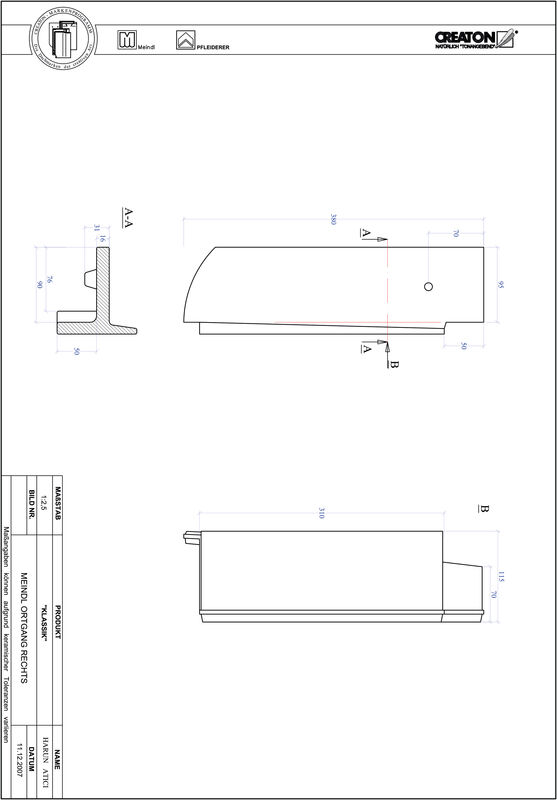

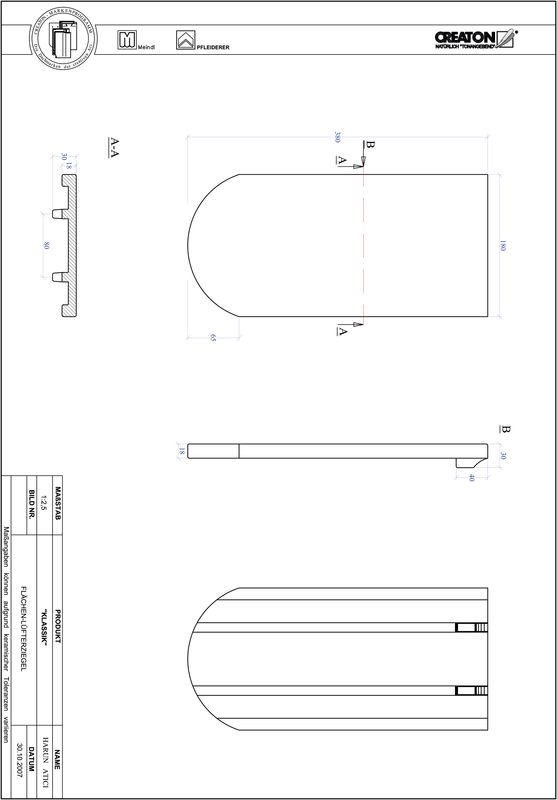

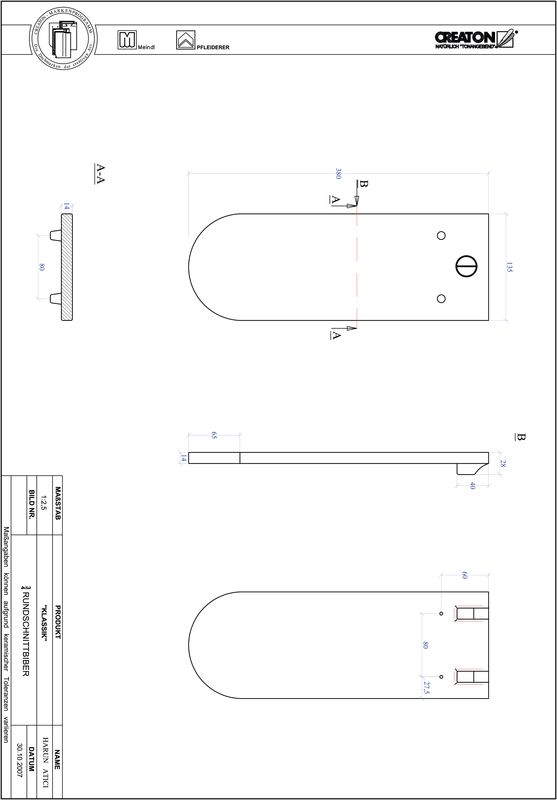

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Batten spacing / tile gauge is dependent on the roofing type and roof pitch.

LAF-/FLA-VALUES

LAF-/FLA VALUES IN MM FOR 30x50-BATTENS

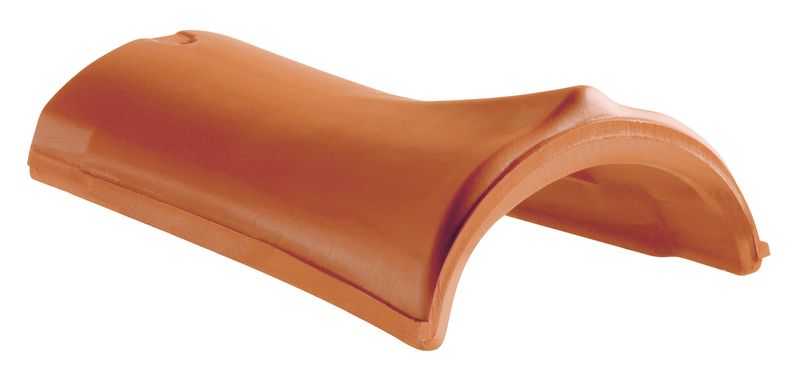

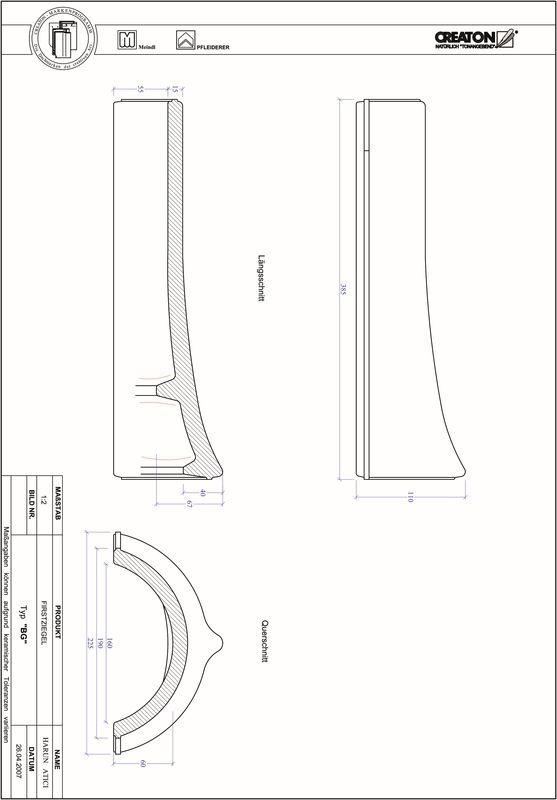

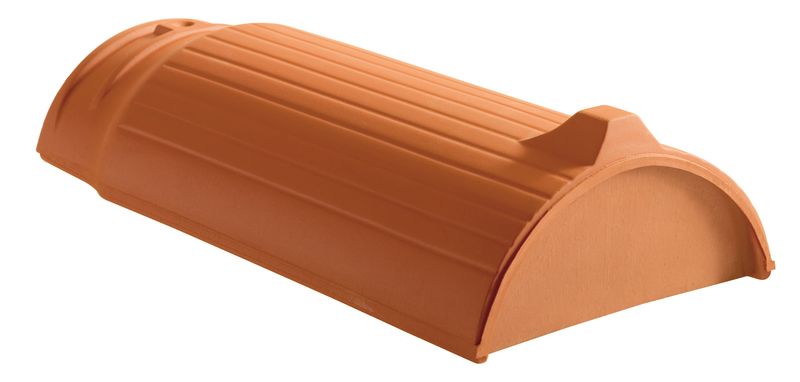

Ridge tileDN20°25°30°35°40°45°50°55°60°
BG 2.5 pcs./m.LAF908580808075758085
BMK 2.5 pcs./m.LAF60605555505045

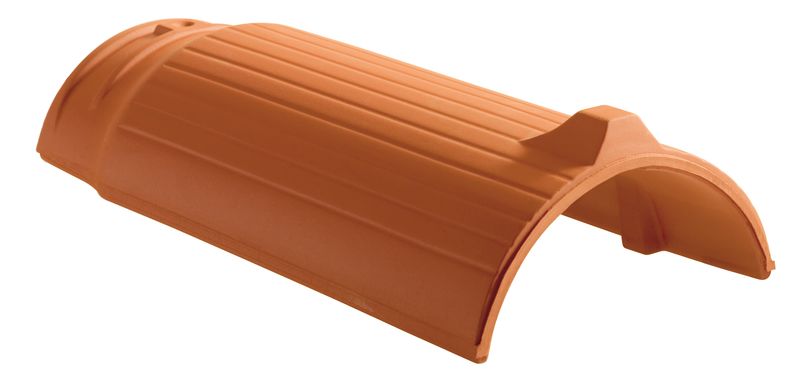

BMZ 2.5 pcs./m.LAF908580757575758080

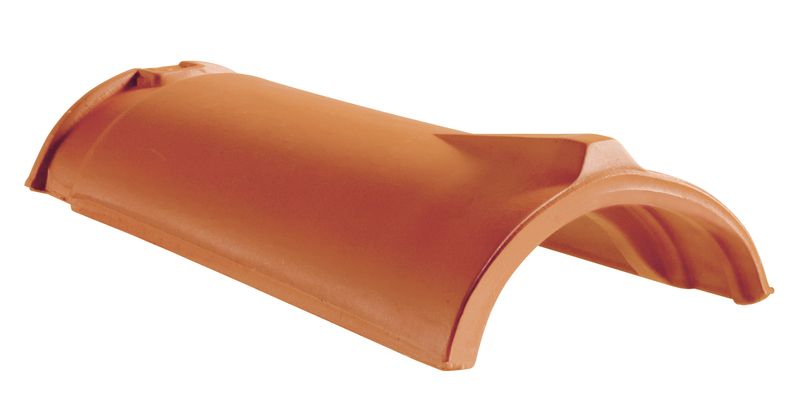

BM 2.5 pcs./m.LAF908580808075758585

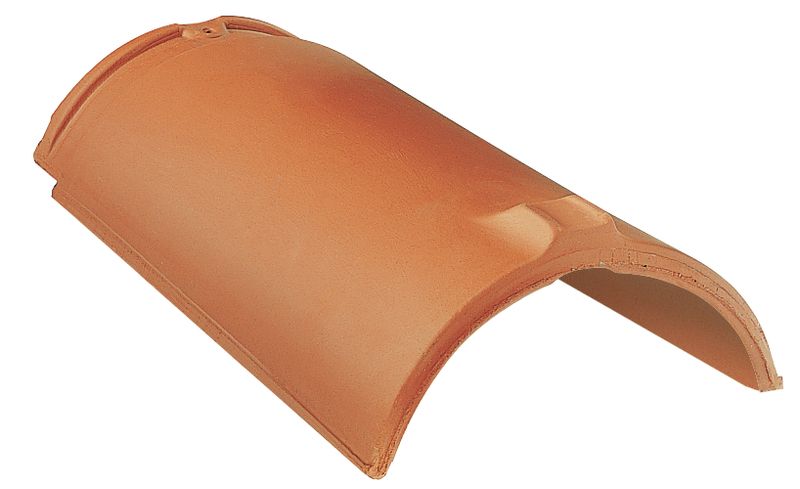

BZ 2.5 pcs./m.LAF9085807575757580
LAF-/FLA VALUES IN MM FOR 40x60-BATTENS
Ridge tileDN20°25°30°35°40°45°50°55°60°
BG 2.5 pcs./m.LAF858075757565606570
BMK 2.5 pcs./m.LAF5555504535
BMZ 2.5 pcs./m.LAF858075707065606565
BM 2.5 pcs./m.LAF858075757565607070
BZ 2.5 pcs./m.LAF8580757070656065
LAF-/FLA VALUES IN MM FOR 50x50-BATTENS
Ridge tileDN20°25°30°35°40°45°50°55°60°
BG 2.5 pcs./m.LAF807570656555505555
BMK 2.5 pcs./m.LAF5045403525
BMZ 2.5 pcs./m.LAF807570606055505550
BM 2.5 pcs./m.LAF807570656555506060
BZ 2.5 pcs./m.LAF8075706060555055

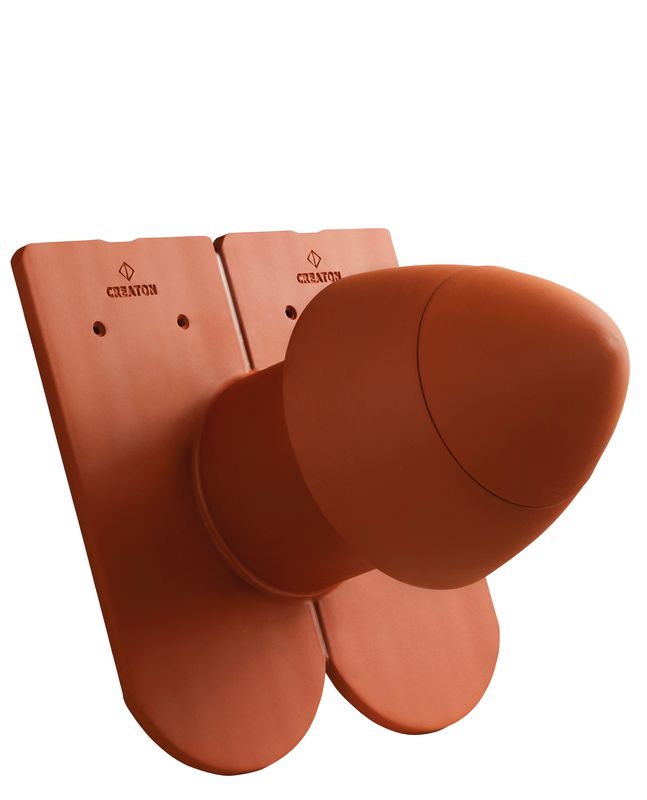

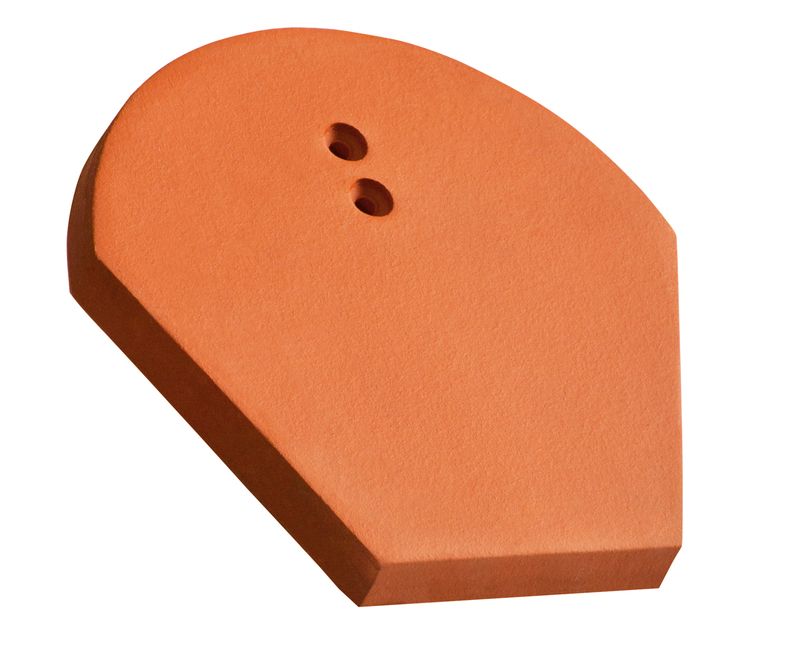

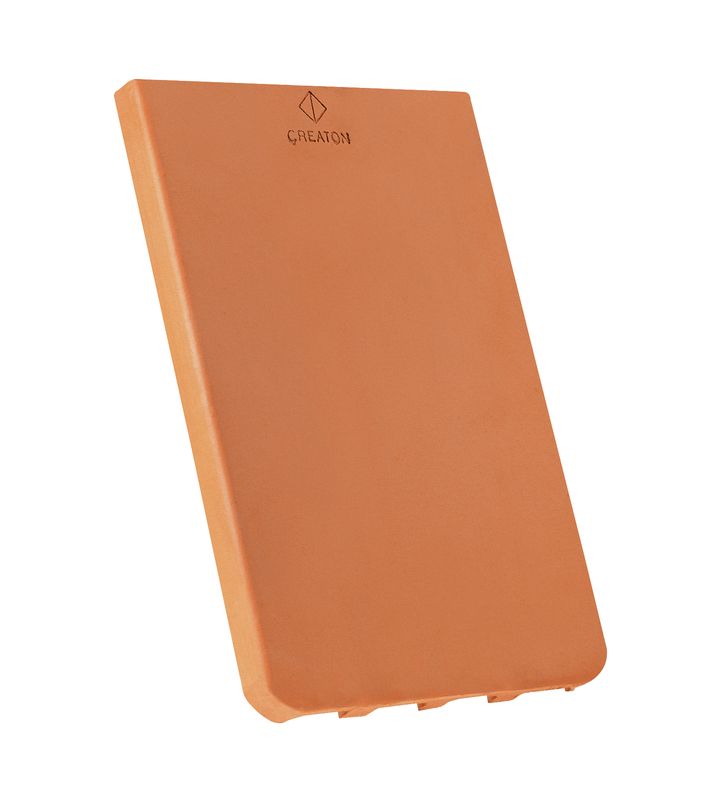

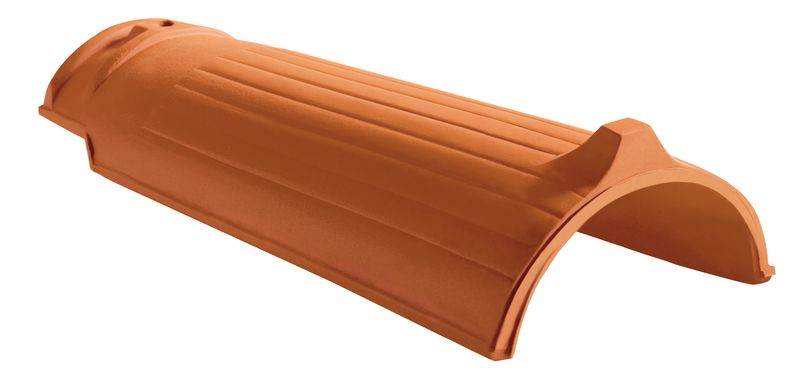

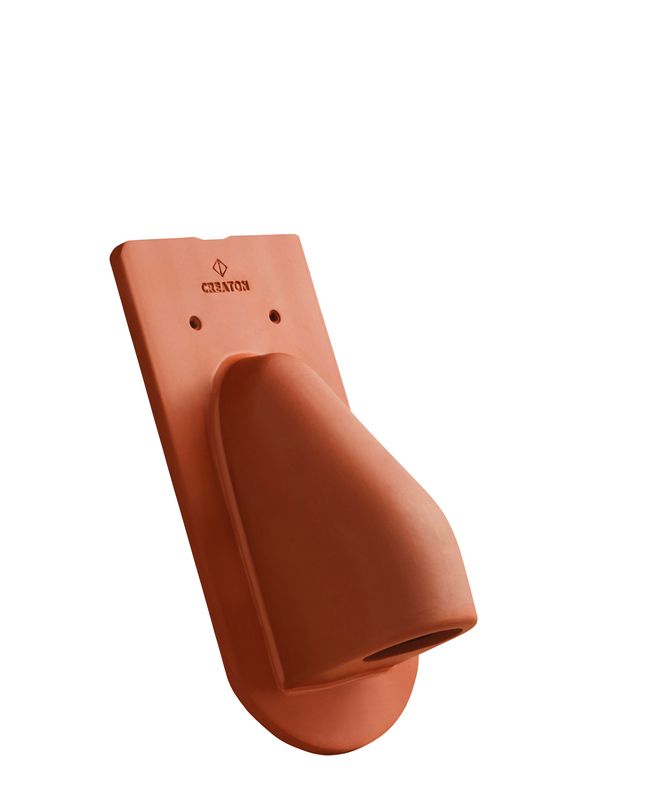

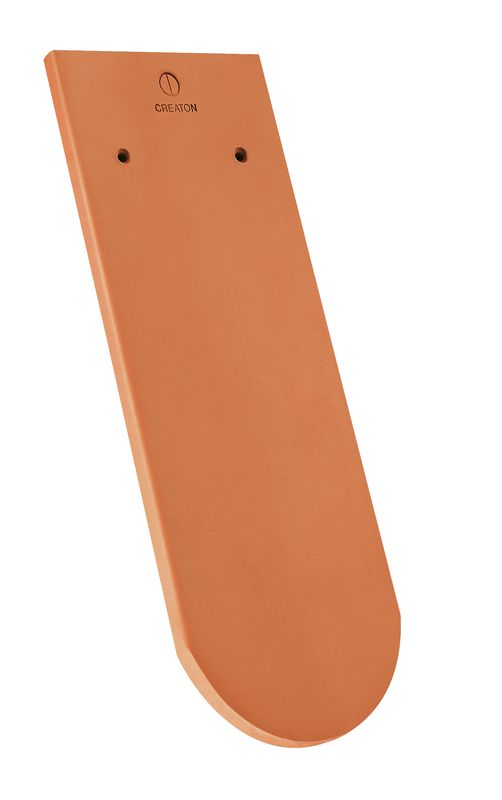

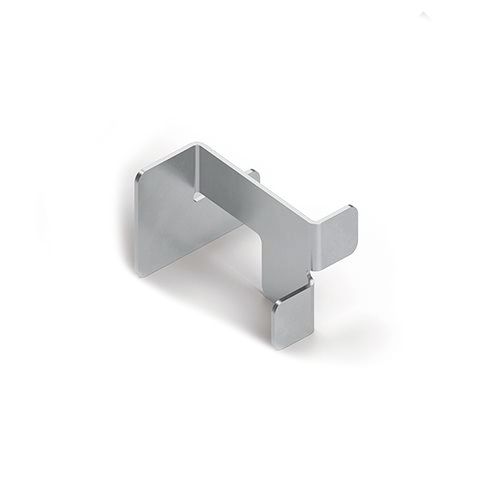

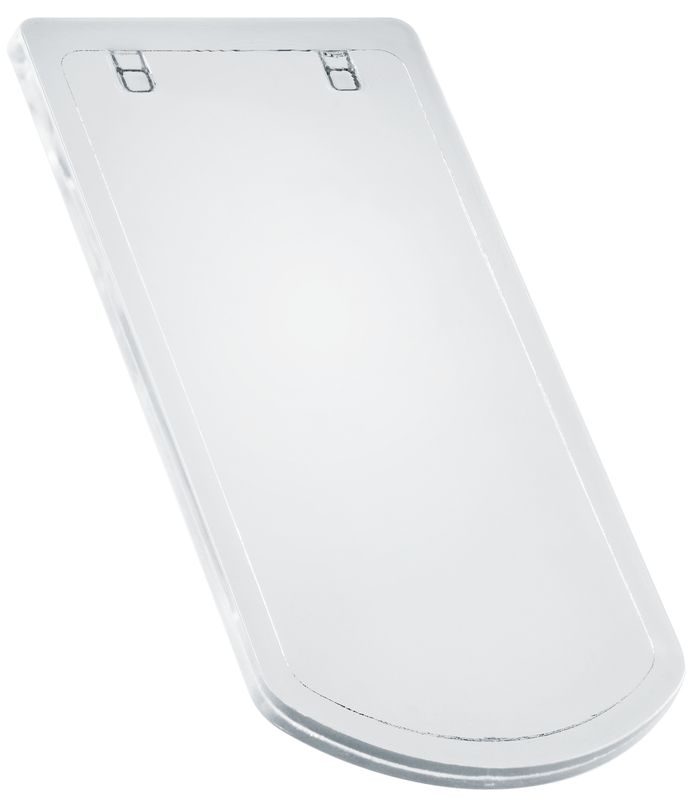

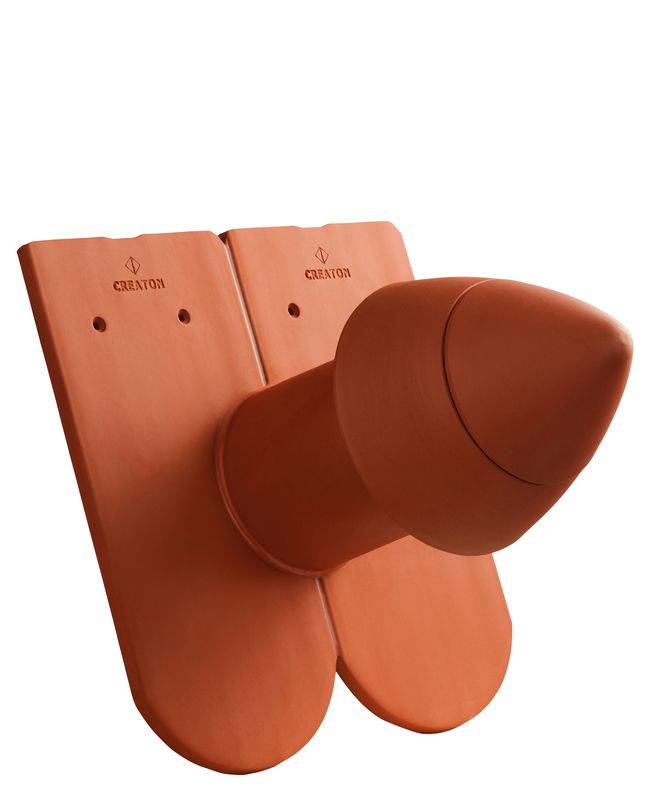

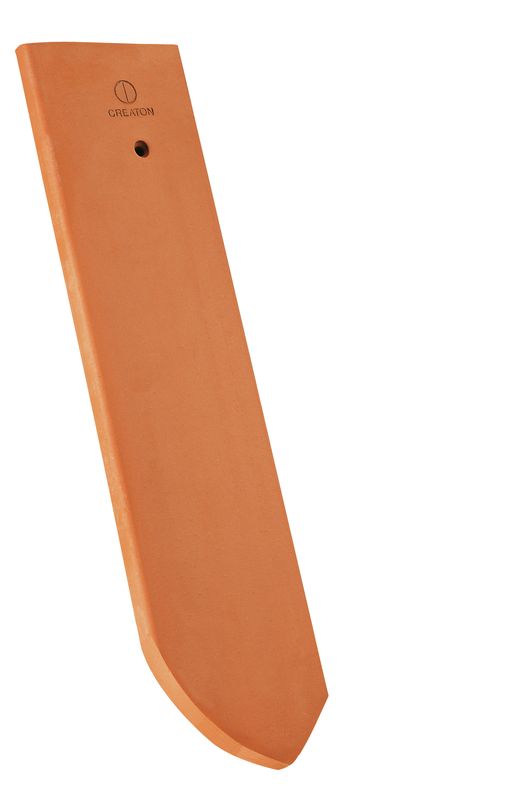

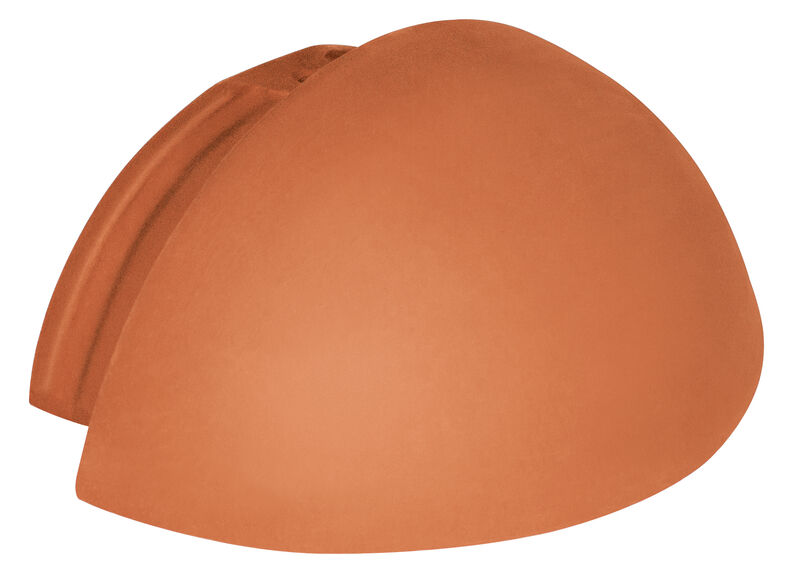

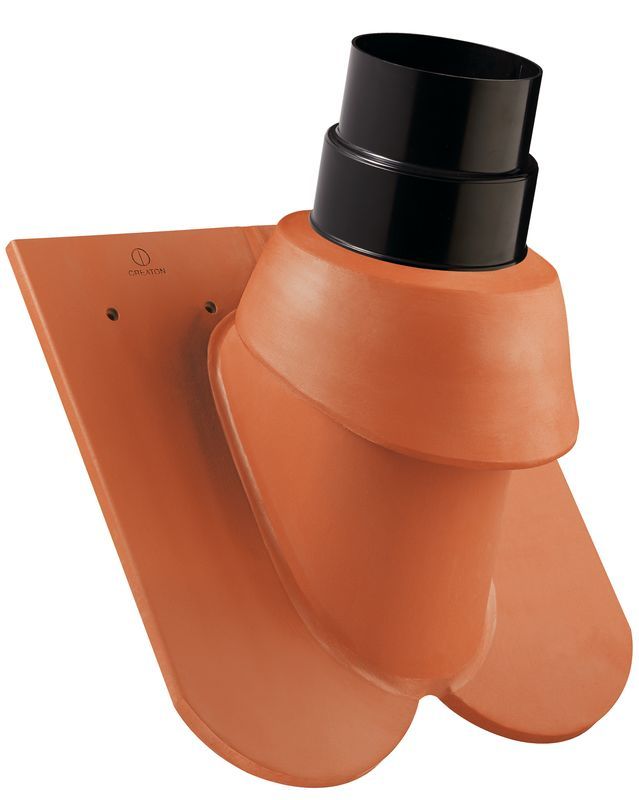

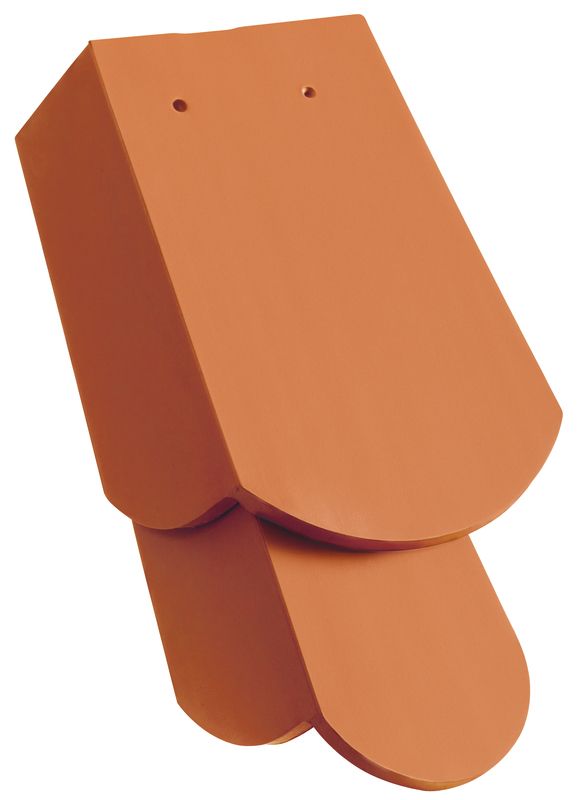

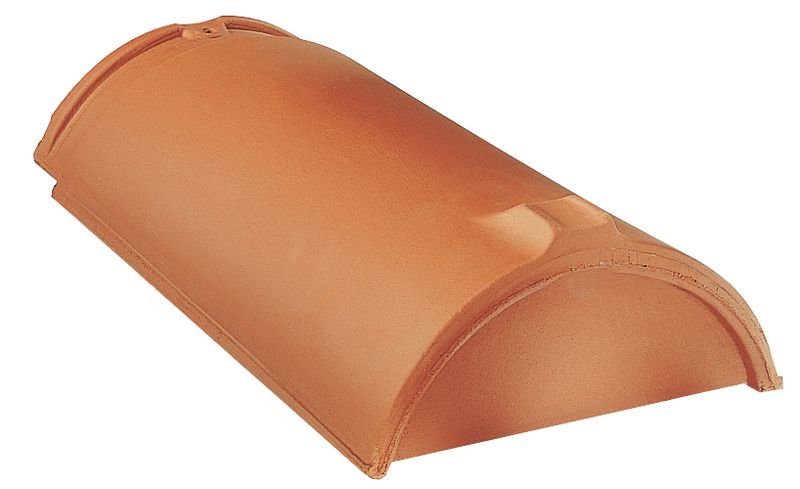

Accessories

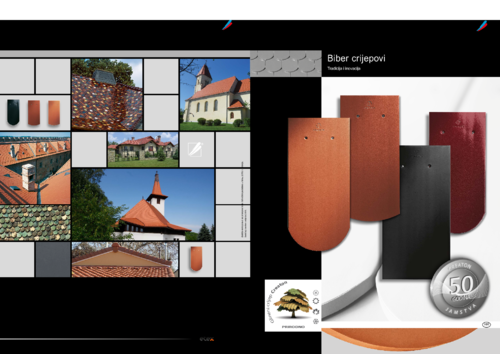

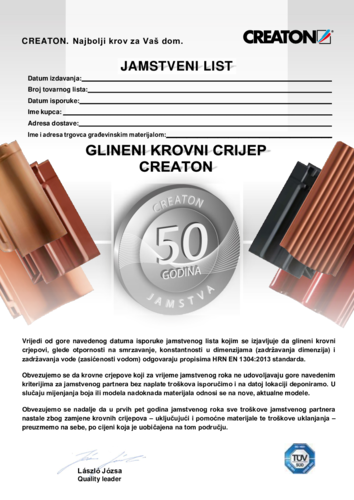

Downloads
