HARMONIE

Jednostavna ljepota koja ne zastarjeva

  • Najfleksibilniji ravni crijep malog formata te vrste
  • Može se upotrijebiti za gotovo svaki oblik i nagib
  • Velika mogućnost pomicanja od 25 mm
  • Skladna i optimirana površina krova
  • Velika sigurnost zahvaljujući četverostrukom prekrivanju gornjim i bočnim utorima
  • Velika raznolikost boja zahvaljujući 10 različitih boja
  • HARMONIE se bez problema prilagođava različitim geometrijama krova i može se položiti lako, brzo i sigurno

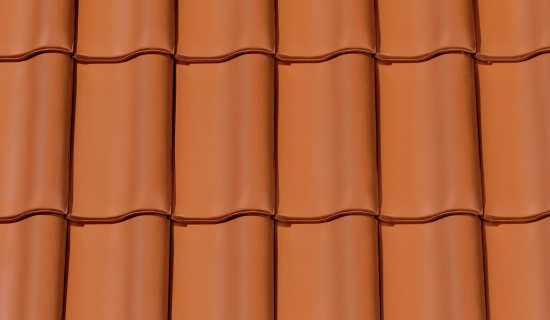

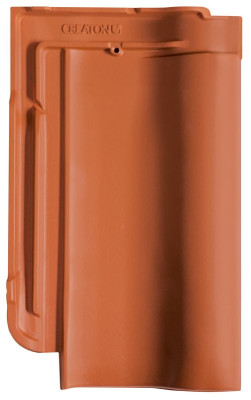

prirodno crvena
prirodno crvena
NUANCE crvena engobirana
NUANCE crvena engobirana
NUANCE toskana engobirana
NUANCE toskana engobirana
NUANCE bakreno crvena engobirana
NUANCE bakreno crvena engobirana
NUANCE boja crnog vina engobirana
NUANCE boja crnog vina engobirana
NUANCE tamnosmeđa engobirana
NUANCE tamnosmeđa engobirana

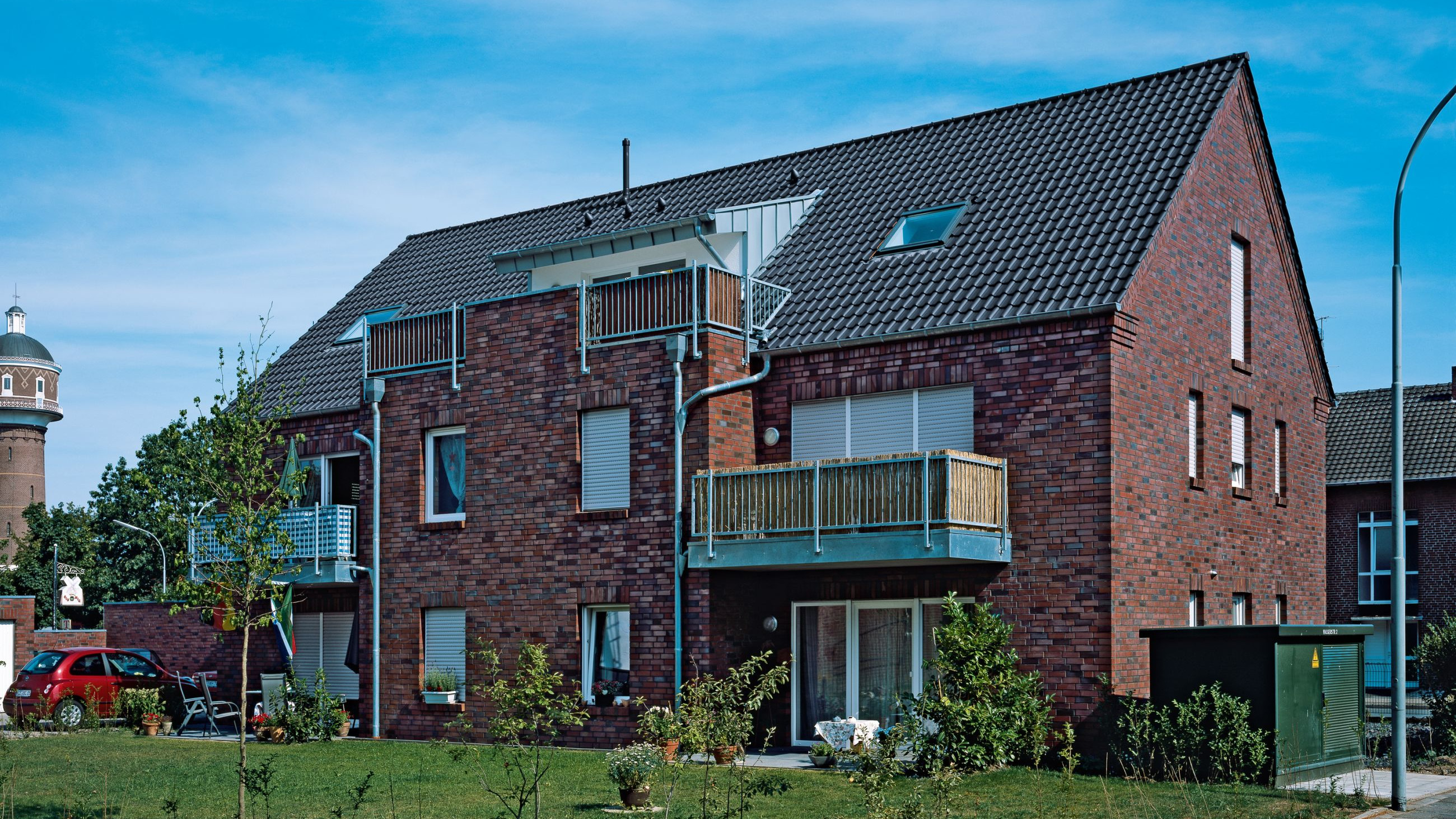

NUANCE boja škriljevca engobirana
NUANCE boja škriljevca engobirana

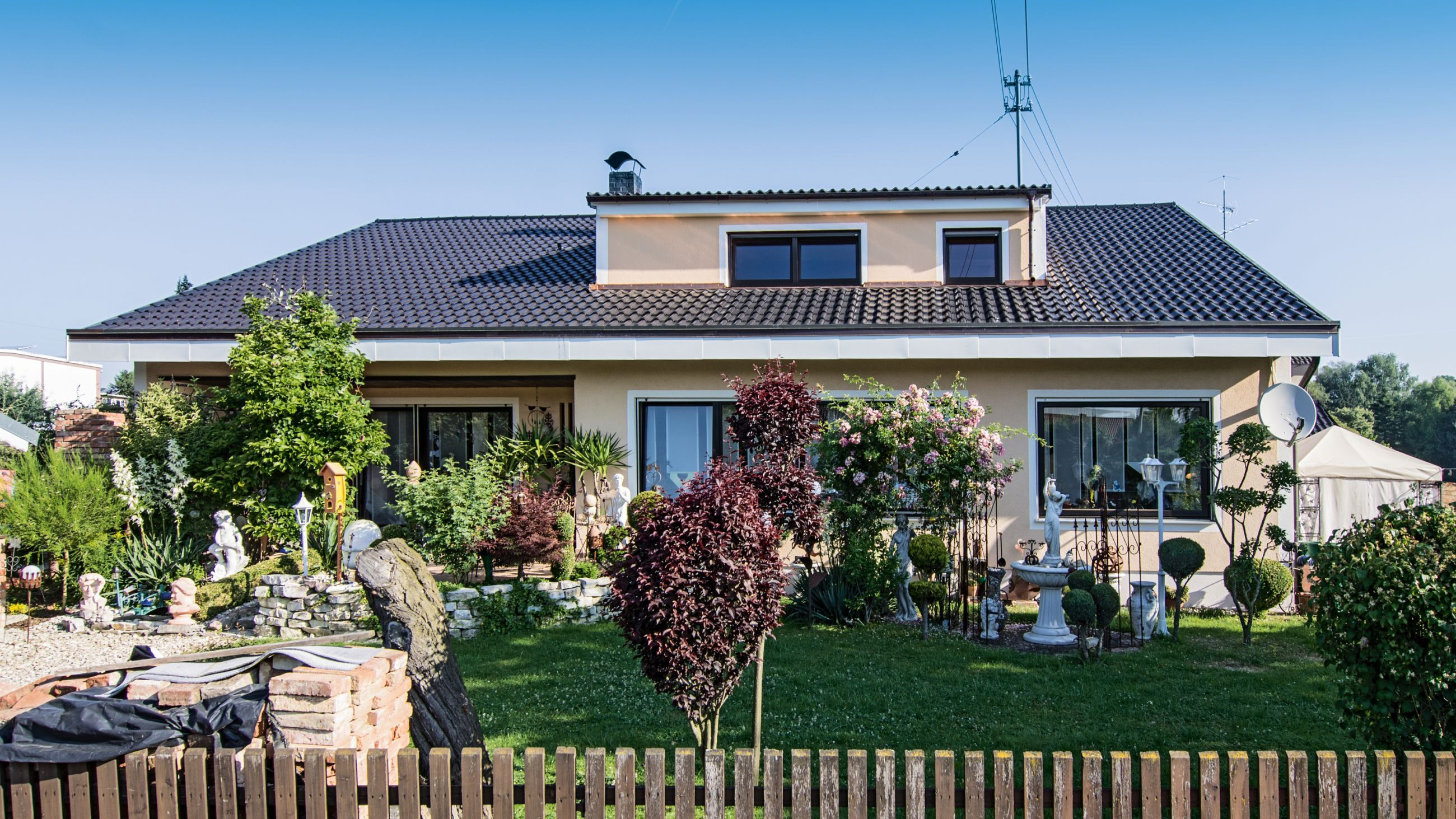

NUANCE antracit engobirana
NUANCE antracit engobirana
FINESSE crna glazirana
FINESSE crna glazirana

Technical data

Dimenzije(cca.)250 x 410 mm
Srednja pokrovna širina(cca.)199 mm
Maks.pokrovna širina(cca.)201 mm
Min.pokrovna širina(cca.)197 mm
Letvanje preporučeno(cca.)340 mm
Maks. letvanje(cca.)352 mm
Min.letvanje(cca.)328 mm
Utrošak crijepa prosječno(cca.)14.9 kom/m²
Maks.utrošak crijepa15.6 kom/m²
min. utrošak crijepa (cca.)14.2 kom/m²
Masa po m²(cca.)46.2 kg/m²
Masa palete(cca.)893 kg
Masa po komadu(cca.)3.1 kg/piece
Komada na paleti280 komad
BETON I VLAKNO CEMENT5 piece

Area of use

VALID FOR GERMANY
Nagib krova DUO extra (D)≥ 14 °
Nagib krova QUATTRO longlife extra (D)≥ 10 °
Nagib krova TRIO extra (D)≥ 12 °
Nagib krova DUO longlife ND extra (D)≥ 12 °
VALID FOR AUSTRIA
Nagib krova DUO longlife ND extra (A)≥ 17 °
Nagib krova DUO extra (A)≥ 17 °
Nagib krova QUATTRO longlife extra (A)≥ 15 °
Nagib krova TRIO extra (A)≥ 17 °

Technical informations

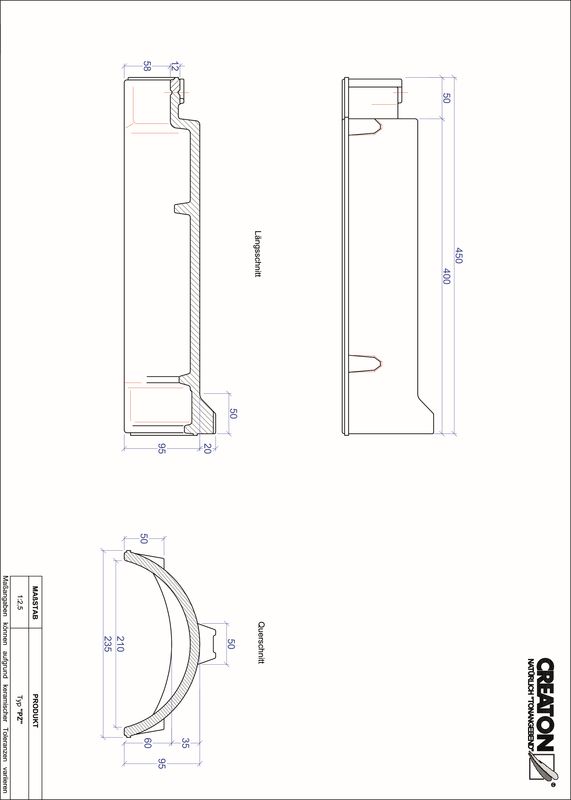

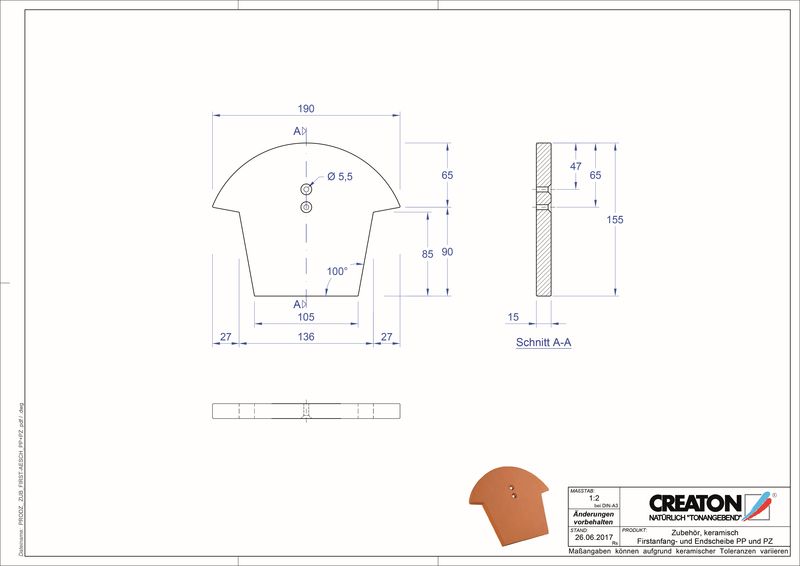

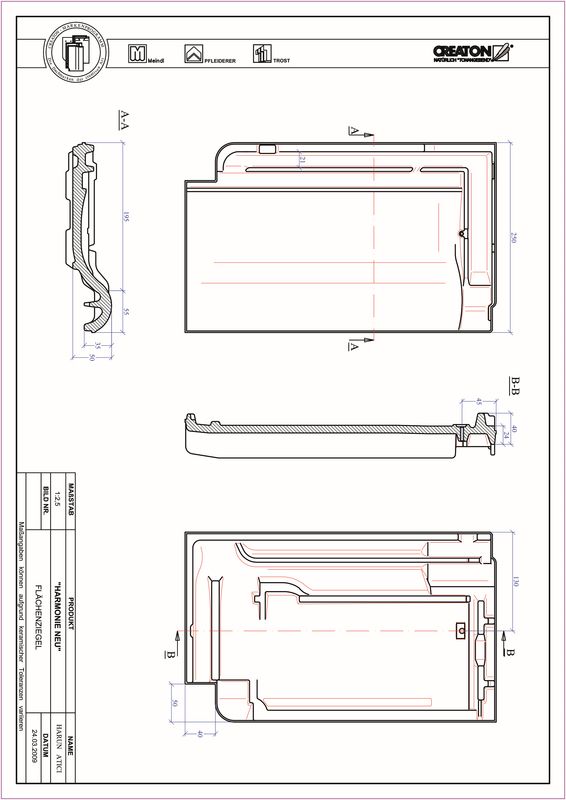

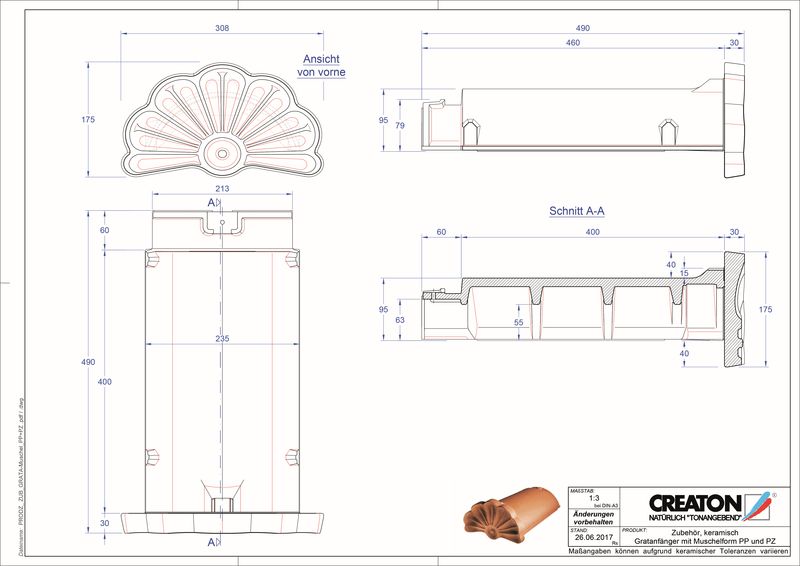

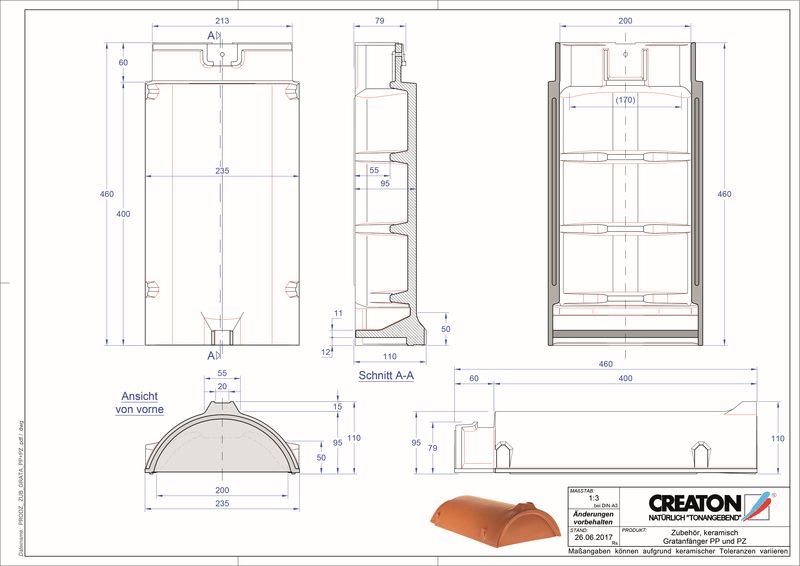

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.

LAF-/FLA-VALUES

LAF-/FLA VALUES IN MM FOR 30x50-BATTENS

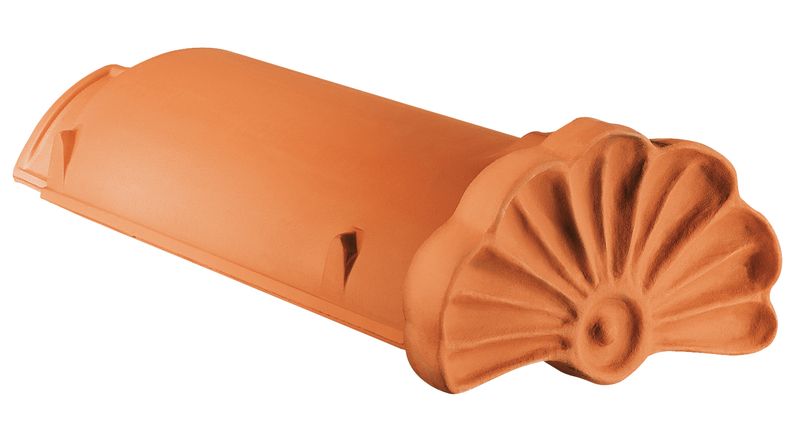

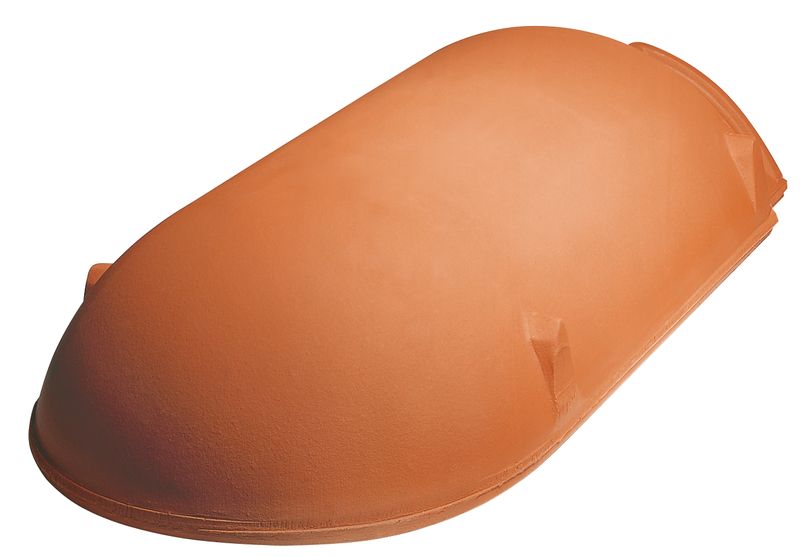

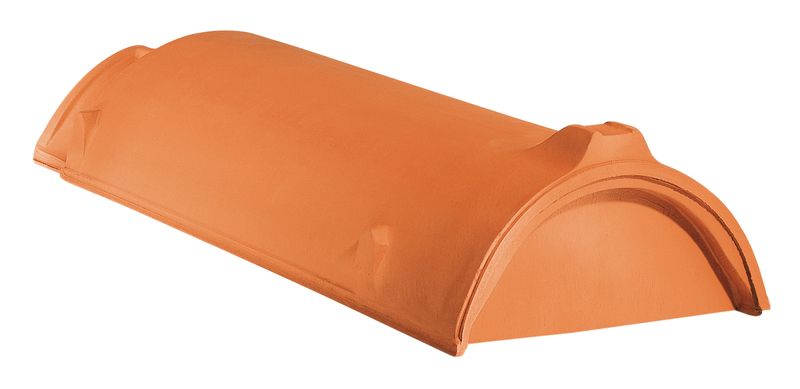

Ridge tileDN10°15°20°25°30°35°40°45°50°55°60°
PZ 2.5 pcs./m.FLA100100959085807070605550
PZ 2.5 pcs./m.LAF6060555045403530302525
LAF-/FLA VALUES IN MM FOR 40x60-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°55°60°
PZ 2.5 pcs./m.FLA11011010510095908080706560
PZ 2.5 pcs./m.LAF6060554540353020151010
LAF-/FLA VALUES IN MM FOR 50x50-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°
PZ 2.5 pcs./m.FLA120120115110105105959590
PZ 2.5 pcs./m.LAF55555040352520105
