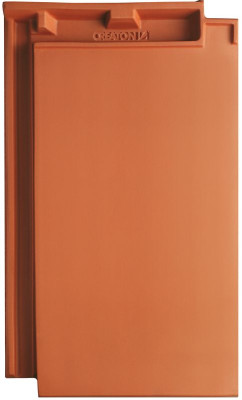

DOMINO

Ravni crijep sa glatkom površinom

  • Veliko područje pomicanja od 12 mm po crijepu
  • Prvorazredne sirovine omogućuju visok stupanj homogenosti, malo skupljanje, a visok udio željezova oksida stvara prirodne, blistavo intenzivne boje
  • Posebno velika dubina kod okomitih žljebova
  • Prema ZVDH-u kod sporednih zgrada pri prekrivanju s preklapanjem s nagibom krova od 25° mogu se postavljati bez dodatnih mjera
  • DOMINO se okomito jednom preklapa. Ali kako! Posebno velika dubina čak i kod jakih udara vjetra nudi optimalnu odvodnju vode. Stepenasto prekrivanje pouzdano štiti od prodiranja vode i prljavštine

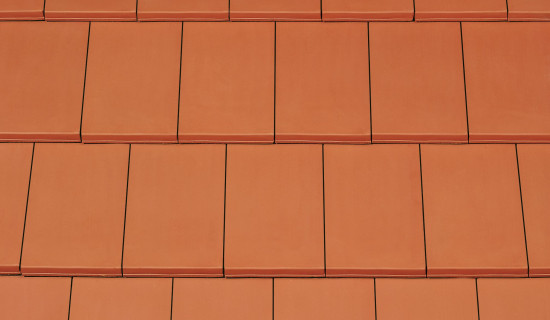

prirodno crvena
prirodno crvena
NUANCE bakreno crvena engobirana
NUANCE bakreno crvena engobirana
NUANCE boja crnog vina engobirana
NUANCE boja crnog vina engobirana
NUANCE siva engobirana
NUANCE siva engobirana
NUANCE boja škriljevca engobirana
NUANCE boja škriljevca engobirana
NUANCE crna mat engobirana
NUANCE crna mat engobirana
FINESSE boja škriljevca glazirana
FINESSE boja škriljevca glazirana
FINESSE crna glazirana
FINESSE crna glazirana

Technical data

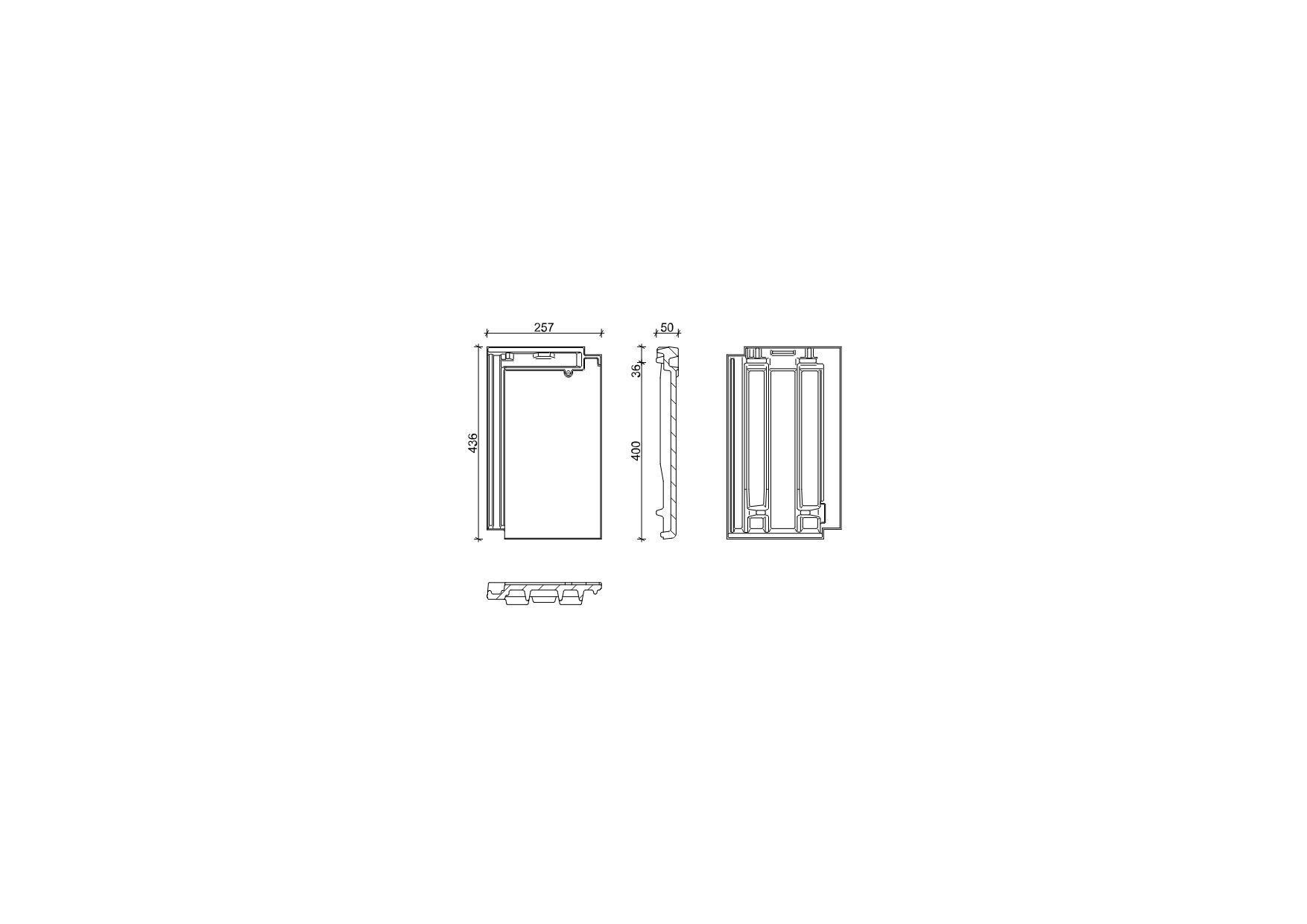

Dimenzije(cca.)257 x 436 mm
Srednja pokrovna širina(cca.)225 mm
Maks.pokrovna širina(cca.)226 mm
Min.pokrovna širina(cca.)224 mm

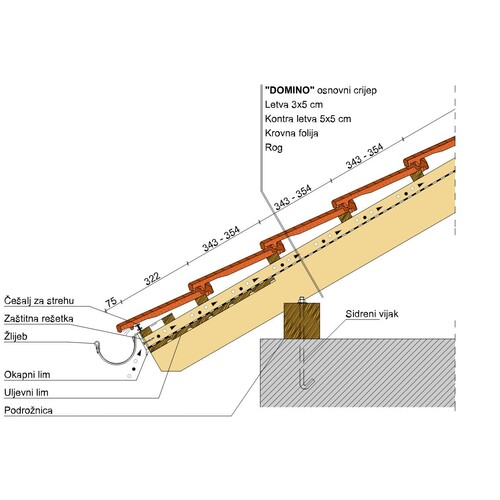

Letvanje preporučeno(cca.)348 mm
Maks. letvanje(cca.)354 mm
Min.letvanje(cca.)343 mm
Utrošak crijepa prosječno(cca.)12.7 kom/m²
Maks.utrošak crijepa13.1 kom/m²
min. utrošak crijepa (cca.)12.4 kom/m²
Masa po m²(cca.)53.3 kg/m²
Masa palete(cca.)1033 kg
Masa po komadu(cca.)4.2 kg/piece
Komada na paleti240 komad
BETON I VLAKNO CEMENT4 piece

Area of use

VALID FOR GERMANY
Nagib krova DUO extra (D)≥ 16 °
Nagib krova QUATTRO longlife extra (D)≥ 10 °
Nagib krova TRIO extra (D)≥ 14 °
Nagib krova DUO longlife ND extra (D)≥ 14 °
VALID FOR AUSTRIA
Nagib krova DUO longlife ND extra (A)≥ 22 °
Nagib krova DUO extra (A)≥ 22 °
Nagib krova QUATTRO longlife extra (A)≥ 20 °
Nagib krova TRIO extra (A)≥ 22 °

Technical informations

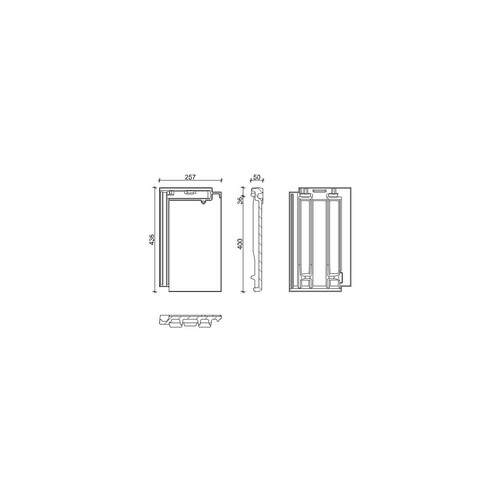

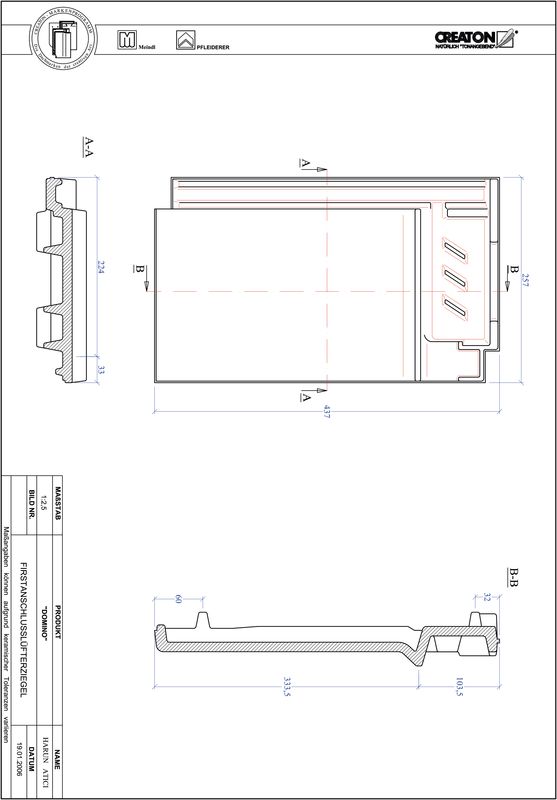

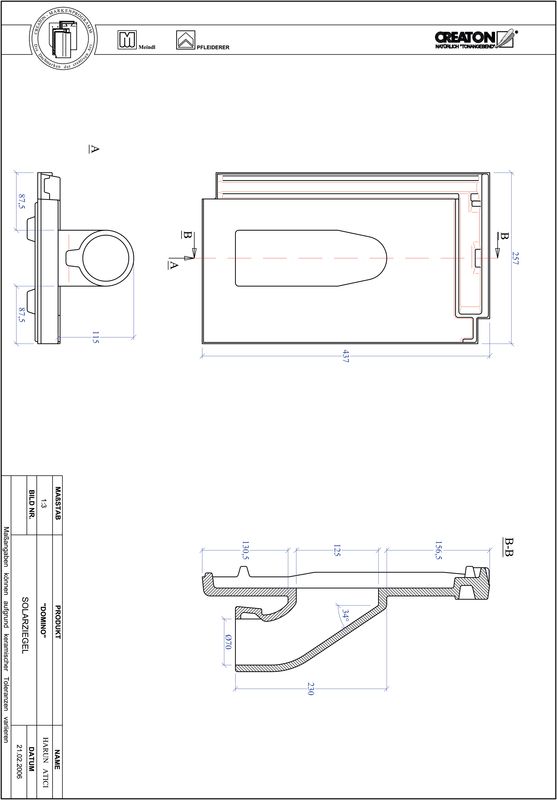

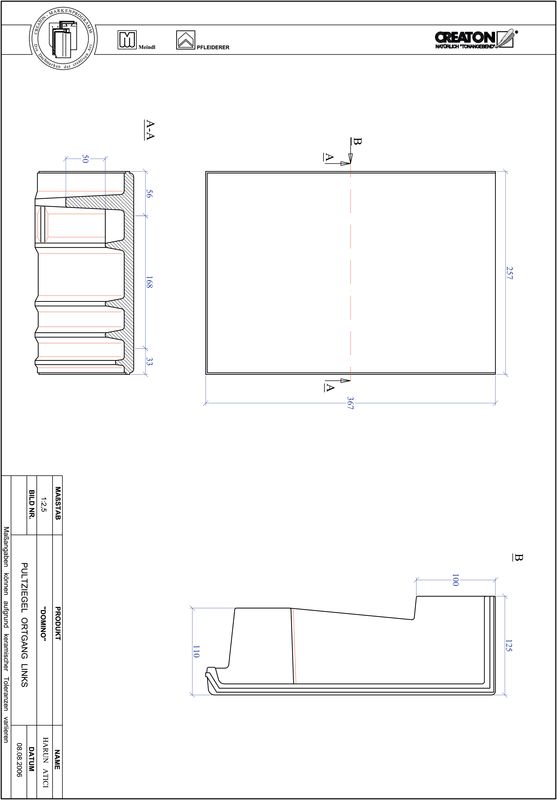

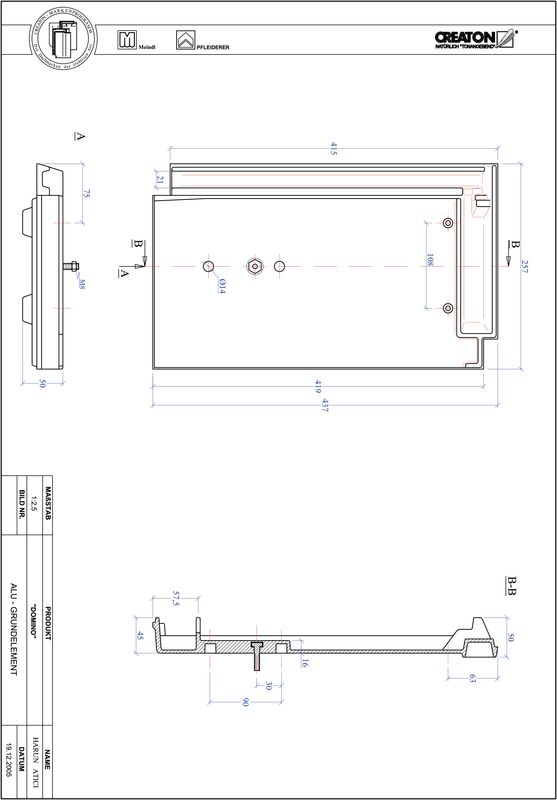

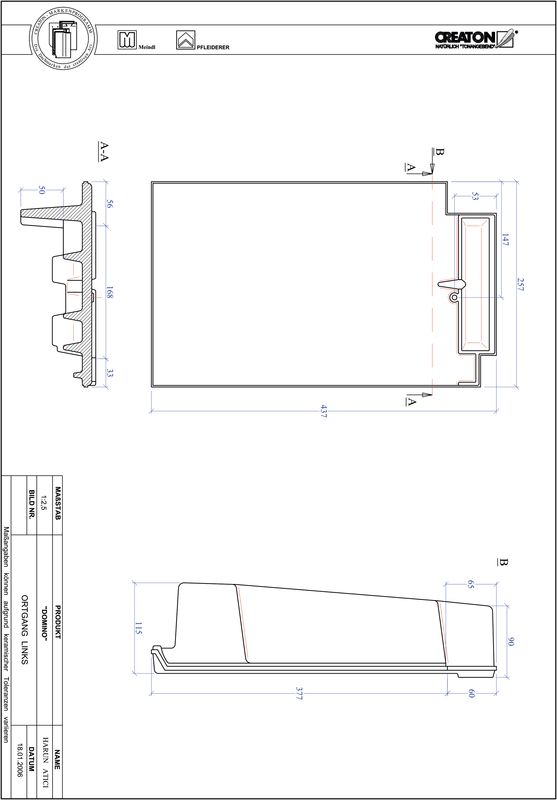

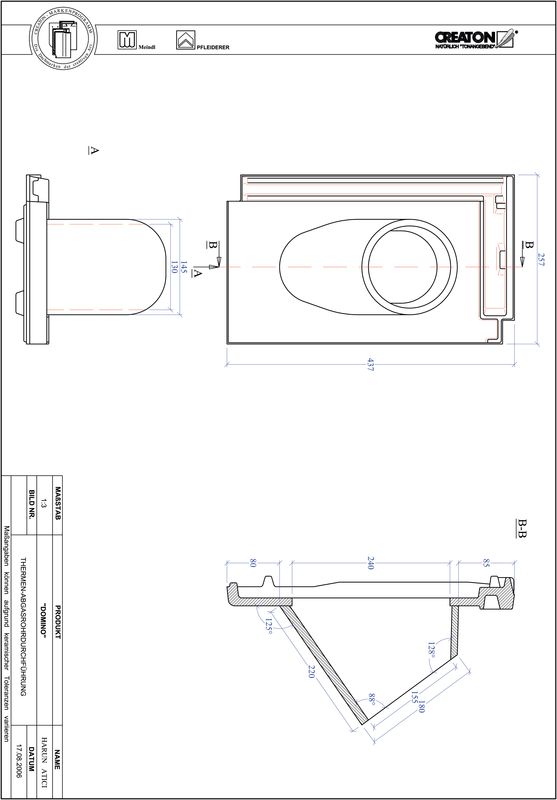

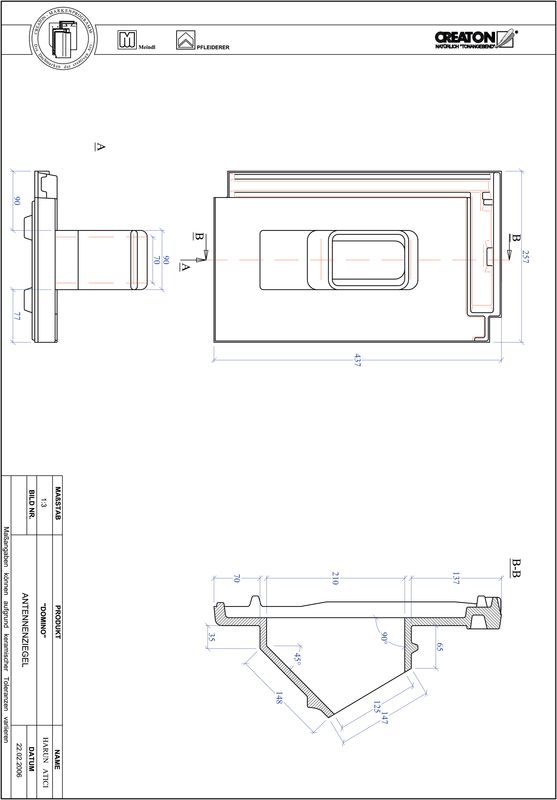

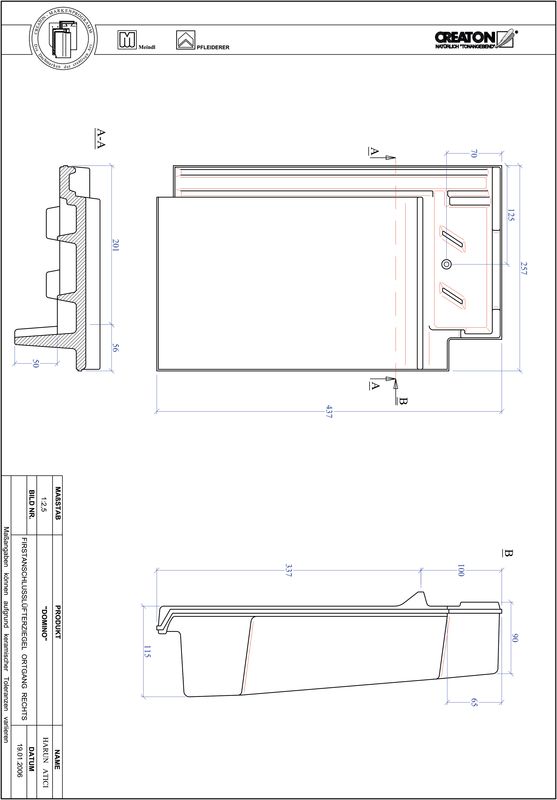

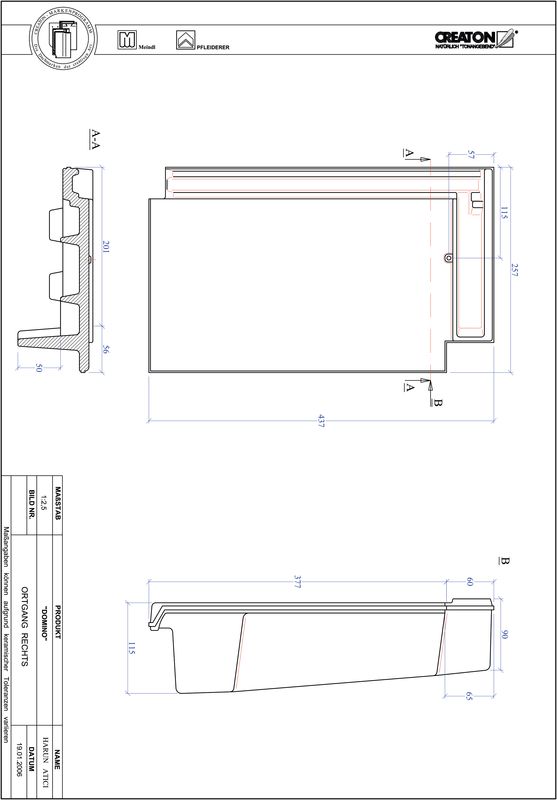

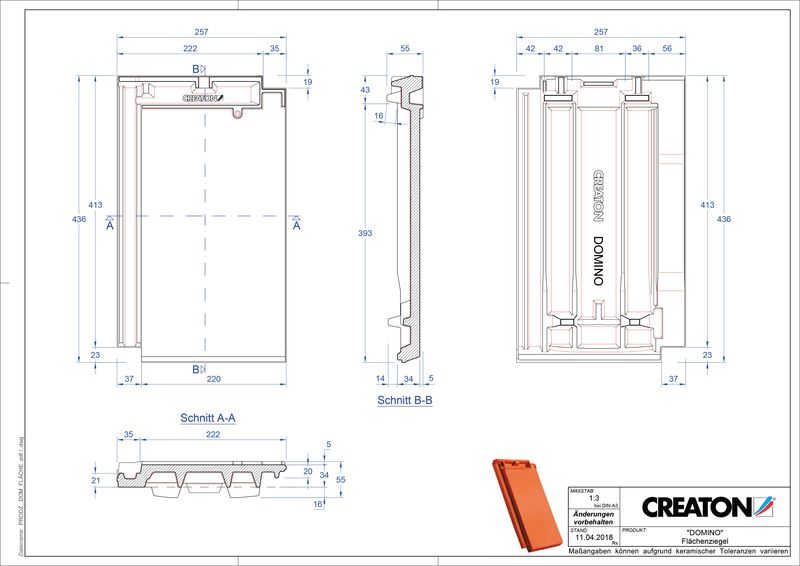

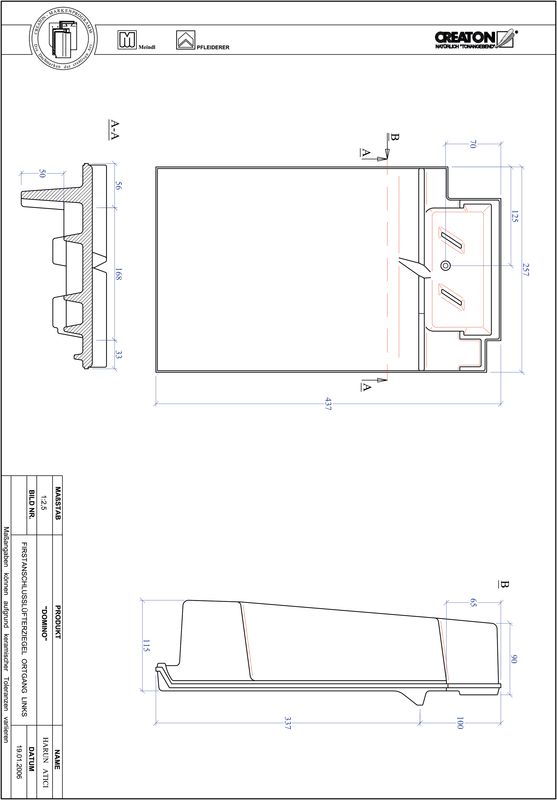

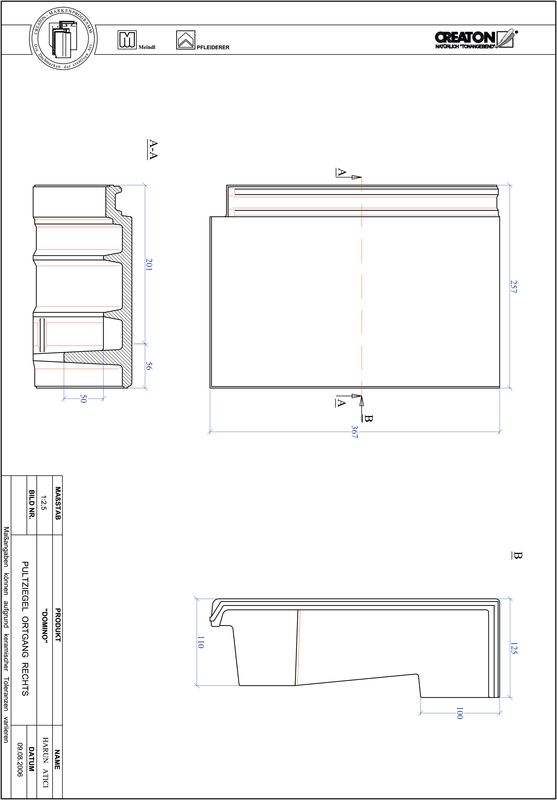

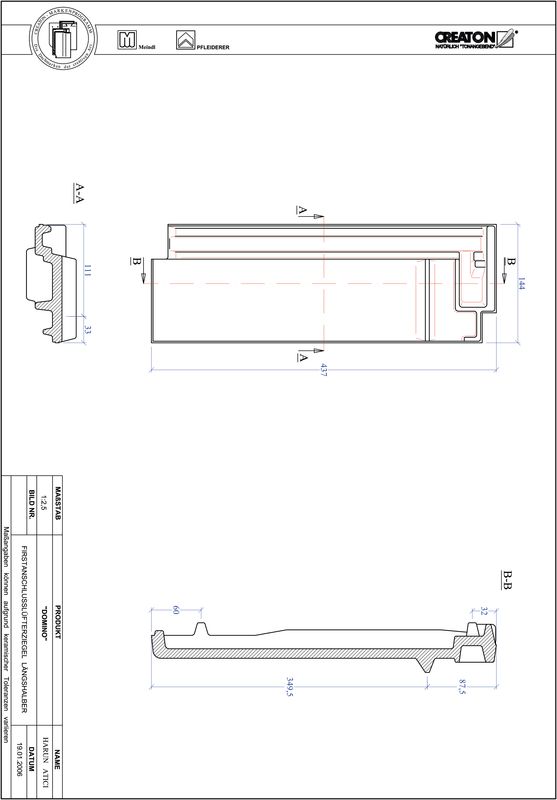

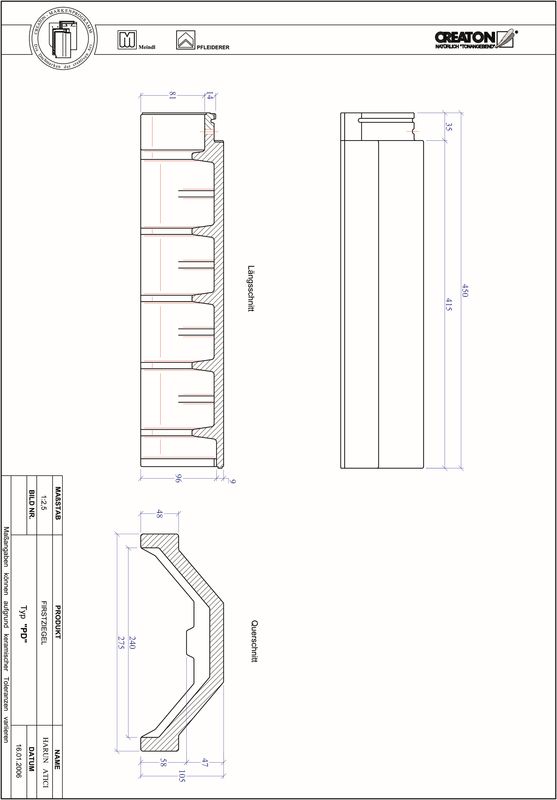

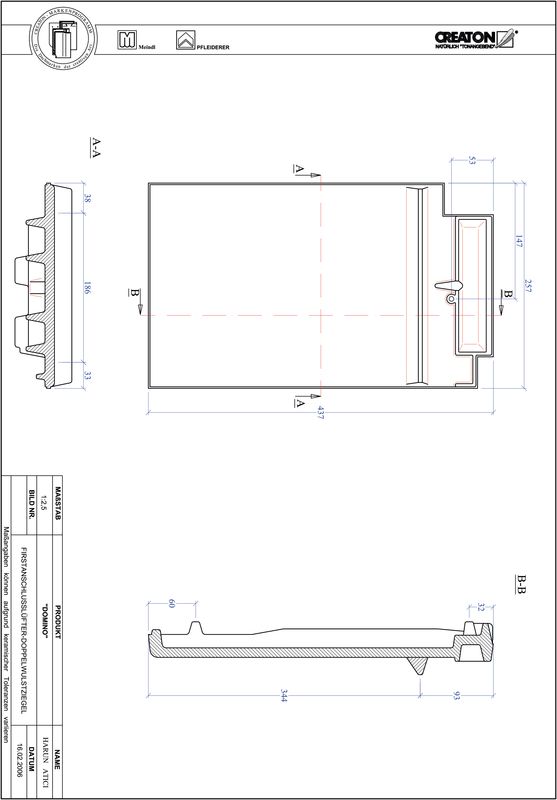

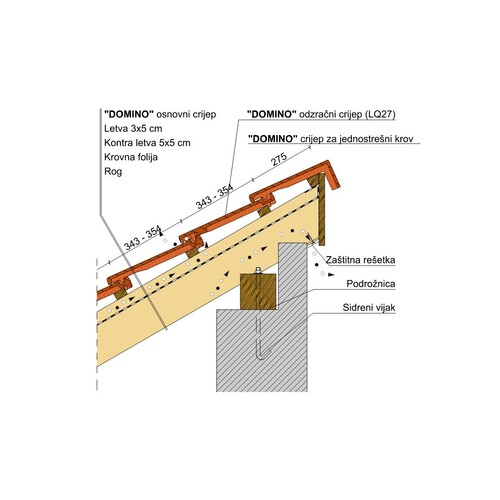

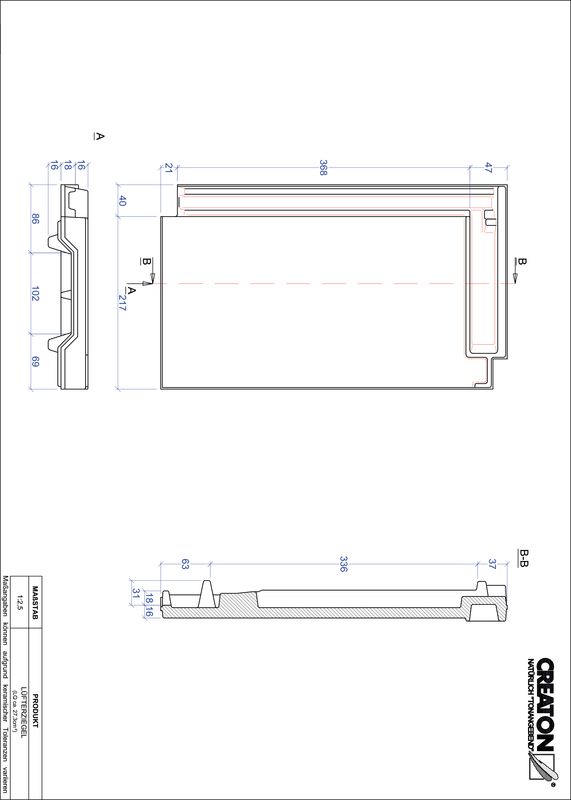

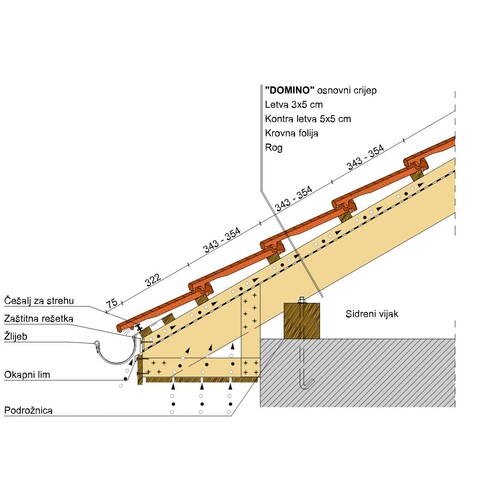

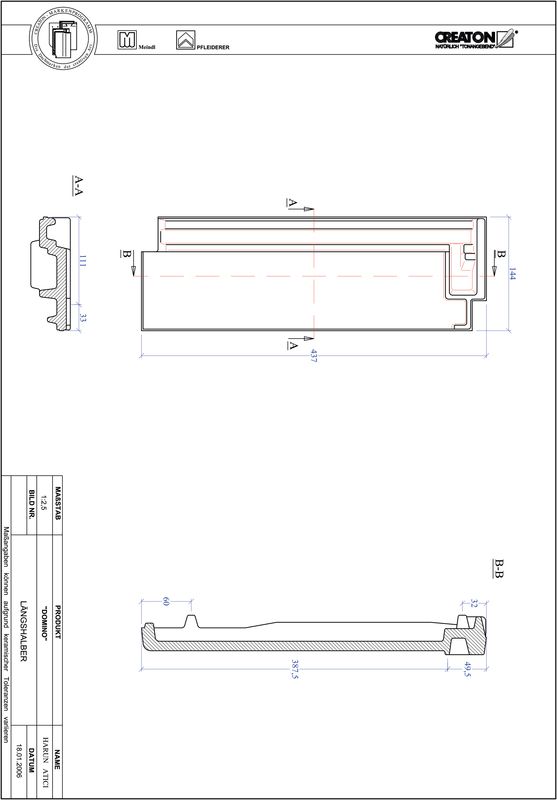

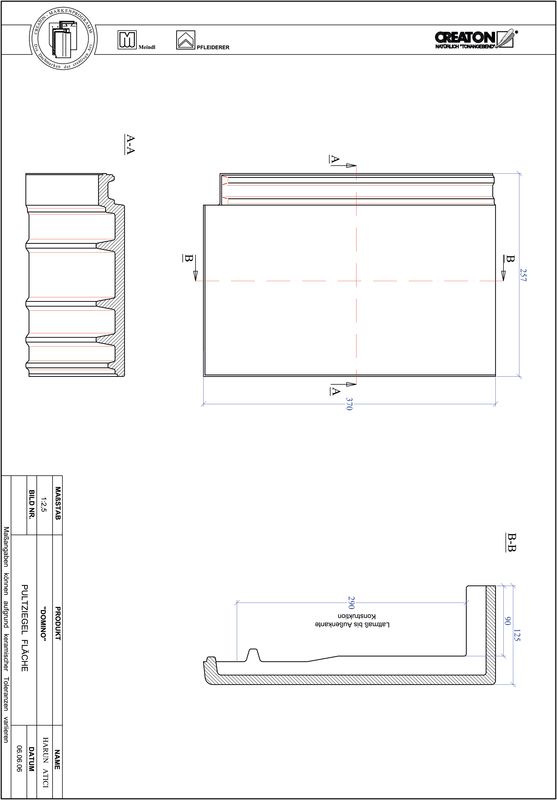

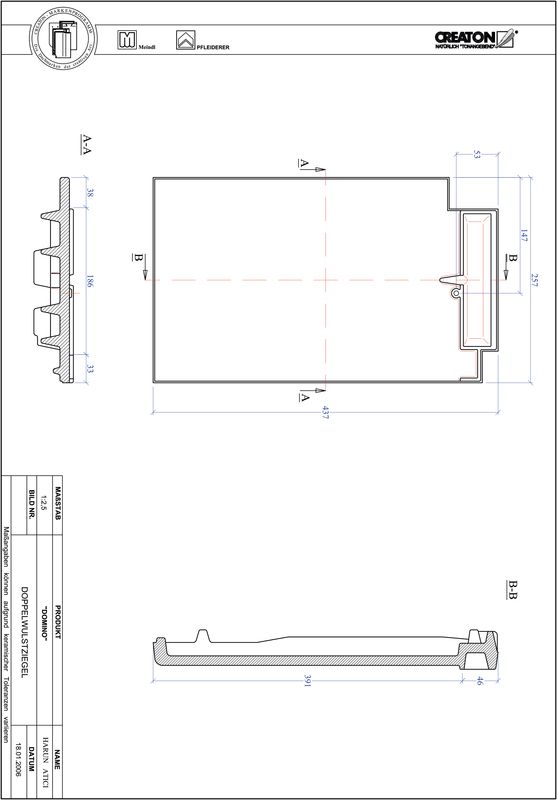

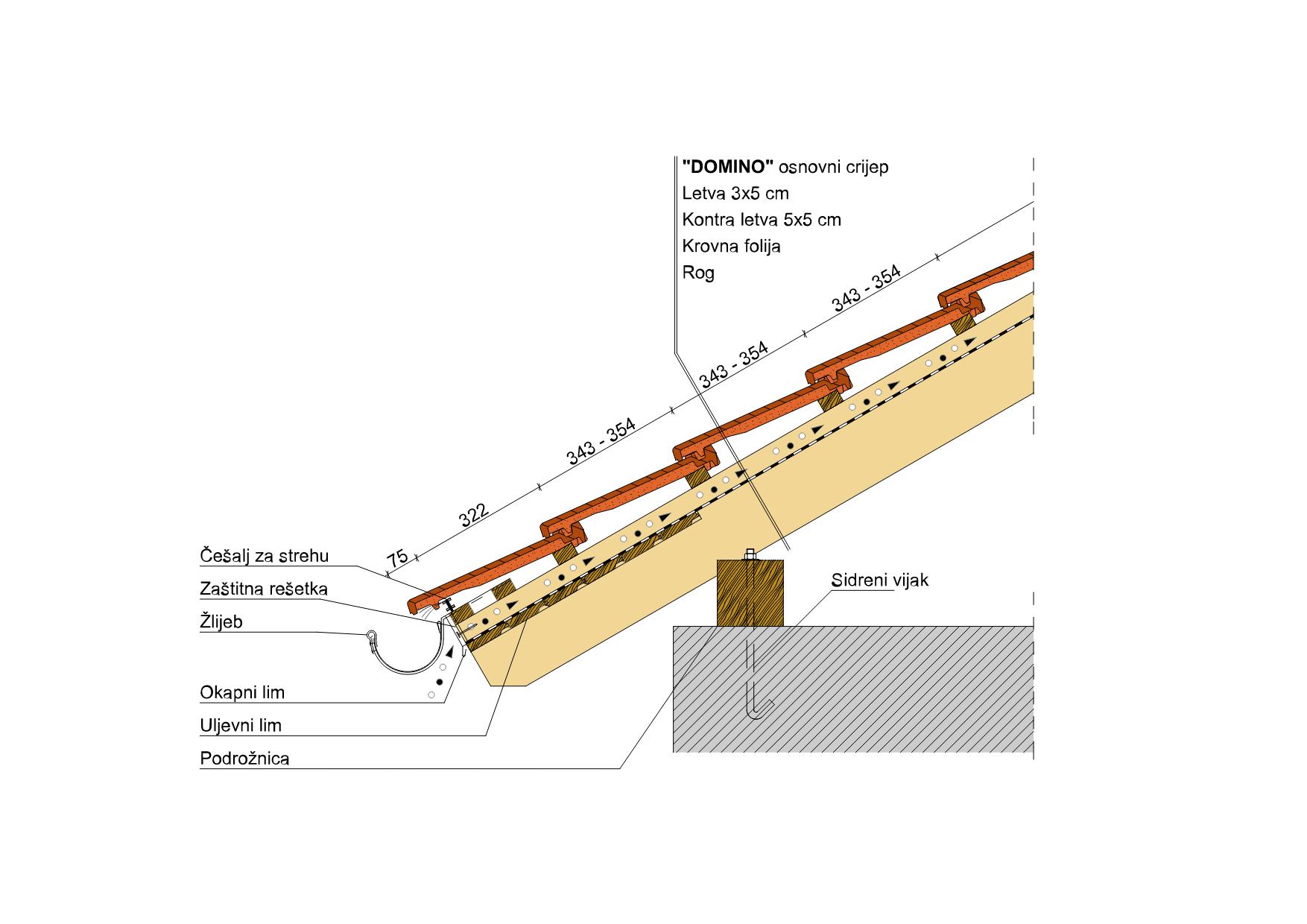

  • The technical drawing shown is merely an example.

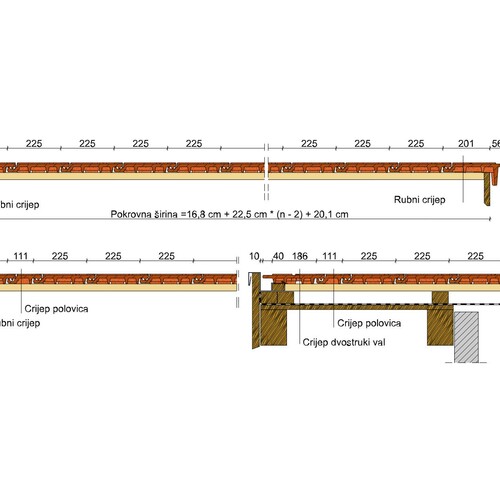

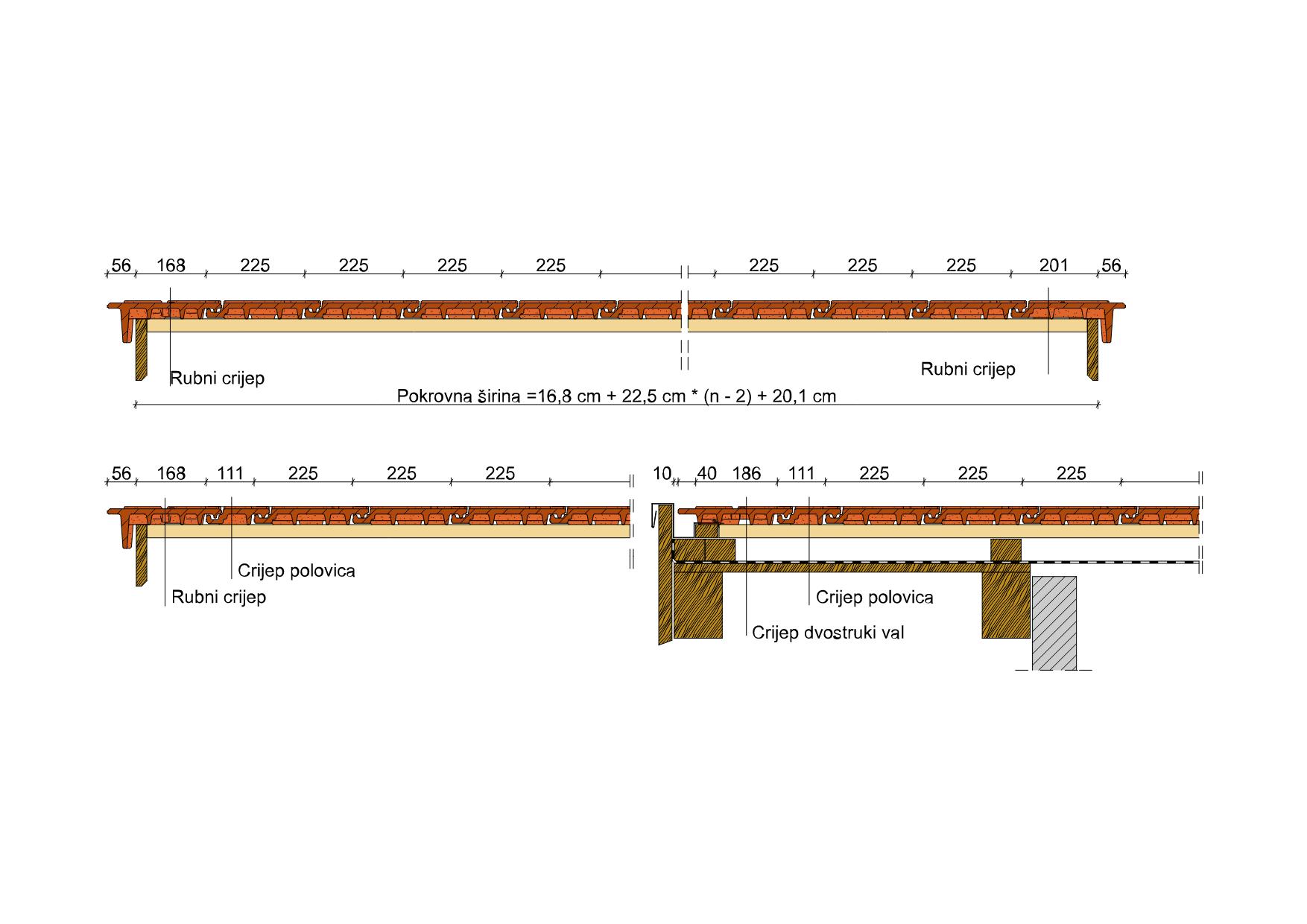

  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.

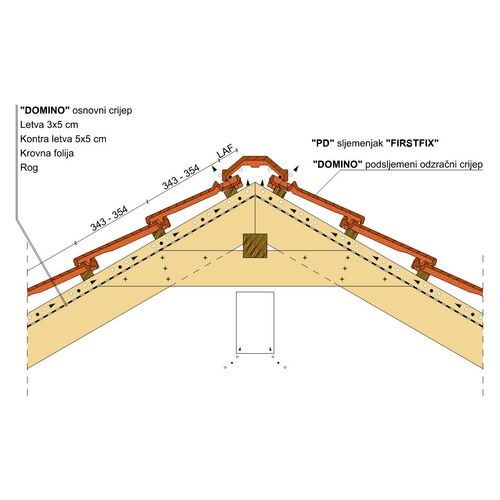

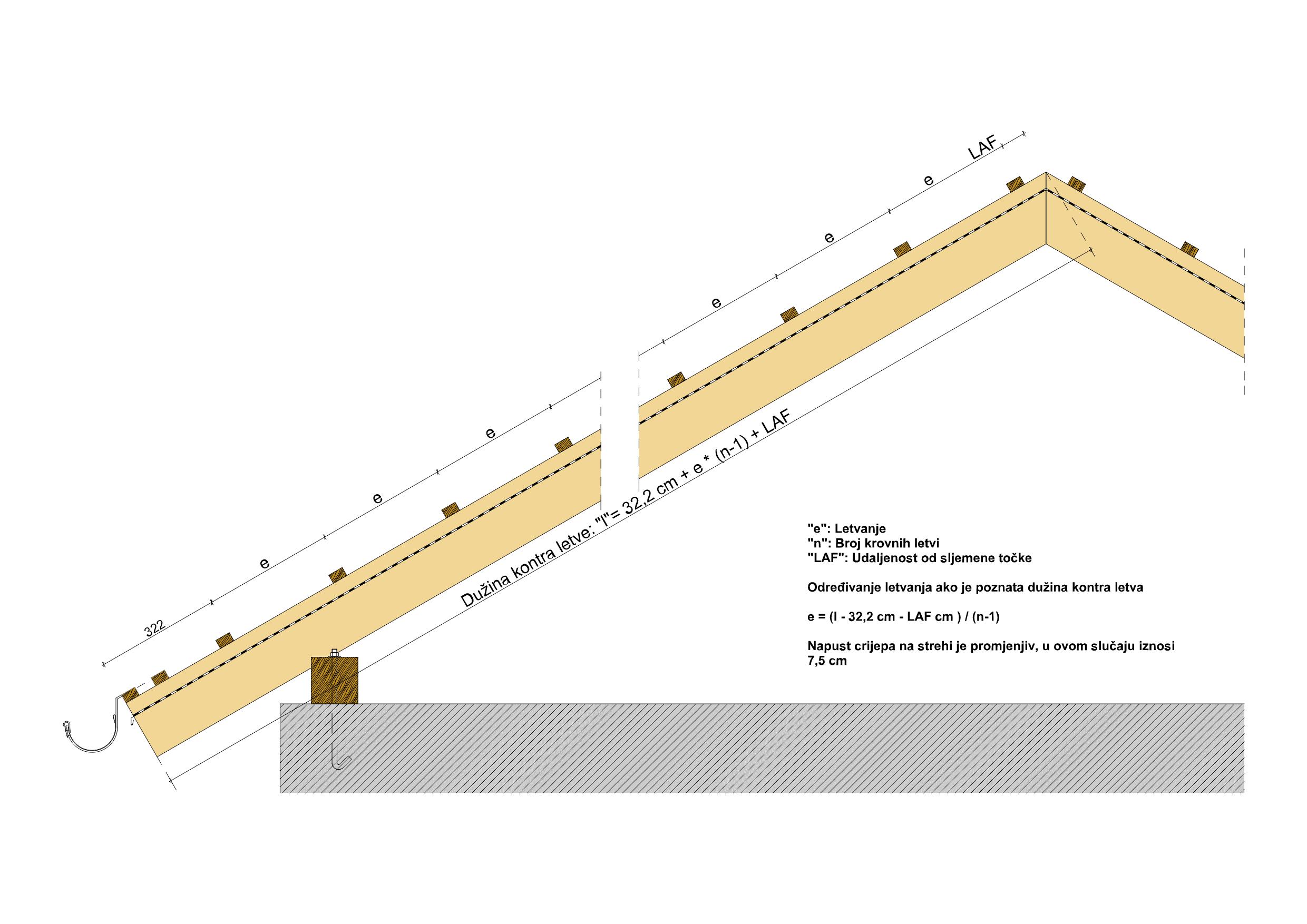

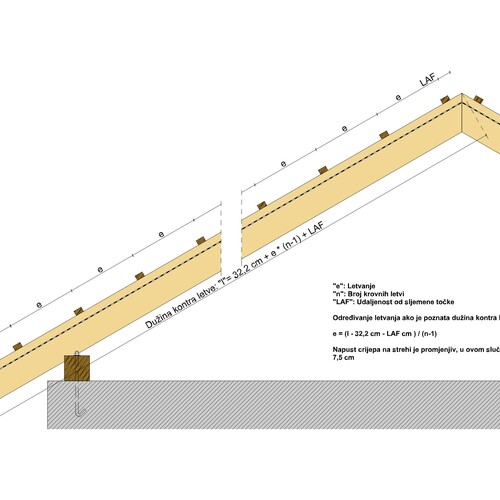

LAF-/FLA-VALUES

LAF-/FLA VALUES IN MM FOR 30x50-BATTENS

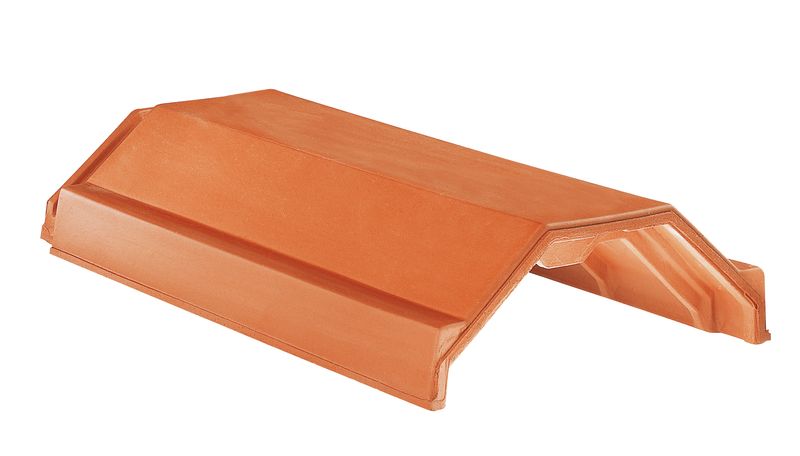

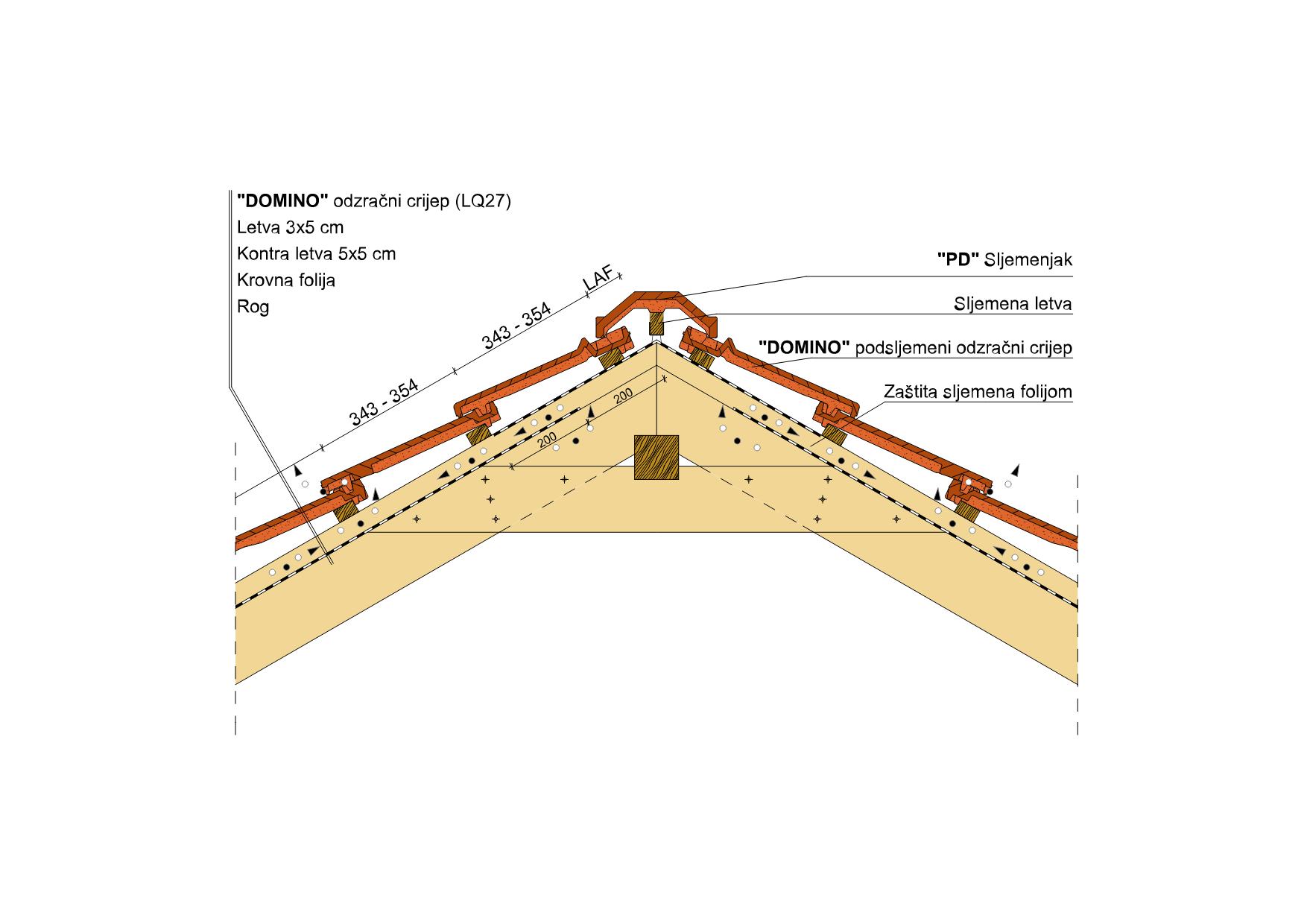

Ridge tileDN15°20°25°30°35°40°45°50°55°
PD 2.5 pcs./m.FLA858070605040302515
PD 2.5 pcs./m.LAF959085858585858585
LAF-/FLA VALUES IN MM FOR 40x60-BATTENS
Ridge tileDN15°20°25°30°35°40°45°50°55°
PD 2.5 pcs./m.FLA959080706050403525
PD 2.5 pcs./m.LAF959080808080757070
LAF-/FLA VALUES IN MM FOR 50x50-BATTENS
Ridge tileDN15°20°25°30°35°40°45°50°55°
PD 2.5 pcs./m.FLA10510090807565555545
PD 2.5 pcs./m.LAF908575757070656060
