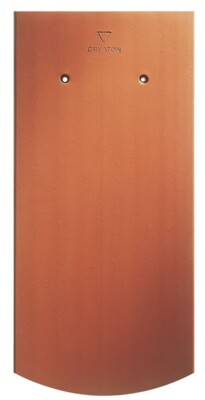

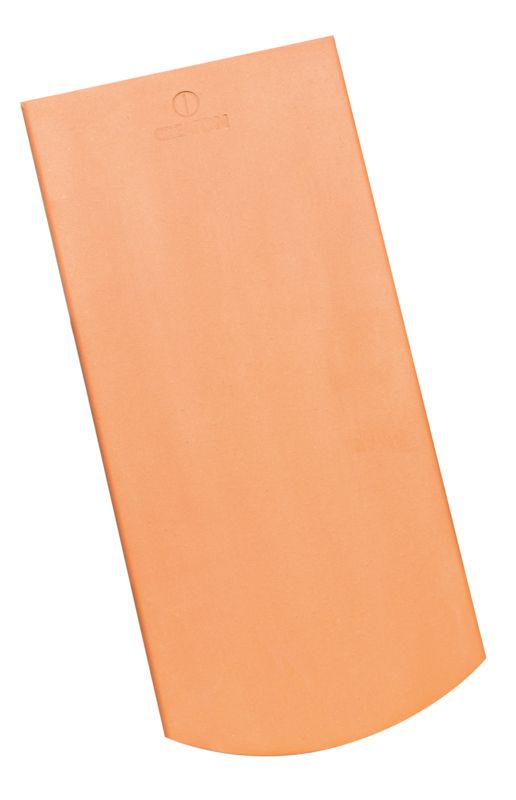

AMBIENTE segmentnog oblika

  • Decentna raspodjela velikih površina krova
  • Raznolikost oblika ne postavlja nikakve granice mašti pri planiranju krova
  • Stilski prikladan, napredan moderni izgled krova koji se uklapa u krajolik
  • Spoj tradicionalnog i modernog

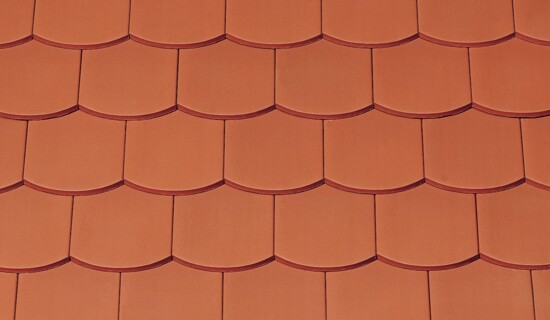

prirodno crvena
prirodno crvena
NUANCE bakreno crvena engobirana
NUANCE bakreno crvena engobirana
NUANCE antracit engobirana
NUANCE antracit engobirana
NUANCE starosiva engobirana
NUANCE starosiva engobirana

Technical data

Dimenzije(cca.)180 x 380 x 14 mm
Maks.pokrovna širina(cca.)180 mm
Letvanje preporučeno(cca.)155 mm
Maks. letvanje(cca.)165 mm
Min.letvanje(cca.)145 mm
Utrošak crijepa prosječno(cca.)36 kom/m²
Masa po m²(cca.)68.4 kg/m²
Masa palete(cca.)979 kg
Masa po komadu(cca.)1.9 MENGENEINHEIT#KGPROST
Komada na paleti480 komad
BETON I VLAKNO CEMENT8 piece

Area of use

VALID FOR GERMANY
Nagib krova DUO extra (D)≥ 22 °
Nagib krova QUATTRO longlife extra (D)≥ 10 °
Nagib krova TRIO extra (D)≥ 18 °
VALID FOR AUSTRIA
Nagib krova DUO extra (A)≥ 25 °
Nagib krova QUATTRO longlife extra (A)≥ 25 °

Technical informations

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Batten spacing / tile gauge is dependent on the roofing type and roof pitch.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
